MARTIN WISMAN HPLX 18
Šifra: 10876
Regularna cena:
17.880,00 rsd
10.900,00 rsd (Bez PDV-a)
Cena sa popustom * :
Cena za kupovinu na rate:
13.080,00 rsd
*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom i kreditnom karticom.
Iznos rate:
Ušteda :
4.800,00 rsd
Prijavi povoljniju cenu
Prikazana cena je za komad.
Garantujemo najnižu cenu!

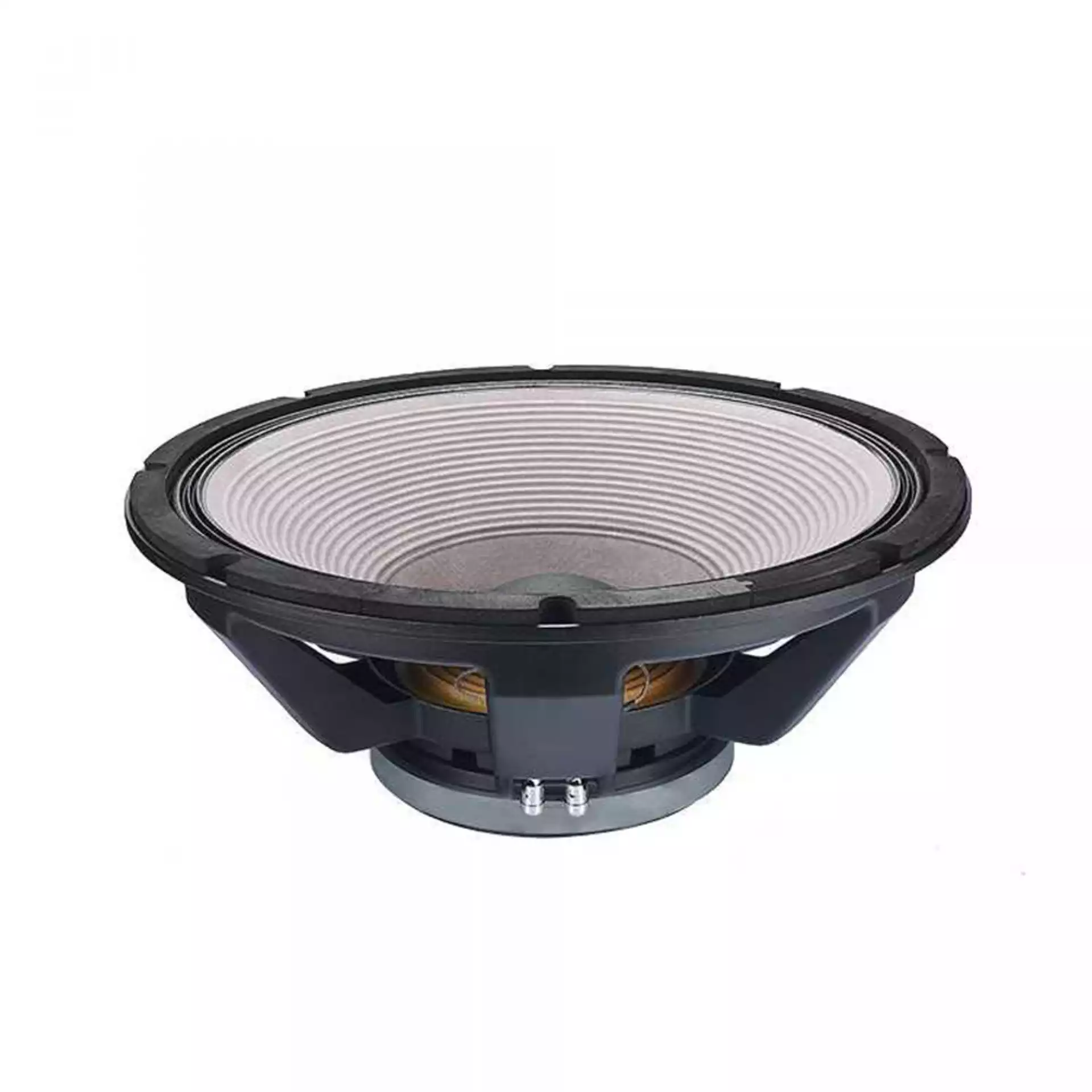

Introduce：18 inch Loudspeaker
1- Model: HPLX 18
2- Rate Impedance: 8Ω
3- Power Handling: 750 W
4- Voice Coil Diameter: 100mm / 4 inch
5- Magnet:Φ220mm Ferrite Ring
| General Specifications | ||
| Nominal Diameter | 460mm/18inch | |
| Nominal Impedance | 8Ω | |
| RMS Power Input | 750W | |
| MAX Power Input | 1500W | |
| Sensitivity 1W/1M | 95.8dB | |
| Frequency Range | 39.2Hz~2.8kHz | |
| Voice Coil Diameter | 100mm/4 inch | |
| Voice Windinig Material | Copper | |
| Voice Former Material | Aluminium | |
| Voice Winding Depth | 23mm | |
| Magnetic Gap Depth | 10mm | |
| Xmax | ±7mm | |
| Surround Material | Polycotton | |
| Surround Design | Triple-roll | |
| Magnet | Φ220 | Ferrite Ring |
| Thiele & Small Parameters | ||
| Resonance Frequency | Fs | 39.2Hz |
| DC Resistance | Re | 5.2Ω |
| Mechanical Factor | Qms | 4.62 |
| Electrical Factor | Qes | 0.58 |
| Total Factor | Qts | 0.514 |
| BL Factor | BL | 19.1T.m |
| Effective Moving Mass | Mms | 164.59g |
| Compliance | Cms | 100.257μ M/N |
| Equivalent Cas Air Load | Vas | 236.27L |
| Effetive Piston Area | Sd | 1288cm2 |
| η(Eta Zero) | η0 | 2.38% |
| Mounting & Shipping | ||
| Overall Diameter | 474mm | |
| Bolt Circle Diameter | 449mm | |
| Baffle Cutout Diameter | 426mm | |
| Depth | 204mm | |
| Net Weight | 11.7kg | |
| Shipping Weight | 12.3kg | |
| Shipping Box(Single) | 48x48x20.5cm | |
| Shipping Weight (1Unit) | 13.3kg | |
| Shipping Box(Single) (1Unit) | 48x48x25cm | |
