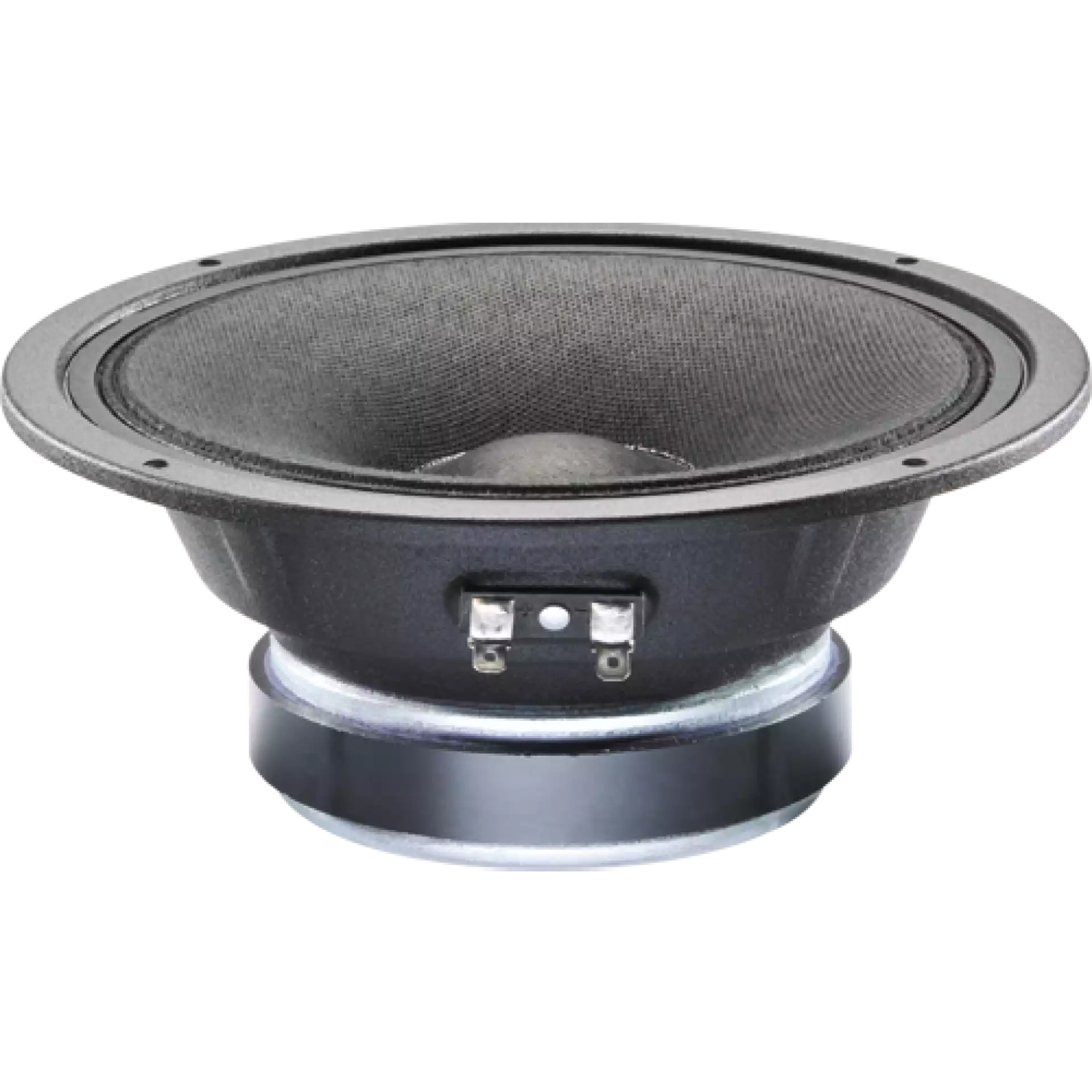

CELESTION TF 0615MR - Zvučnik
Šifra: 03288
Regularna cena:
7.080,00 rsd
4.200,00 rsd (Bez PDV-a)
Cena sa popustom * :
Cena za kupovinu na rate:
5.040,00 rsd
*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom karticom.
Iznos rate:
Ušteda :
2.040,00 rsd
Prijavi povoljniju cenu
Prikazana cena je za komad.
Garantujemo najnižu cenu!
6 mid-range speaker drive unit providing 94dB sensitivity and 100Wrms
Specifications
100W
Nominal Power Rating
95dB
Sensitivity
1.5in
Voice coil diameter
Nominal Diameter
152mm/6in
Nominal Power Rating
100W
Continuous Power Rating
200W
Sensitivity
95dB
Rated Impedance
8Ω
Frequency Range
85Hz-6000Hz
Voice coil diameter (mm)
38mm
Voice coil diameter (in)
1.5in
Chassis Type
Pressed steel
Magnet Type
Ferrite
Magnet Weight
0.48kg/17oz
Voice coil material
Round copper
Former Material
Polyimide
Cone material
Kevlar loaded paper
Surround Material
Cloth sealed
Suspension
Single
Xmax
2.5mm/0.1in
Gap Depth
6mm/0.24in
Voice coil winding width
6.5mm/0.26in
Packed Dimensions & Weight
Single pack size W x D x H
190mm x 200mm x 90mm/7.5in x 7.9in x 3.5in
Single pack weight
2.0kg/4.4lb
Small Signal Parameters
Sd
153.94cm2/23.86in2
Fs
104.70Hz
Mms
12.09g/0.43oz
Qms
3.949
Qes
0.719
Qts
0.608
Re
7.08Ω
Vas
6.41L/0.23ft3
BI
8.85Tm
Cms
0.19mm/N
Rms
2.01kg/s
Le (at 1kHz)
0.47mH
Mounting Information
Mounting slot dimensions
4.3mm/0.17in Ø
Number of mounting slots
4
Overall Depth
74mm/2.91in
Overall Diameter (mm)
178mm
Overall Diameter (in)
7.01in
Cut-out diameter
147mm/5.79in
Mounting PCD Range
168.5mm/6.63in
Unit Weight
1.4kg/3.1lb
Frequency Response and Impedance Curves
Topmost curve: Frequency response on axis | Secondary curve: Frequency response at 45° off axis
Power Rating: Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
Continuous Power Rating is defined as 3dB greater than the AES rating.
Sensitivity measured on axis at 1W, 1m in 2Π anechoic environment.
Xmax is derived from: (voice coil winding width-gap depth)/2.
Small Signal Parameters are measured after unit subjected to pre-conditioning signal.
