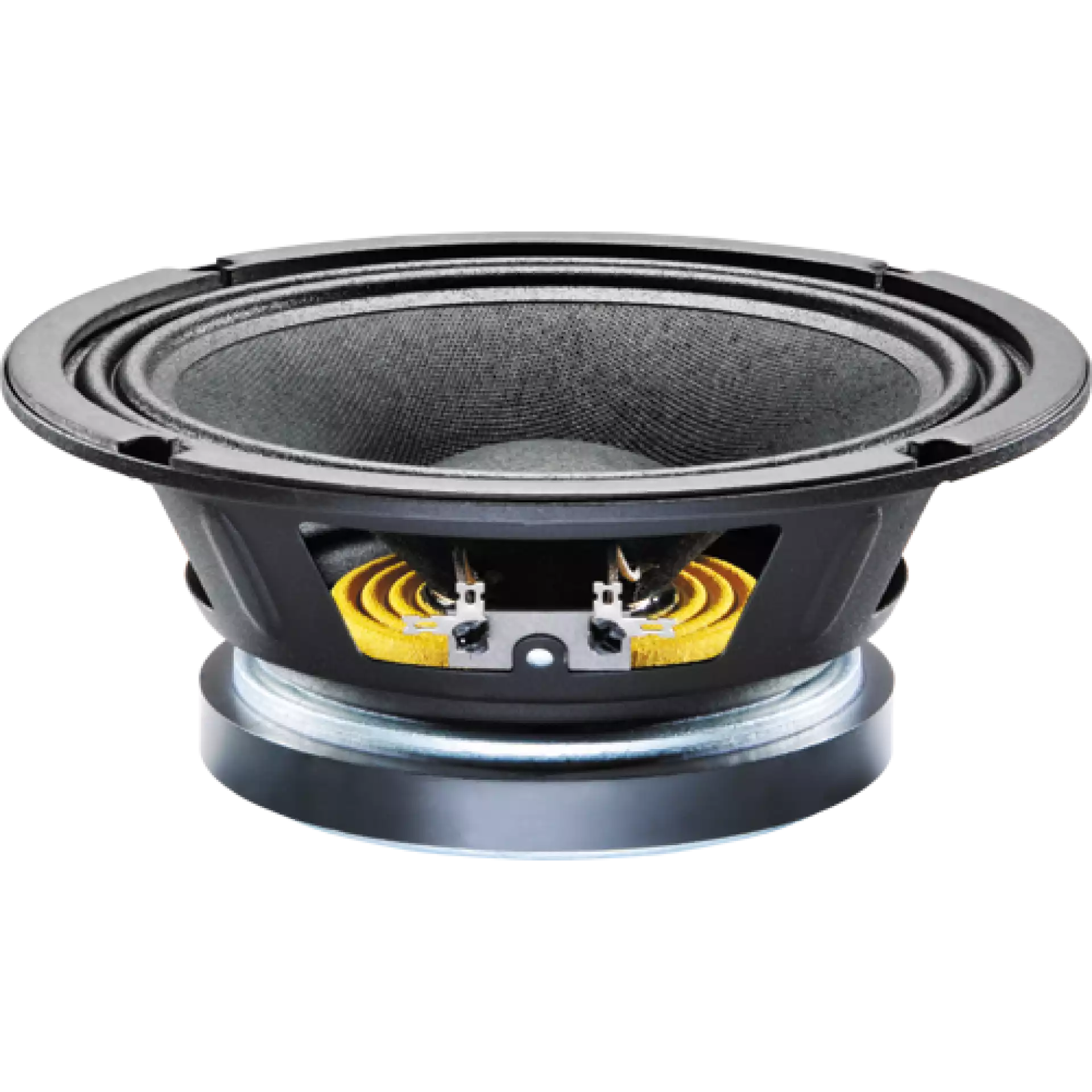

CELESTION TF 0818 - Zvučnik

Šifra: 2795
Na stanju
Regularna cena:
8.280,00 rsd
5.900,00 rsd (Bez PDV-a)
Cena sa popustom * :
Cena za kupovinu na rate:
Cena sa popustom * :
7.080,00 rsd

*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom i kreditnom karticom.

Iznos rate:
Ušteda : 1.200,00 rsd
Prikazana cena je za komad.

Garantujemo najnižu cenu!

Količina

Ukoliko želite da platite na rate kreditnom karticom, molimo Vas da izaberete broj rata.

Važi za kreditne kartice logo_banka

Broj rata:

Dostupno u prodavnici:
  • Svetogorska 9, Beograd
  • Centralni magacin
Prijavi povoljniju cenu Obavesti me ako cena padne Postavi pitanje
Opcija:

  • 8"  low frequency driver providing 94dB sensitivity and 100Wrms



Frequency Response and Impedance Curves

Frequency Response and Impedance Curves









General specifications







Nominal diameter (mm/in) 203/8
Power Rating (AES, W rms) 100
Nominal impedance (Ω) 8
Voice coil diameter (mm/in) 44.5/1.75
Magnet type Ferrite
Magnet weight (kg/oz) 0.88/31
Chassis type Pressed steel
Sensitivity (dB) 94
Frequency range (Hz) 70-6000
Coil material Round copper
Former material Polyimide
Cone material Kevlar loaded paper
Surround material Cloth-sealed
Suspension Single
Xmax (mm/in) 3.4/0.13
Gap depth (mm/in) 6.0/0.24
Voice coil winding width (mm/in) 12.7/0.50







Small Signal Parameters







D (m/in) 0.17/6.69
Fs (Hz) 95
Mmd (g/oz) 15.60/0.55
Mair 1.93/0.068
Qms 3.83
Qes 0.50
Qts 0.44
Re (�) 6.40
Vas (lt/ft3) 12.6/0.44
BI (Tm) 11.36
Cms (mm/N) 0.17
Rms (kg/s) 2.62
Le (mH) 0.75







Mounting Information







Overall diameter (mm/in) 208/8.19
Overall depth (mm/in) 99/3.54
Cut-out diameter (mm/in) 183/7.20
Mounting slot dimensions (mm/in) 9.5 x 5.5/0.37 x 0.22
Number of mounting slots 8
Mounting slot PCD range (mm/in) 195-199/7.68-7.83
Unit weight (kg/lb) 2.3/5.1







Packed Dimensions and Weight







Single pack size W x D x H (mm/in) 230 x 230 x 110/9.1 x 9.1 x 4.3
Single pack weight (kg/lb) 3/6.6
Multipack (140) size W x D x H (mm/in) 1070 x 850 x 860/42.1 x 33.5 x 33.9
Multipack (140) weight (kg/lb) 435/959
