CELESTION CDX1-1746 - Visokotonac
Šifra: 11513
Na stanju
10.200,00 rsd
8.500,00 rsd (Bez PDV-a)
Iznos rate:
Prikazana cena je za komad.
Garantujemo najnižu cenu!
Dostupno u prodavnici:
- Futoški put 1, Novi Sad
- Ugrinovački Put 10n, Zemun
- Svetogorska 9, Beograd

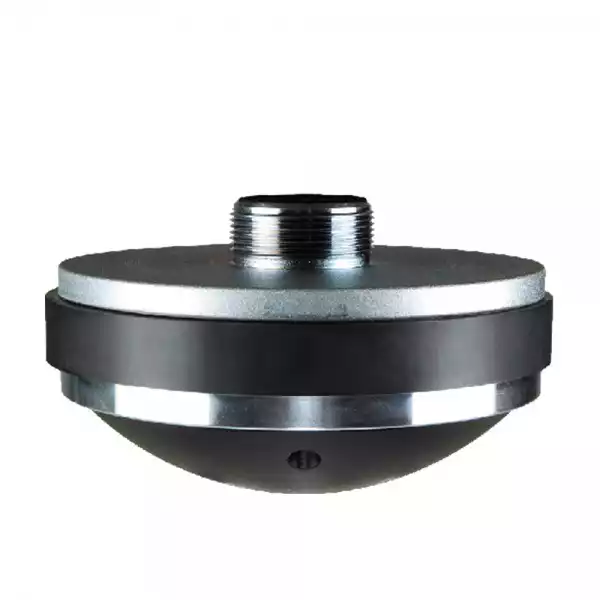

1" exit, ferrite magnet compression driver with 1.75" edgewound copper clad aluminium voice coi
- 40Wrms power handling (AES standard) and 110dB sensitivity
- Sound Castle™ clamping ensures even pressure on diaphragm assembly for reduced distortion
- One piece PETP diaphragm and surround
- Finite Element Analysis (FEA) used to optimise both magnet assembly and acoustic design
General Specifications
Power rating1
40Wrms
Continuous power rating2
80W
Nominal impedance
8Ω
Frequency range
1200-20,000Hz
Sensitivity3
110dB
Recommended min. crossover (12dB/oct)
2200Hz
Voice coil diameter
44mm/1.75in
Voice coil material
Edgewound copper clad aluminium
Magnet type
Ferrite
Diaphragm material
PETP film
Surround material
PETP film
Mounting Information
Width
120mm/4.7in
Depth
56mm/2.2in
Weight
2.3kg/5.1lb
Fitting
Screw (35mm, 1.38in dia)
Throat exit
25.4mm/1in
Packed Dimensions & Weight
Single pack size W x D x H
140mm x 170mm x 70mm
/5.5in x 6.7in x 2.8in
Single pack weight
3kg/6.6lb
Multi pack size W x D x H
430mm x 370mm x 90mm
/16.9in x 14.6in x 3.5in
Multi pack weight
14kg/31lb
