Large Music Venues & Outdoor Festivals
12" Woofer
3 x 1" Compression Drivers
Frequency Response: 50 Hz to 20 kHz
2000W Class-D Amplifier
Integrated Advanced Impulse DSP Module
User-Adjustable DRM Control Dashboard
Parallel XLR Input and Output
Universal Power Supply
Tour-Grade Enclosure with Steel Grille

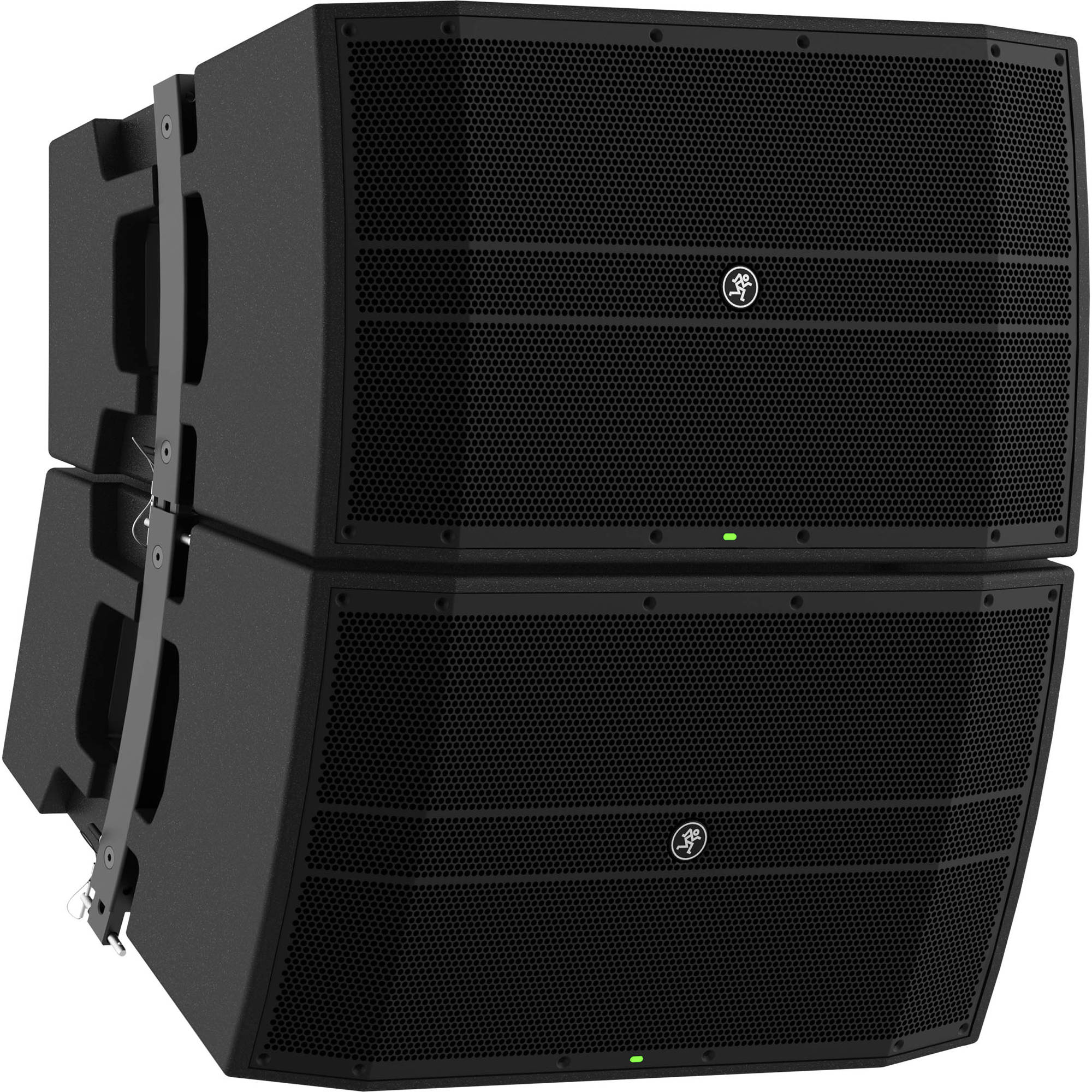

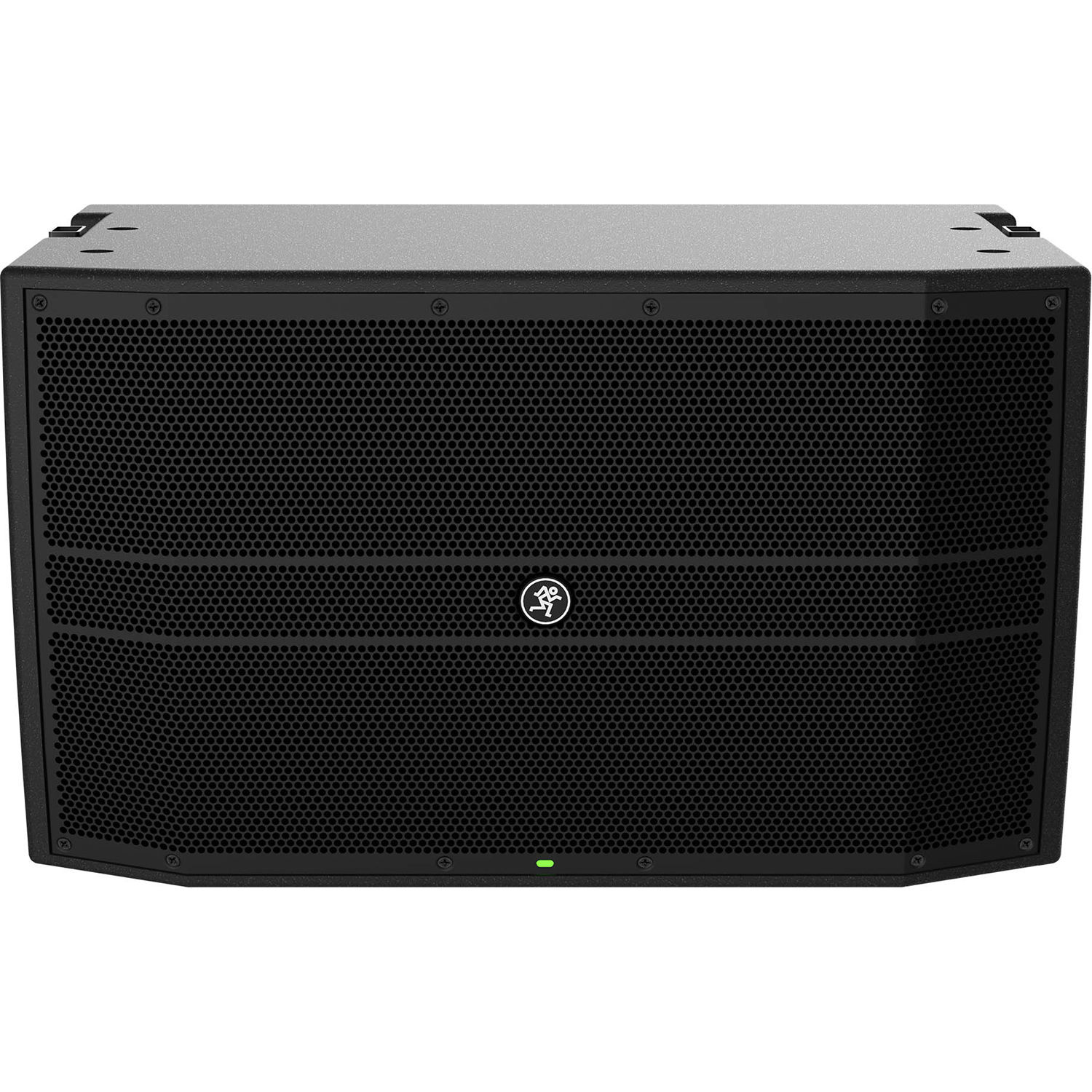

PA Speaker
| Configuration |
Active
|
| Total Power Capacity |
2000 W Peak
|
| Amplifier Class |
Class-D
|
Drivers
| HF Driver |
3 x 1" / 25.4 mm
|
| LF Driver |
1x 12" / 30.5 cm Woofer
|
Performance
| Frequency Response |
50 Hz to 20 kHz -10 dB
|
| Maximum SPL |
135 dB
|
| Coverage Angle |
110° H x 20° V
|

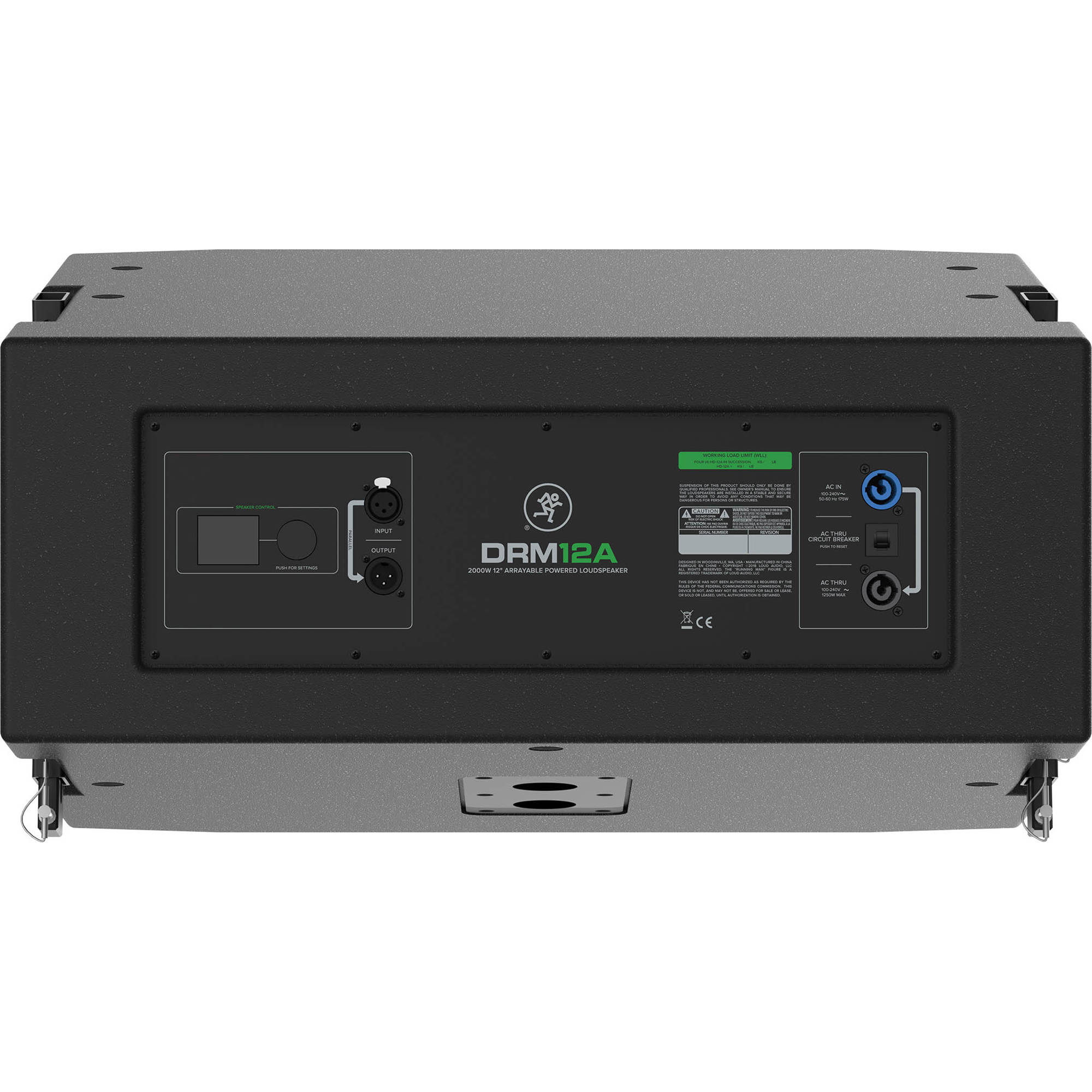

Connectivity
| Audio I/O |
1x XLR 3-Pin Input
1x XLR 3-Pin Output
|
Signal Processing
| EQ |
Yes
|
| Alignment Delay |
Yes
|
Power
| AC Input Power |
Universal:
100 to 240 VAC, 50 / 60 Hz
|
Physical

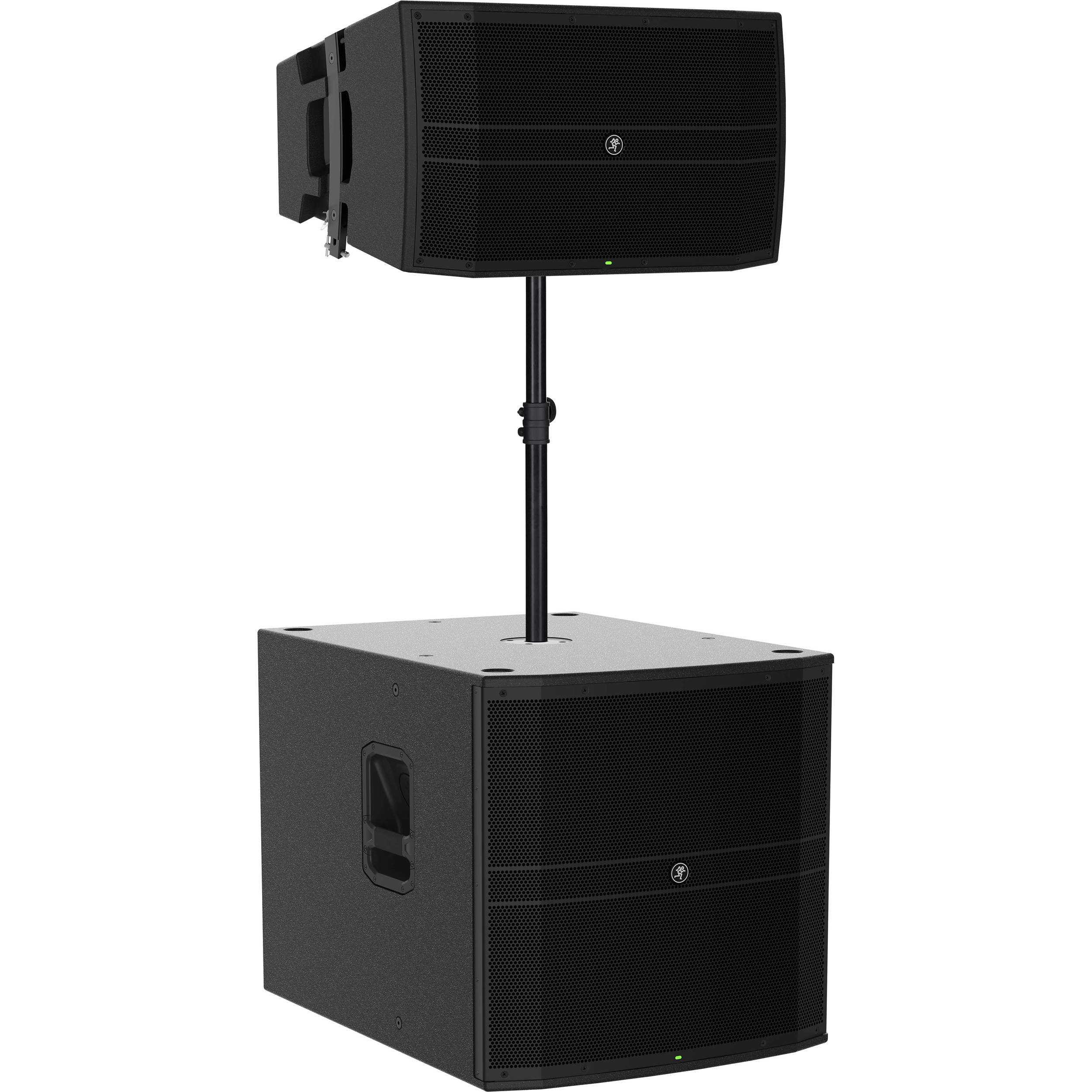

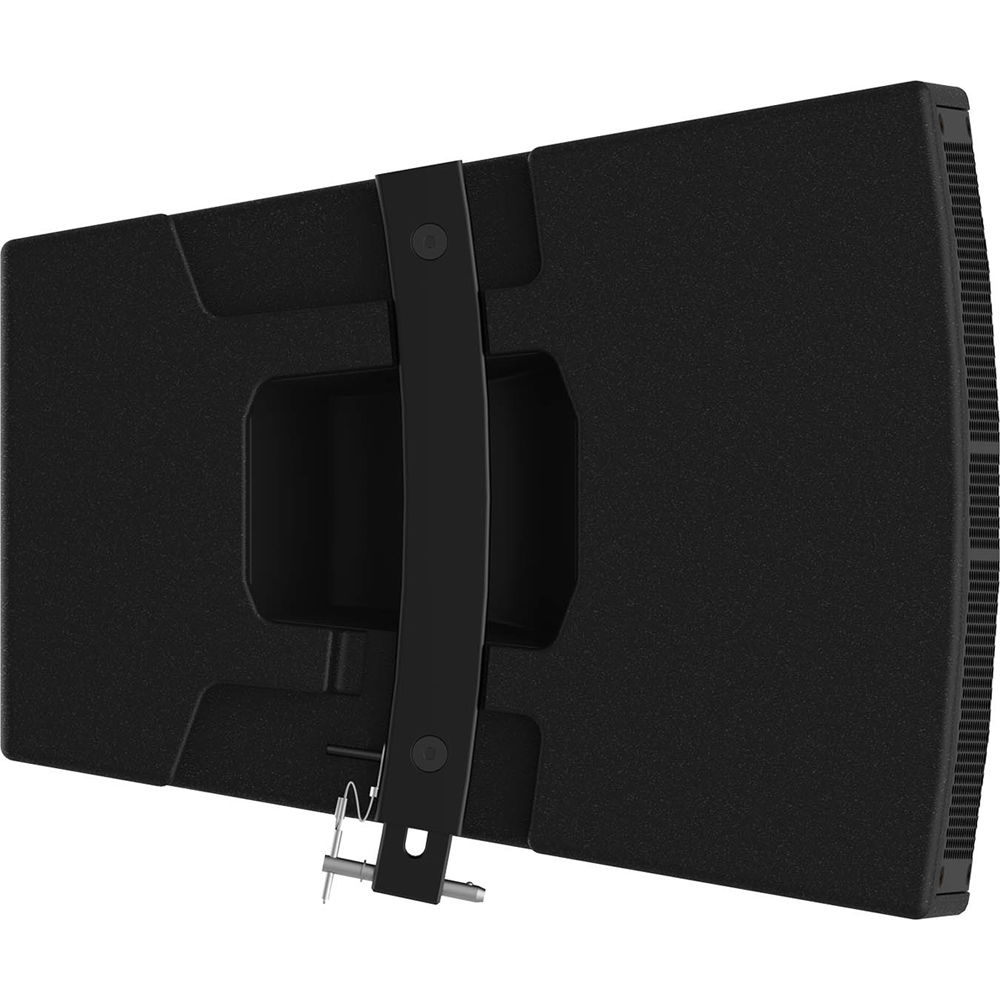

| Mounting |
7 x M10
Pole Socket (Dual Angle)
|
| Construction Material |
Metal Grille, Plywood
|
| Dimensions |
15.2 x 24.7 x 18" / 386.1 x 627.4 x 457.2 mm
|
| Weight |
55 lb / 24.9 kg
|
Packaging Info
| Package Weight |
60.15 lb
|
| Box Dimensions (LxWxH) |
28.5 x 21.2 x 18.5"
|
