For Medium- to Large-Sized Venues
15" Woofer and 1.4" Compression Driver
1600W Class-D Amplifier
Frequency Response: 43 Hz to 20 kHz
Peak SPL: 135 dB
Integrated Advanced Impulse DSP Module
User-Adjustable DRM Control Dashboard
Dual Independent Mic/Line/Inst Inputs

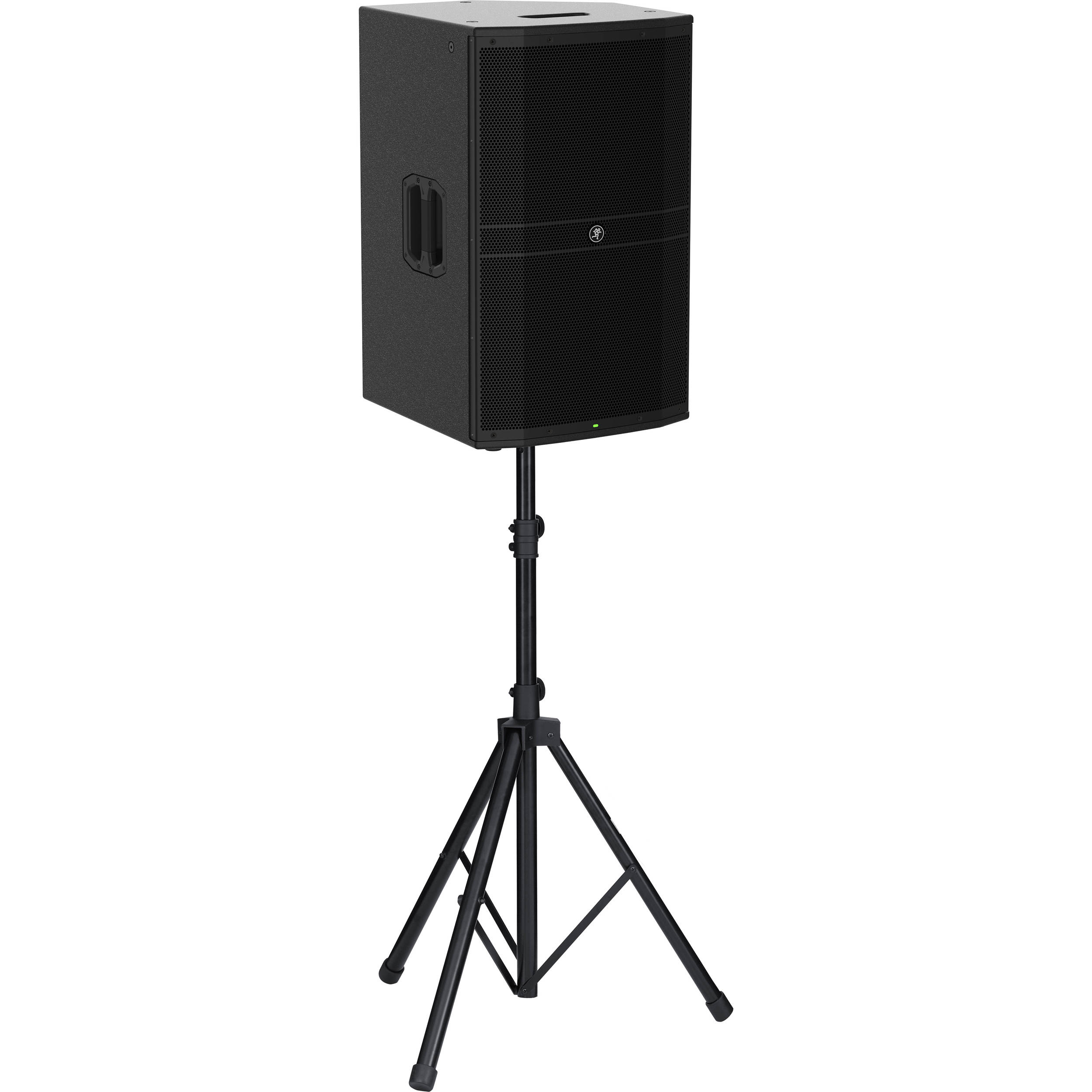

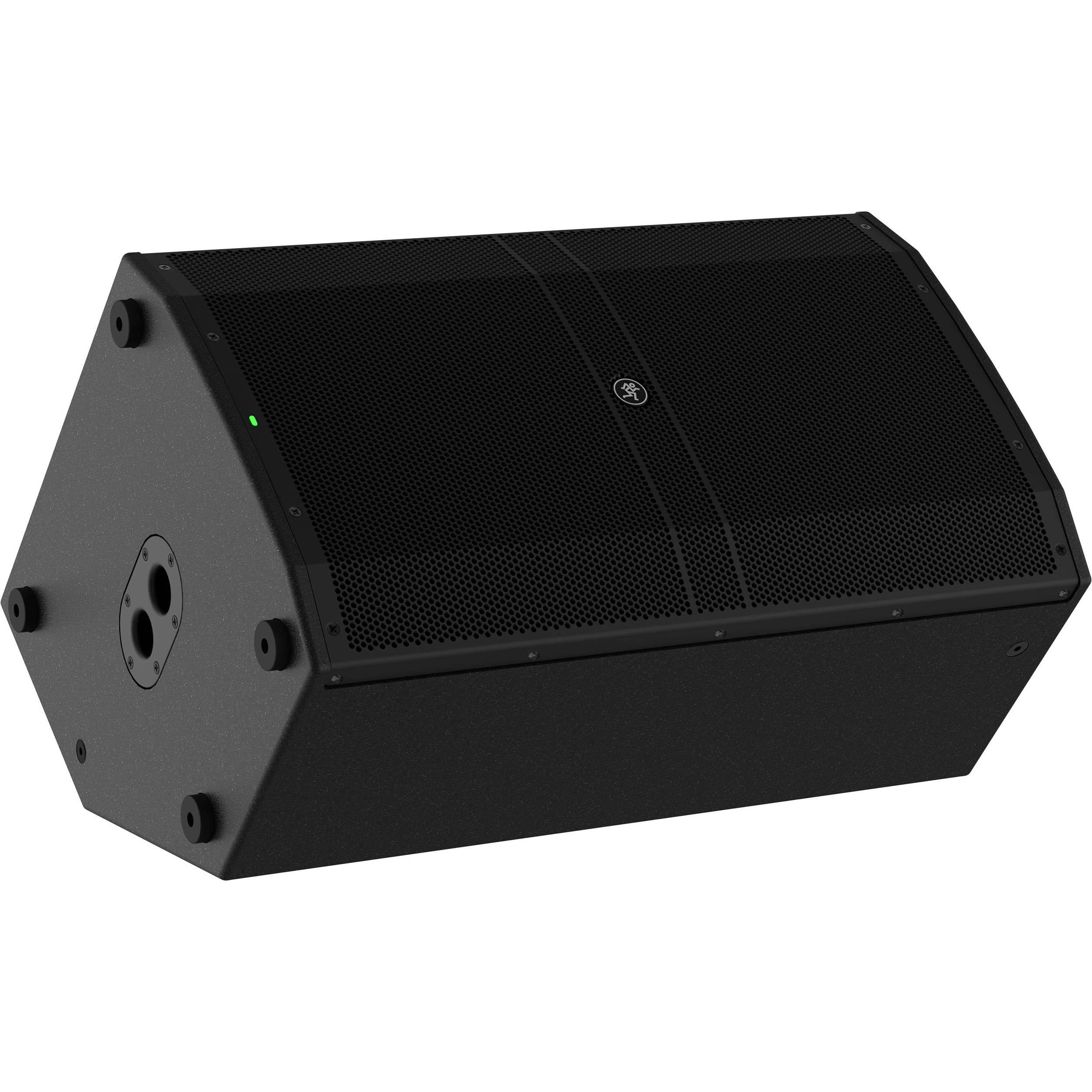

Stack, Stand/Pole Mount, Floor Monitor
Tour-Grade Enclosure with Steel Grille
PA Speaker
| Configuration |
Active
|
| Total Power Capacity |
1600 W Peak
|
| Amplifier Class |
Class-D
|
Drivers
| HF Driver |
1 x 1.4" / 35.6 mm
|
| LF Driver |
1x 15" / 38.1 cm Woofer
|
Performance
| Frequency Response |
43 Hz to 20 kHz -10 dB
|
| Maximum SPL |
135 dB
|
| Coverage Angle |
90° H x 60° V
|

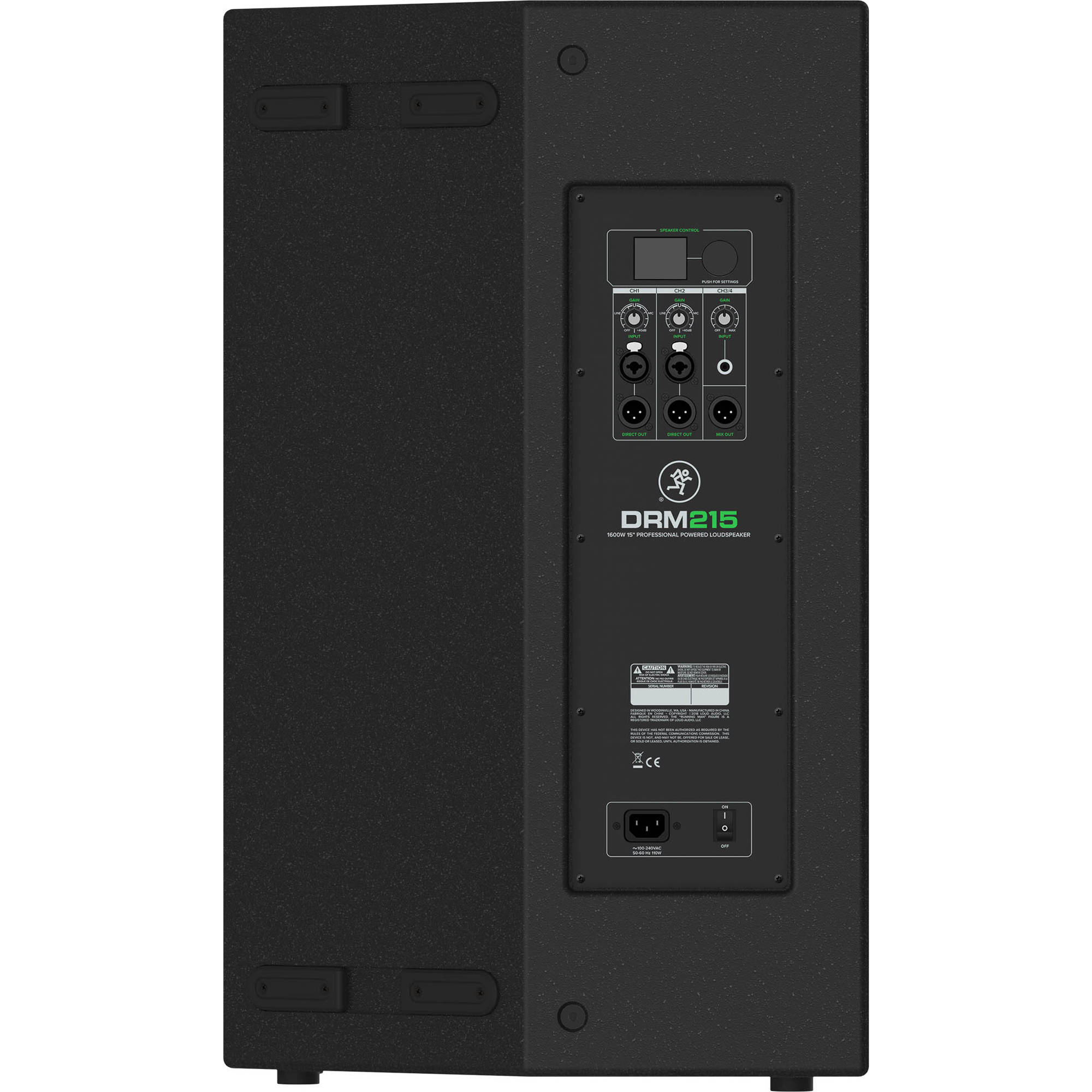

Connectivity
| Audio I/O |
2x Combo XLR-1/4" TRS Mic/Line Input
1x 1/8" / 3.5 mm TRS Aux Input
|
Signal Processing
| EQ |
Yes
|
| Alignment Delay |
Yes
|
Power
| AC Input Power |
Universal:
100 to 240 VAC, 50 / 60 Hz
|
Physical
| Mounting |
8 x M10
Pole Socket (Dual Angle)
|
| Construction Material |
Metal Grille, Plywood
|
| Dimensions |
28.3 x 18.1 x 17" / 718.8 x 459.7 x 431.8 mm
|
| Weight |
57.3 lb / 26 kg
|
Packaging Info
| Package Weight |
62.25 lb
|
| Box Dimensions (LxWxH) |
32.5 x 22 x 20.5"
|
