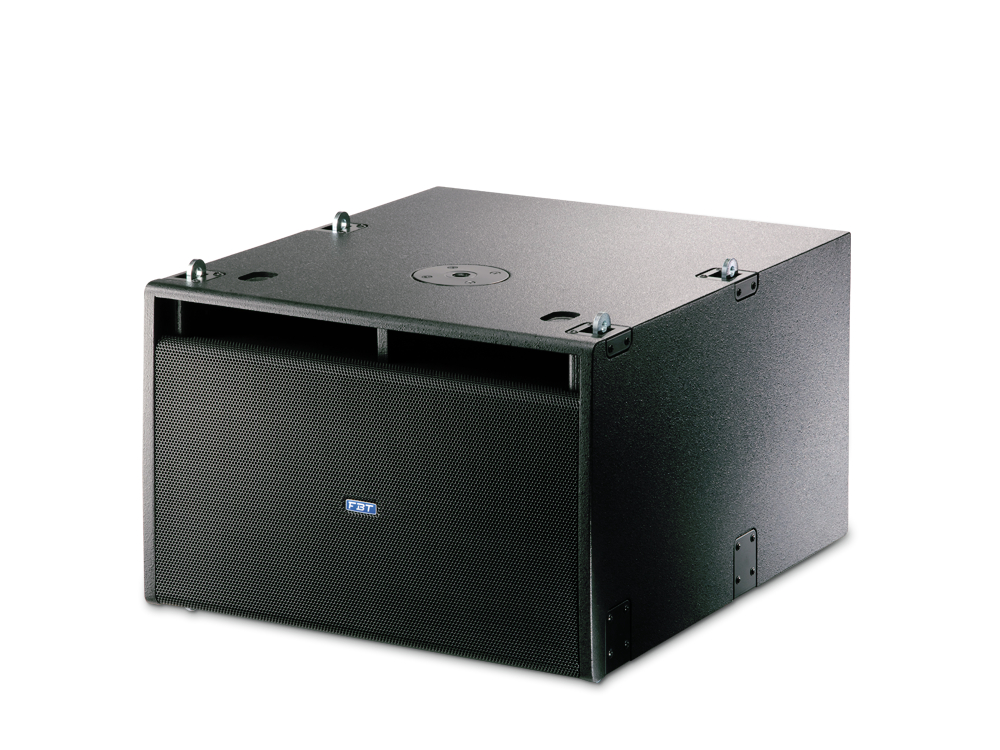

Compact vented band pass subwoofer sharing the same width and hardware suspension of the MITUS 206LA
320 mm (2 x 12’’) B&C neodymium magnet high excursion subwoofers with 75 mm (3’’) voice coils
Frequency Response from 45Hz to 120Hz
 Class D amplifier delivering 1200WRMS
 Switch mode power supply DSP with 8 presets, cardioid and infra configurations, delay
Control panel with XLR input and link, volume, presets, delay, phase 0°-180°, ground-lift
15 mm (5/8’’) birch plywood enclosure, scratch resistant black paint
Low frequency extension cabinet for the MITUS 206LA line array for flying or ground stacked configurations.
M20 top mount stand socket

 Built-in amplifier LF/HF: 1200 W RMS
Built-in amplifier peak LF/HF: 2400 W
Frequency response: 45Hz-120Hz -6dB
Low Frequency woofer: 2x12 - 3 coil - neodymium inch
Maximum SPL cont/peak: 134/138 half-space dB
Dispersion: omnidirectional HxV
Input impedance: 22 Kohm
Crossover Frequency: preset dependant KHz
AC Power requirements: 640 VA
Input connector: XLR with loop
Power cord: 5/16.4 m/ft
Net Dimension (WxHxD): 574x420x660 - 22.6x16.5x26 mm/inch
Net Weight: 36.5 - 80.5 kg/lb
Transport Dimension (WxHxD): 780x710x520 - 30.7x28x20.5 mm/inch
Transport Weight: 41 / 90.4 Kg/lb
