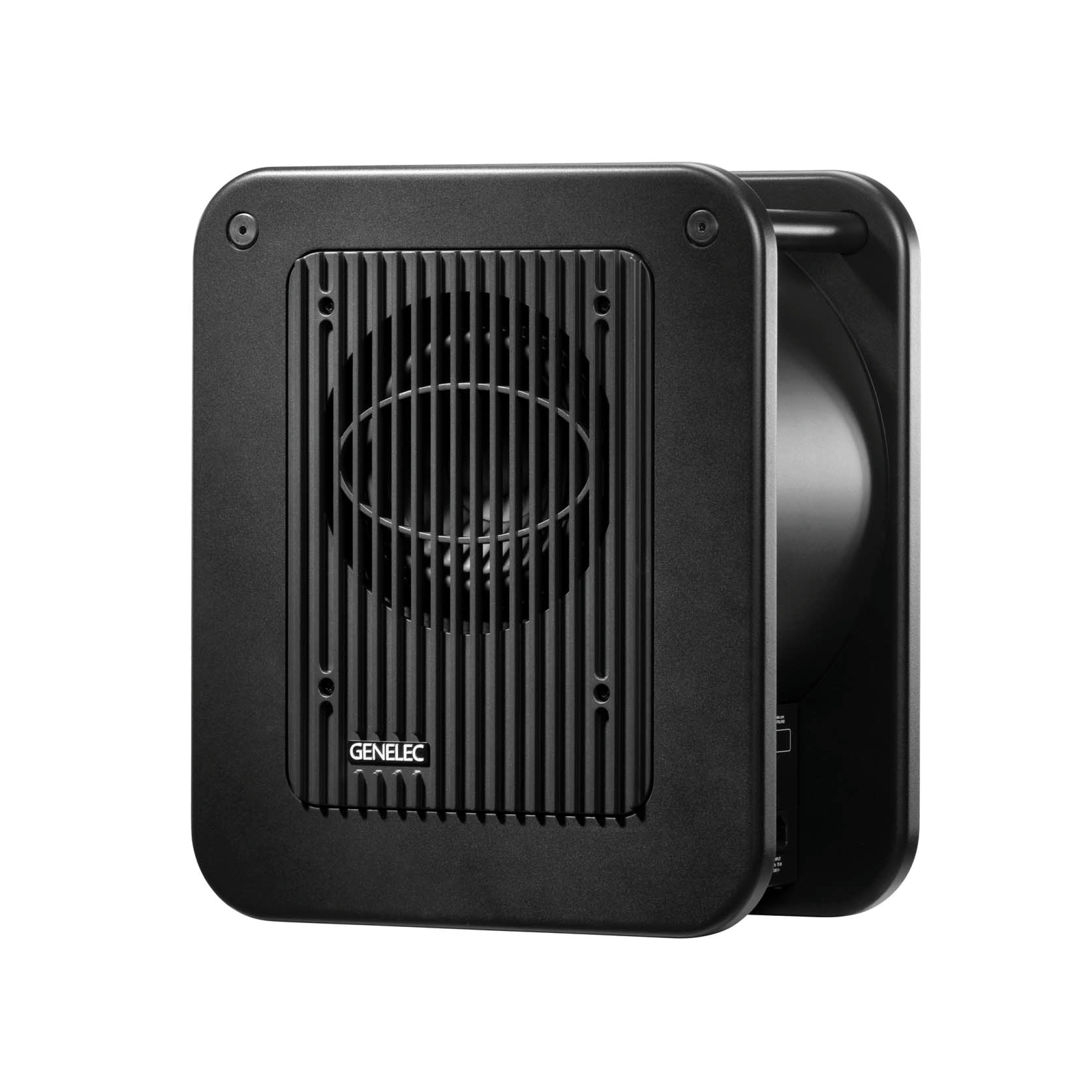

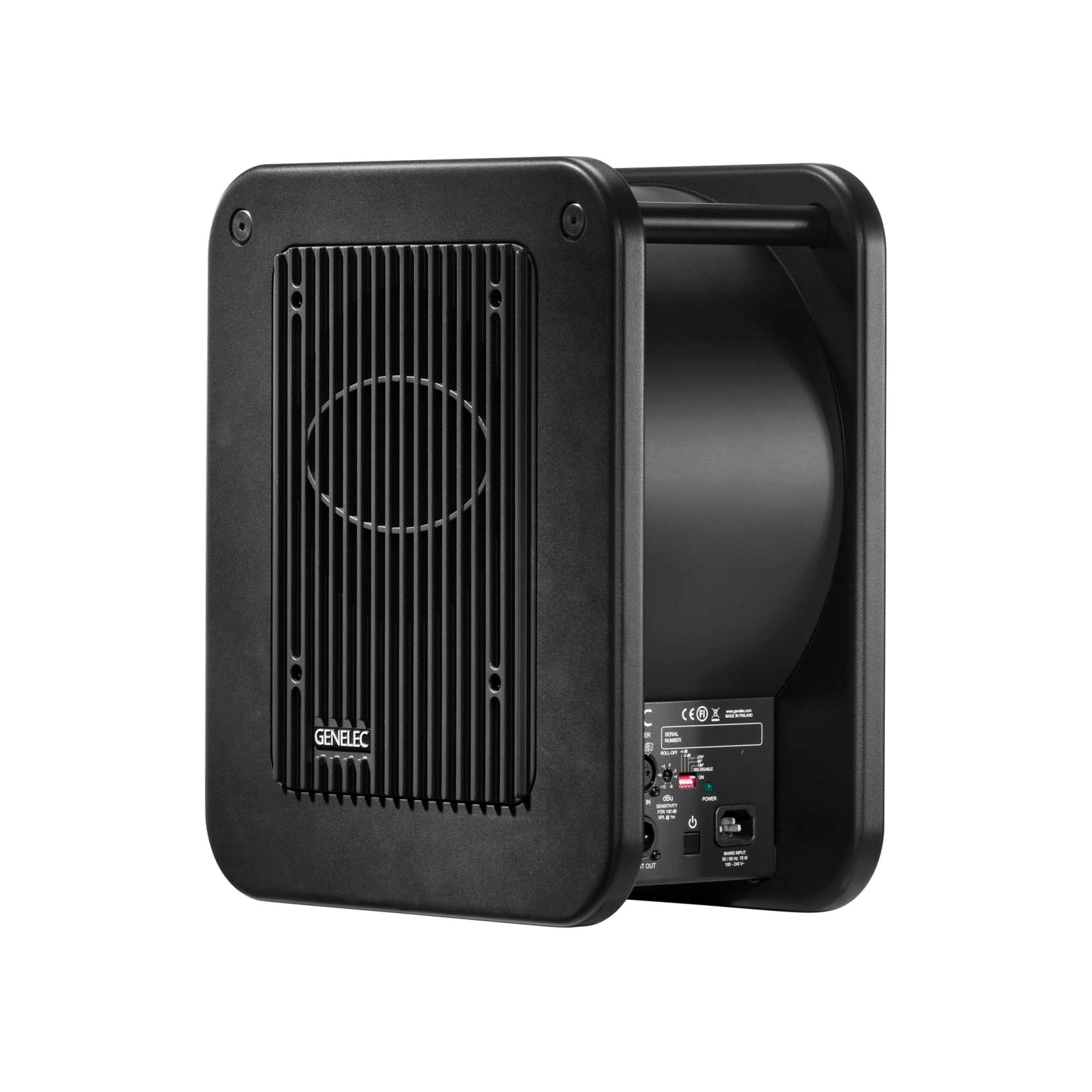

Genelec 7040A - Aktivni subwoofer
Our most compact professional subwoofer, the 7040A brings controlled low-end accuracy to the tightest of production spaces.
A great subwoofer is about so much more than just delivering ‘more bass’. The laminar spiral design of the 7040A ensures that it can deliver high SPL performance that is precise, articulate and free from distortion, right down to 30 Hz. So when partnered with our 8010 or 8020 nearfield monitors, the 7040A creates a full-range system that is completely seamless. It just sounds ‘right’.
System Specifications
Frequency Response: 33 Hz - 85 Hz (± 3 dB)
Low cutoff -6dB: 30 Hz
High cutoff -6dB: 90 Hz
SPL
Short term max SPL: ≥100 dB
Maximum short term sine wave SPL output averaged from 40 to 85 Hz, measured in half space at 1 meter.
Self-generated noise
Self-generated noise: ≤5 dB SPL
Self generated noise level in half space at 1 m (A-weighted).
Weight
Weight: 11.3 kg (24.9 lb)
Dimensions
Height: 410 mm (16 1/8 in)
Width: 350 mm (13 3/4 in)
Depth: 205 mm (8 1/8 in)
Enclosure
Enclosure material: MDF
Enclosure type: Reflex port
Drivers
Bass
Driver type: Cone
Diameter: 165 mm (6 1/2 in)
Harmonic distortion
Harmonic distortion at 90 dB SPL at 1 m on axis in half space 40…85 Hz, 2nd ≤2.5 %
Amplifier Section
Amplifiers
7040A bass amplifier: 50 W Class D
A high-efficiency, low-distortion 50W Class D amplifier with integrated driver protection circuitry.
Mains voltage: 100-240 VAC 50/60Hz
Power consumption
ISS Active: ≤0.5 W
Idle: ≤5 W
Full output: 70 W
Signal processing section

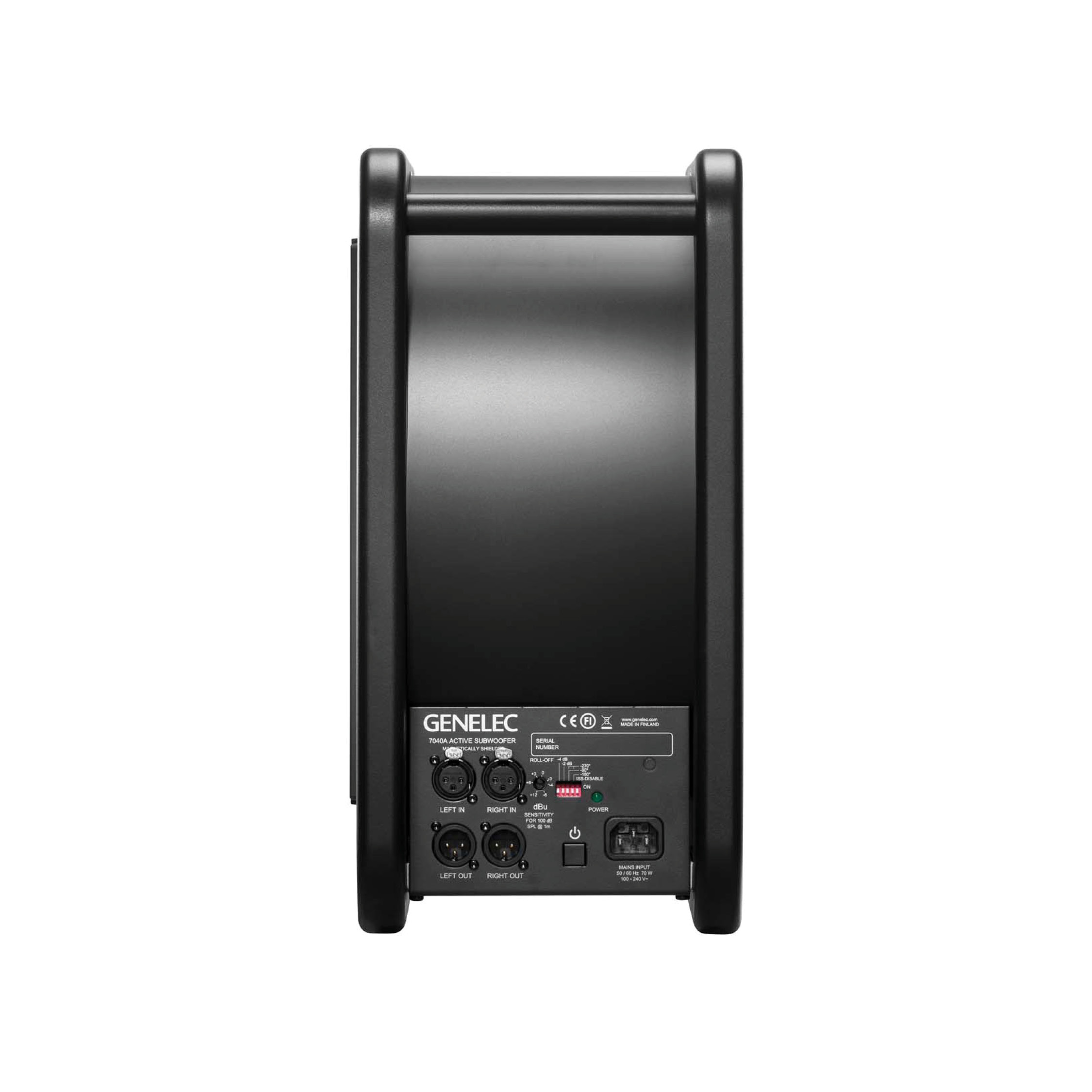

Connectors
2 x Input: Analog signal input connector XLR female, balanced 10 kOhm.
2 x Output: XLR male.
