Genelec 7370A - Aktivni subwoofer
Created to deliver superb definition, the 7370A subwoofer intelligently adapts to your acoustic space to provide controlled, uncoloured LF reproduction.
Offering more SPL and low frequency extension than our smaller smart subwoofers, the Laminar Spiral Enclosure design of the 7370A offer clean, precise performance with extremely low distortion – even at high playback levels. Created for discerning music, post and broadcast professionals, the 7370A will provide decades of reliable service in even the most demanding environments.
System Specifications
Frequency Response: 19 Hz - 100 Hz (± 3 dB)
Low cutoff -6dB: 19 Hz
High cutoff -6dB: 150 Hz
SPL
Peak SPL: ≥118 dB
Maximum peak SPL output with random pink noise, measured in half space at 1 meter.
Short term max SPL: ≥113 dB
Maximum short term sine wave SPL output averaged from 30 to 85 Hz, measured in half space at 1 meter.
Self-generated noise
Self-generated noise: ≤5 dB SPL
Self generated noise at 1 m on axis (A-weighted).
Weight
Weight: 48 kg (105.8 lb)
Dimensions
Height: 625 mm (24 5/8 in)
Width: 555 mm (21 7/8 in)
Depth: 496 mm (19 1/2 in)
Enclosure
Enclosure type: Reflex port
Drivers
Bass
Driver type: Cone
(no magnetical shielding)
Diameter: 305 mm (12 in)
Harmonic distortion: 30...85 Hz, 2nd. ≤3 %
Amplifier Section
Amplifiers
7370A bass amplifier: 400 W Class D
Mains voltage: 100-240 VAC 50/60Hz
Power consumption
ISS Active: ≤1 W
Idle: ≤20 W
Full output: 400 W
Signal processing section

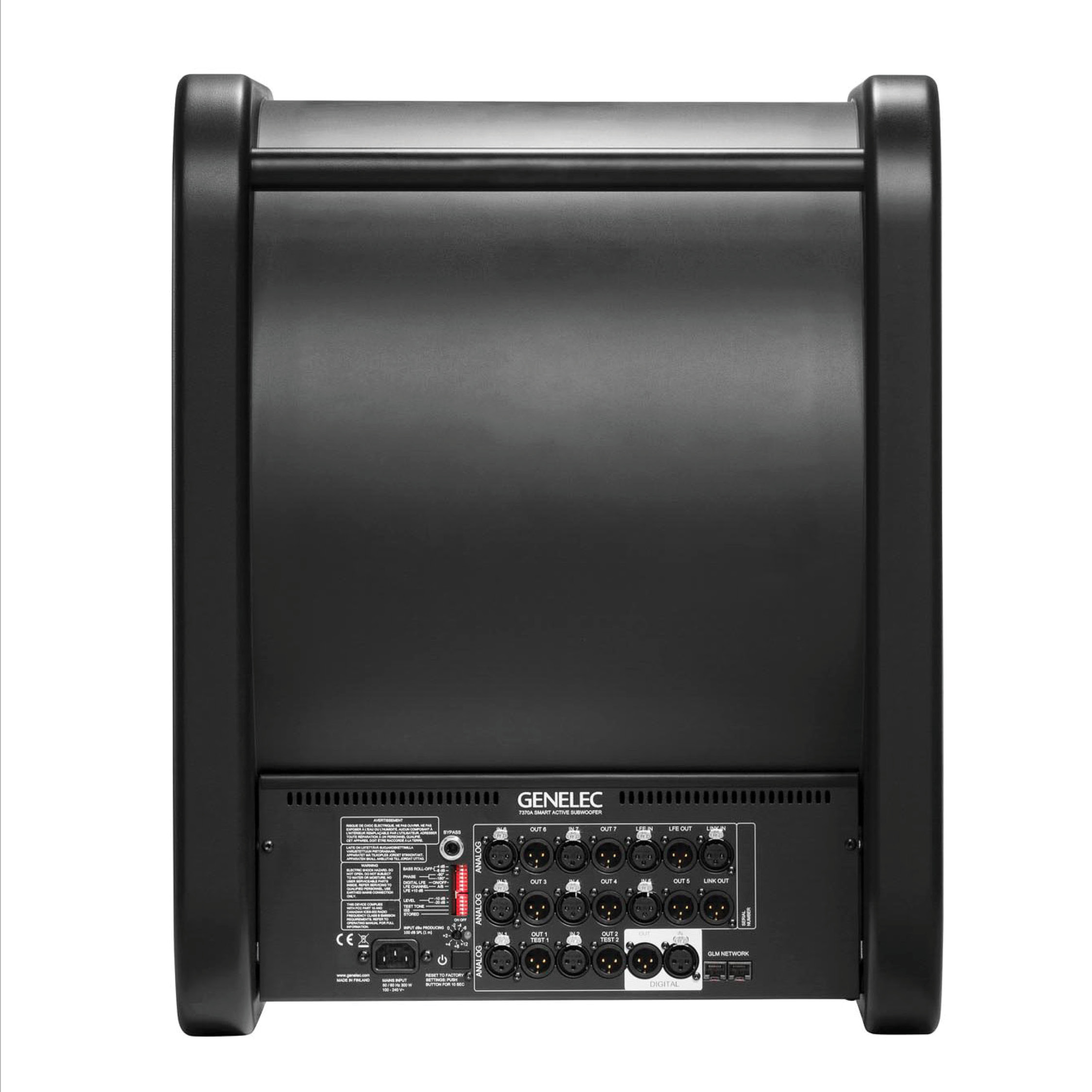

Connectors
7 x Input: 7.1 Analogue XLR input connectors XLR female, balanced 10 kOhm.
7 x Output: 7.1 Analogue XLR output connectors XLR male.
Input: Digital signal input connector XLR female 110 Ohm.
Output: Digital signal output / Thru connector XLR male 110 Ohm.
2 x Control: Two CAT5 (RJ45) GLM Network connectors for computer control using the Genelec Loudspeaker Manager (GLM) software.
Input: Link In connector.
Output: Link Out connector.
LFE Input
LFE Output: XLR Analog LFE Output
