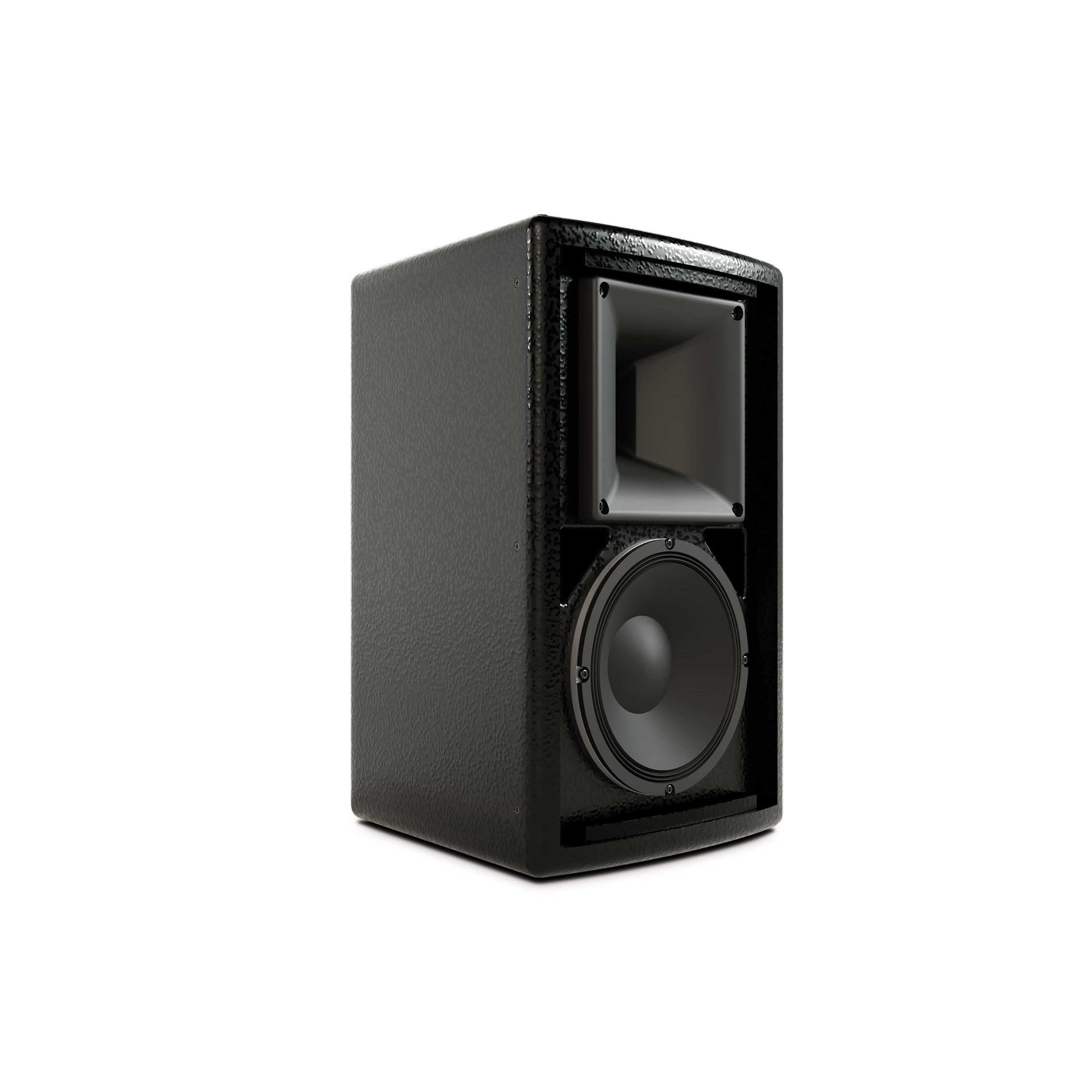

Biamp Community V2-6B
Full range, 2-way, 6-inch, 90 X 70 loudspeaker, black.
he V2-6 is a two-way, full-range loudspeaker system suitable for use in a wide variety of fixed installations. Compact but powerful, it is ideal for distributed systems such as those found in cafés, restaurants, shopping centers and airports. When paired with a subwoofer such as the VLF208LV, a V2-6 system will produce high-fidelity, broad spectrum sound that belies its modest size. The V2-6 is also an excellent choice for ancillary delay applications. When used to augment a front-of-house system in such venues as auditoria, theaters and houses of worship, delay loudspeakers can significantly even-out the difference in sound pressure level from the front of the room to the rear of the room. Units may be positioned for underbalcony fill, overbalcony fill, or simply placed towards the rear of the seating areas. By deploying V2-6 loudspeakers in such a manner, the system designer will have far greater control over relative levels and relative tonal response when commissioning and equalizing the installation.
GENERAL
Height: 15.5 inches (395 mm)
Width: 9.8 inches (249 mm)
Depth: 10.1 inches (258 mm)
Weight: Including Bracket: 19.7 lbs (8.9 kg) 21.7 lbs (9.9 kg) with autoformer
Finish:
• Catalyzed polyester two-part paint, black
• Grille: Powder coated steel, black finish
Enclosure: Trapezoidal (22.5° included angle) 18mm, 11-ply cross-laminated birch
Mounting: Mounting/Rigging Provisions: 9 x M6 threaded rigging fittings 4 x M6 threaded fittings for third-party suspension products
Included Accessories:
• Included: Yoke-style mounting bracket with optional 10° and 20° standoffs that allow a 10° or 20° downward or upward vertical tilt
• Optional: CMKIT ceiling mount kit VB-TILT tilting bracket VB-VY6 vertical yoke bracket M6EYBLTKIT 6mm eyebolt kit
Required Accessories: None
Ordering Information:
• V2-6B (low impedance, black finish) V2-6W (low impedance, white finish)
• V2-6BT (built-in autofomer for 70V100V applications, black finish)
• V2-6WT (built-in autofomer for 70V100V applications, white finish)
Operating Environment: Indoor
Power Control: None
Loudspeaker System
Loudspeaker Type: Compact two-way, full-range, trapezoidal, vented bass, user rotatable horn
Operating Mode: Operating Range: 90 Hz to 18 kHz (-10 dB)
Beamwidth: Nominal –6dB Beamwidth: 90° H x 70° V (in vertical position)
Sensitivity: Sensitivity (1W/1m): 92 dB (100 Hz to 12.5 kHz) free space
Drivers:
• Drivers - LF: 1 x 6.5-inch cone
• Drivers - HF: 1 x 1-inch
• Driver Protection: DYNA-TECH protection circuitry

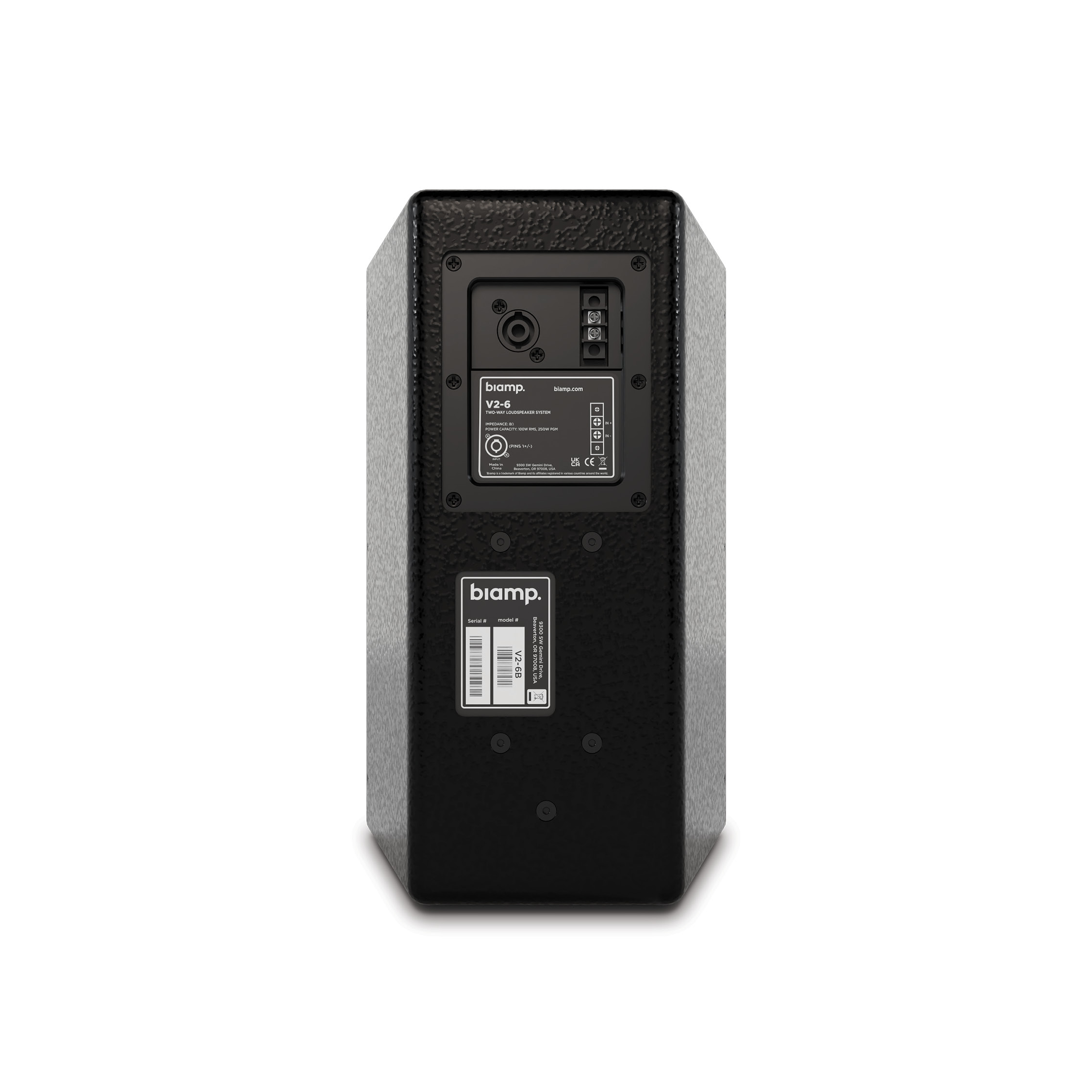

Audio: NL4-compatible locking connector with terminal strip in parallel
Impedance:
• Nominal Impedance: 8 ohms
• Minimum Impedance: 6 ohms @ 200 Hz
Maximum Input: Max Input Ratings: 100W continuous, 250W program 28.3 volts RMS, 56.6 volts momentary peak
Maximum Output: 112 dB SPL / 118 dB SPL (peak)
Frequency Response: 110 Hz to 16 kHz (±3 dB)
NOTES
Specification Notes:
• Sensitivity: Free field pink noise measurement at 6ft (1.8m) at 10% power; extrapolated to 1 meter and an input of 2.83 volts RMS. 2.
• Watts: All wattage figures are calculated using the rated nominal impedance.
