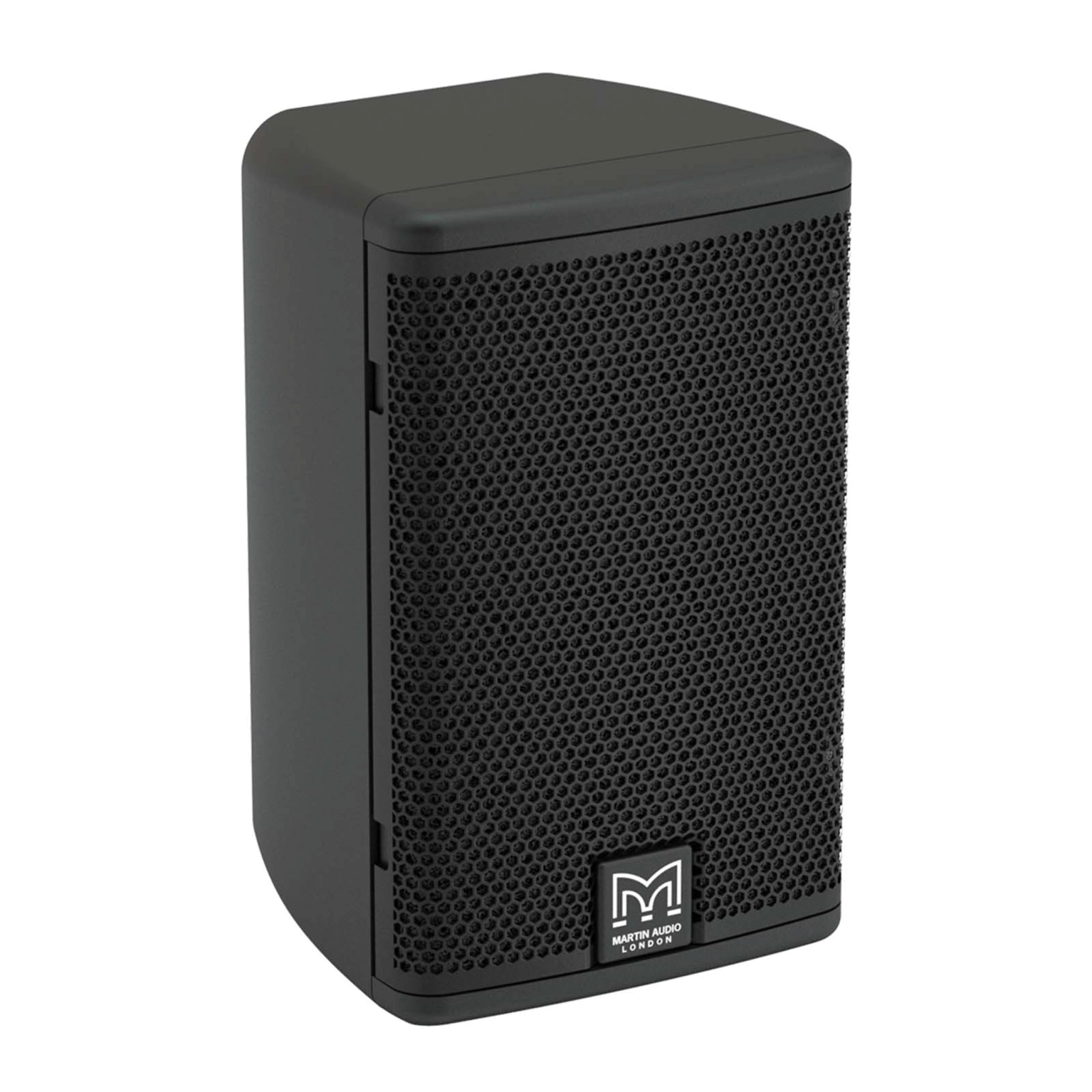

MARTIN AUDIO A55T ADORN Black - Pasivna zvučna kutija
5.25" Passive Two-way on-wall Loudspeaker with 70/100V Transformer
The ADORN A55T is a two-way passive speaker with an elegant design that is perfect for architectural environments that require high-fidelity sound from an unobtrusive, ultra-compact enclosure. It brings class-leading performance, reliability and value to a wide range of commercial sound applications — from retail outlets, bars and restaurants to corporate offices and convention centres.
Features
• Contemporary, unobtrusive design
• High output capability
• High fidelity sound
• Low and high-frequency overload protection
• 70V/100V line transformer
• Vertical or horizontal orientation
• Wide 110° x 80° coverage
• Wall bracket included
• 5-year warranty
Applications
• Retail outlets
• Cafes, bars and restaurant chains
• Hotels and convention centres
• Educational facilities
• Corporate offices
Specification
TYPE: Ultra-Compact passive two-way system, front ported bass reflex
FREQUENCY RESPONSE (1): 90Hz-17kHz ± 3dB -10dB @ 65
DRIVERS:
• LF: 5.25” /1” high-temp voice coil, coated paper, cone, rubber surround, ferrite motor, pressed steel chassis
• HF: 0.75” silk dome, neodymium motor
RATED POWER (2): 50W AES, 200W peak
RECOMMENDED AMPLIFIER: VIA5002 [In conjunction with suitable line transformer]
SENSITIVITY(4): 90dB/1W/1m
MAXIMUM SPL (9): 113dB peak
NOMINAL IMPEDANCE: 16Ω
DISPERSION (-6dB): 110° H x 80° V
CROSSOVER: 3.5kHz passive (LF and HF auto-resetting fuses)
TRANSFORMER TAPS:
• 70V: 30w / 15w / 7.5w / 3.75w
• 100V: 30w / 15w / 7.5w
RECOMMENDED HIGH-PASS FILTER: 60Hz 24dB/oct
ENCLOSURE: ABS, UL 94V-0 rated
FINISH: Black or white
GRILLE: Perforated steel
CONNECTORS: Push terminals
FITTINGS: Wall bracket included
DIMENSIONS EXCL. BRACKET:
• (W) 152mm x (H) 245mm x (D) 140mm
• (W) 6in x (H) 9.6in x (D) 5.5in
WEIGHT: 2.81kg (6.2lbs)
