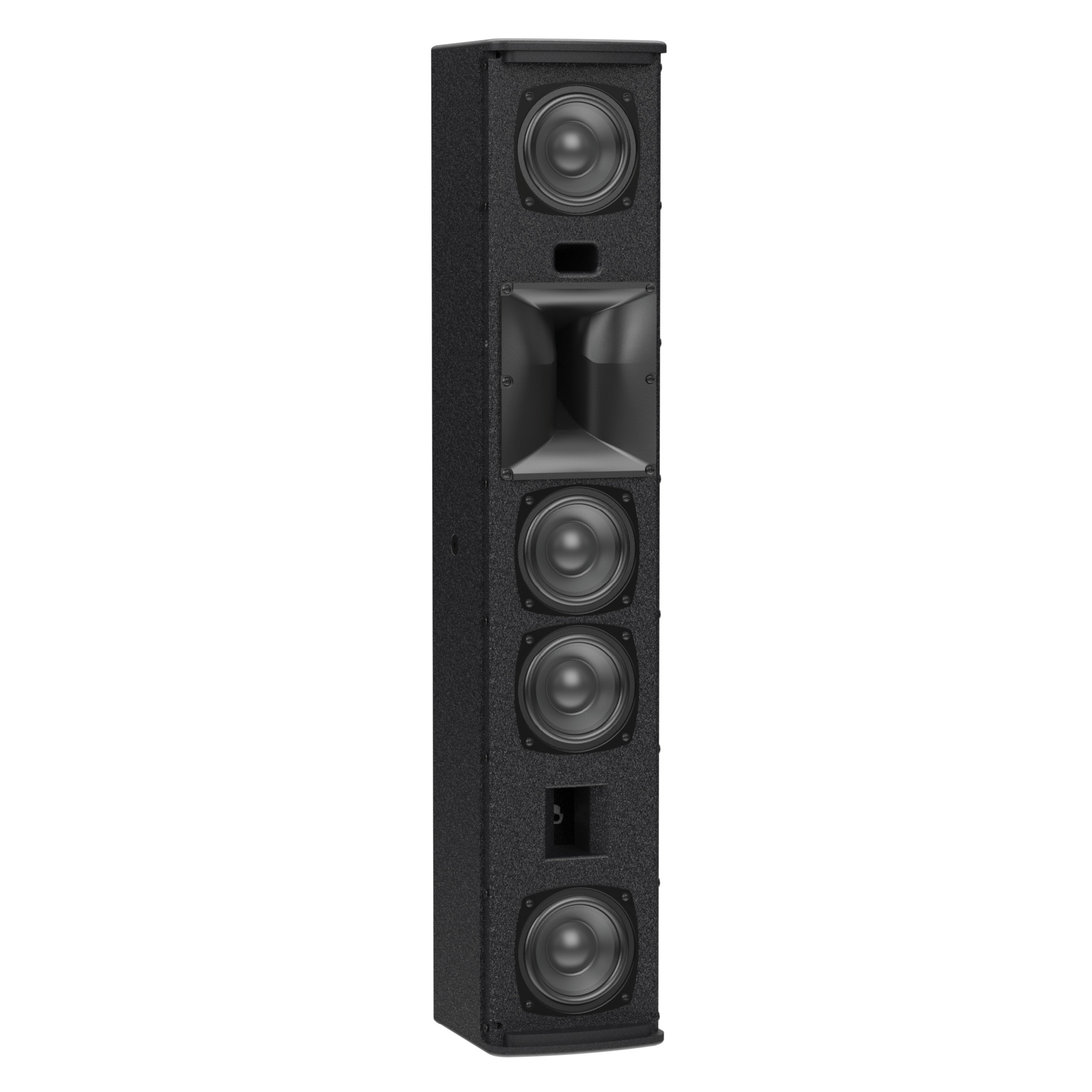

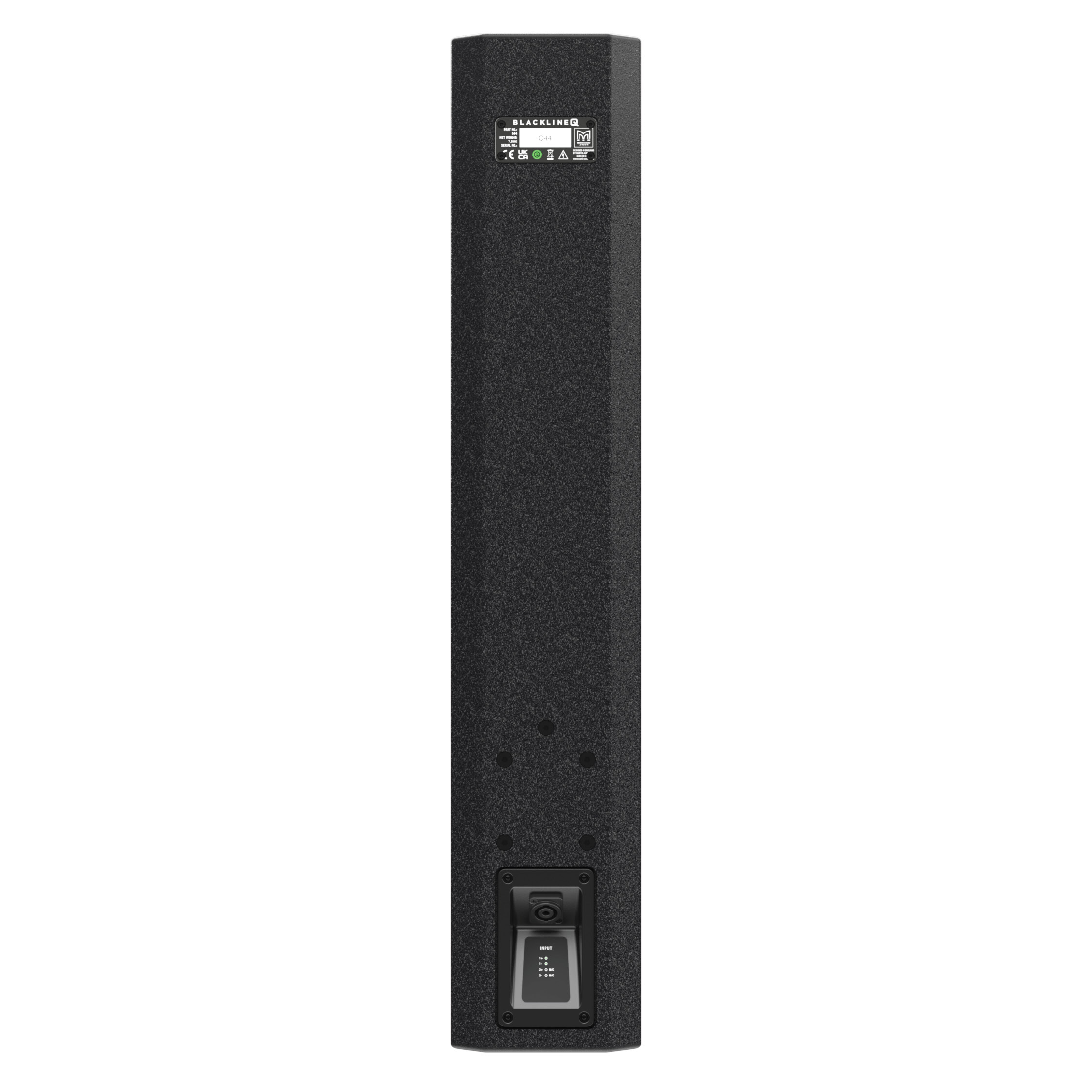

MARTIN AUDIO BLACKLINE Q44-B - Pasivni zvučnik
4 x 4” Passive Two-way Portable Column Loudspeaker
Designed for venues where clarity and control are paramount, Blackline Q44 is a compact column loudspeaker that delivers a peak SPL of 119dB (125dB with crest factor 4) with precise coverage from a discreet footprint.
It can operate as a stand-alone system or be supplemented by Blackline Q210 subwoofer, making it equally suited to performance venues, corporate events and worship spaces.
Type: Passive two-way compact column loudspeaker
Frequency response [1]: 82 Hz – 17 kHz ± 3 dB, -10 db @ 63 Hz
Driver (LF): Four 4” (100 mm) with 1” (25 mm) voice coil, ferrite motor system
Driver (HF): 1" (25 mm) exit compression driver with 1" (25 mm) voice coil, PETP dome
Rated power [2]: 200 W AES, 800 W peak
Required electronics: Processor and amplifier, or a combined amplifier-processor unit
Recommended electronics: DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor
Sensitivity [3]: 90 dB
MAXIMUM SPL [3]: 113 dB continuous, 119 dB peak, 125 dB peak with crest factor 4
Nominal impedance: 8 ohm
Dispersion: Dispersion: 100°–120° (horizontal) × 40° (vertical)
Crossover: 2.4 kHz passive
Enclosure: Durable plywood
Finish: Black or white textured paint
Protective grille: Black or white perforated steel grille with scrim cloth backing
Connectors: 1 x NL4 connector
Pin connections (input): 1+/1–
Pin connections (link): NA
Fittings:
• 3 x M8 inserts, 1 x M6 insert, 4 x M6 inserts for wall bracket
• 1 x pocket handle made from recycled ABS
• Pole-mount socket with removable cover
Dimensions:
• (W) 150 mm x (H) 800 mm x (D) 187 mm
• (W) 5.9 in x (H) 31.5 in x (D) 7.3 in
Weight: 7.5 kg (16.5 lbs)
