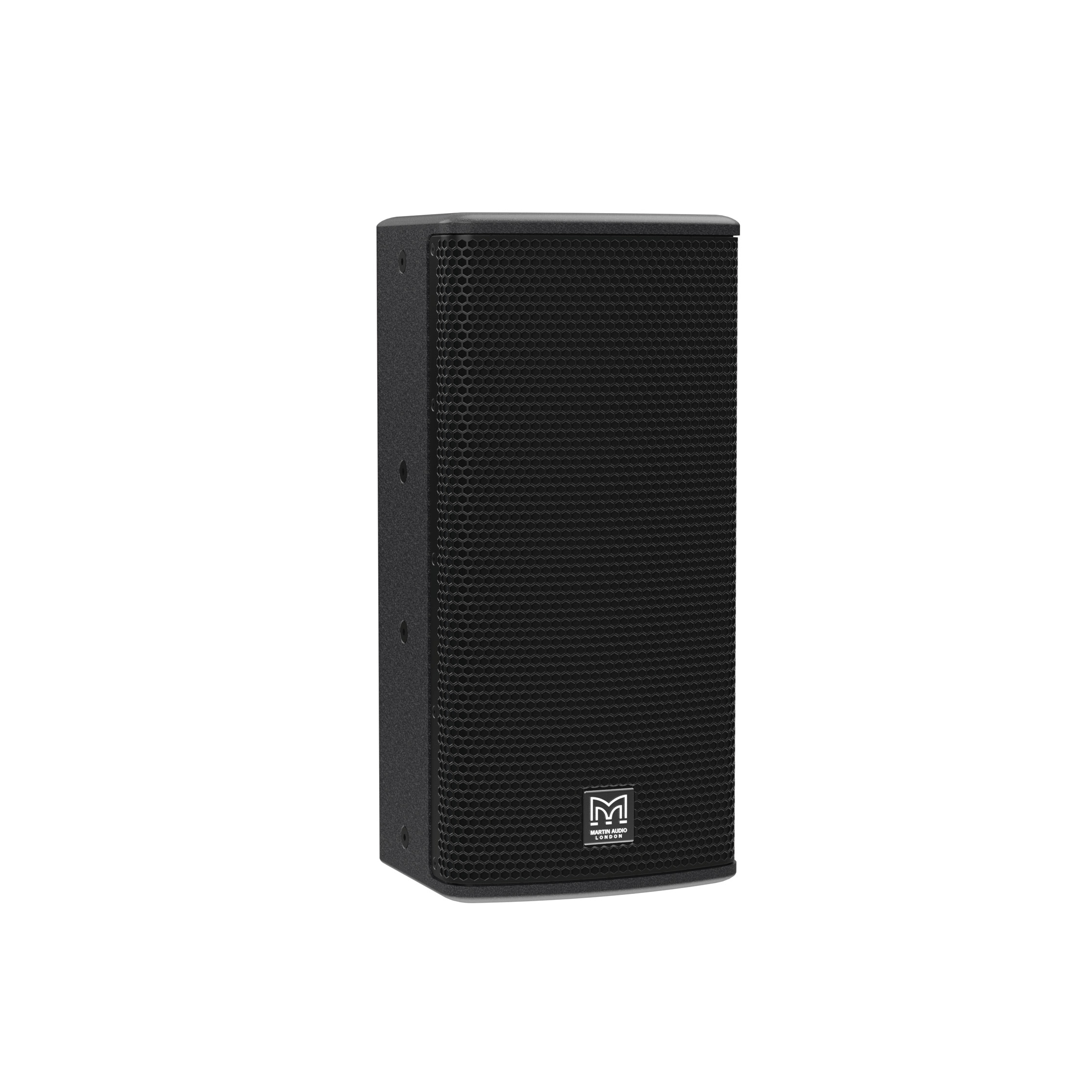

MARTIN AUDIO BLACKLINE Q8-B
8" Passive Two-way Portable Loudspeaker
Blackline Q8 is an ultra-compact, passive two-way loudspeaker featuring an 8” (200mm) LF driver with a 2” (50mm) voice coil and a 1” (25mm) exit HF compression driver with a 1” (25mm) dome. It has a Differential Dispersion horn for wider and more consistent coverage, which can be easily rotated for horizontal or vertical orientation depending on deployment needs. Despite its small size, Q8 delivers impressive performance, achieving a peak SPL of 121dB (127dB with crest factor 4).
Features
• Ultra-Compact passive two-way system
• Symmetrical multi-angle plywood enclosure
• Peak SPL of 121dB (127dB with crest factor 4)
• User-rotatable Differential Dispersion horn
• Dispersion: 90°–110° horizontal × 50° vertical
• Vertical and horizontal orientation
• Screw-tight, cloth-backed perforated steel grille
• Integrated ergonomic handle made from recycled ABS
• Pole-mount cover maintains clean lines
• 8Ω nominal impedance
• Two NL4 connectors
• Flexible mounting options via M8 inserts
Applications
• Portable sound reinforcement
• Unobtrusive stage monitoring
• Live music clubs
• Corporate events
• Bars and restaurants
• Nightclubs
• Houses of worship
Type: Ultra-compact, passive two-way loudspeaker
Frequency response: 67 Hz – 17 kHz ± 3 dB, -10 db @ 51 Hz
Driver (LF): 8” (200 mm) with 2” (50 mm) voice coil, ferrite motor system
Driver (HF): 1" (25 mm) exit compression driver with 1" (25 mm) voice coil, PETP dome
Rated power: 200 W AES, 800 W peak
Required electronics: Processor and amplifier, or a combined amplifier-processor unit
Recommended electronics: DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor
Sensitivity: 92 dB
MAXIMUM SPL: 115 dB continuous, 121 dB peak, 127 dB peak with crest factor 4
Nominal impedance: 8 ohm
Dispersion:
• Dispersion: 90°–110° (horizontal) × 50° (vertical)
• User-rotatable Differential Dispersion horn
Crossover: 3 kHz passive
Enclosure: Symmetrical multi-angle plywood
Finish: Black textured paint
Protective grille: Black perforated steel grille with scrim cloth backing

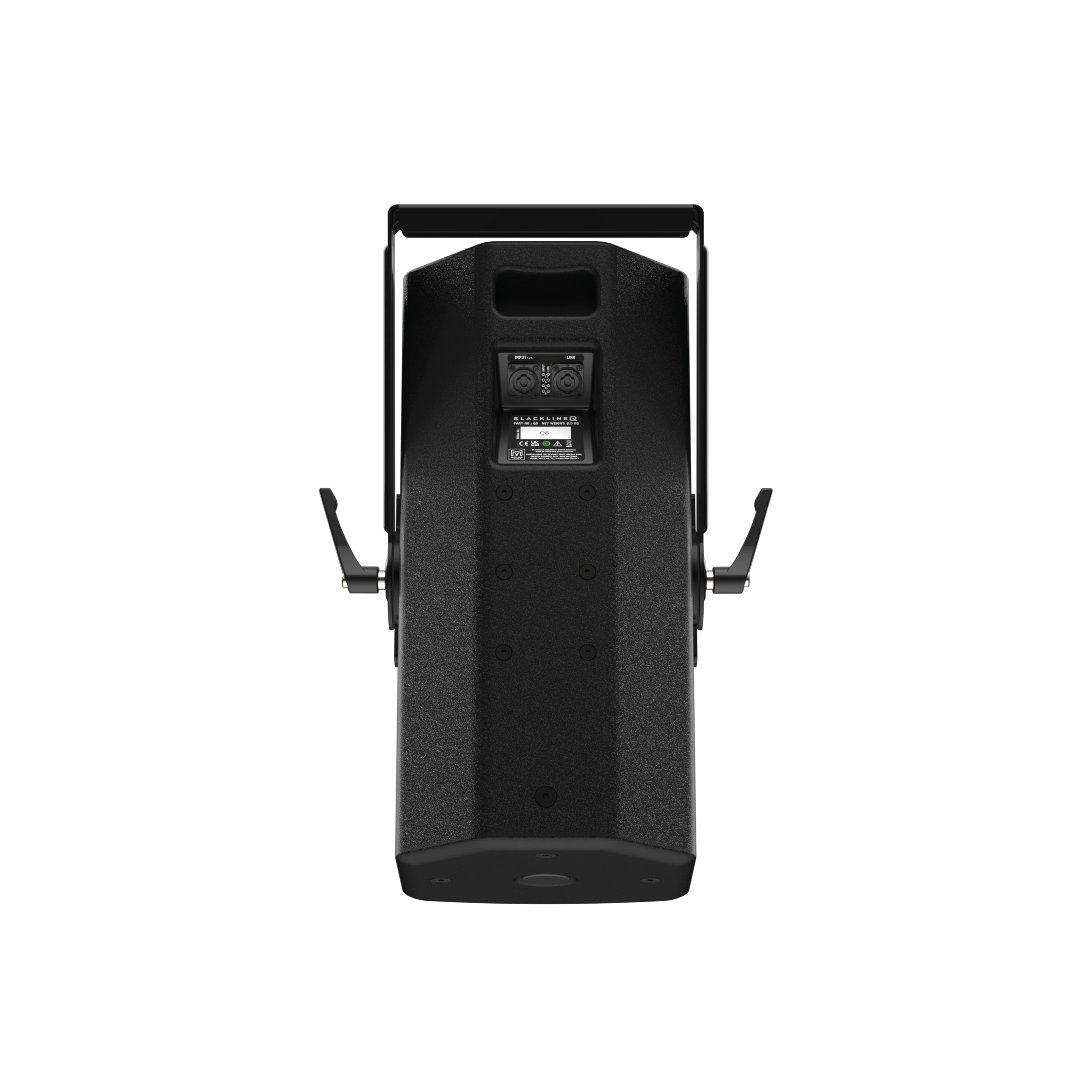

Connectors: 2 x NL4 connectors
Pin connections (input): 1+/1–
Pin connections (link): 1+/1– to 1+/1– and 2+/2– to 2+/2–

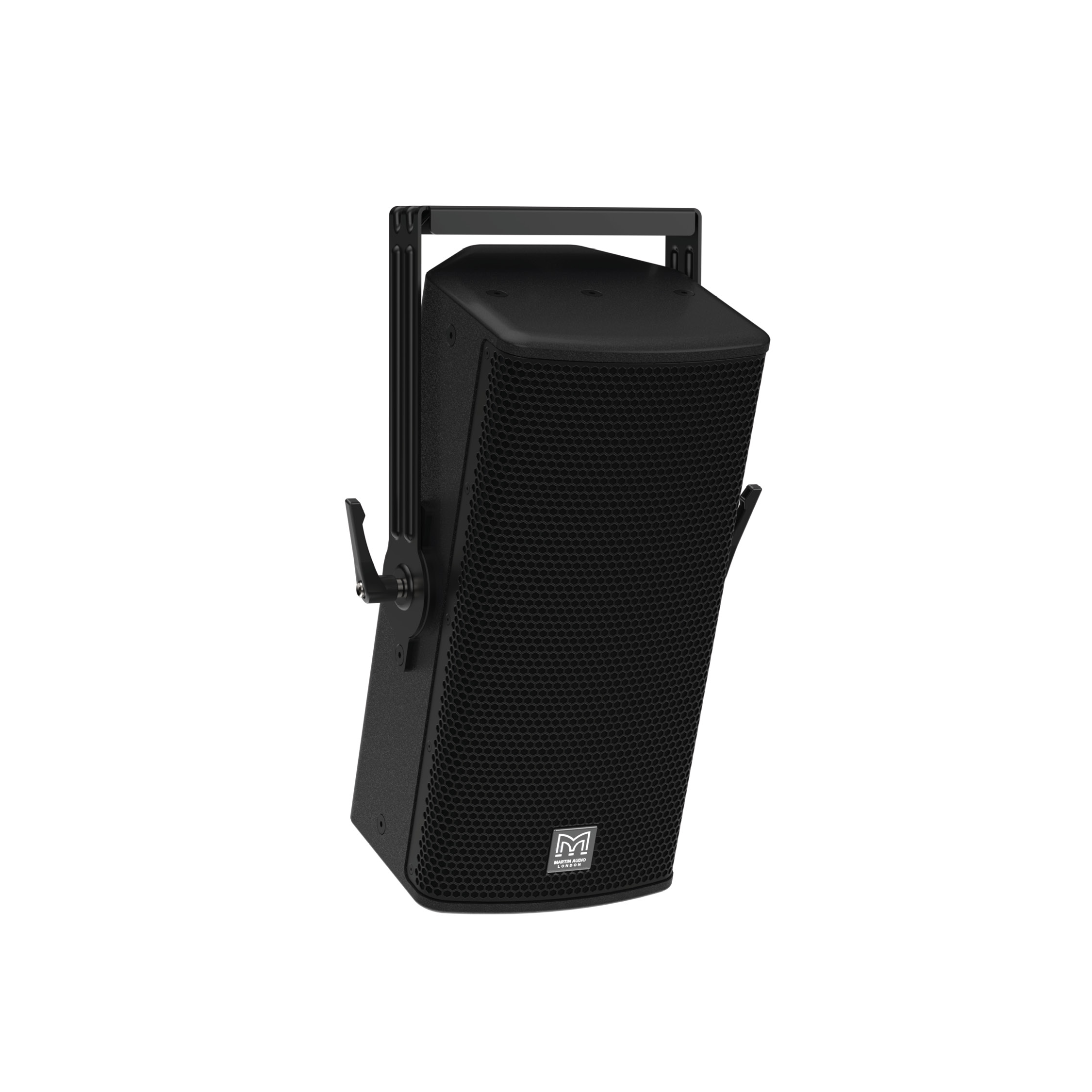

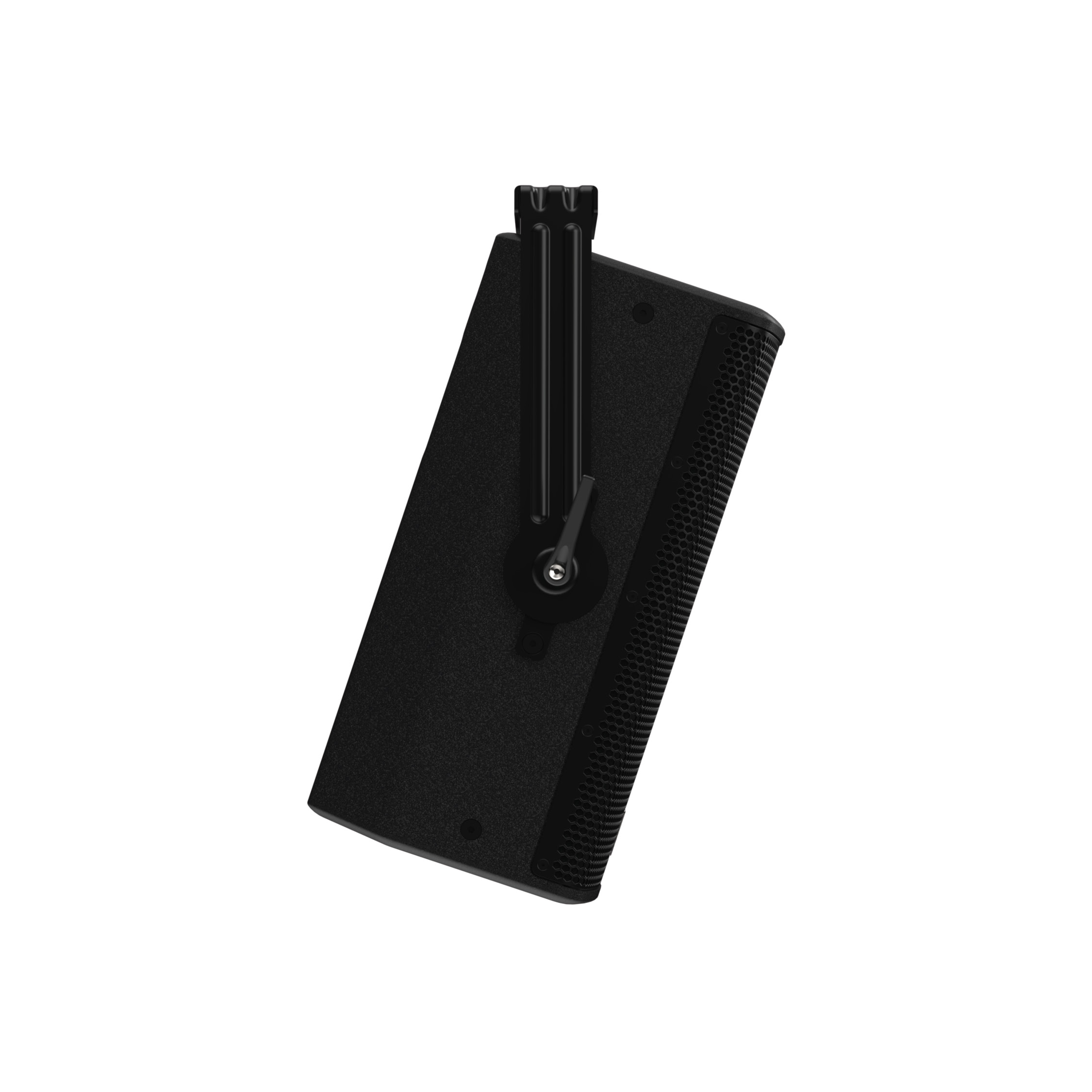

Fittings:
• 15 x M8 inserts, 6 x M6 inserts for wall bracket
• 1 x pocket handle made from recycled ABS
• Pole-mount socket with removable cover
Dimensions:
• (W) 236 mm x (H) 500 mm x (D) 250 mm
• (W) 9.3 in x (H) 19.7 in x (D) 9.8 in
Weight: 10.1 kg (22.3 lbs)
