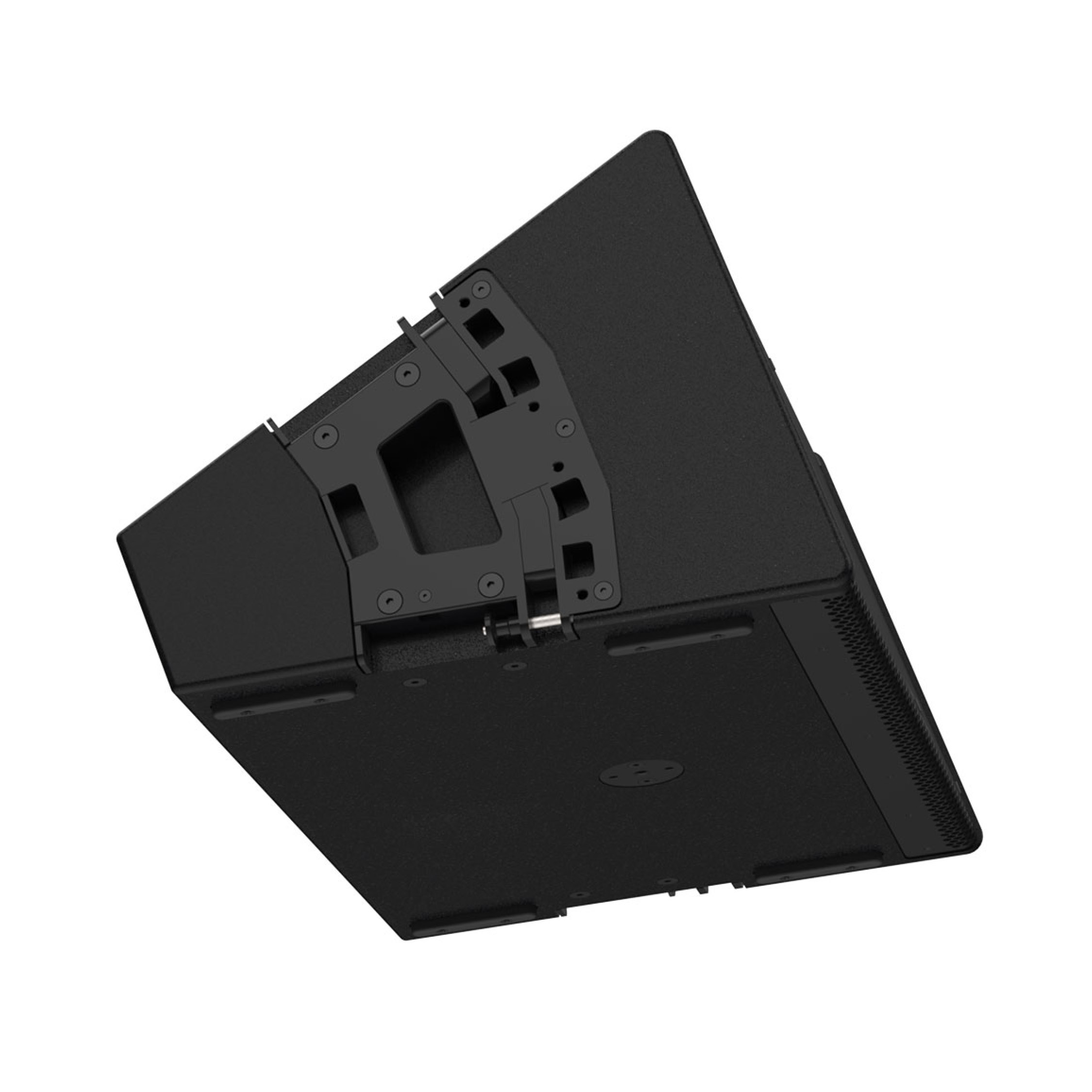

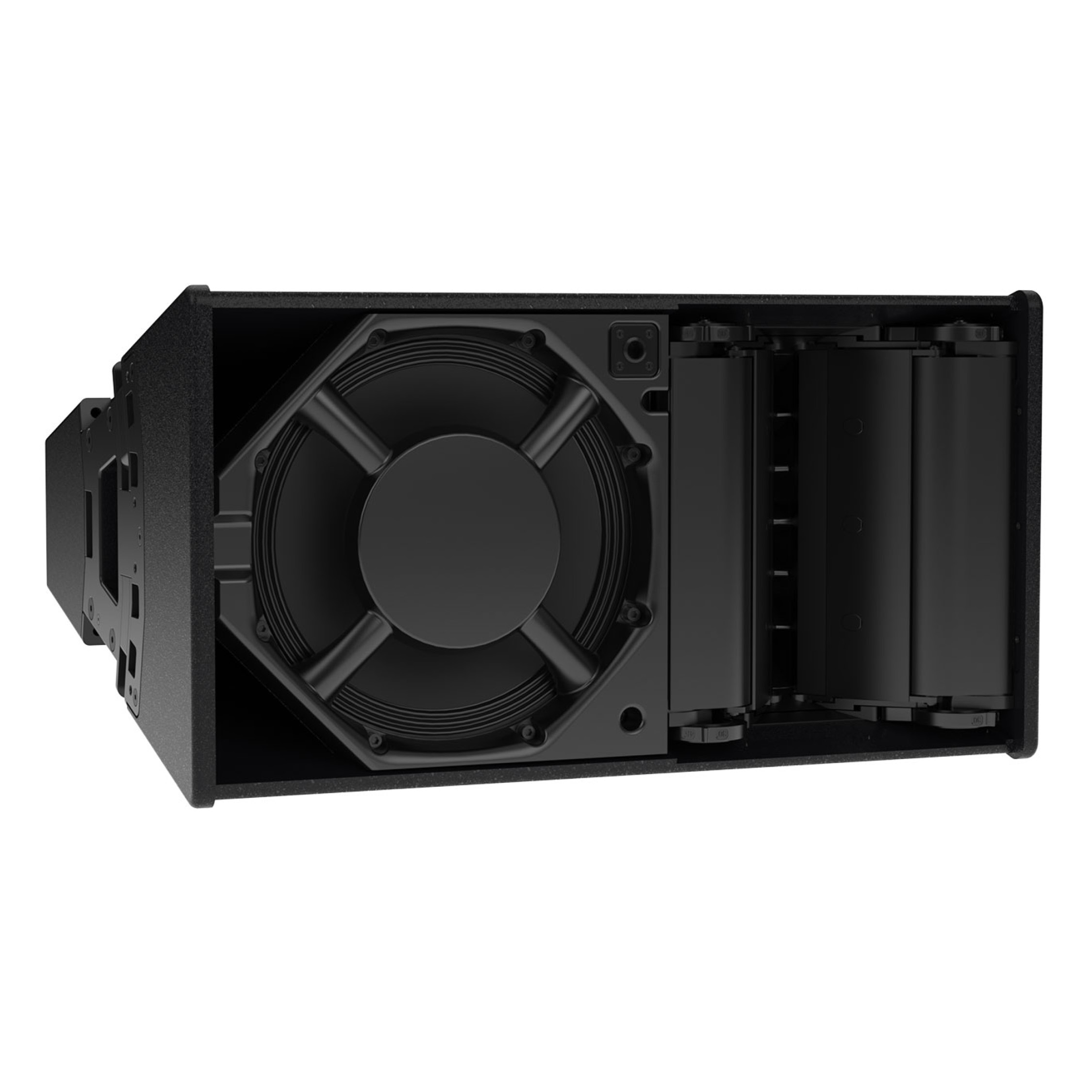

MARTIN AUDIO TORUS T1230
TORUS T1230 is a passive, two-way loudspeaker engineered for medium-scale applications which do not call for the longer throw capabilities of a line array. With exceptional ease-of-use, scalability and deployment flexibility, it is designed to be used as an array element in vertical and horizontal constant curvature arrays of up to six enclosures. It can also be used singularly as a point-source loudspeaker.
PRODUCT NAME: TORUS 12: T1230
TYPE: Passive 2-way Constant Curvature 30° enclosure
FREQUENCY RESPONSE (with iKON settings): 65Hz – 18kHz ± 3dB, -10dB @ 50Hz
DRIVERS:
• LF: 12”, 3” Voice Coil, Neodymium
• HF: 3 x 1” exit, 1.4” Voice Coil, HT Polymer dome neodymium compression driver
SENSITIVITY: (2.83V 1m free-field) 99dB
NOMINAL IMPEDANCE: 8 ohms
RATED POWER: AES 400W, PEAK 1600W
MAXIMUM SPL (SYSTEM): 126dB continuous, 132dB peak*
DISPERSION: 60-75-90° horizontal, 30° vertical
PIN CONNECTIONS (INPUT): 1+/- or 2+/-
PIN CONNECTIONS (LINK): 1+/- and 2+/-
DIMENSIONS: (W) 650mm, (H) 350mm, (D) 442mm
WEIGHT: 26kg (57.32 lbs)
*Martin Audio continues to specify a crest factor of 2 with 6dB between peak and continuous which best mirrors real-world performance. Simply add a further 6dB for comparison with manufacturers quoting a crest factor of 4 ie. 12dB between continuous and peak.
