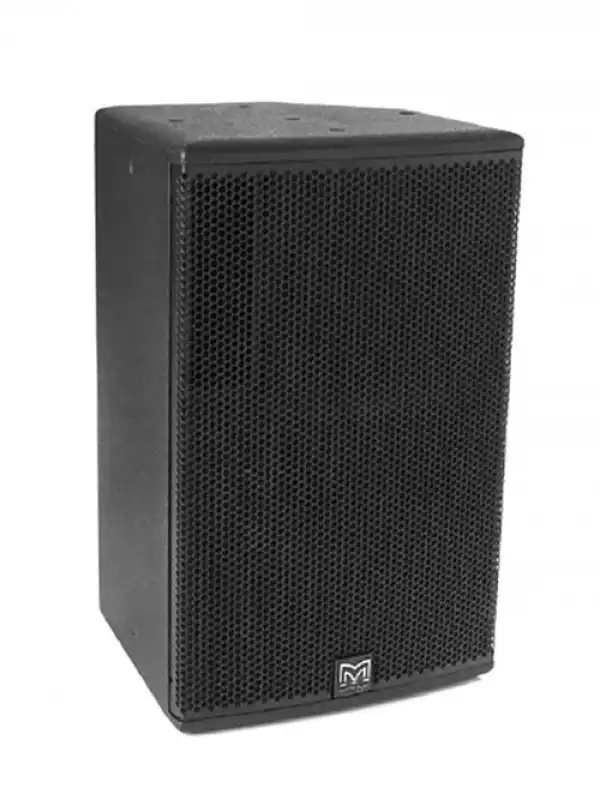

MARTIN AUDIO XD12 - Pasivni zvučnik

Šifra: 10483
287.880,00 rsd
239.900,00 rsd (Bez PDV-a)
Iznos rate:
Prikazana cena je za komad.

Garantujemo najnižu cenu!

Prijavi povoljniju cenu Obavesti me ako cena padne Postavi pitanje
Opcija:

The XD12 is a high-power, high-output, two-way system equally suited to portable live sound applications, theatre and fixed installations. It features a high-specification 12” (300mm) low frequency drive unit and a 1” (25mm) exit compression driver mounted on a user-rotatable 80° x 50° constant directivity horn.

The 12” (300mm) LF driver has a lightweight 3” (75mm) voice coil and flux demodulation rings to reduce distortion at high excursions. Its neodymium motor system combines high sensitivity with low weight and advanced cooling reduces power compression to negligible levels. The 1” (25mm) exit HF driver has a 1.7” (44mm) titanium dome and ultra-high flux neodymium motor system for maximum efficiency, plus a copper cap to extend the HF response.

The internal HF/LF crossover is switchable between passive or bi-amp operation, depending on user requirements.

The XD12 is the perfect solution for high-power applications where flexibility, ease of installation and speed of deployment are important factors. The versatile, multi-angle enclosure and rotatable horn facilitate either horizontal or vertical orientation, and comprehensive brackets support the full variety of mounting options – including surface, ceiling and pole mount. Integral M8 inserts for simple eyebolt suspension increase the options even further. In its horizontal configuration, the XD12 is also ideal as a compact, high-output stage monitor.

When used in bi-amp mode, or with a subwoofer such as the Wavefront WS18X or WS218X, it is recommended that the XD12 is used with the Martin Audio DX1.5 or DX2 controller. When operated as a passive system, it may be used without a controller, but will benefit from the DX1.5 or DX2's EQ and limiter functions.

TYPE Compact, high-output, passive/bi-amp two-way system
FREQUENCY RESPONSE (a) 65Hz-20kHz ± 3dB
-10dB @ 55Hz
DRIVERS 12" (300mm)/3" (75mm) voice coil, long-excursion, neodymium magnet LF driver
1" (25mm) exit/1.7" (44mm) voice coil, titanium dome, neodymium magnet HF compression driver
RATED POWER (b) LF: 400W AES, 1600W peak
HF: 50W AES, 200W peak
RECOMMENDED AMPLIFIER MA2.0, MA3.0, MA5.2K
SENSITIVITY (c) FR: 98dB
LF: 99dB
HF: 108dB
MAXIMUM SPL (d) FR: 124dB continuous, 130dB peak
LF: 125dB continuous, 131dB peak
HF: 122dB continuous, 131dB peak
NOMINAL IMPEDANCE FR/LF: 8 ohms
HF: 16 ohms
DISPERSION (-6dB) 80° horizontal,
50° vertical user rotatable
CROSSOVER 2kHz switchable passive/bi-amp
ENCLOSURE 38 litre, multi-laminate birch ply
FINISH Textured black polyurea coating
PROTECTIVE GRILLE Black perforated steel, Declon® backed
CONNECTORS 2 x Neutrik® NL4
INPUT CONNECTIONS FR/LF (+,-): 1+,1-
HF (+.-): 2+,2-
FITTINGS 21 x M8 threaded inserts
1 x Pole mounting socket
1 x Pocket Handle
DIMENSIONS (W) 360mm x (H) 571mm x (D) 341mm
(W) 14.2ins x (H) 22.5ins x (D) 13.4ins
WEIGHT 19.5Kg (43lbs)
