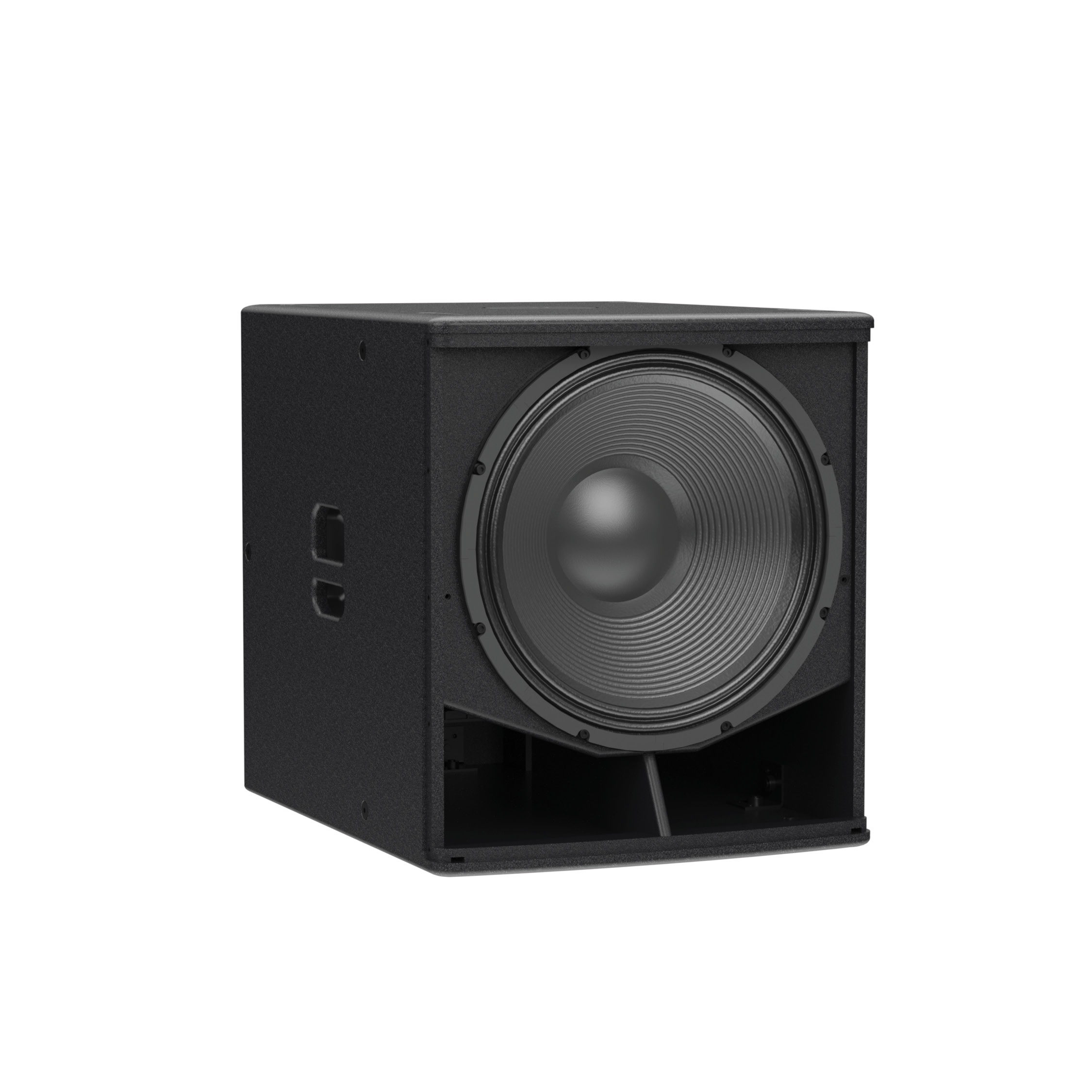

MARTIN AUDIO BLACKLINE Q118-B
18" Passive Portable Subwoofer
Blackline Q118 is a compact, high-performance subwoofer designed for use with Blackline Q Series full-range loudspeakers. It extends the system’s low-frequency response down to 38Hz and delivers exceptional impact, with a Peak SPL of 136dB (142dB for crest factor 4).
Features
• Compact, direct-radiator subwoofer
• 1 x 18” (460mm) driver with 4” (102mm) voice coil
• Peak SPL of 136dB (142dB for crest factor 4)
• Durable plywood enclosure
• Slot ports for reduced air noise

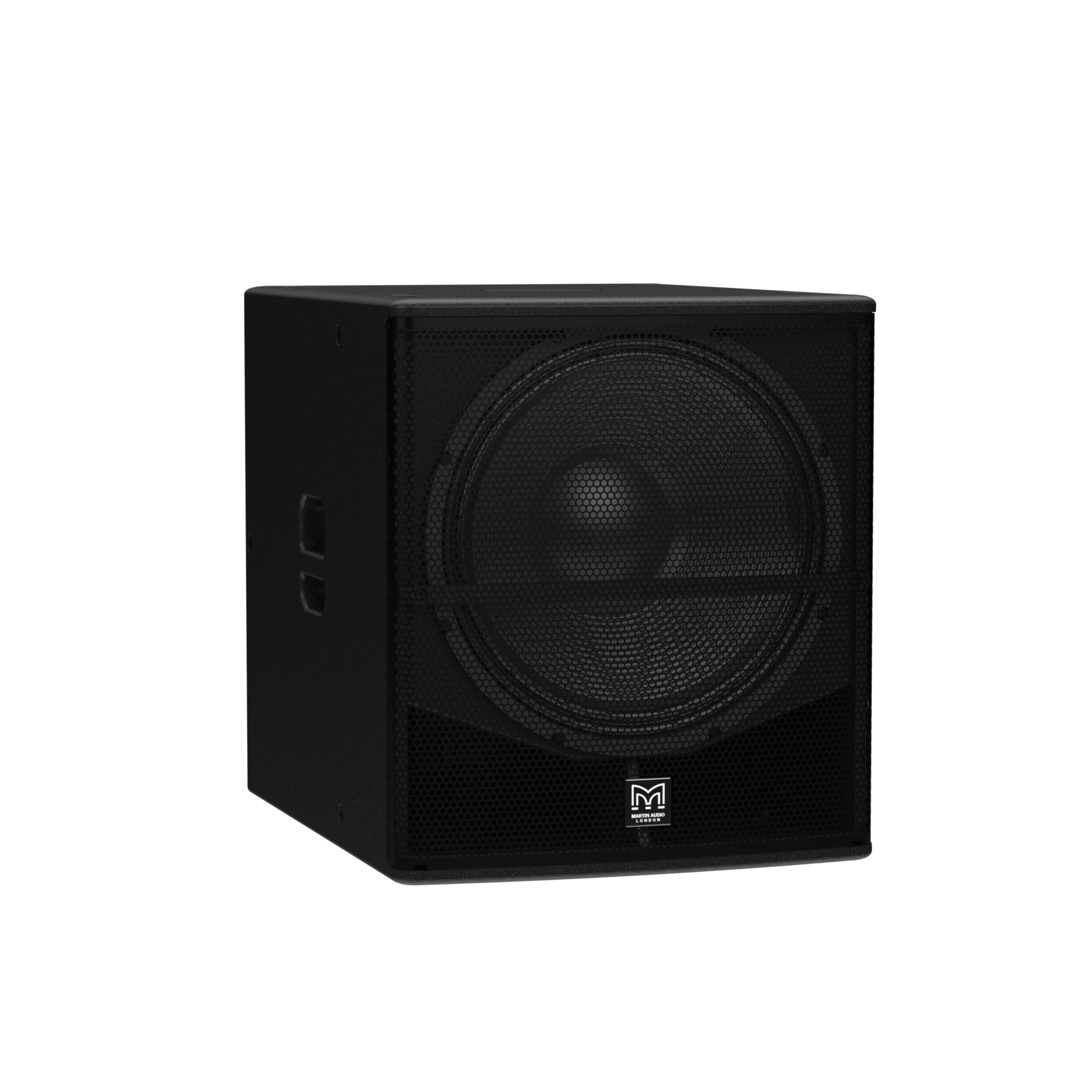

• Perforated steel grille
• M20 / 1.4” (35mm) pole-mount socket
• 8Ω nominal impedance
• Integral ergonomic handles
• Rebate recesses for stable vertical stacking
• M10 flying inserts
• Fittings for optional castors
• Three NL4 connectors
Applications
• Portable sound reinforcement
• Live music clubs
• Bars and restaurants
• Nightclubs
• Corporate AV events and conferences
• Weddings and parties
• Secondary stages at festivals
• Houses of worship, leisure centres and retail outlets
Type: Compact, high-performance 18" subwoofer
Frequency response (4pi): 38 Hz – 100 Hz ± 3 dB, -10 db @ 31 Hz
Driver: 18” (460 mm) with 4” (100 mm) long excursion voice coil, ferrite motor system
Rated power: 800 W AES, 3200 W peak
Required electronics: Processor and amplifier, or a combined amplifier-processor unit
Recommended electronics: DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor
Sensitivity: 101 dB
Maximum SPL: 130 dB continuous, 136 dB peak, 142 dB peak with crest factor 4
Nominal impedance: 8 ohm
Dispersion: Omnidirectional
Crossover: Not applicable
Enclosure: Durable plywood
Finish: Black textured paint
Protective grille: Black perforated steel grille with scrim cloth backing

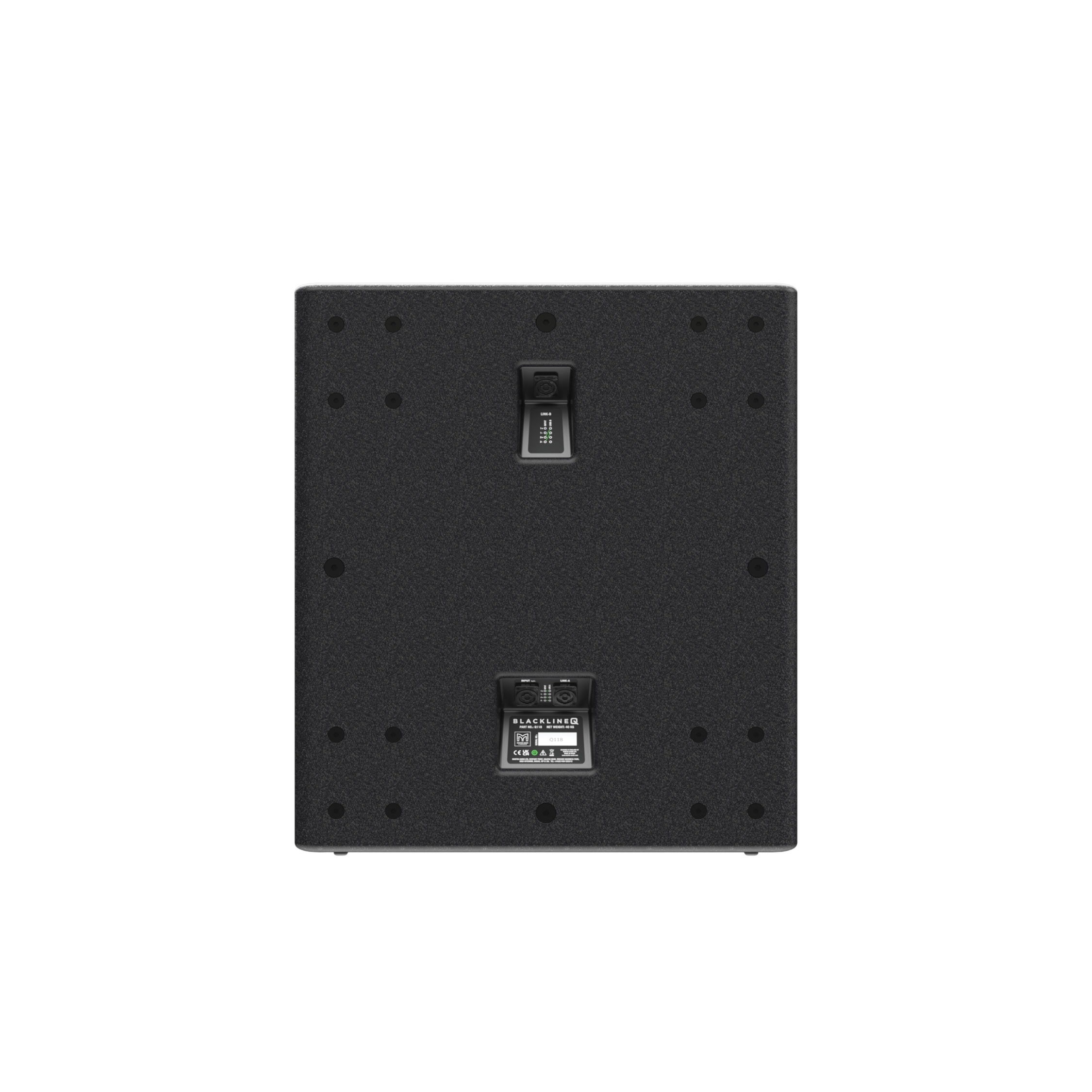

Connectors: 3 x NL4 connectors: 2 at bottom rear (input and link A), 1 at top rear (link B)
Pin connections (input): 1+/1–
Pin connections (link A): 1+/1– to 1+/1– and 2+/2– to 2+/2–
Pin connections (link B): 1+/1– on input to 2+/2– on link B
Fittings:
• 16 x M10 inserts: 3 on top, 3 on bottom, 3 on left, 3 on right, 4 on rear
• 16 x M8 inserts on rear for optional castors

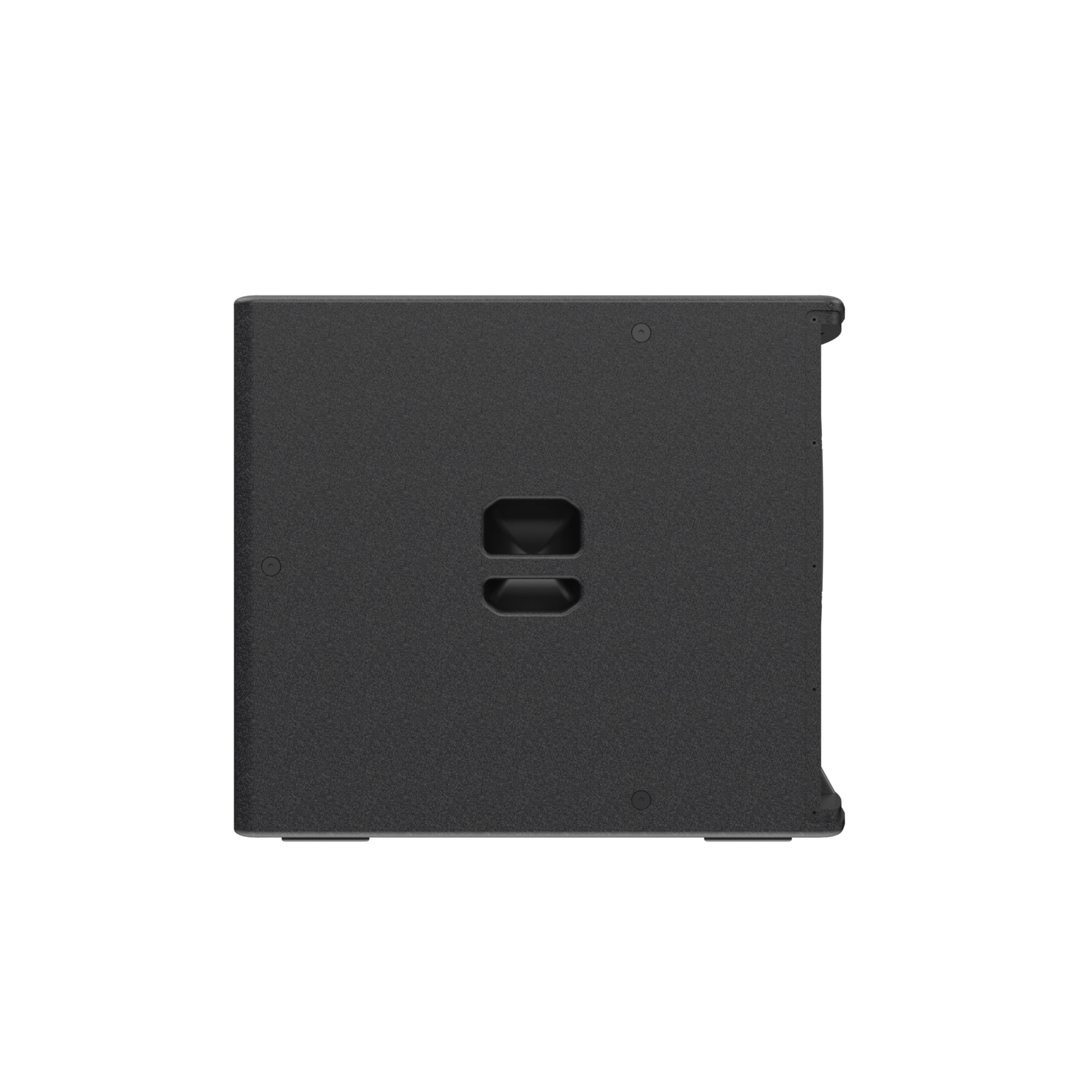

• 2 x bar handles with recycled ABS pockets: 1 on each side
• M20 top-mounted thread plate for pole mounting
• 4 x skids on base, 4 x recesses on top: for stacking vertically
Dimensions:
• (W) 530 mm x (H) 606 mm x (D) 690 mm
• (W) 20.9 in x (H) 23.9 in x (D) 27.2 in
Weight: 45.5 kg (100.3 lbs)
