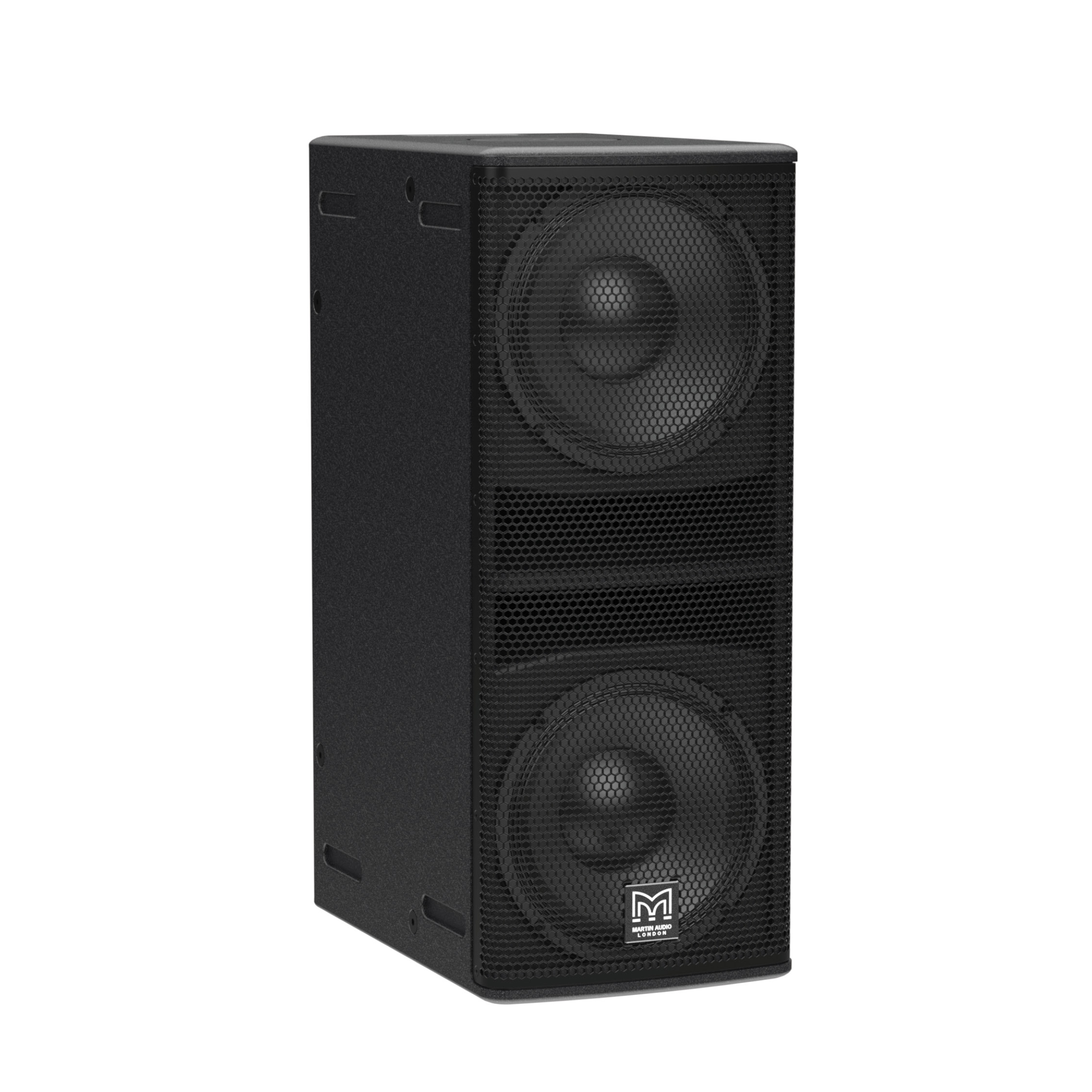

MARTIN AUDIO BLACKLINE Q210-B
2 x 10” Passive Portable Subwoofer
Blackline Q210 is a slimline, dual-driver subwoofer engineered for applications where a visually discreet solution is required. Designed to complement BlacklineQ Series full-range loudspeakers, it extends the system’s low-frequency response down to 49 Hz, delivering tight, punchy low frequency impact with a Peak SPL of 133dB (139dB for crest factor 4).
Features
• Slimline direct-radiator subwoofer
• 2 x 10” (250mm) drivers with 2” (50mm) voice coils
• Peak SPL of 133dB (139dB for crest factor 4)
• Durable plywood enclosure
• Slot ports for reduced air noise
• Perforated steel grille
• M20 / 1.4” (35mm) pole-mount socket
• 4Ω nominal impedance
• Integral ergonomic handles
• Feet for vertical or horizonal operation
• Rebate recesses for stable horizontal stacking
• M8 flying inserts
• Three NL4 connectors
Applications
• Portable sound reinforcement
• Live music clubs
• Bars and restaurants
• Nightclubs
• Corporate AV events and conferences
• Weddings and parties
• Houses of worship, leisure centres and retail outlets
Type: Slimline, dual 10" driver subwoofer
Frequency response (4pi): 49 Hz – 100 Hz ± 3 dB, -10 db @ 41 Hz
Driver: 10” (250 mm) with 2” (50 mm) long excursion voice coil, ferrite motor system
Rated power: 400 W AES, 1600 W peak
Required electronics: Processor and amplifier, or a combined amplifier-processor unit
Recommended electronics: DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor
Sensitivity: 101 dB
Maximum SPL: 127 dB continuous, 133 dB peak, 139 dB peak with crest factor 4
Nominal impedance: 4 ohm
Dispersion: Omnidirectional
Crossover: Not applicable
Enclosure: Durable plywood
Finish: Black or white textured paint
Protective grille: Black or white perforated steel grille with scrim cloth backing

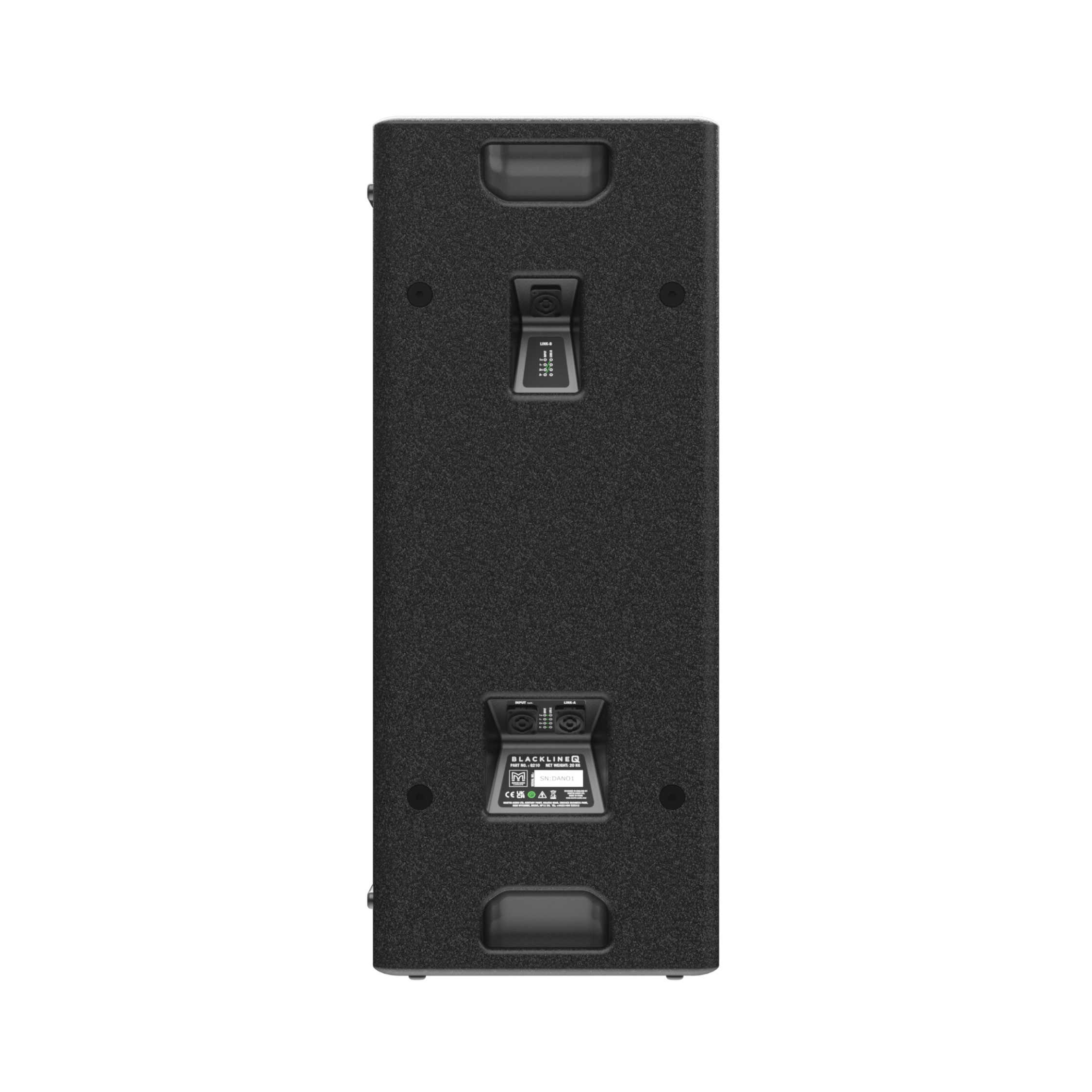

Connectors: 3 x NL4 connectors: 2 at bottom rear (input and link A), 1 at top rear (link B)
Pin connections (input): 1+/1–
Pin connections (link A): 1+/1– to 1+/1– and 2+/2– to 2+/2–
Pin connections (link B): 2+/2– on input to 1+/1– on link B
Fittings:
• 16 x M8 inserts: 2 on top, 2 on bottom, 4 on left, 4 on right, 4 on rear
• 2 x bar handles with recycled ABS pockets: 1 at rear top, 1 at rear bottom

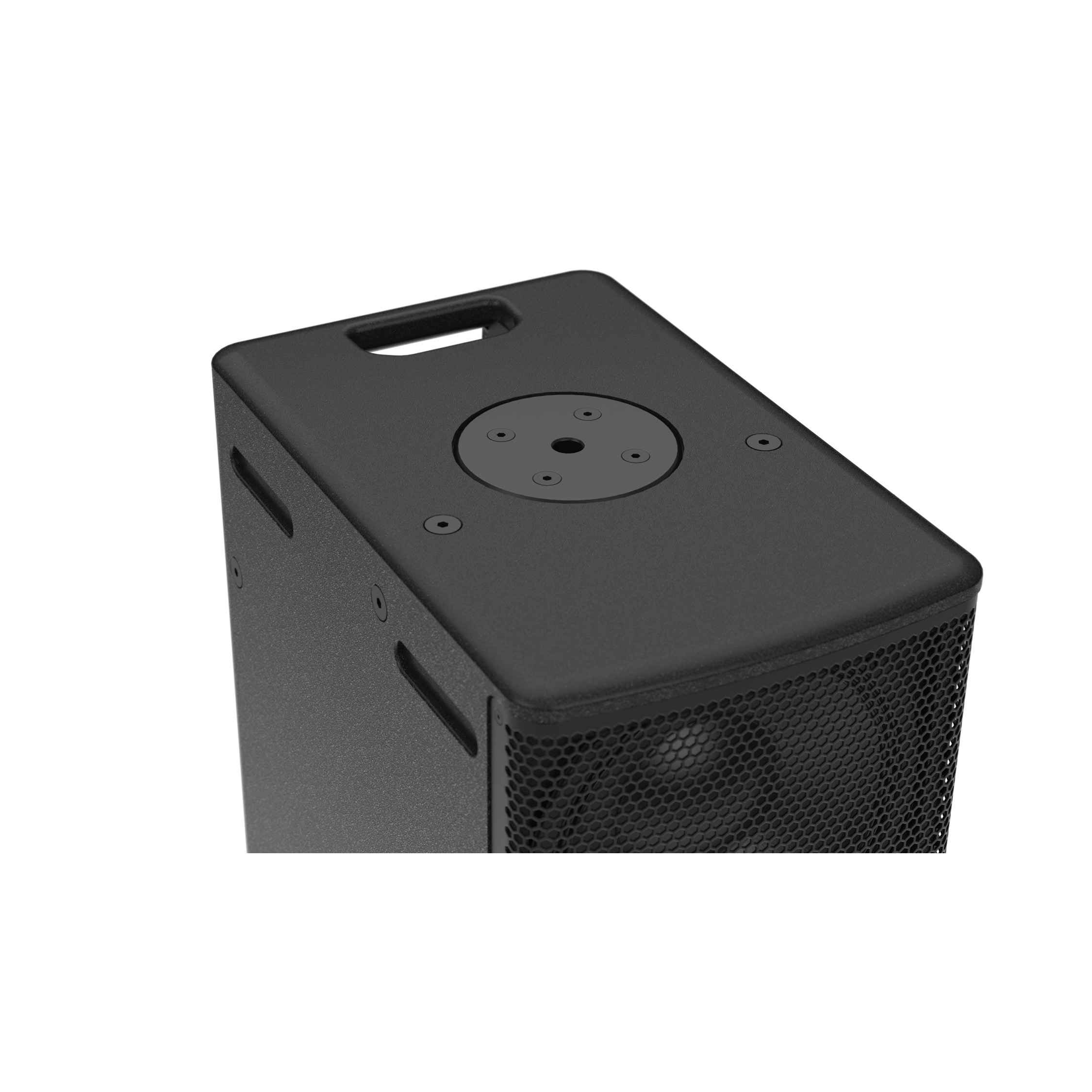

• M20 top-mounted thread plate for pole mounting
• 4 x skids on base

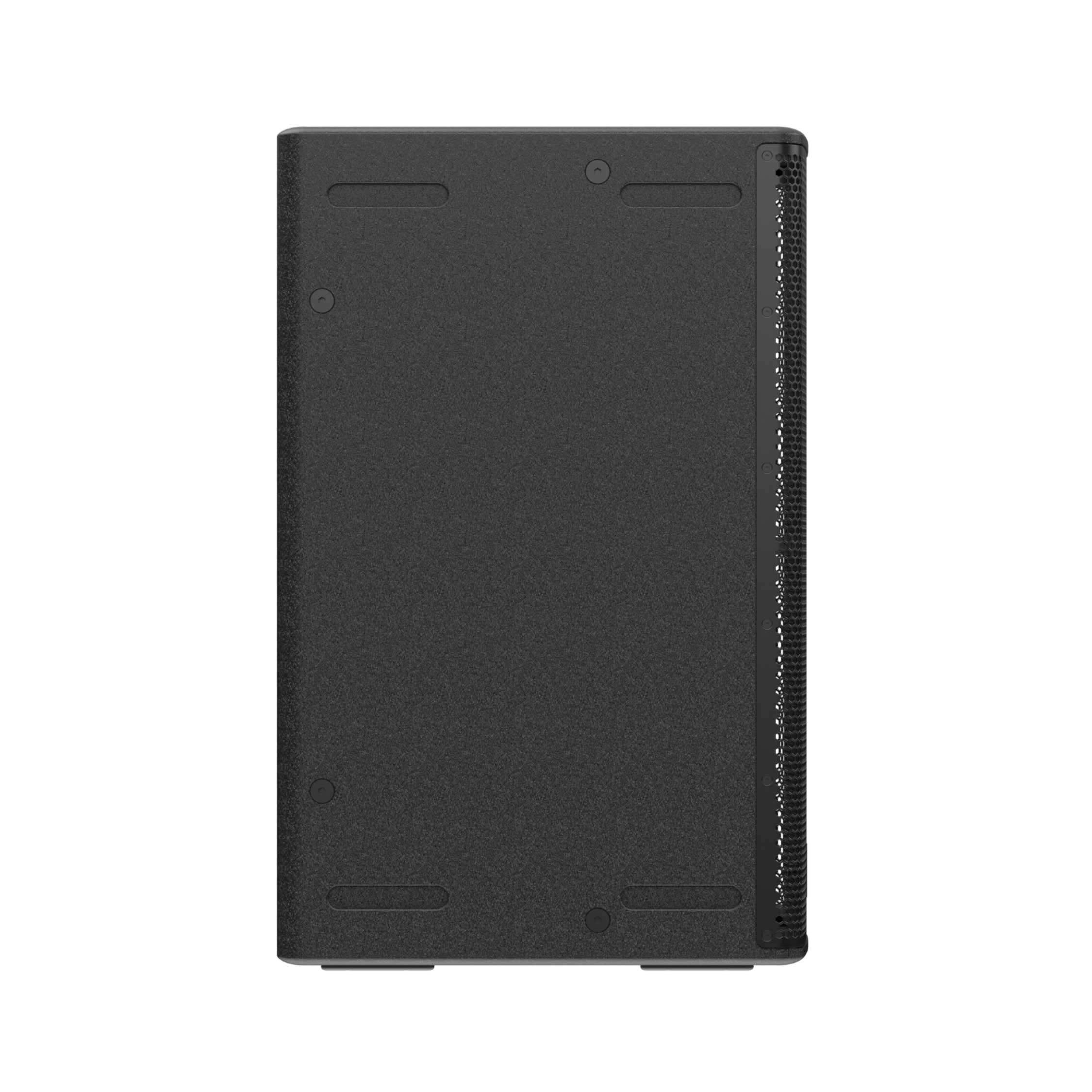

• 4 x skids on right side, 4 x recesses on left side: for stacking horizontally
Dimensions:
• (W) 296 mm x (H) 718 mm x (D) 462 mm
• (W) 11.7 in x (H) 28.3 in x (D) 18.2 in
Weight: 22.4 kg (49.4 lbs)
