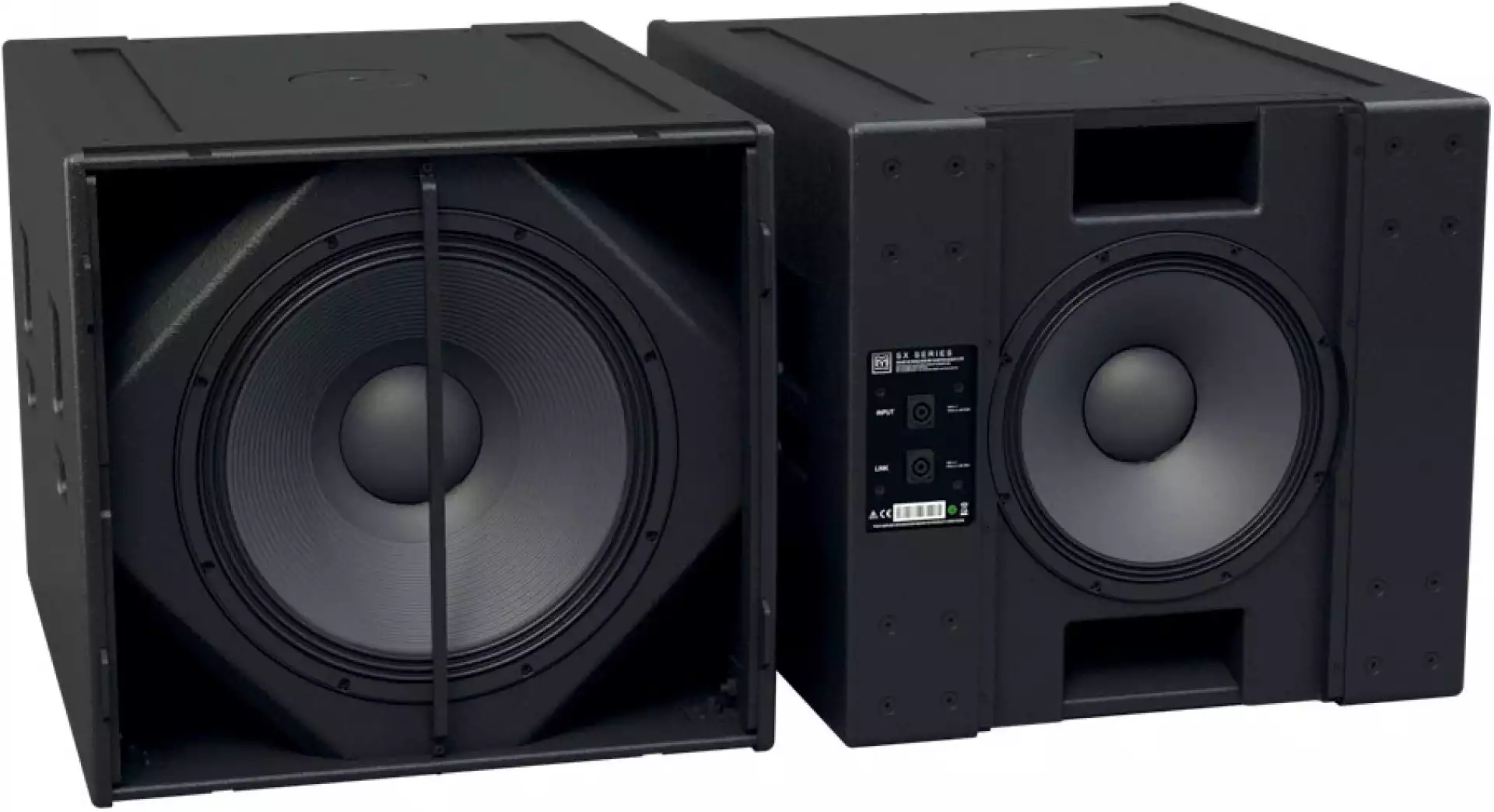

Designed for touring sound and installations, the SXC118 is a compact, high performance cardioid subwoofer. It features an 18” (460mm) forward facing driver and a 14” (356mm) rear facing driver, each driven independently by separate amplifier channels and DSP.
ach driver has its own chamber with optimised bass reflex porting. This arrangement produces a cardioid dispersion pattern which maximises the front radiation and reduces unwanted radiation behind the subwoofer.
The recommended iK42 amplifier optimises the DSP parameters for front and rear drivers to maximise the rear rejection — from 21dB at 43Hz to 28dB at 75Hz. This keeps low frequencies away from stages, turntables and walls as well as reducing reverberant energy in the room, greatly improving the system’s low frequency response accuracy and impact.
In front of the enclosure, the output from the two drivers is additive, giving an extra 2dB of output when compared with a conventional 1 x 18” subwoofer.
The enclosure is constructed from plywood and finished with a hard-wearing textured paint. It is equipped with four grab handles and foam-backed perforated steel grilles protect the front and rear drivers. It can be used individually, stacked or flown individually by means of threaded flying inserts
The SXC118 is an ideal partner for WPM and WPS line arrays or our range of point source loudspeakers where low frequency pattern control is required. Interlocking skids prevent movement when stacked and a threaded plate in the top surface facilitates pole- mounting of up to 4 WPM enclosures or a singular point source enclosure. The product is supplied as standard without castors but they can be purchased as an accessory.
By adding the input board cover accessory, the subwoofer is fully weather resistant and suitable for permanent outdoor usage.
| TYPE | Compact, cardioid subwoofer |
| FREQUENCY RESPONSE (1) | 43Hz – 150Hz ±3dB, -10dB @ 34Hz |
| DRIVERS |
|
| RATED POWER (2) |
|
| SENSITIVITY (10) | 104dB |
| MAXIMUM SPL (9) | 140dB peak |
| NOMINAL IMPEDANCE |
|
| DISPERSION (-6DB) | Cardioid |
| ENCLOSURE | Multi-laminate birch and poplar ply |
| FINISH | Textured black paint |
| PROTECTIVE GRILLE | Black HEX perforated steel |
| CONNECTORS | 2 x NL4 |
| PIN CONNECTIONS (INPUT) | 18”: +1, -1; 14”: +2, -2 |
| PINS CONNECTIONS (LINK) | 18”: +1, -1; 14”: +2, -2 |
| FITTINGS |
|
| DIMENSIONS (INCL SKIDS) |
|
| WEIGHT |
|
Martin Audio SXC118
The loudspeaker shall be a compact cardioid subwoofer consisting of an 18” reflex-loaded transducer radiating to the front of the enclosure and a 14” reflex-loaded transducer radiating to the rear. The transducers shall be driven independently by separate channels of a dedicated controller amplifier.
Power handling of the 18” transducer shall be 1000W AES, 4000W peak. Power handling of the 14” transducer shall be 800W AES, 3200W peak. Rated impedance of each transducer shall be 8 ohms. The on-axis frequency response shall be 43Hz-150kHz +/- 3dB and the loudspeaker shall produce a maximum SPL of 140dB peak calculated at 1 metre.
The loudspeaker enclosure shall be constructed from multi-laminate plywood with a textured coating. The drivers shall be protected by a perforated steel grille and the enclosure shall be fitted with a threaded pole-mount plate, bar handles, skids and flying inserts. The rear connector panel shall be fitted with two NL4 type connectors.
Dimensions including skids, excluding castors (W x H x D) shall be 635mm x 603mm x 824mm (25in x 23.7in x 32.4in). Dimensions including skids and optional castors (W x H x D) shall be 635mm x 603mm x 952mm (25in x 23.7in x 37.5in). Weight excluding castors shall be 69kg (152lbs). Weight including optional castors shall be 73kg (161lbs).
The loudspeaker shall be the Martin Audio SXC118.
