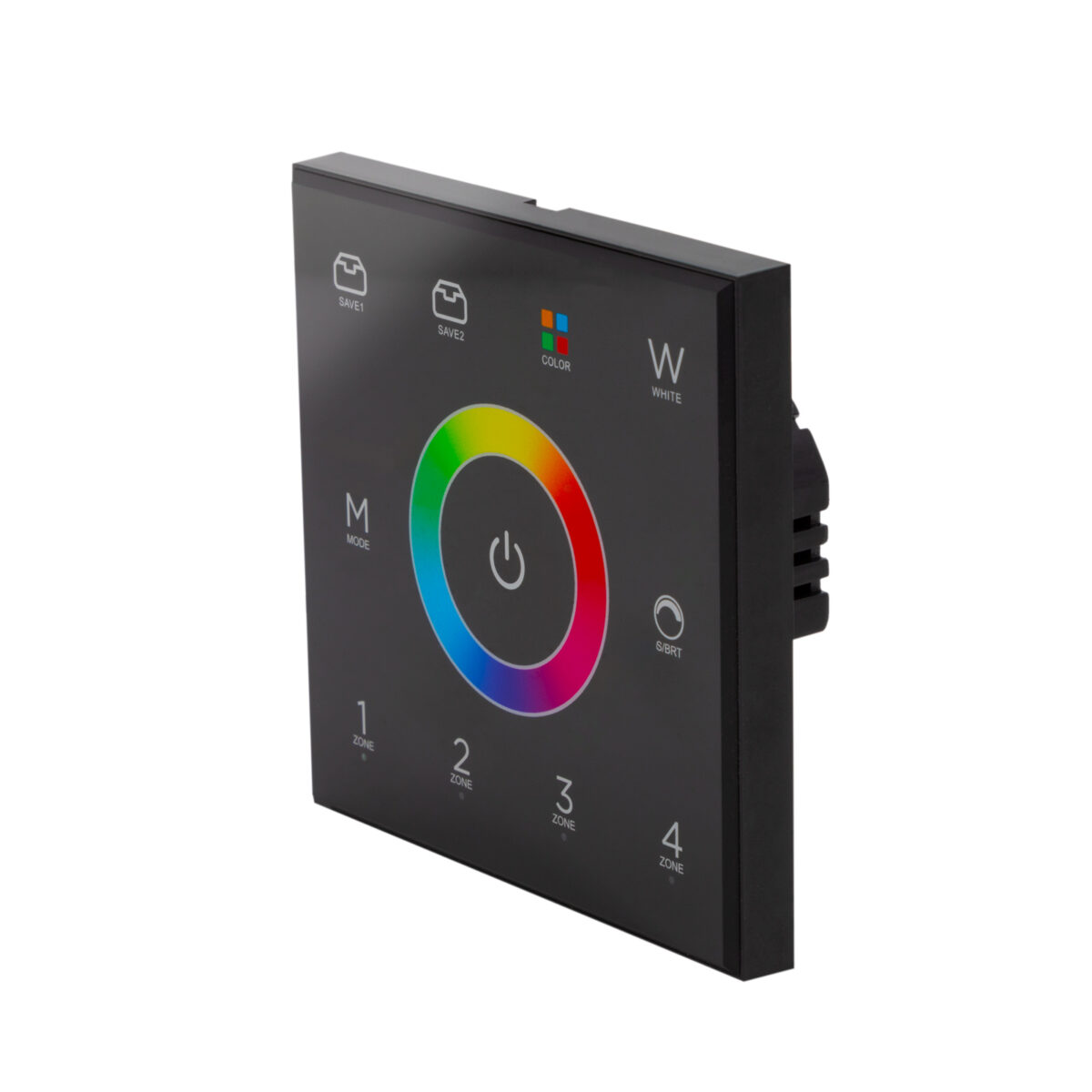

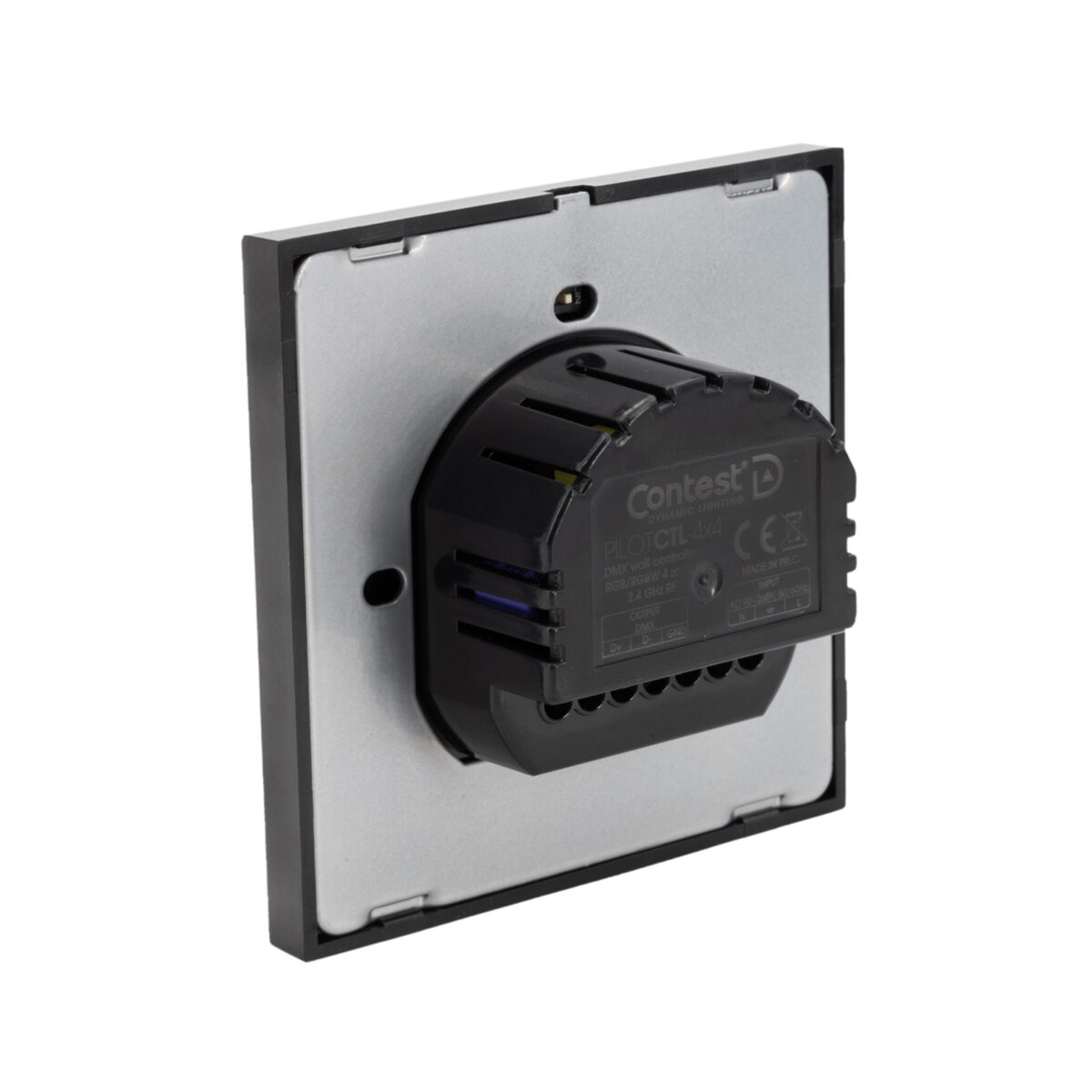

PILOTctl4x4 wall controllers are touch-sensitive control interfaces. The control signal is transmitted wirelessly in 2.4GHz mode to the driver. A wired DMX output can also be used to connect drivers or other DMX products. The rear connection block is compatible with standard Legrand back boxes.

Combined with the TAPEDRIVER-RF4 BLE, they allow you to control your LED ribbon installations, offering dimming, color adjustment and 4-zone management functions. These controllers are available in white or black finish.

PILOTctl4x4: control of RGB and RGBW LED ribbons.

• Electrical data
  • Input voltage: AC 90 ~ 265 V
  • RF frequency: 2.4 GHz
  • RF distance: < 20 m
  • Wired control: DMX 512
  • Power consumption: < 0.58 W / < 1.1 W
  • Application range: RGB/RGBW
• Special features
  • Available PWM frequencies: 2 KHz / 15 KHz
  • Output dimming: 1024 levels
  • Speeds: 1024 levels
  • RF connection distance: up to 20 m
• Operating environment
  • Ambient temperature: 0°C to + 45°C
  • Protection class: IP20
• Physical characteristics
  • Dimensions: 86 x 86 x 32
  • Weight: 120 g
  • Color: black
