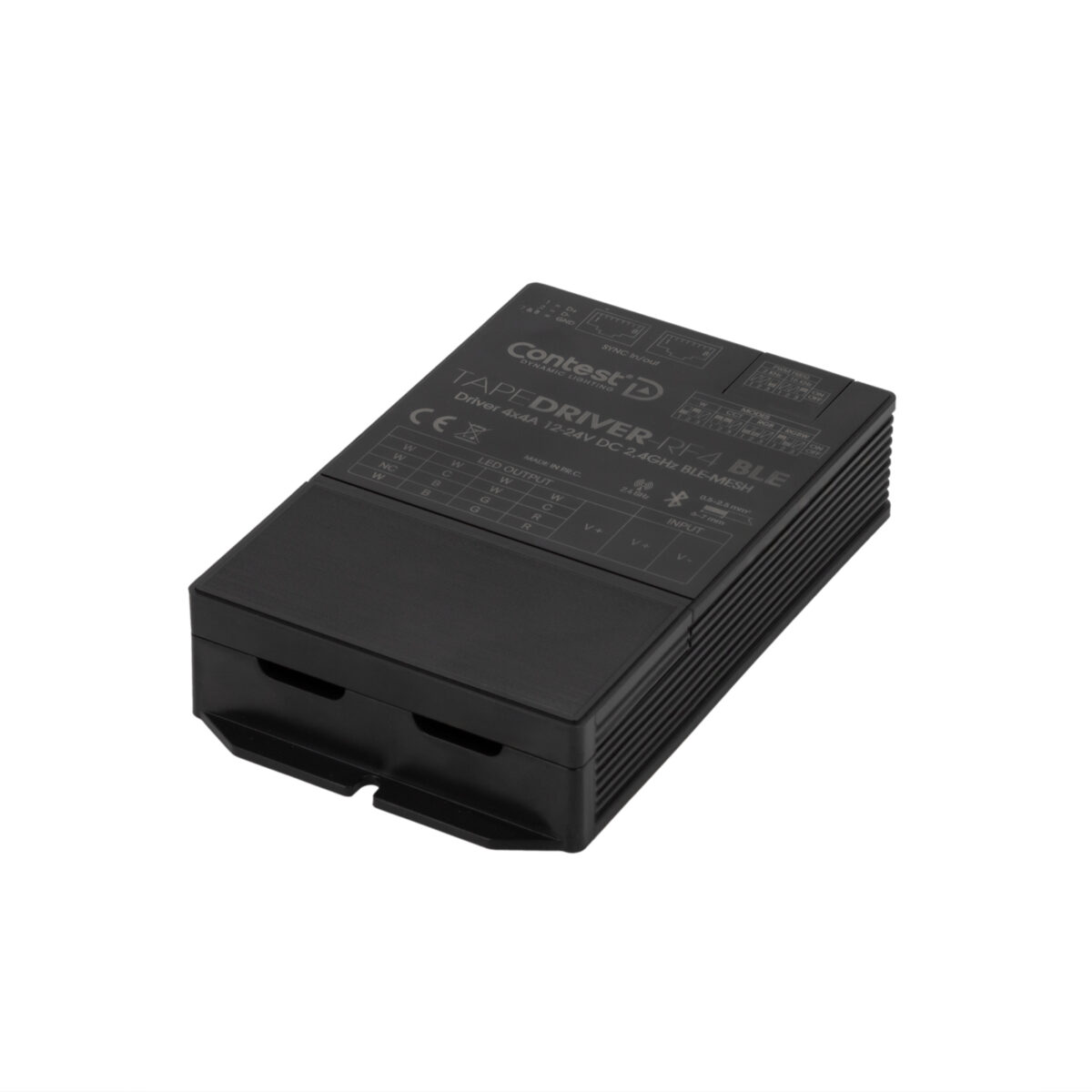

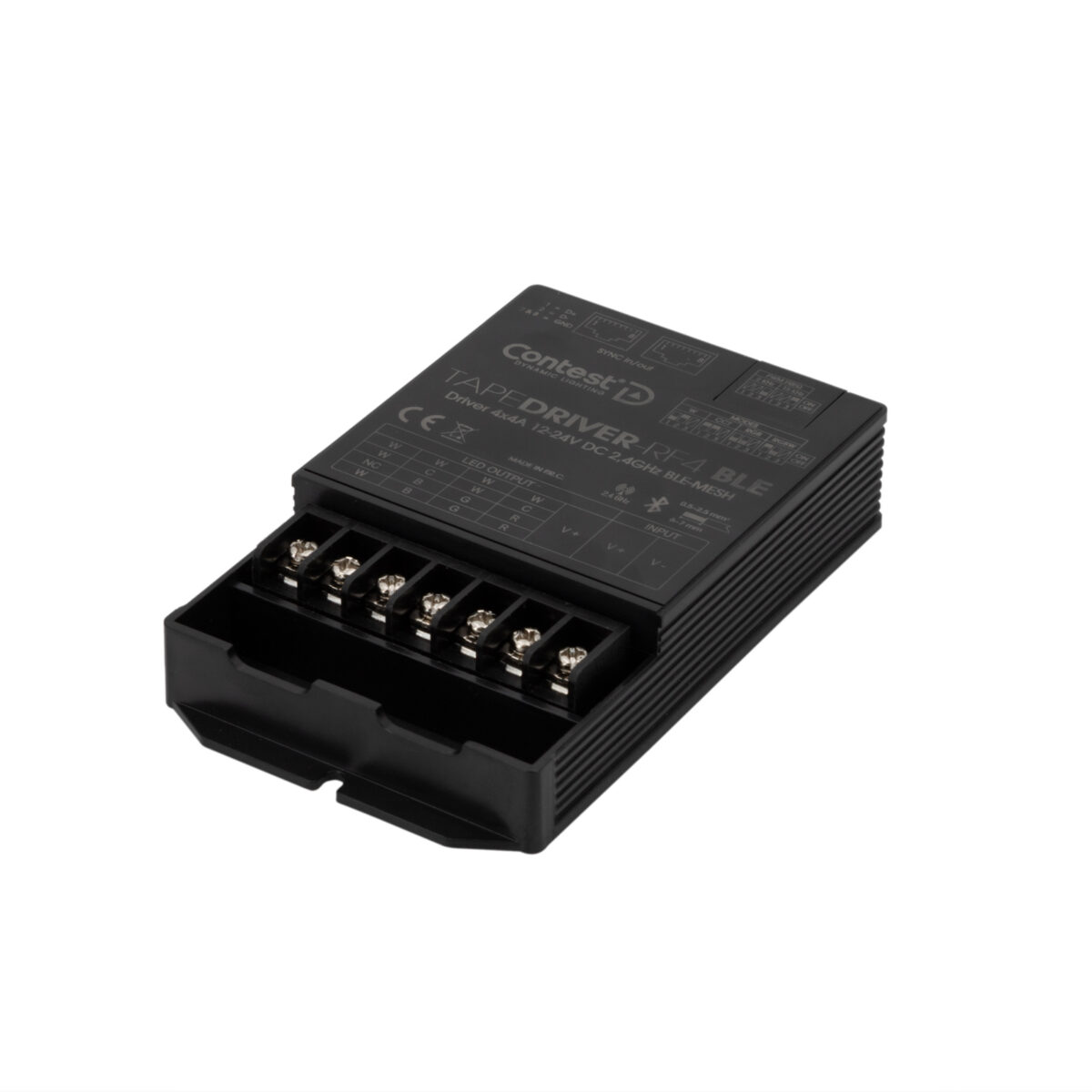

The TAPEDRIVER-RF4 BLE driver allows connection of ribbons from 1 to 4 colors. It must be supplied with 12 or 24 V for an output of 4 x 4 A max.
It can be operated by wall controllers or remote controls in 2.4 GHz mode.

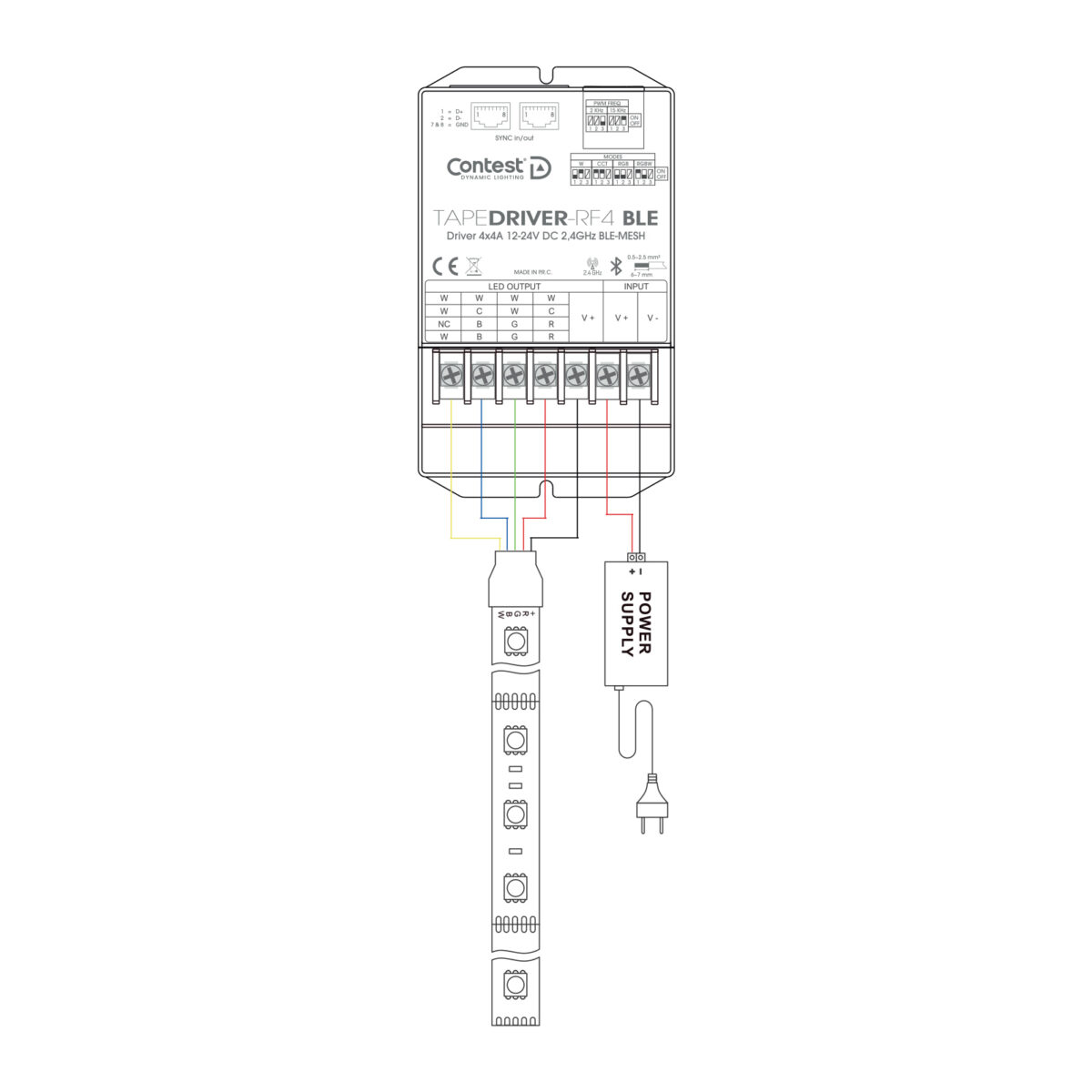

Drivers can also be wired for greater range and perfect synchronization. TAPEDRIVER-RF BLE uses BLE-MESH technology to deploy a Bluetooth mesh network of connected objects.

• Electrical data
  • Input voltage: 12~24 V DC
  • Output voltage: 4 x 12~24 V DC per channel max.
  • Output current :
    • PWM 2 KHz: 4 x 8 A
    • PWM 15 KHz: 4 x 4 A
  • Output power :
    • PWM 2 KHz: 384 W / 12 V; 768 W / 24 V
    • PWM 15 KHz: 192 W / 12 V; 384 W / 24 V
  • Output type: DC voltage
• Special features
  • Available PWM frequencies: 2 KHz / 15 KHz
  • Output dimming: 1024 levels
  • Speeds: 1024 levels
  • RF connection distance: up to 20 m
  • Protection: against short circuits
• Operating environment
  • Ambient temperature: 0°C to +45°C
  • IP rating: 20
• Physical characteristics
  • Dimensions: 115 x 70 x 24 mm
  • Weight: 125 g
