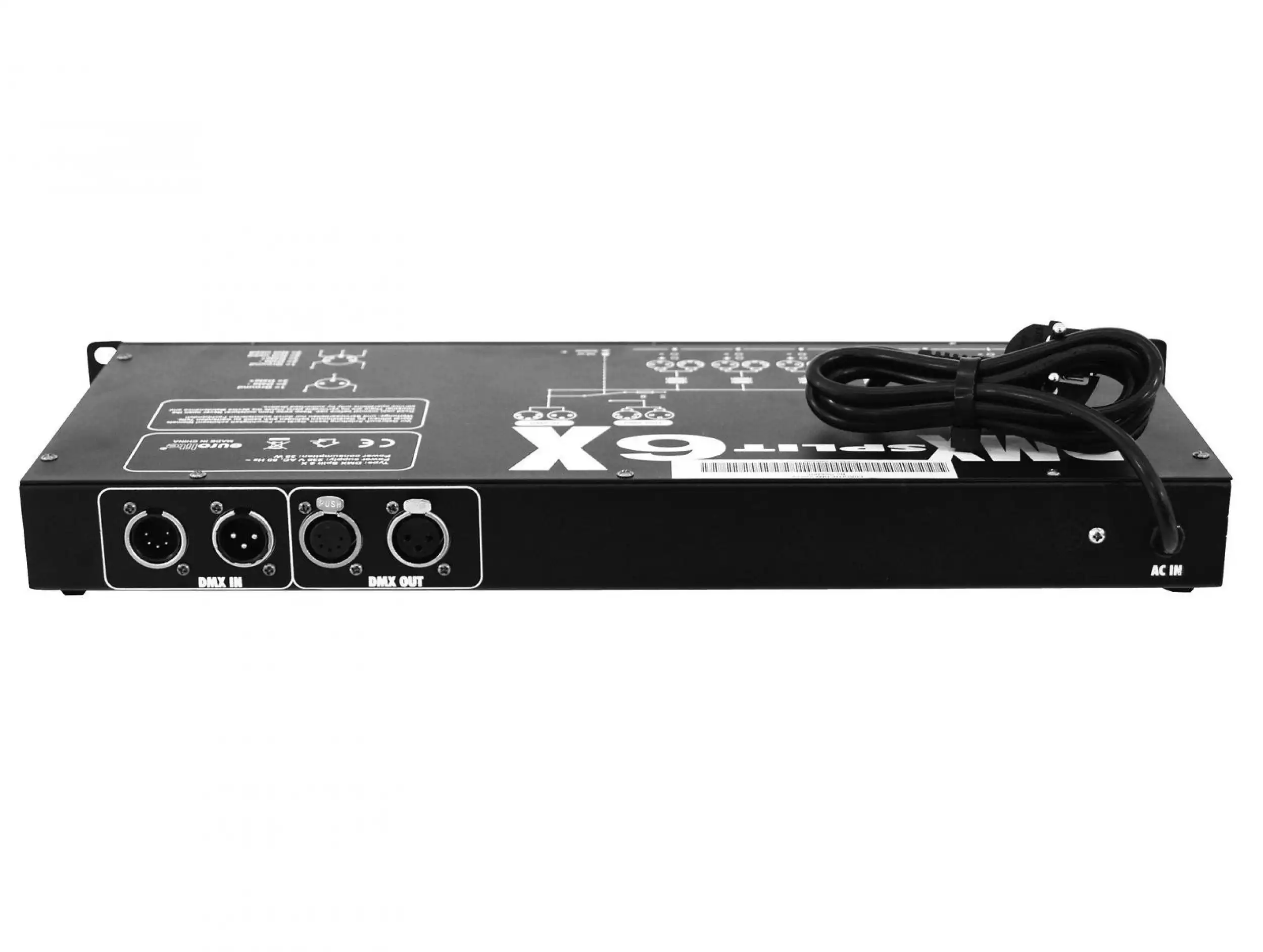

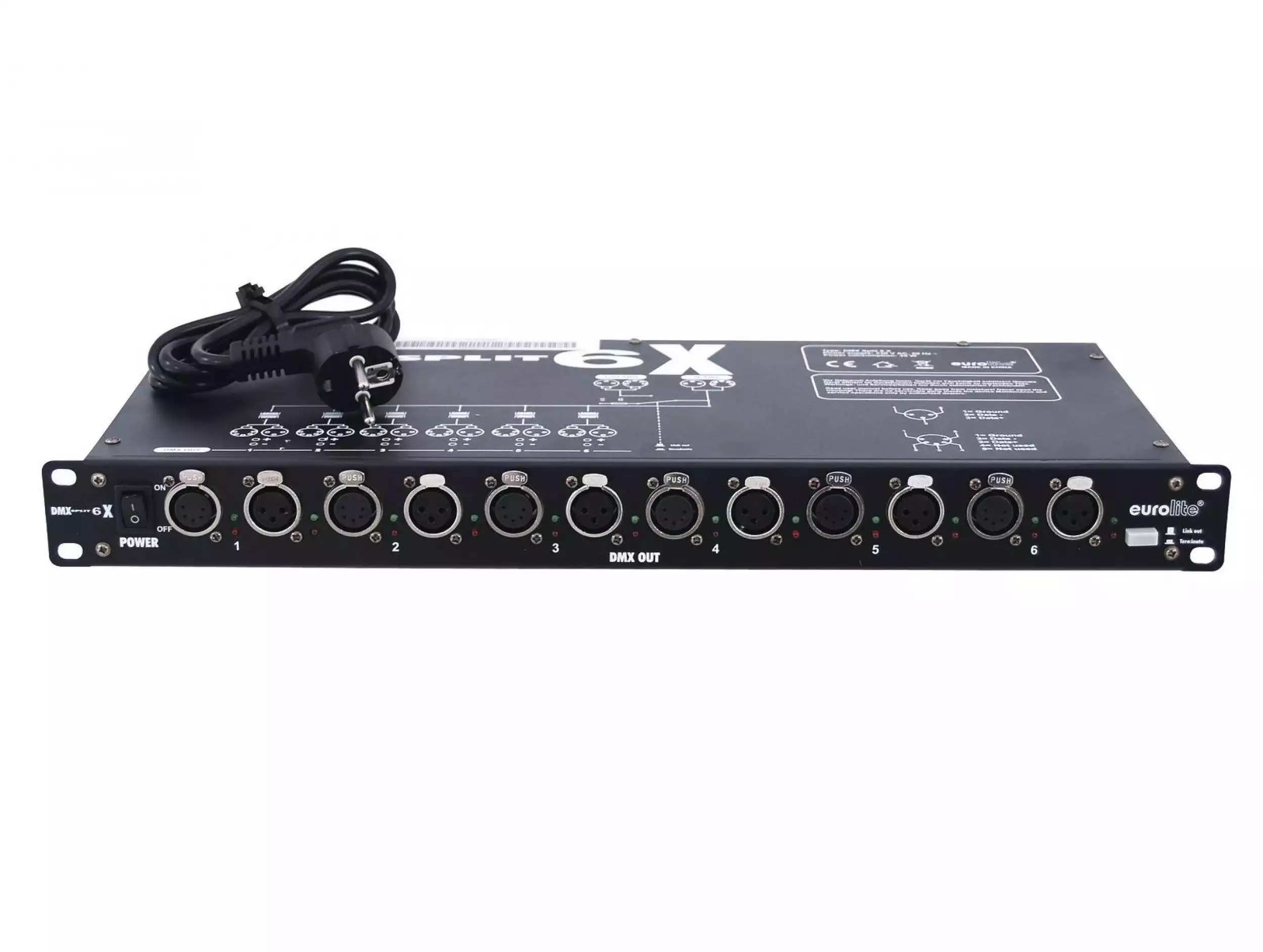

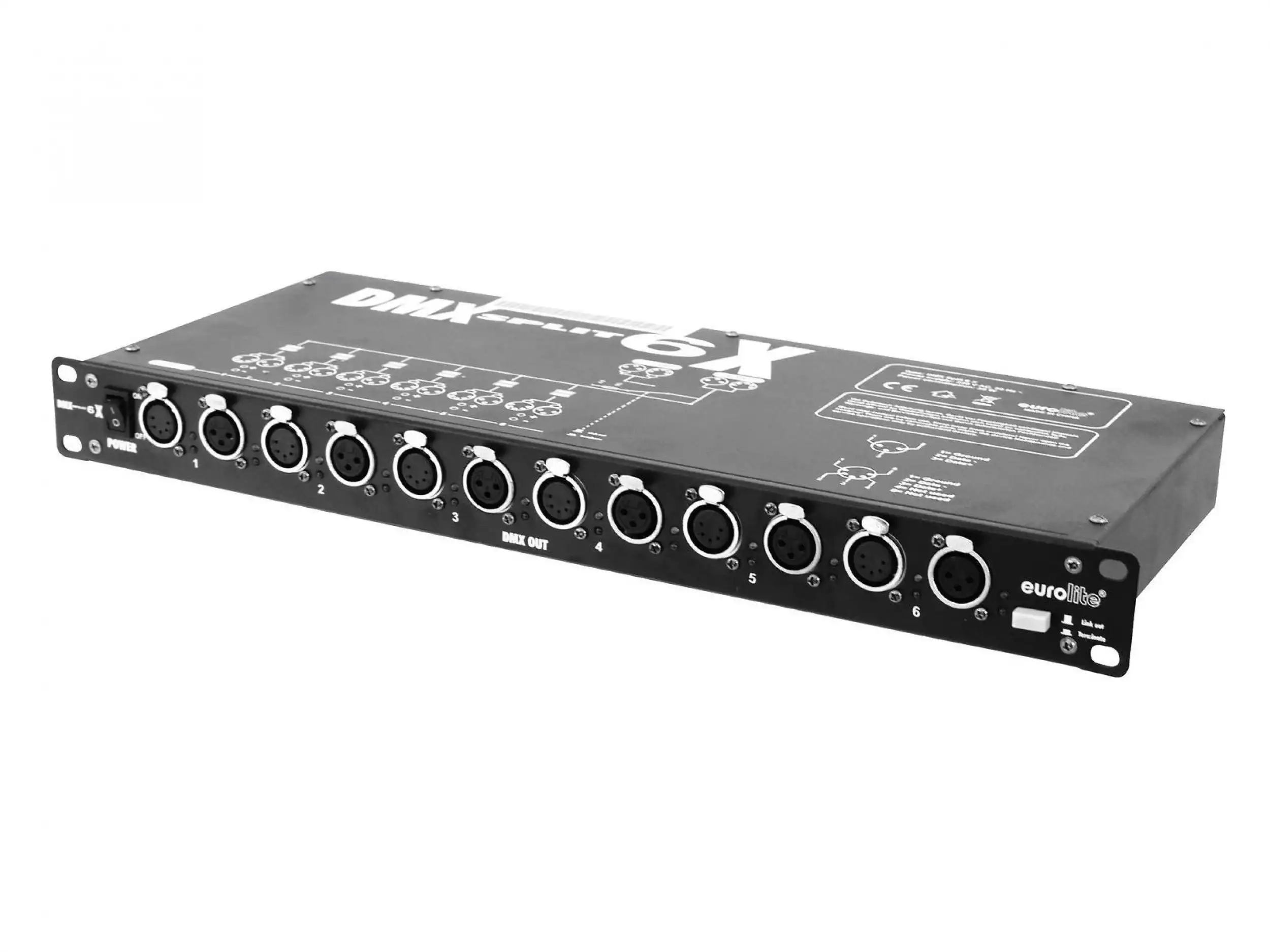

EUROLITE DMX split 6x
Garantujemo najnižu cenu!
Splitter with 6 galvanically isolated outputs, 3-pin & 5-pin XLR sockets
One DMX-line is partitioned into six lines with this splitter. Due to the fact, that all outputs are seperated galvanically, one broken line will not cause a blackout. When a lighting performance without any disturbance is aspired, then this DMX Split is a must-have.
Splitter with 6 galvanically isolated outputs, 3-pin & 5-pin XLR sockets
DMX splitter for splitting one DMX input signal to 6 DMX outputs
Input and outputs galvanically isolated
Every DMX output with independent driver and data indicator
Input and outputs with a set of respective power supply and internal fuse
(19") 48.3 cm rack installation 1 U
Package contents
1 x Device, 1 x User manual
TECHNICAL SPECIFICATIONS
Power supply: 230 V AC, 50 Hz
Power consumption: 35 W
Power connection: Fixed power supply cord with safety plug
DMX input: 1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version
DMX output: 6 x 3-pin XLR (F) mounting version Separate (galvanic)
6 x 5-pin XLR (F) mounting version Separate (galvanic)
1 x 5-pin XLR (F) mounting version Bypass
1 x 3-pin XLR (F) mounting version Bypass
Control elements: Bypass/terminating resistor Schalter, power switch
Housing design: (19") 48.3 cm rack installation 1 U
Dimensions: Width: 48,3 cm
Depth: 20 cm
Height: 4,45 cm
Weight: 3,23 kg
PACKAGING UNITS
PU EAN WEIGHT DIMENSIONS
1 4026397605136 3,65 kg 53cm x 26,5cm x 11,5cm
5 4026397605440 19,20 kg 58cm x 55cm x 30cm
