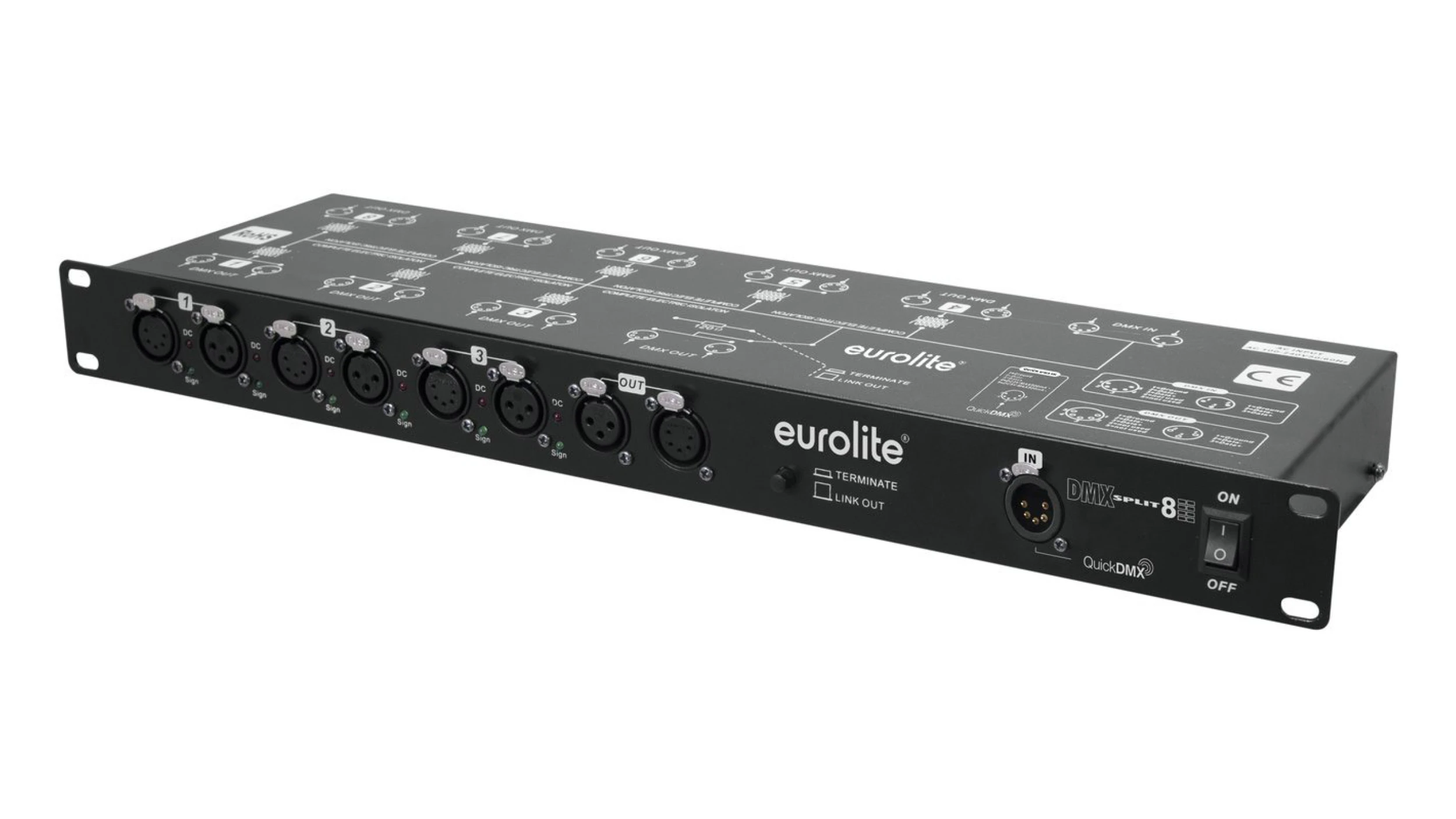

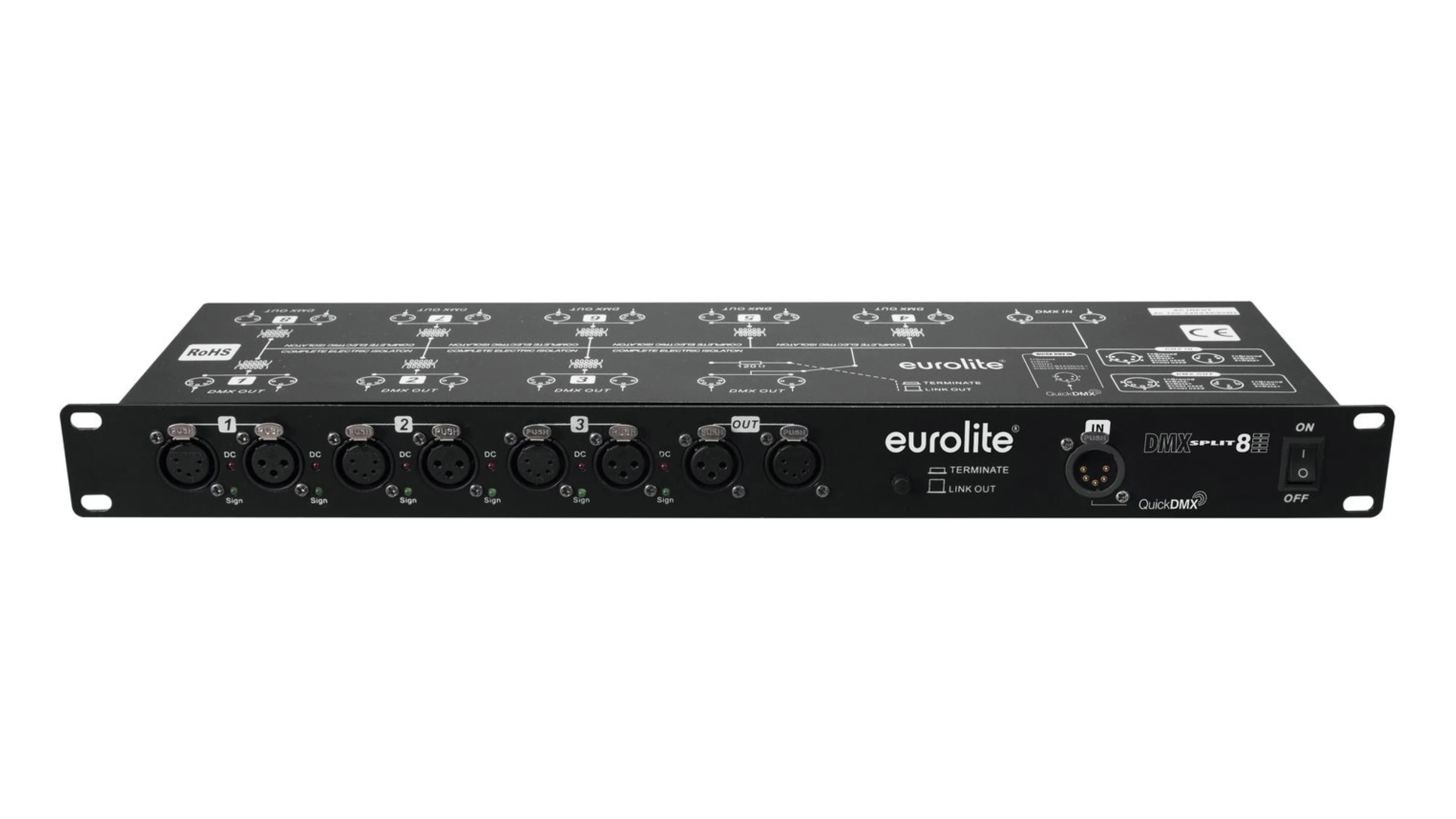

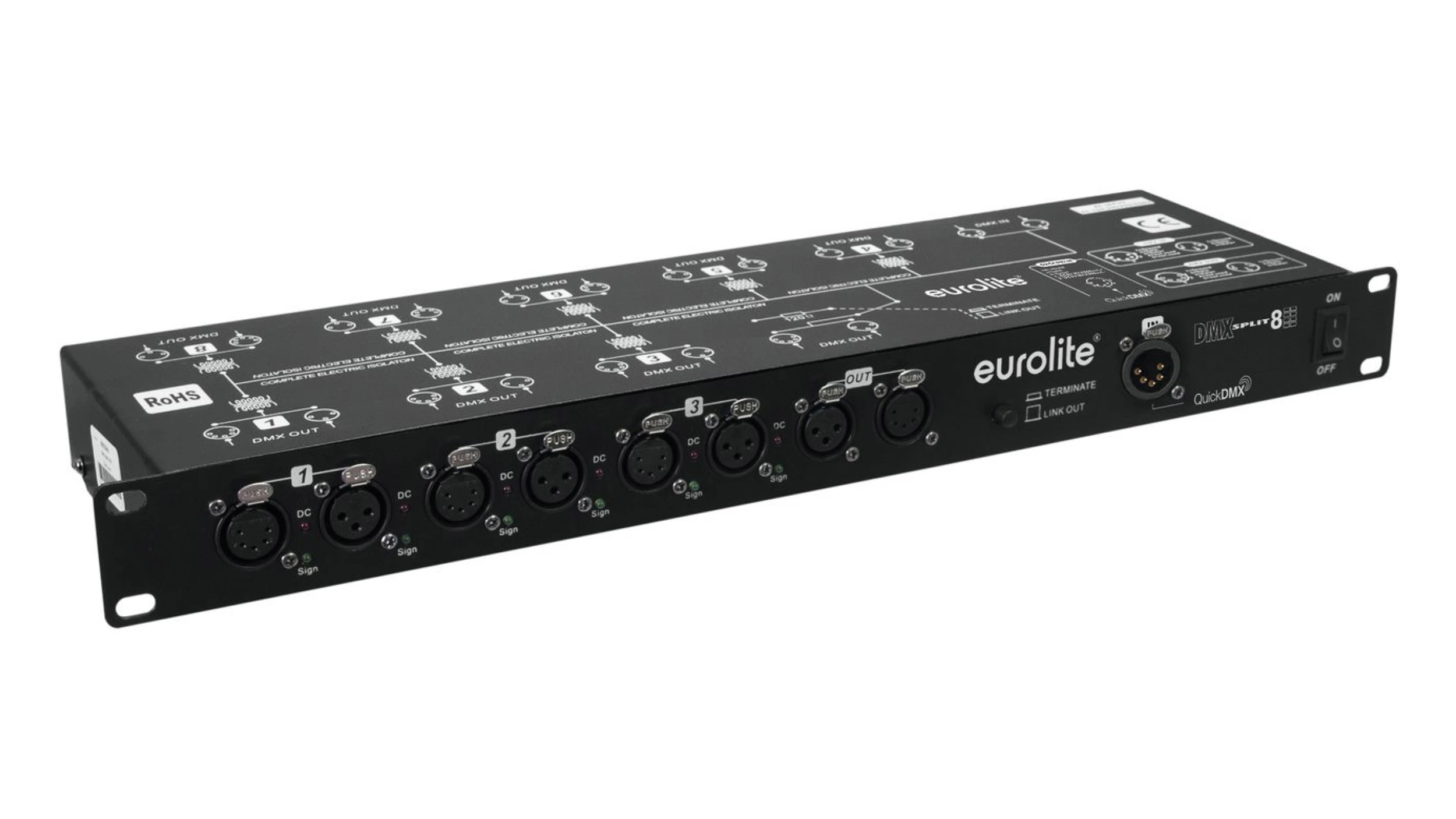

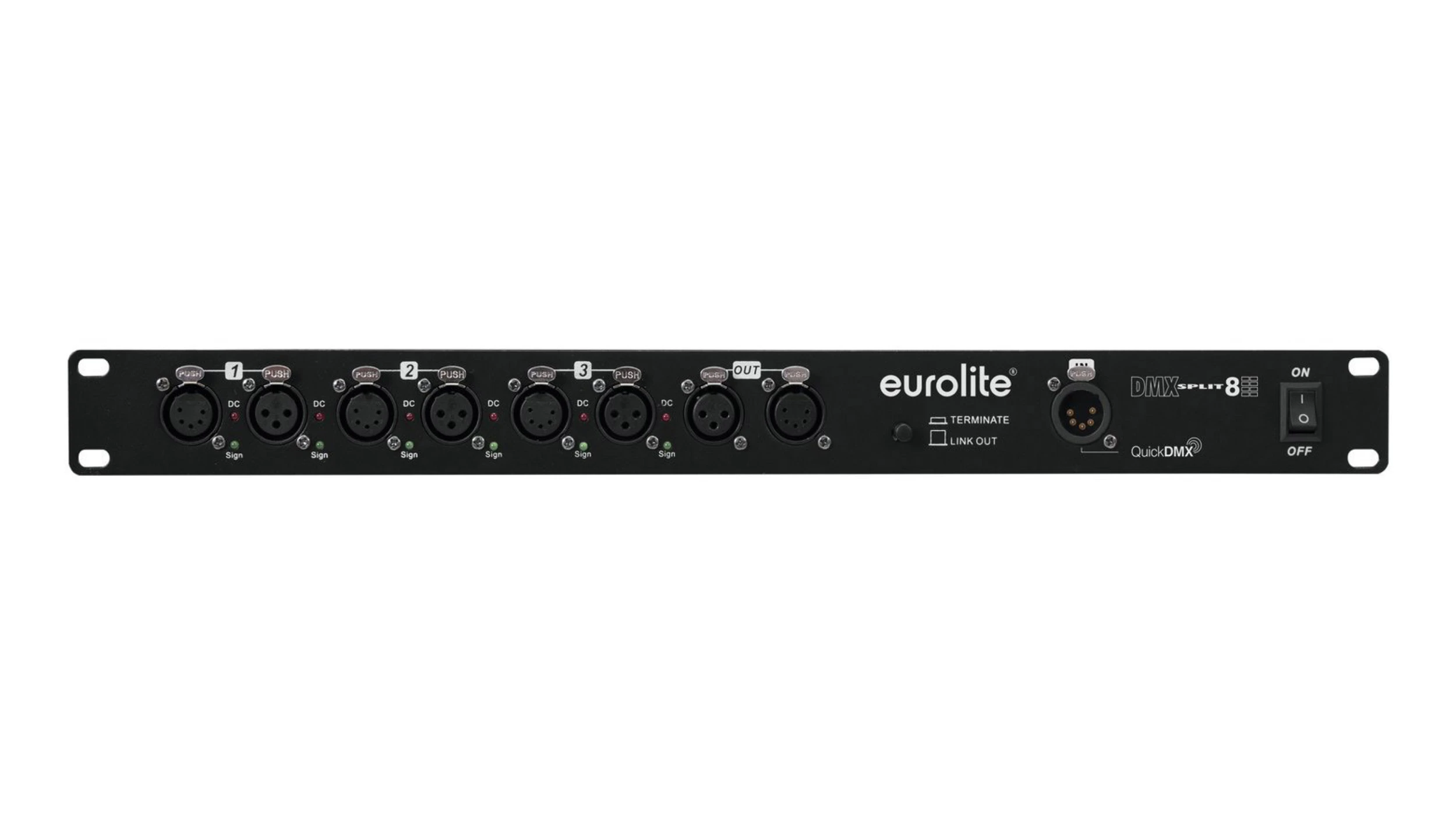

EUROLITE DMX split 8x
Garantujemo najnižu cenu!
- Svetogorska 9, Beograd
- Centralni magacin
Splitter with 8 galvanically isolated outputs, 3/5-pin & QuickDMX XLR sockets
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 5 W
Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
DMX input:
• 1 x 3-pin XLR (M) mounting version
• 1 x 5-pin XLR (M) mounting version

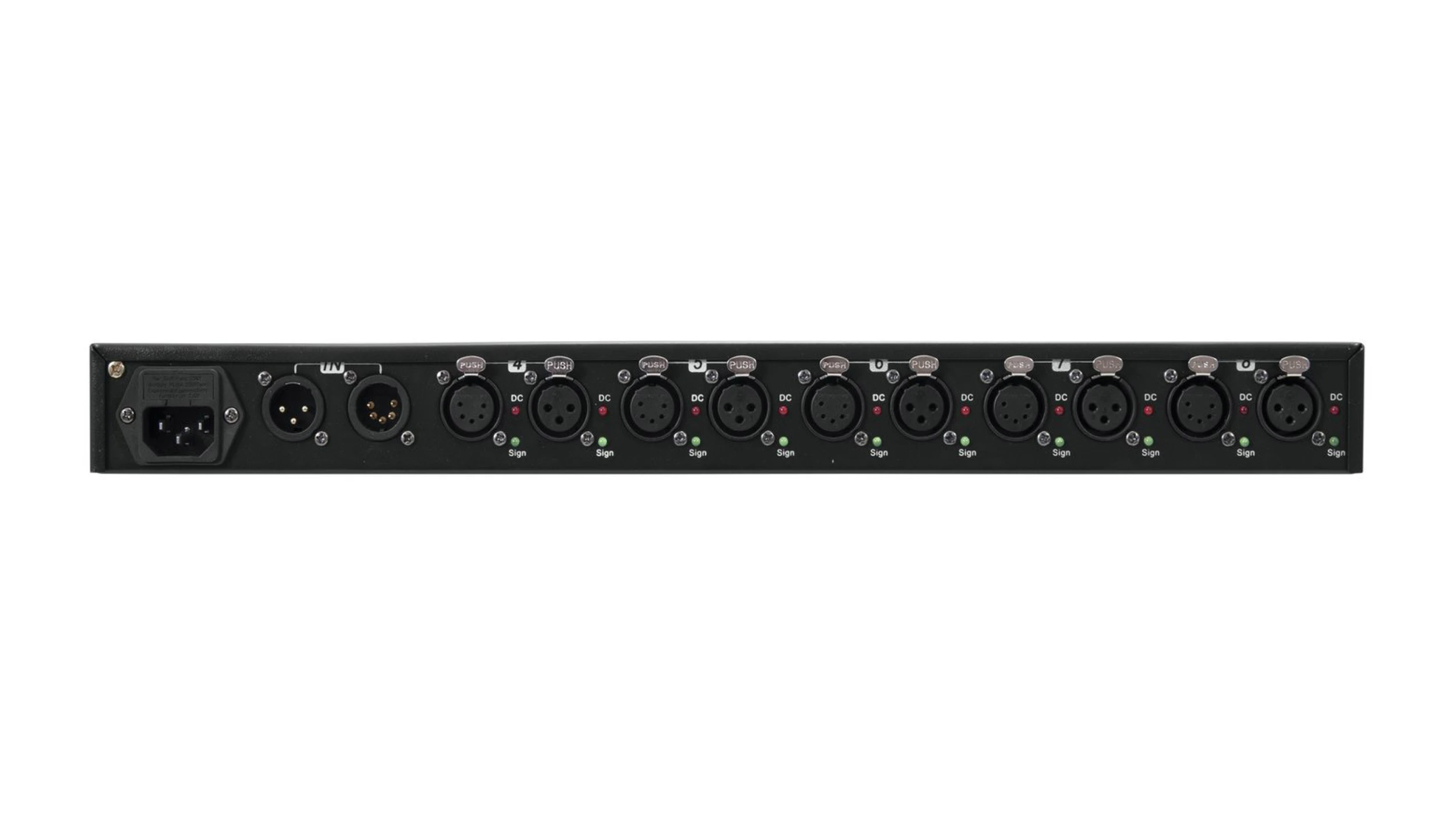

DMX output:
• 8 x 3-pin XLR (F) mounting version separate (galvanic) with independent driver and status indicator
• 8 x 5-pin XLR (F) mounting version separate (galvanic) with independent driver and status indicator
• 1 x 5-pin XLR (F) mounting version Bypass
• 1 x 3-pin XLR (F) mounting version Bypass
Control: DMX; QuickDMX via 5-pin XLR (M) mounting version (optional)
Control elements: Bypass/terminating resistor switch, power switch
Housing design: (19") 48.3 cm rack installation 1 U
Dimensions:
• Width: 48,3 cm
• Depth: 14,5 cm
• Height: 4,45 cm
Weight: 2,22 kg
