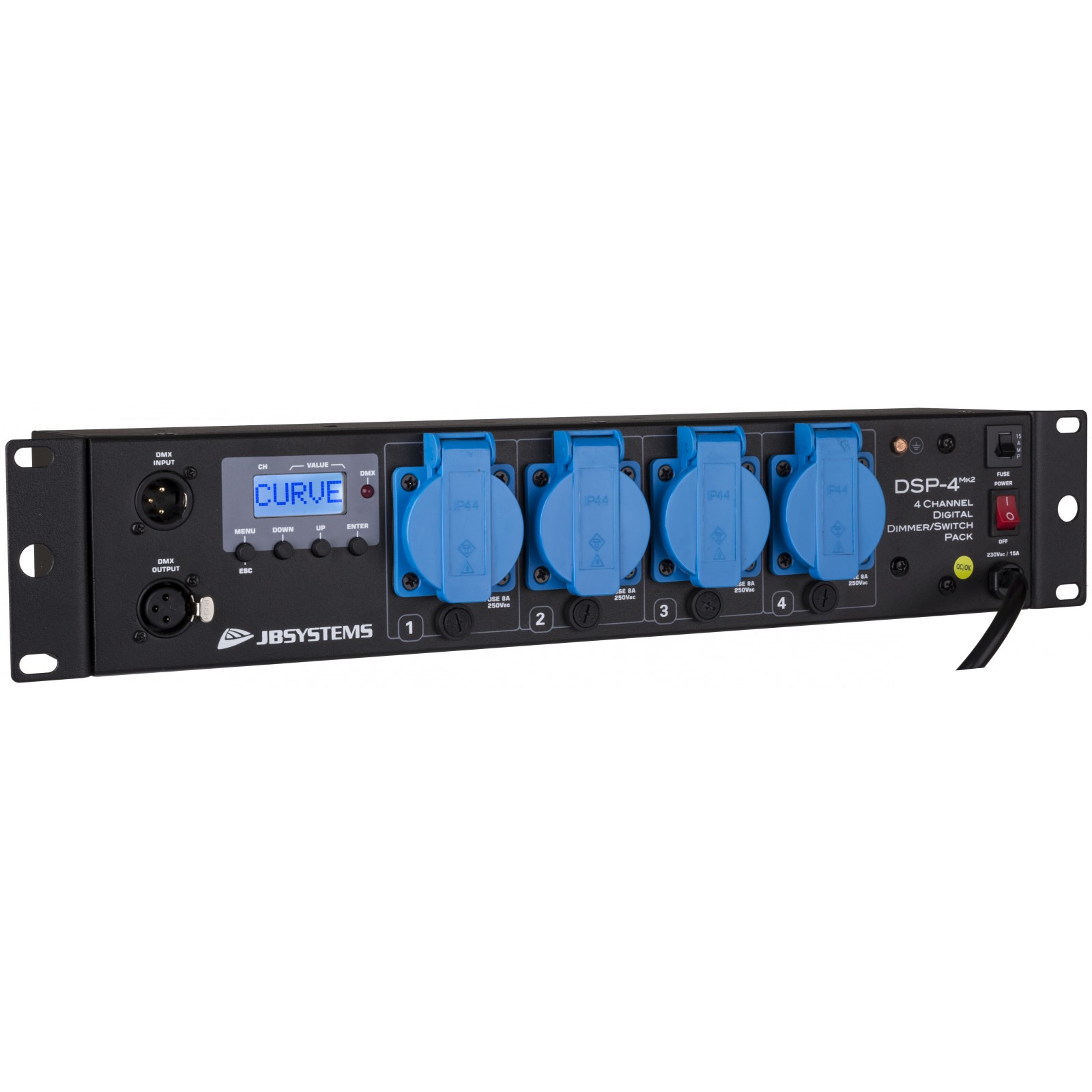

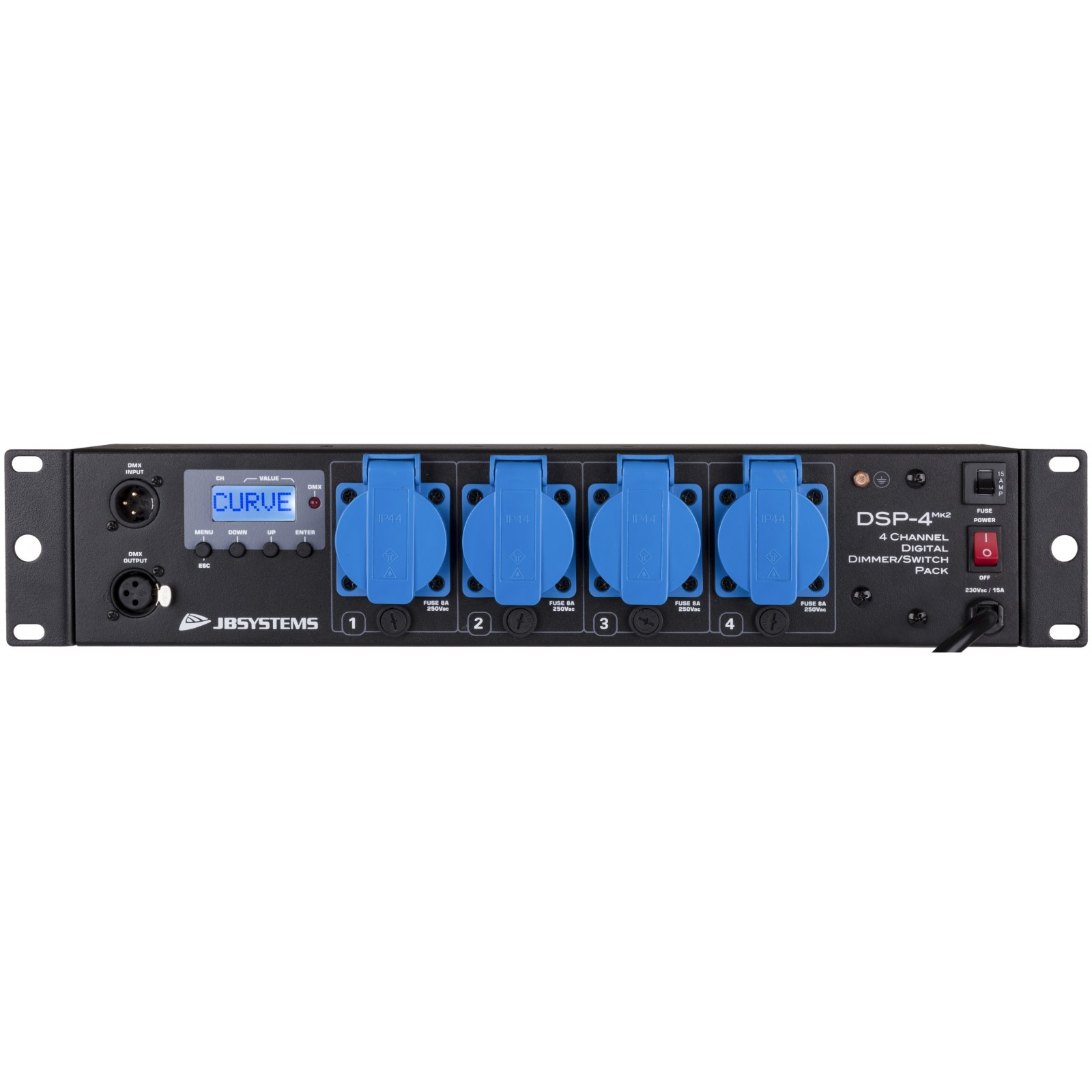

JBSYSTEMS DSP-4 Mk2/G Dimmerpack 4x1000W
Multi functional dimmer/switch pack equipped with 4 mains sockets (German Schuko)

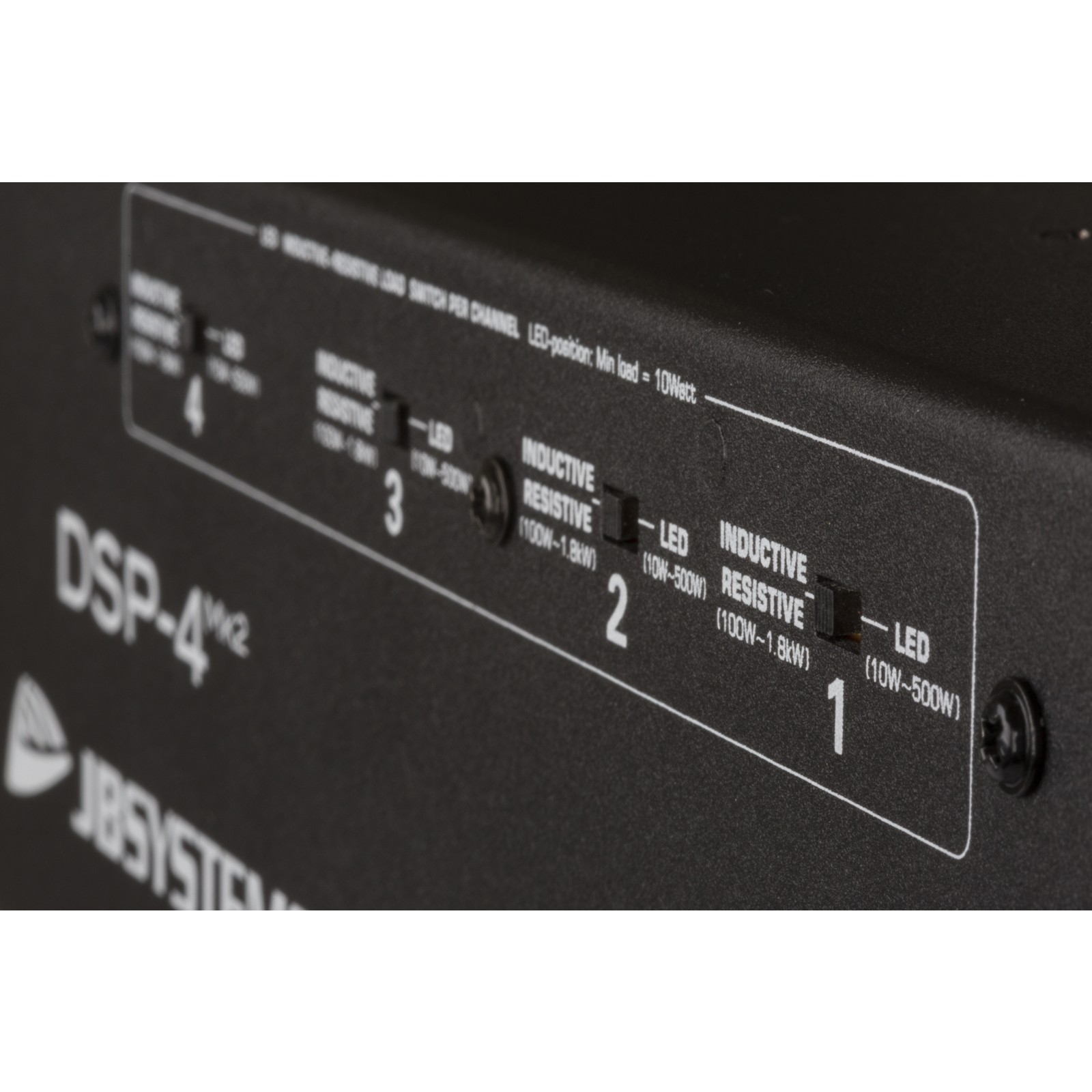

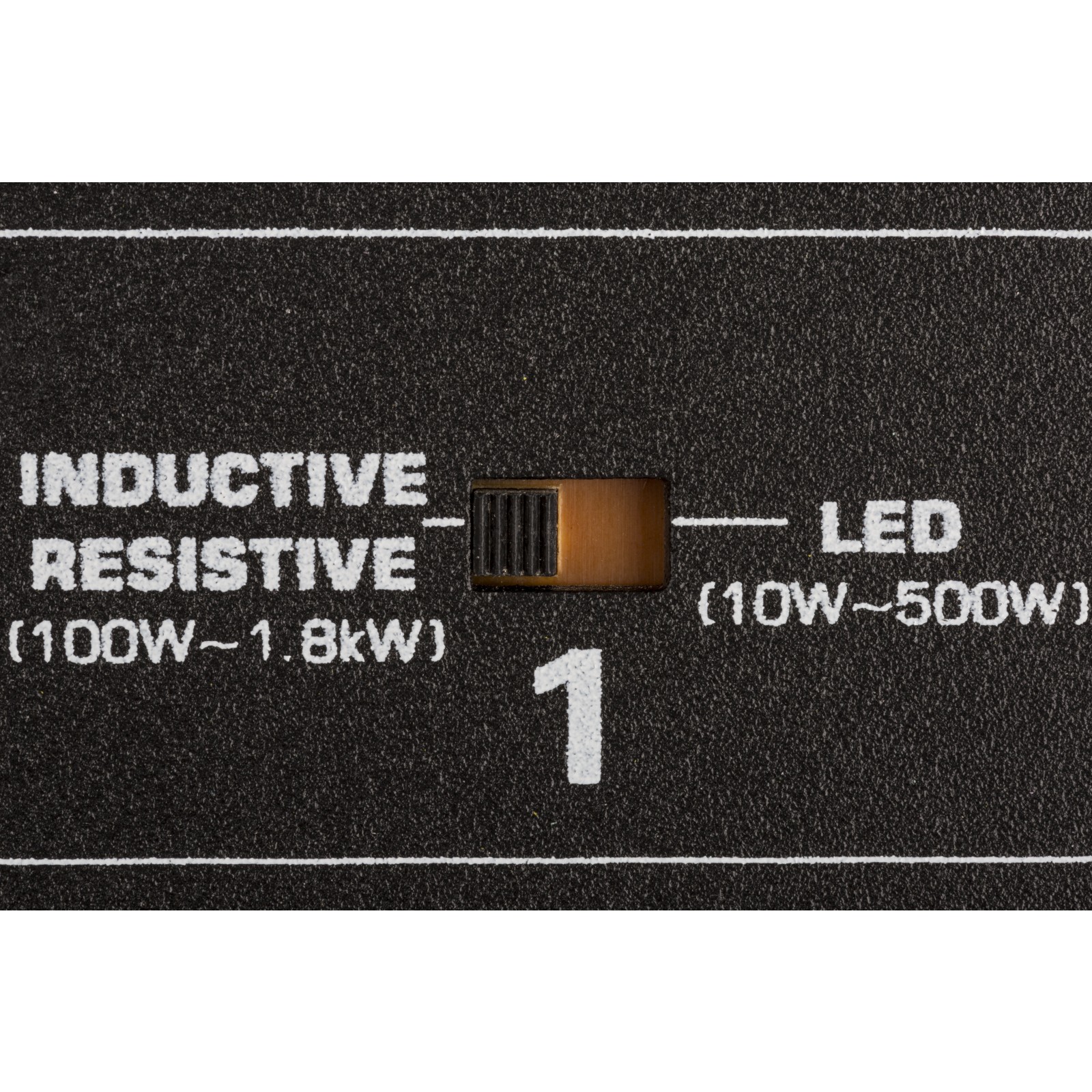

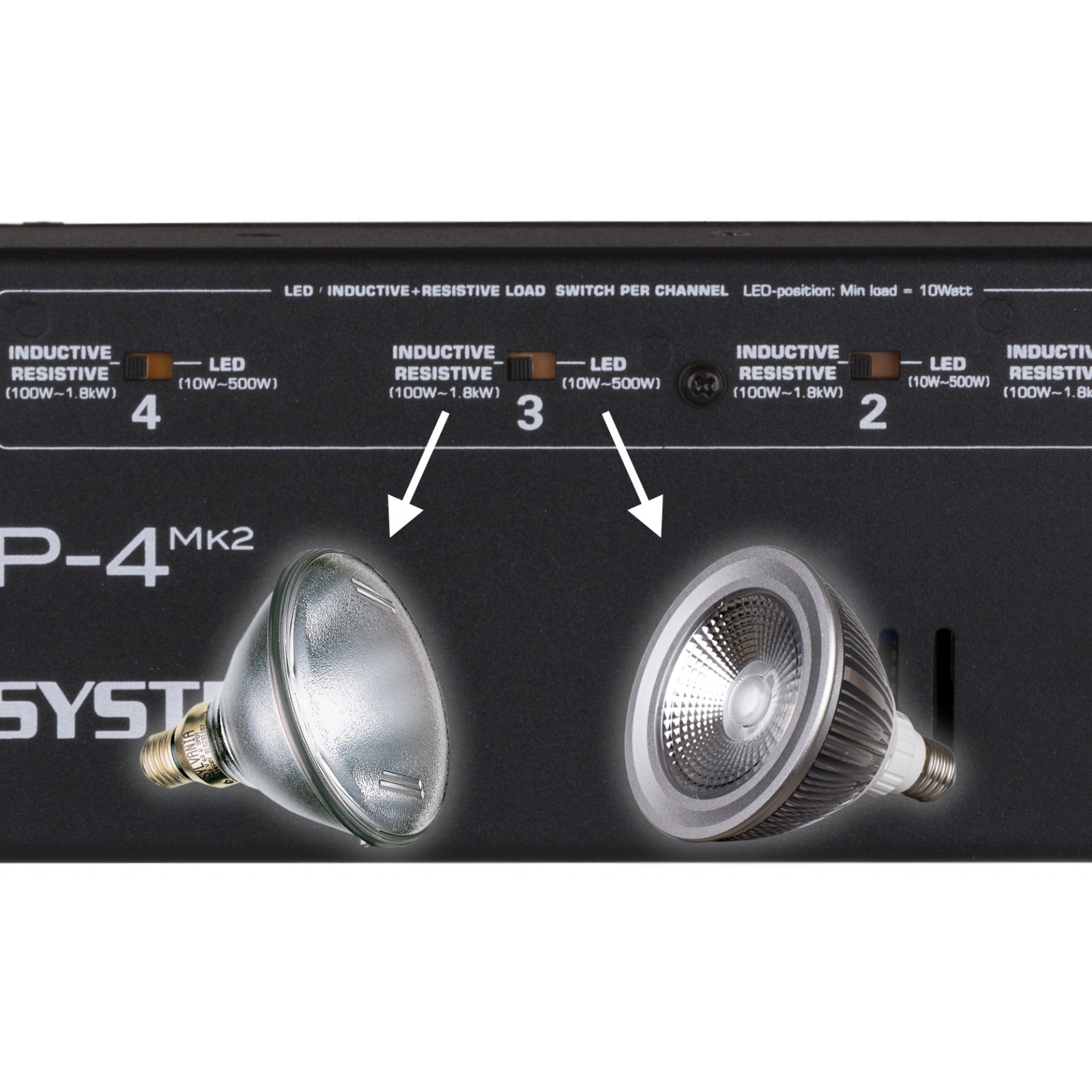

Prepared for use with “low power” LED loads: works with loads down to only 10watt per channel.
Maximum output: 4x 1850W (Maxtot = 3450W/15A)
Thanks to the well designed 19” brackets the DSP-4 MK2 can be mounted in different ways:
Standard 19” rack mounting
Wall mount in fixed installations
Mounting under or inside ALU truss using clamps
Locking DMX in/outputs with POWER/DMX-present indicator
5 Digit LED display with 4 buttons for easy menu navigation:
DMX address setting: each channel can have its own address
Each channel can be switched separately in dimmer or switch mode
Separate dimmer presets with memory function for each channel (no controller needed)
Mains power input with automatic 15A fuse

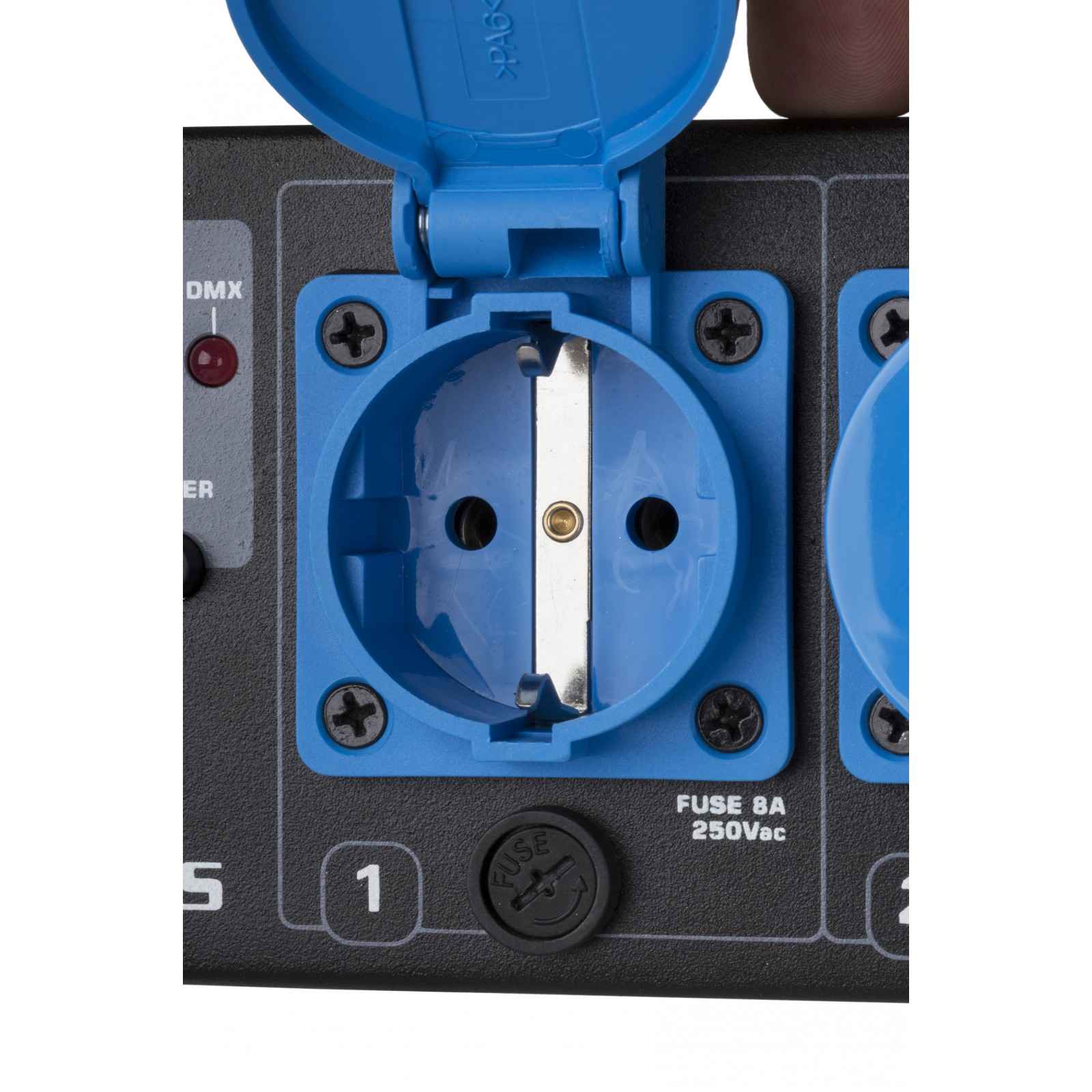

Individual channel 8A fuses
All channels equipped with 40A triacs for increased reliability
| General : Dimensions (cm) | 48 x 10 x 8.8 mm |
|---|---|
| General : Weight (kg) | 2.56 |
| General : Powerinput | AC 240V, 50Hz |
| General : Energy Label | No |
| General : Color | black |
| General : Display | LED |
| General : Fixation | 19" rack mountable |
| General : RU | 2U |
| General : IP rating | indoor |
| Control : Modes | standalone fixed, DMX |
| Control : Protocol | DMX |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | N/A |
| Connections : input | 3 pin XLR, Schuko CEE 7/7 |
| Connections : output | 3 pin XLR |
