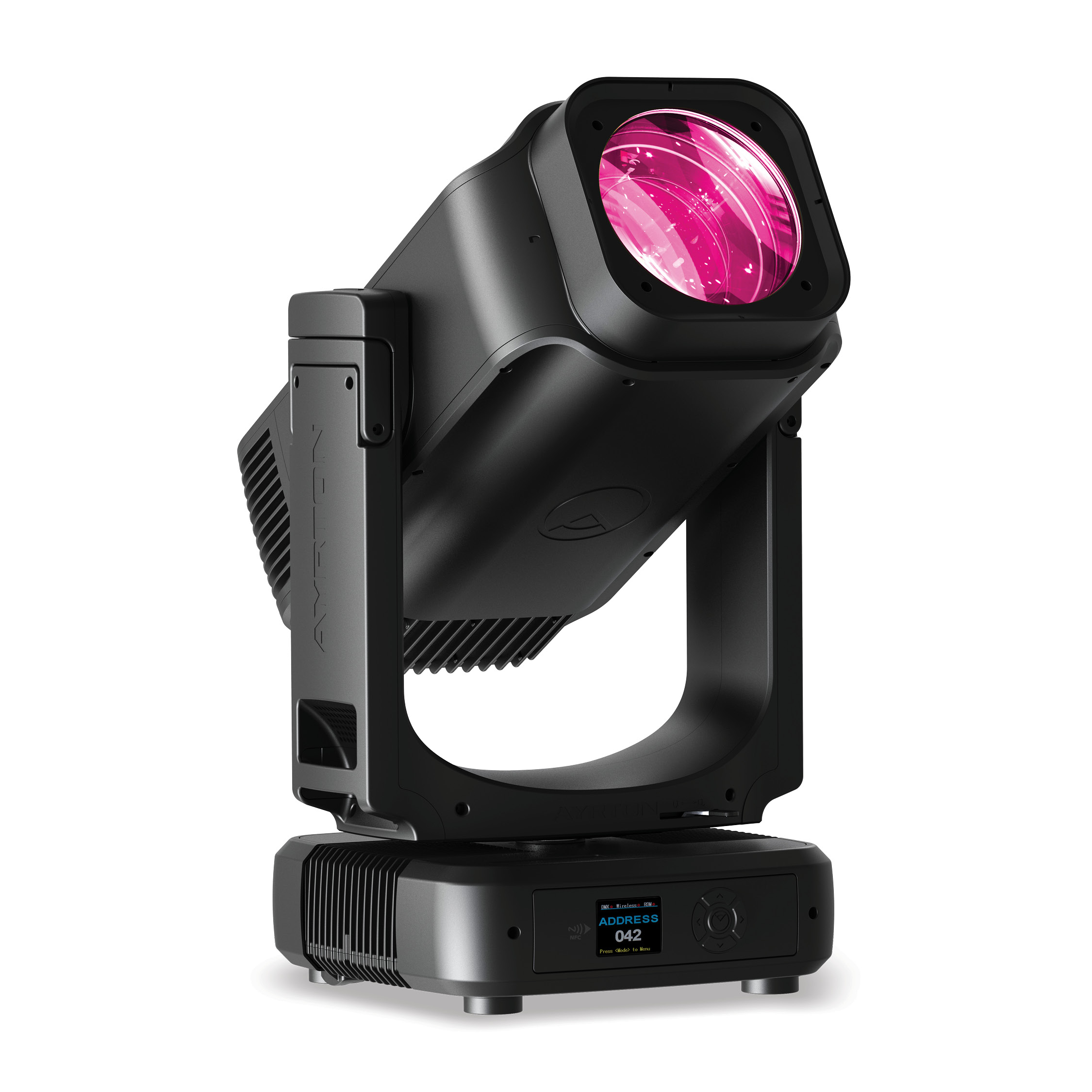

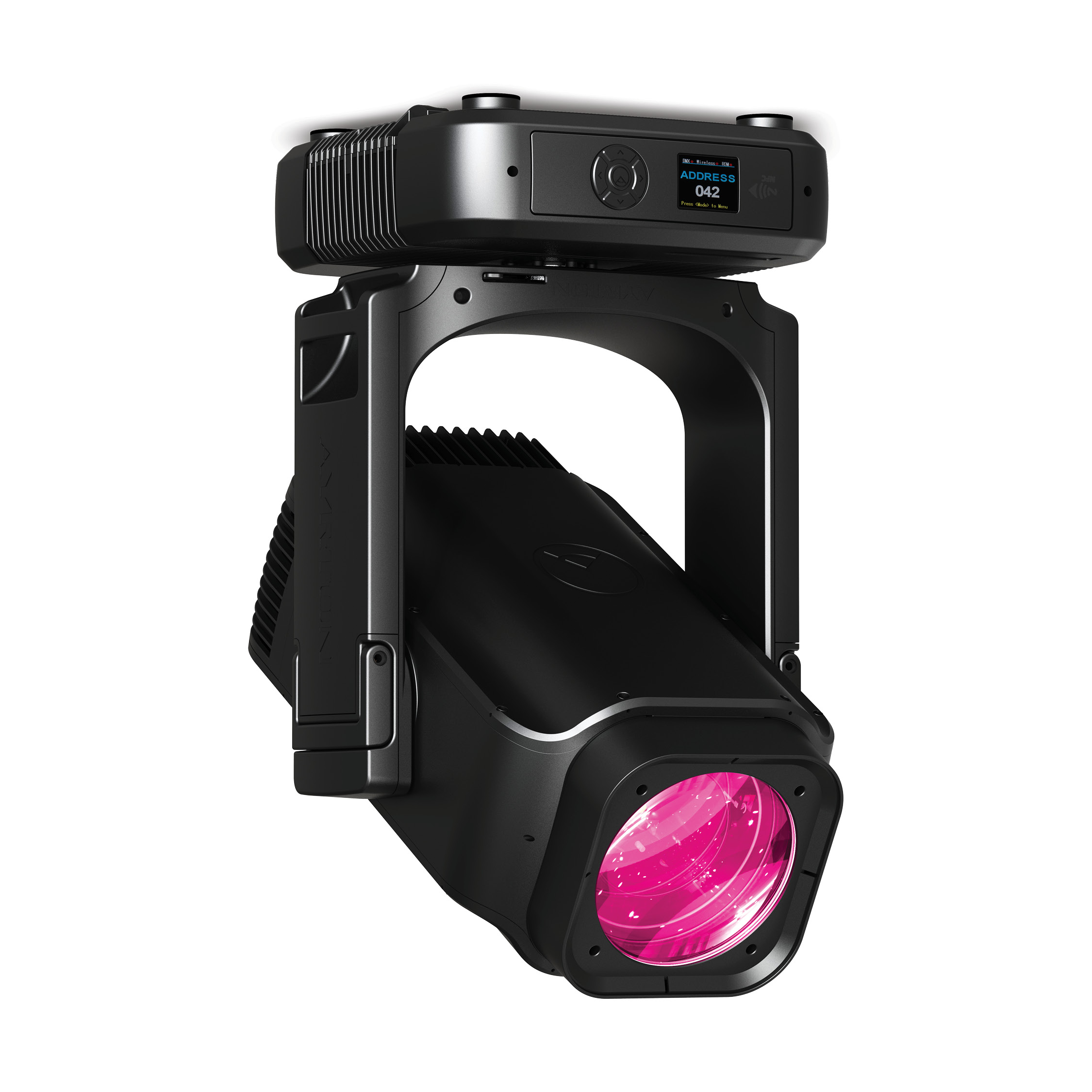

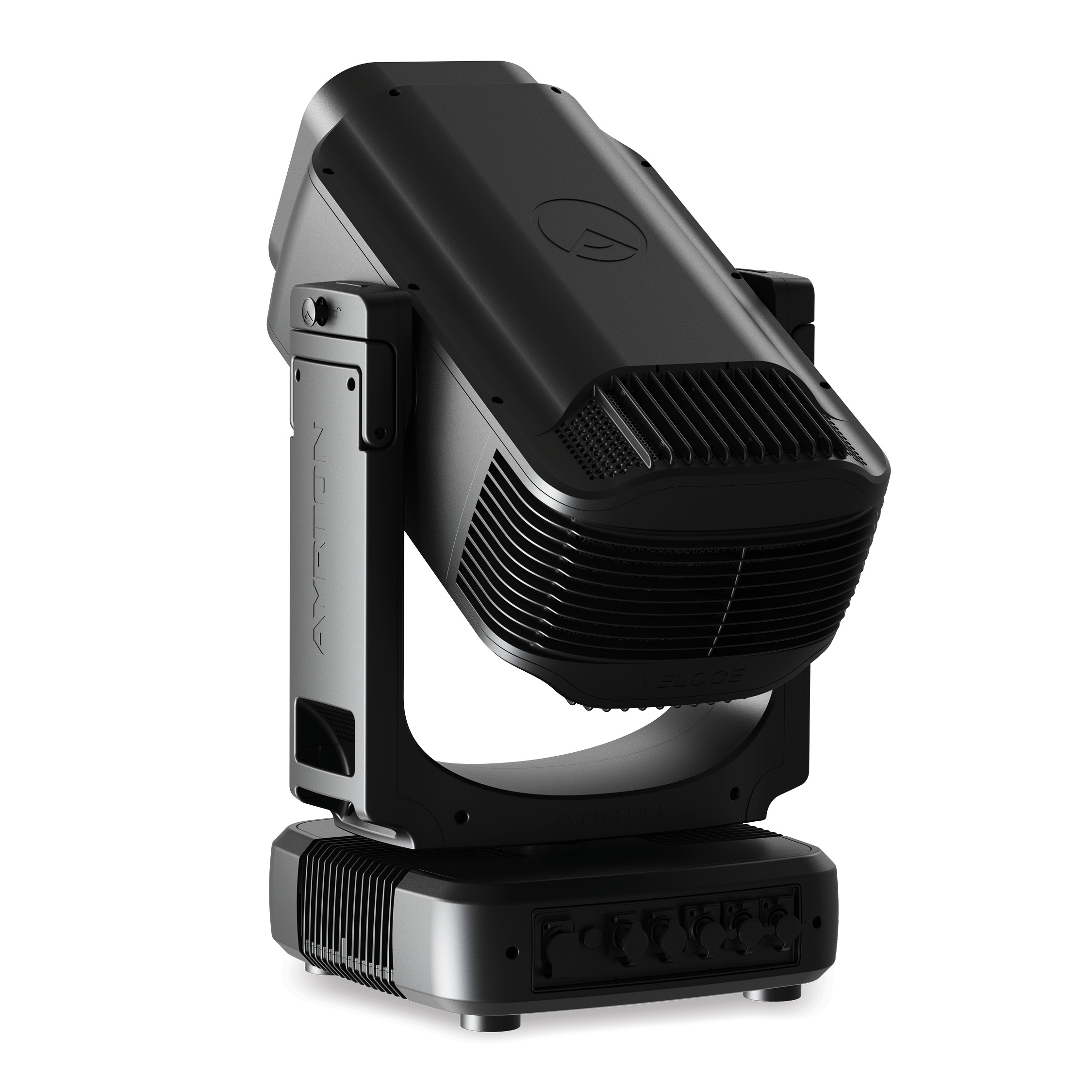

AYRTON Veloce Profile - roto glava
The proprietary 13-lens optical system offers a zoom ratio of 13:1 and a range of use from 4 ° to 52 °. Veloce Profile features a 180 mm front lens, giving an ultra-intensive 4 ° beam.
Veloce Profile, like all the luminaires in the « ULTIMATE » range, adopts a revolutionary new CMY colour mixing system with ultra-fast high-definition discs. This single-layer system provides a clear improvement in colour intensity during reproduction. An ultra-fast, high-definition single-disc progressive CTO enables precise colour temperature adjustment from 2900 K to 6500 K, and a 7-position colour wheel with special filters completes the palette of tools dedicated to colour creation. For specific applications requiring perfect colour reproduction, Veloce Profile offers a subtle adjustment of the colour rendering index from 70 to 86. A new, ultra-precise framing module makes it possible to isolate any object thanks to the surgical positioning of each shutter blade over 100% of the surface with +/- 90 ° rotation. Veloce Profile provides the ultimate sensations. An accomplished luminaire synonymous with high performance, unbridled creativity, refinement and power. A luminaire you won’t want to do without.
OPTICS
• 13-element 13:1 zoom high-resolution optic system
• Zoom aperture: 4 ° to 52 °
• Fast motorised linear zoom
• Tempered anti-reflective coated lenses
• 180 mm frontal lens
LIGHT SOURCE
• 58,000 lumens white light engine
• Total luminaire output: up to 43,000 lumens (integrating sphere measurement, Stage Fan mode)
• Colour temperature output: 6500 K
• Variable CRI: 70 to 86
• Rated life (L70): up to 40,000 hours
• Flicker-free source management suitable for TV applications and all video-recorded events
MOVEMENT
• Extremely accurate positioning
• Moving-head operated via either 8- or 16-bit resolution
• High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
• Pan and tilt automatic repositioning
• Moving-head range: infinite pan and tilt rotation
COLOURS
• Sophisticated colour mixing system providing CMY color mixing
• Variable CTO colour temperature correction
• Variable CTP
• Fixed colour wheel with seven complementary colours
GOBOS
• 2 indexable rotating gobo wheel with seven high precision glass gobos, plus open position
• Adjustable-speed rotating gobo in both directions
• Gobo diameter: 30.0 mm
• Image diameter: 19.0 mm
• Gobo thickness: 1.1 mm
FRAMING SYSTEM
• 4 individually positionable shutter blades on a 100% surface area in all positions
• Rotation of the shutter blades module: +/- 90 °
• IRIS DIAPHRAGM
• Fast iris diaphragm with adjustable dynamic effects
• Iris range: 15% to 100% open
FROST
• 2 frost filters one light, one heavy
EFFECTS
• Focusable graphic animation effect-wheel with continuous rotation in both directions
• 2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linear
DIMMER / STROBE
• Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
• Strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
• Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
• Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
• Information menu including hour counter, temperature, software version
HARDWARE FEATURES
• Graphic LCD display for addressing and special functions settings, with flip function
• 5 menu buttons to set functions
• Excess temperature protection
• Integrated wireless CRMX TiMo RDM receiver from LumenRadio
• IP65 XLR 5 pin male and female connectors for DMX connection
• IP65 RJ45 IN / OUT connectors for ArtNet connection
• IP65 PowerCON TRUE1 male connectors for power connection
CONTROL
• DMX 512 protocol, through DMX cable or a wireless system
• DMX-RDM compatible
• Stand-alone mode and Main/Follow modes
• ArtNet & sACN protocol through Ethernet cable
• Local control panel, with IP65 LCD display
• Choice of 2 DMX modes (from 44 to 67 DMX channels)
POWER SUPPLY
• Electronic supply with active PFC
• 100 to 240 Volts – 50/60Hz
• Power: 1300 W maximum
COOLING SYSTEM
• Advanced liquid cooling system
• IP68 Self-adjusting variable speed fans for quiet operation (Auto mode)
• Selectable ventilation user modes including Super Silent Mode
• Safety protection against excess temperature
HOUSING
• Moving-head skeleton made of aluminium and steel metal plates
• Head in die-cast aluminium
• Base in die-cast aluminium
• Heatsinks in aluminium and copper
• Arms in self-extinguishing fire retardant ABS PC (V0 class)
• Four-side handles for transportation
• Four heavy-duty feet for better stability
• IP65 protection rating
• Exterior finish: black (Carbon)
INSTALLATION
• Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
• Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
• Safety cable attachment point
OPERATING PARAMETERS
• Operating positions: all (device on floor or fixed to a support)
• Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
• Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F)
• Minimum usage distance: 4 m (13.123 ft)
COMPLIANCE
• EU (EMC & LVD):
• EMC Directive 2014/30/EU
• LVD Directive 2014/35/EU
• US (Safety & EMC)
• UL 1573
• FCC Part 15, Subpart B:2018
• Substance regulations
• RoHS
• REACH
• CP65
SIZE
• Product: 404 x 757 x 366 mm (l x h x d)
• Flight-case foam: 680 x 640 x 500 mm (l x h x d)
WEIGHT
• Product: 40.5 kg
PRODUCT CODES
• 012521: Veloce Profile – Ultimate IP65 6 Series
