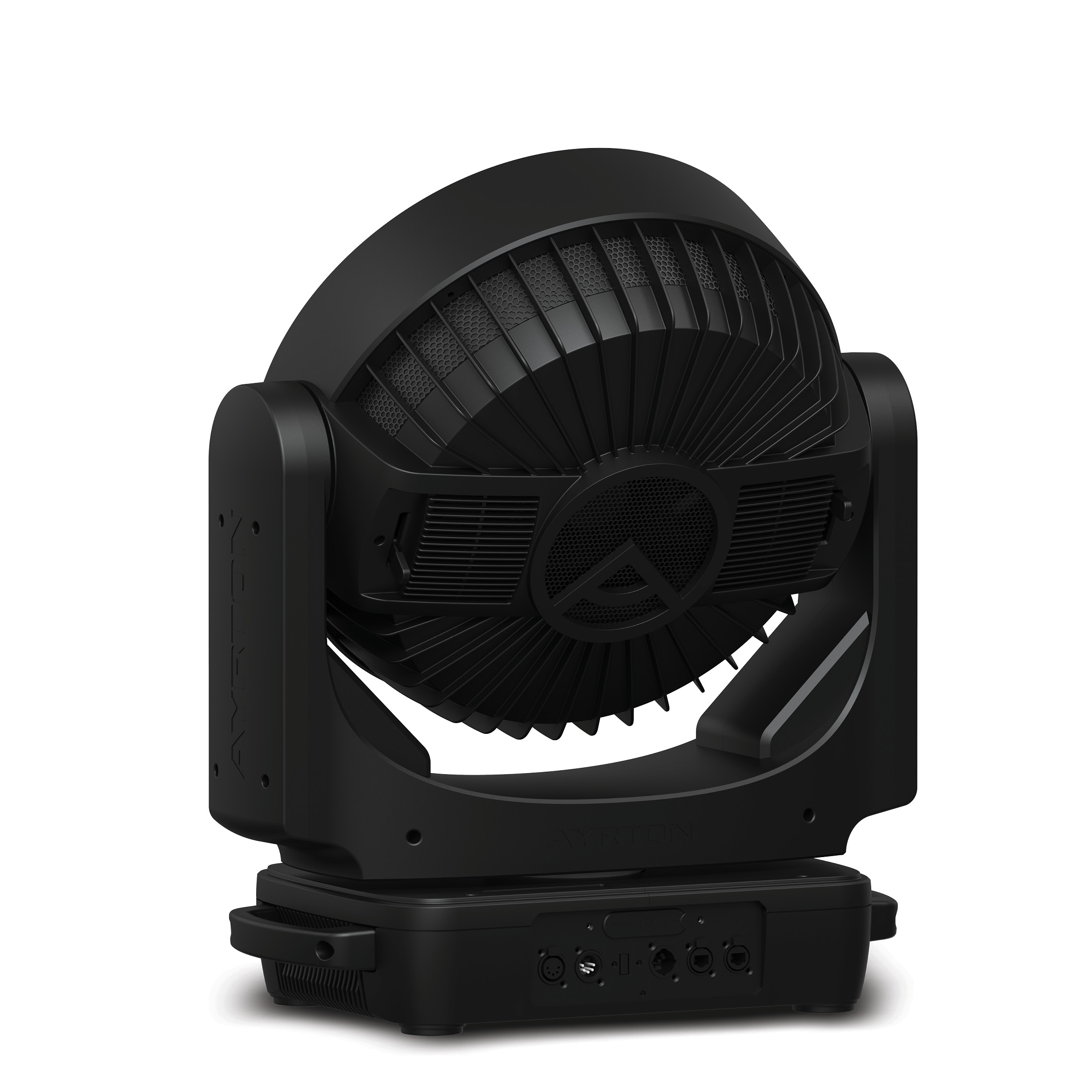

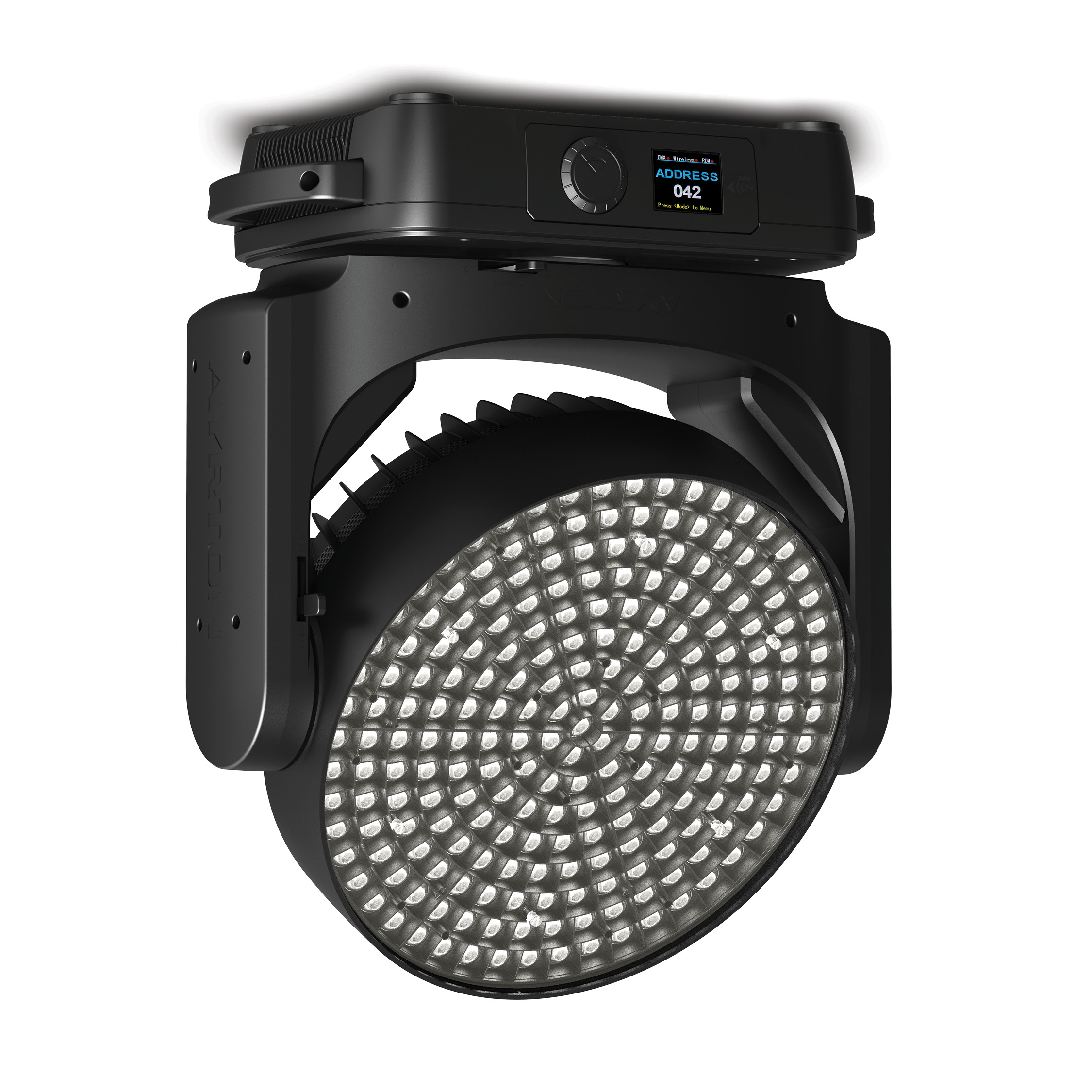

AYRTON WildSun K9 Wash - Roto glave
Â
The new WildSun K9 Wash is a highly evolved variant of the WildSun K25 TC, specially geared to shooting TV video and broadcasting in high-definition.
With a brand new sleek design and a visual footprint 20% smaller, its weight has been drastically reduced by 25%, allowing for better integration. This unique LED luminaire measures up to the classic Fresnel HMI 4000 lights in terms of pure output. Fitted with 217 next-generation high-output LEDs, the luminaire delivers more than 60,000 lumens of overall output with 40% less energy consumption. No lamp replacement is necessary. Producing extremely high-quality light without flickering, this luminaire achieves a colour temperature perfectly calibrated at 5700K and a colour rendering index greater than 92. WildSun K9 Wash is particularly suitable for sporting events, fashion shows, car shows, or any prestigious events requiring powerful, high-quality light and perfectly rendered colour.
OPTICS
• 1 element 6:1 zoom high-resolution optic system• Beam aperture: 10 ° to 60 °• Fast motorised linear zoom• 217 individual lenses• 384 mm front lens cluster
LIGHT SOURCE
• 217 mono-chip High-Power LED sources• Total luminaire output: up to 63,000 lumen• CRI: greater than 92• Rated life (L70): up to 40,000 hours• Flicker free sources management, suitable for TV applications and all video recorded events
MOVEMENT
• Extremely accurate positioning• Moving-head operated via either 8 or 16 bit resolution• High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.• PAN and TILT automatic repositioning• Moving-head range: 540 ° (pan), 270 ° (tilt)
COLOURS
• Monochromatic daylight source perfectly calibrated at 5700 K
DIMMER / STROBE
• Electronic dimmer, allowing perfect light adjustment from 0 to 100%• Strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
• Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel• Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller• Information menu including hour counter, temperature, software version
HARDWARE FEATURES
• Graphic LCD display for addressing and special functions settings, with flip function• Clicking jog wheel to set functions• Excess temperature protection• Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™• XLR 5 pin male and female connectors for DMX connection• etherCON RJ45 IN / OUT connectors for ArtNet™ connection• powerCON TRUE1 male connector for power connection
CONTROL
• DMX 512 protocol, through DMX cable or wireless system• DMX-RDM compatible• Stand-alone mode and Main/Follow modes• ArtNet™ & sACN protocol through Ethernet cable• Local control panel, with LCD display• Choice of 2 DMX modes (from 14 to 30 DMX channels)
POWER SUPPLY
• Electronic supply with active PFC• 120 to 240 Volts – 50/60Hz• Power: 1,500 W maximum
COOLING SYSTEM
• Advanced cooling system• Self adjusting variable speed fans for quiet operation (Auto mode)• Selectable ventilation user modes with Super Silent mode• Safety protection against temperatures excesses
HOUSING
• Moving-head skeleton made of aluminium and steel metal plates• Base in die-cast aluminium• Heatsinks in aluminium• Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)• Two sides handles for transportation• Four heavy-duty feet for better stability• IP20 protection rating• Exterior finish: black (Carbon)
INSTALLATION
• Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clamps• Mounting points: eight 1/4 turn locking fittings allowing installation of Omega brackets on luminaire• Safety cable attachment point
OPERATING PARAMETERS
• Operating positions: all (device on floor or fixed to a support)• Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)• Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)• Minimum usage distance: 3 m (9.84 ft)
COMPLIANCE
• EU (EMC & LVD)• EMC Directive 2014/30/EU• LVD Directive 2014/35/EU• US (Safety & EMC)• UL 1573• FCC Part 15, Subpart B: 2018• Substance regulations• RoHS• REACH• CP65
SIZE
• Product: 530 x 625 x 280 mm (l x h x d)• Flight-case foam: 580 x 611 x 345 mm (l x h x d)
WEIGHT
• Product: 26.9 kg
