MARTIN MAC 101 - Roto glava

Šifra: 8918
Na stanju
Regularna cena:
203.040,00 rsd
149.900,00 rsd (Bez PDV-a)
Cena sa popustom * :
Cena za kupovinu na rate:
179.880,00 rsd

*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom i kreditnom karticom.

Iznos rate:
Ušteda : 23.160,00 rsd
Prijavi povoljniju cenu
Prikazana cena je za komad.

Garantujemo najnižu cenu!

Količina

Ukoliko želite da platite na rate kreditnom karticom, molimo Vas da izaberete broj rata.

Važi za kreditne kartice logo_banka

Broj rata:

Dostupno u prodavnici:
  • Svetogorska 9, Beograd
  • Centralni magacin
Obavesti me ako cena padne Postavi pitanje
Opcija:

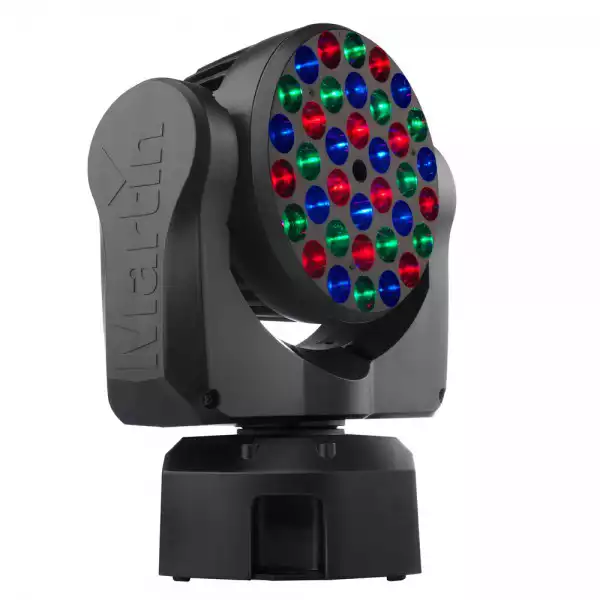

The MAC 101 is a remarkably small, super light and easy-to-use LED moving head wash light with an amazingly bright beam for such a compact luminaire. It features rapid movement and calibrated colors with a low price tag that allows for revolutionary set, stage and decorative lighting design.
Variable CTC
Color calibrated
2400 lm output
Bright and tight beam (13° ἀ;eld angle)
Smooth, electronic dimming
High efficieny, low power consumption, long lifetime
Ultra-compact, low weight design (3.7 kg)
Rapid movement – the fastest MAC ever

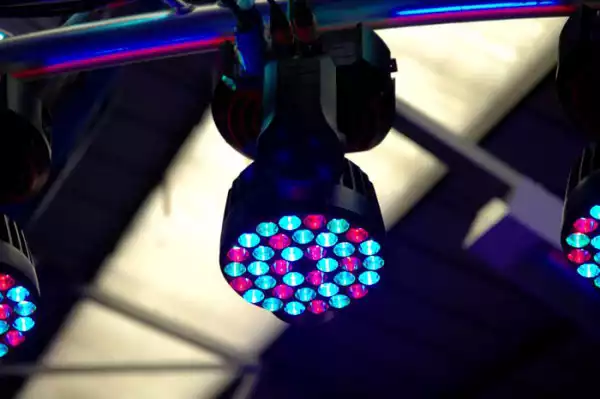

Ovaj uređaj visokog kvaliteta i performansi je korišten za opremanje enerijera kluba u Ashoka Hotelu u Nju Delhiju u Indiji, a više o tome možete pročitati na 98 stranici Mondo dr časopisa, ako kliknete na sliku ispod.


The MAC 101 is a remarkably small, super light and easy-to-use LED moving head wash light with an amazingly bright beam for such a compact luminaire. It features rapid movement and calibrated colors with a low price tag that allows for revolutionary set, stage and decorative lighting design.

Features
  • Variable CTC
  • Color calibrated
  • 2400 lm output
  • Bright and tight beam (13° ἀ;eld angle)
  • Smooth, electronic dimming
  • High efficieny, low power consumption, long lifetime
  • Ultra-compact, low weight design (3.7 kg)
  • Rapid movement – the fastest MAC ever

Length: 241 mm (9.5 in.) across yoke
Width: 241 mm (9.5 in.) across yoke
Height: 304 mm (12.0 in.)
Weight: 3.7 kg (8.2 lbs.)

Electronic 'color wheel' effect: 33 LEE-referenced colors plus white, color wheel rotation effect, random color
Color mixing: RGB
Red: 0 - 100%
Green: 0 - 100%
Blue: 0 - 100%
Color temperature control: Variable 2500 - 10 000 K
Shutter effect: Electronic, with pulse and random effects
Electronic dimming: 0 - 100%, four dimming curve options
Pan: 540°
Tilt: 240°
Pan and tilt speed: Adjustable via onboard control panel and DMX

Control options: 3 control modes - RGB raw, RGB calibrated, Basic (RGB + CTC disabled)
RDM: Implemented
Control resolution: 8-bit, with 16-bit control of pan & tilt
DMX channels: 8/12
Setting and addressing: Control panel with backlit graphic display
Protocol: USITT DMX512-A, ANSI/ESTA E1.20 RDM
Transceiver: RS-485
Fixture software update: Via DMX with Martin™ USB Duo DMX Interface Box

Light source: Cree XP-E high power emitters
Minimum LED lifetime: 50 000 hours (to >70% luminous output)*
LED refresh rate: 1220 Hz
*Figure obtained under manufacturer´s test conditions

Color: Black or white
Housing: High-impact flame-retardant thermoplastic
Protection rating: IP20

Mounting points: One M12 threaded hole for rigging clamp
Location: Indoor use only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 100 mm (3.9 in.) from head, no minimum distance from base
Minimum distance to illuminated surfaces: 200 mm (7.9 in.)

AC power input: Neutrik PowerCon
AC power throughput: Neutrik PowerCon
DMX data in/out: 5-pin locking XLR

AC power: 100-240 V nominal, 50/60 Hz
Maximum total power consumption: 123 W
Power supply unit: Auto-ranging electronic switch mode
Main fuse: 5 AT (slow blow)
Typical power consumption, all effects static, zero light output:

100 V, 50 Hz: 122 W, 1.3 A, PF 0.991
120 V, 60 Hz: 121 W, 1.1 A, PF 0.987
208 V, 60 Hz: 123 W, 0.7 A, PF 0.938
230 V, 50 Hz: 123 W, 0.6 A, PF 0.915
240 V, 50 Hz: 123 W, 0.6 A, PF 0.900
PF = power factor
Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Cooling: Forced air (temperature-regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Total heat dissipation (calculated, +/- 10%): 420 BTU/hr.

EU safety: EN 60598-2-17, EN 62471
EU EMC: EN 55103-1, EN 55103-2, EN 55015, EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class A
Canadian safety: CSA E598-2-17
Canadian EMC: ICES-003 Class A
Australia/NZ: C-TICK N4241

M12 bolt suitable for use with Martin rigging clamps


3 m (9.8 ft.) power cable, 12 AWG, SJT, with PowerCon NAC3FCA power input connector P/N 11541503
Neutrik PowerCon NAC3FCA power input connector, cable mount, blue P/N 05342804
Neutrik PowerCon NAC3FCB power output connector, cable mount, light grey P/N 05342805
Set of eight narrow diffusers for MAC 101 P/N 91616023
Set of eight wide diffusers for MAC 101 P/N 91616018
Set of 4 top hats for MAC 101 P/N 91611358
Set of 5 quick-mount surface mounting brackets for MAC 101 P/N 91606017
G-clamp P/N 91602003
Half-coupler clamp P/N 91602005
Quick trigger clamp P/N 91602007
Safety wire, safe working load 50 kg (110.2 lbs.) P/N 91604003
8-unit flightcase for MAC 101™ P/N 91515010
Martin USB Duo™ DMX Interface Box P/N 90703010
Martin RDM 5.5 Splitter™ P/N 90758150

MAC 101™ in cardboard box P/N 90231600
MAC 101™ in 8-unit flightcase P/N 90231610
MAC 101™, white finish, in cardboard box P/N 90231630



Photometric Data

Standard (Only blue LEDs on)
Efficacy: 5.7 lumens per watt
One-tenth peak angle: 11.5°
Total output: 320 lm

Standard (Only green LEDs on)
Efficacy: 23 lumens per watt
One-tenth peak angle: 12.5°
Total output: 1300 lm

Standard (Only red LEDs on)
Efficacy: 23.4 lumens per watt
One-tenth peak angle: 13.5°
Total output: 790 lm

Standard (All LEDs on)
Efficacy: 22.7 lumens per watt
One-tenth peak angle: 13.5°
Total output: 2600 lm

Standard (All LEDs on, Narrow diffuser)
Efficacy: 20.5 lumens per watt
One-tenth peak angle: 17°
Total output: 2400 lm

Standard (All LEDs on, Medium diffuser)
Efficacy: 17.2 lumens per watt
One-tenth peak angle: 52°
Total output: 2000 lm


© 2010-2013 Martin Professional Aps.  Specifications subject to change without notice

Ocena:
Nisam robot

Vezani artikli


Srodni proizvodi

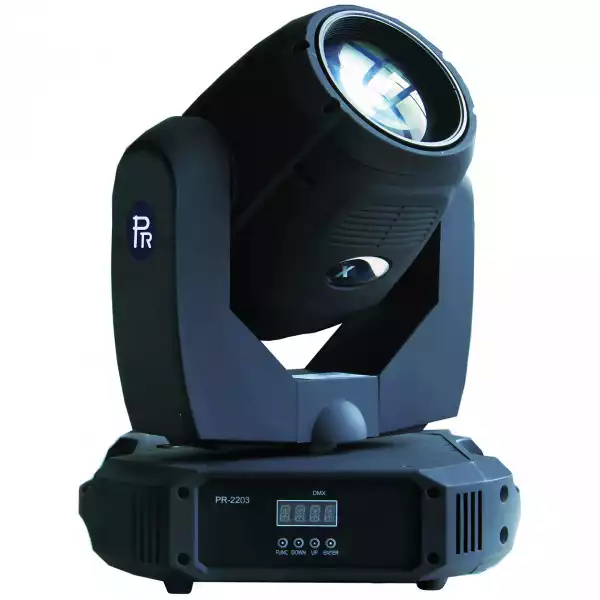

PR LIGHTING XR 200 BEAM - Roto glava
