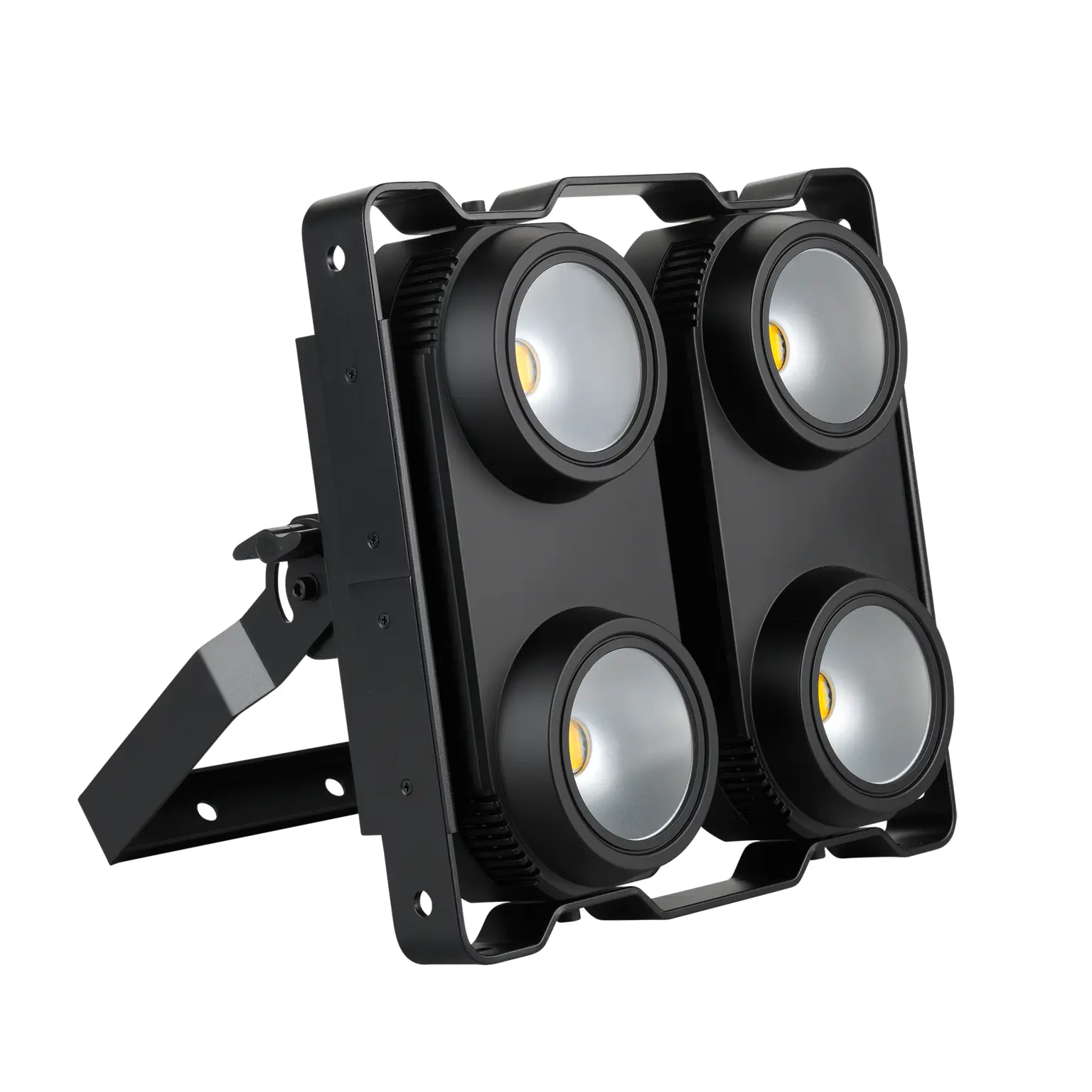

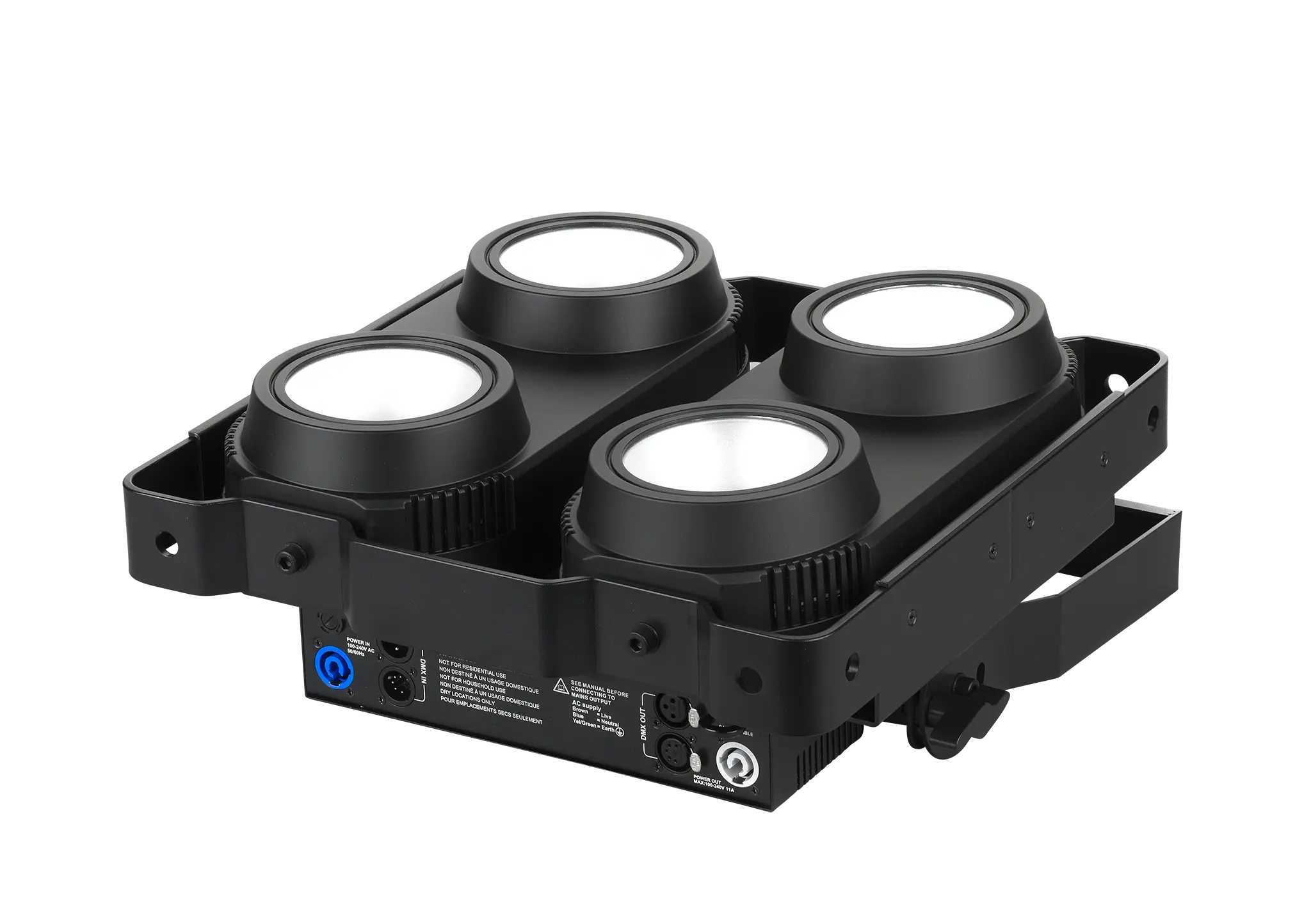

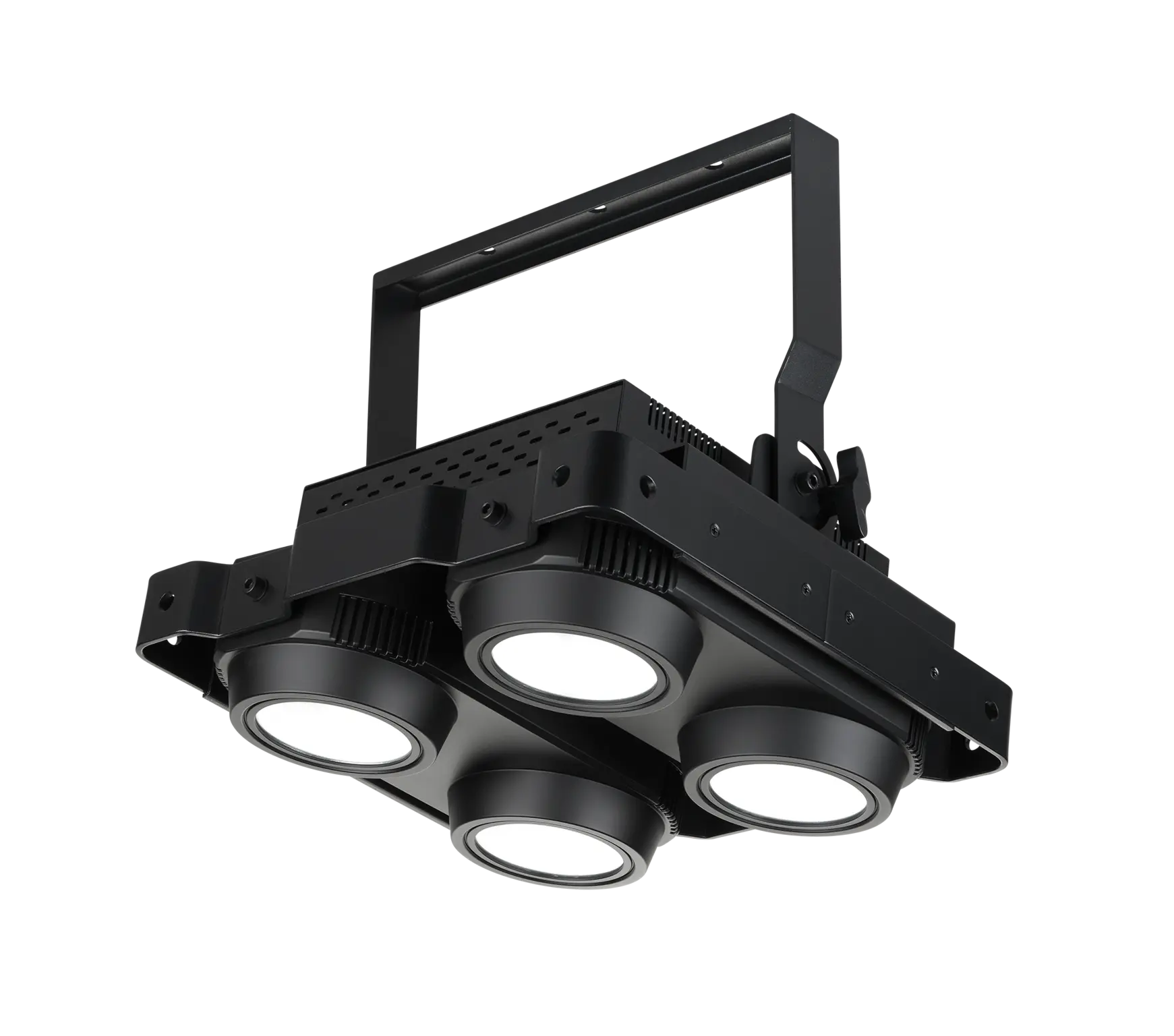

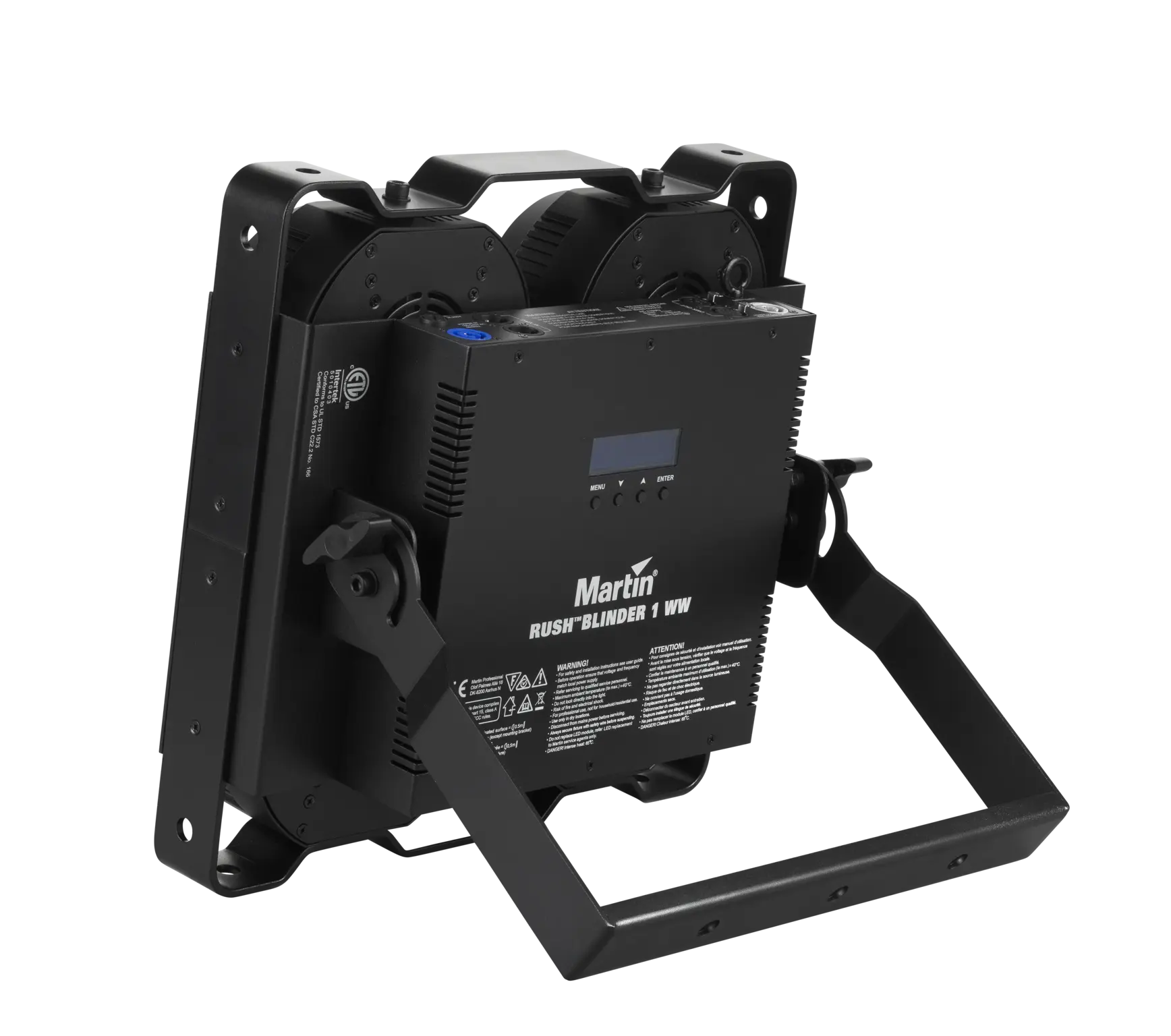

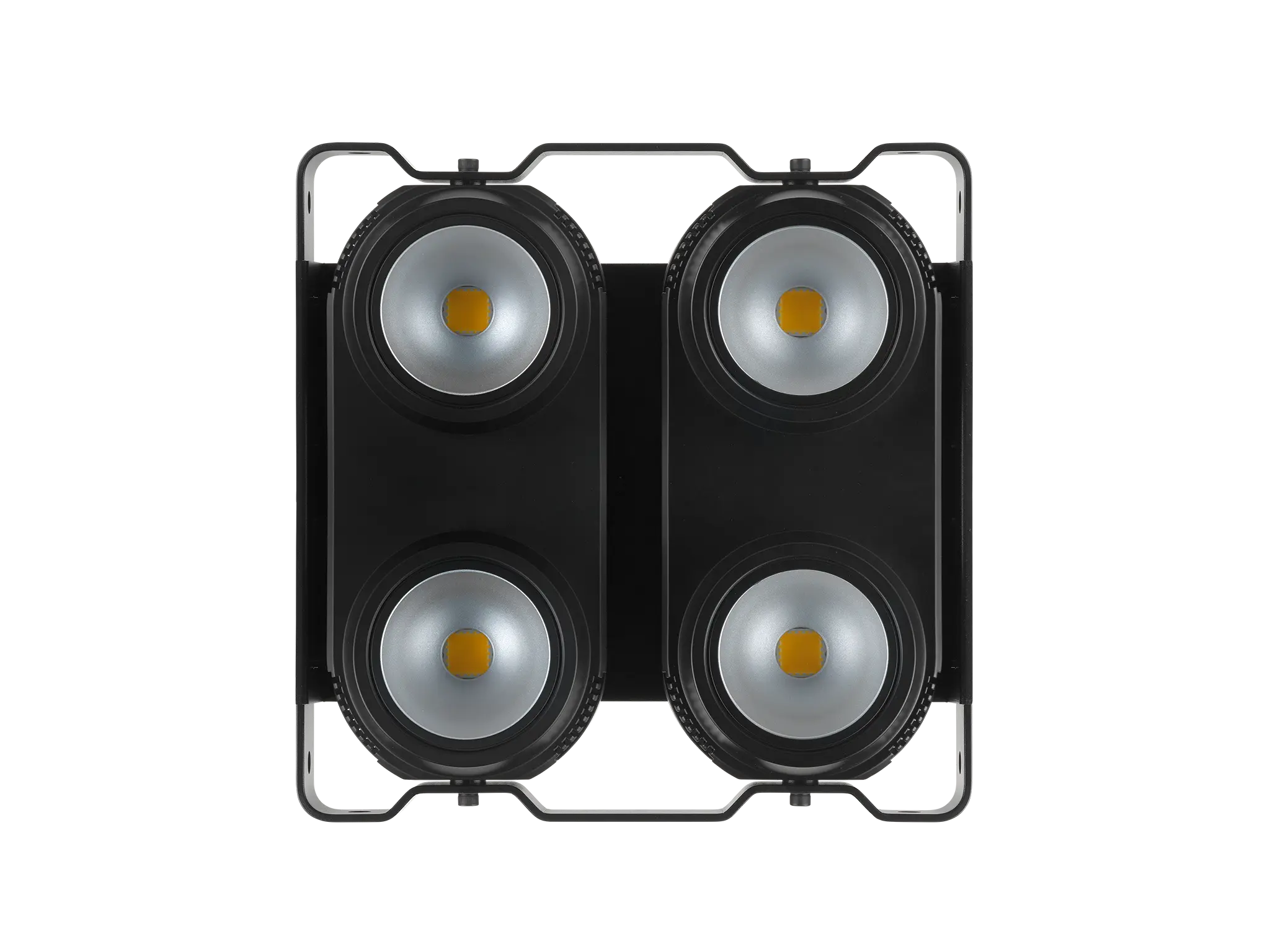

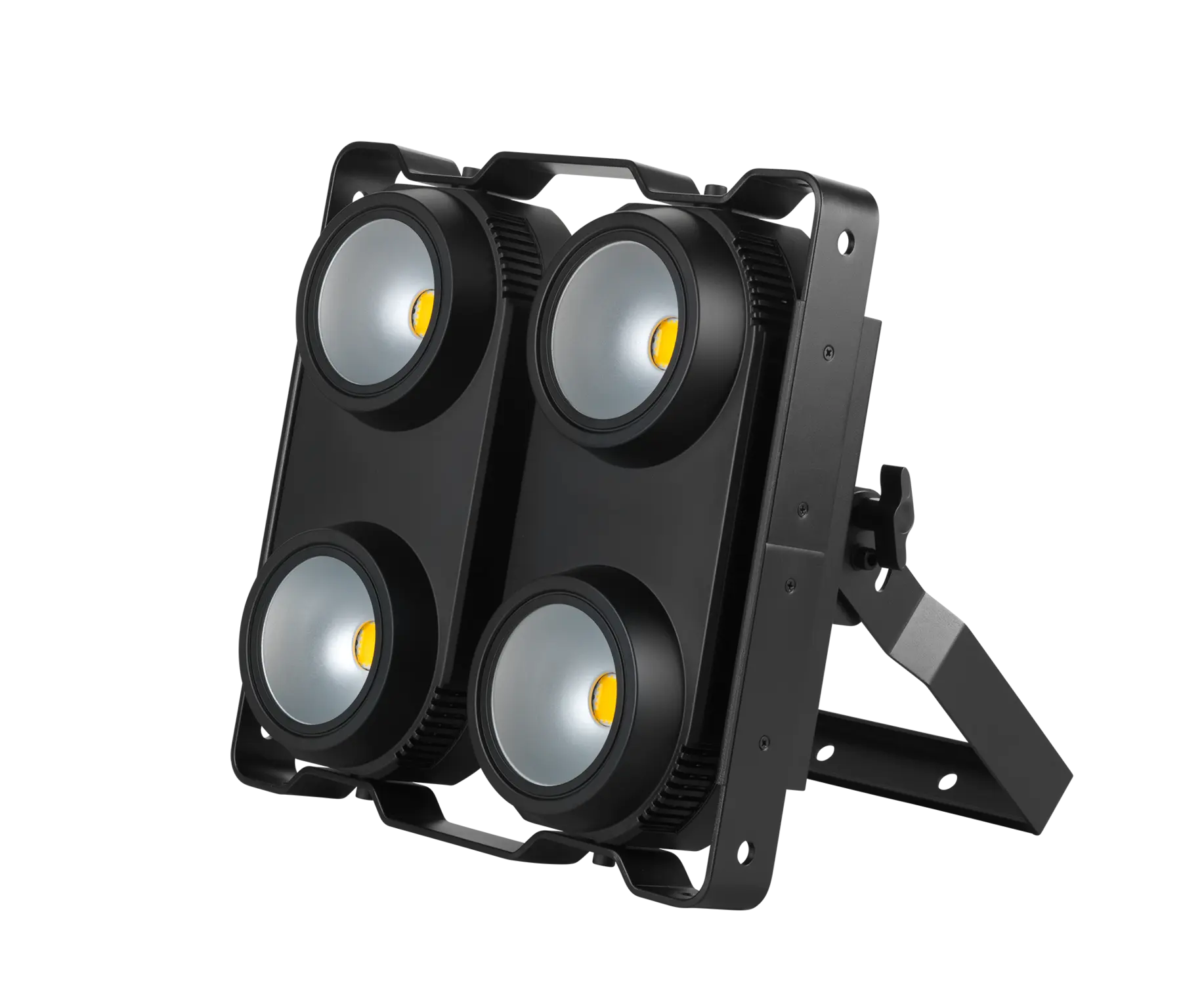

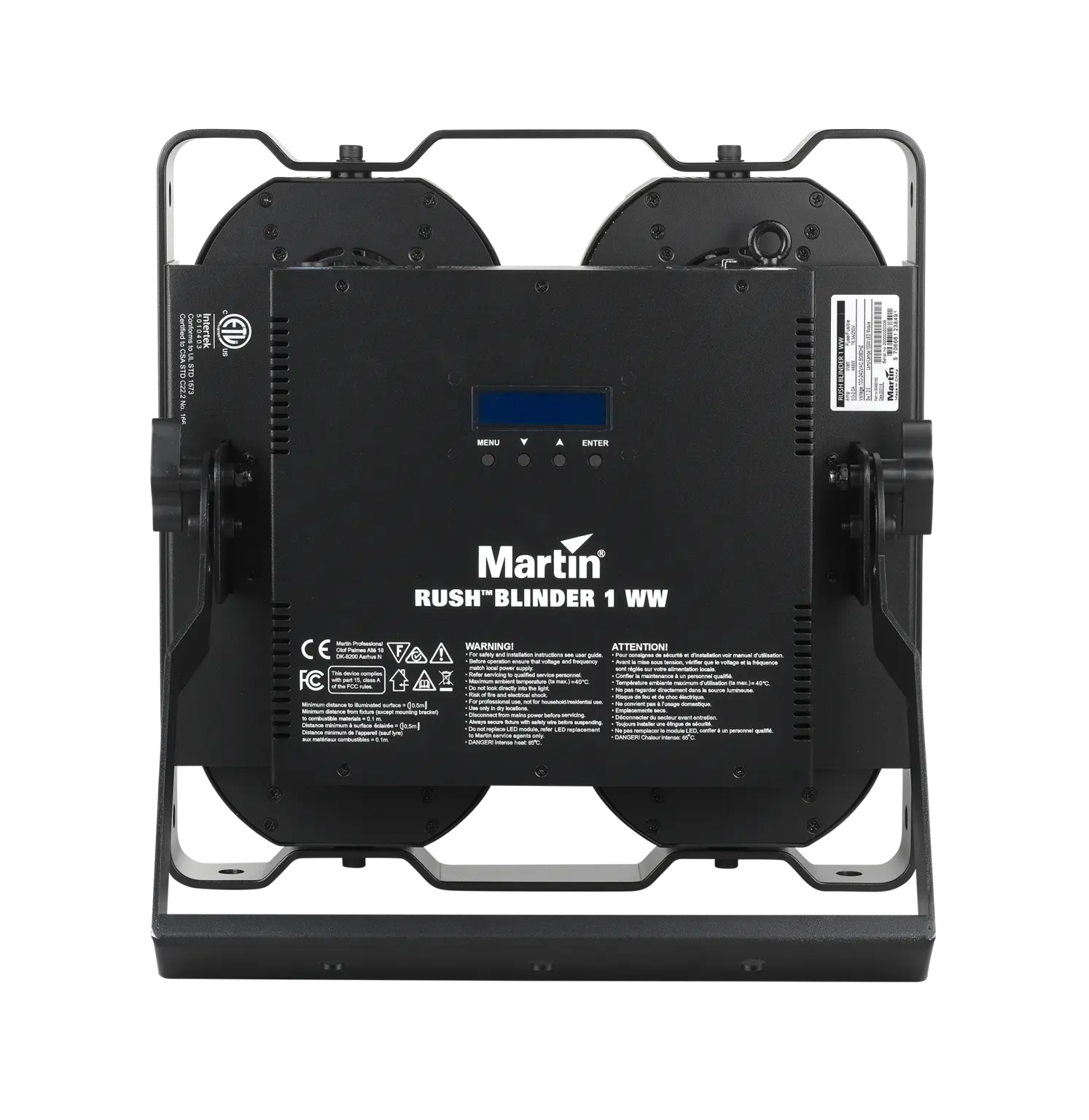

MARTIN RUSH BLINDER 1 WW
The RUSH BLINDER 1 WW is an ultra-bright quad LED blinder fixture. The 2x2 blinder features a PAR array with four individually-controllable 100 watt COB warm white LEDs, providing high-intensity light for a variety of entertainment events. The unique frame on the RUSH BLINDER 1 WW offers the ability to attach multiple fixtures together in a grid pattern. With individually-controllable COBs, multiple units can be used to create pixel effects across a grid of fixtures, with on-board electronic dimming and strobe also available.
Features
2x2 100W COB warm white LEDs
19,000+ lumens output
Full pixel control of individual COBs
Unique frame offers grid installation
70° beam angle
Electronic dimming and strobe
Brackets are available for floor or truss mounting
Lightweight construction (5 kg / 20.9 lbs.)
Specifications
Physical
Length: 400 mm (15.7 in.)
Width: 441 mm (17.4 in.)
Height: 177 mm (7.0 in.)
Weight: 9.5 kg (20.9 lbs.)
Dynamic Effects
Dimming: 0 – 100%, coarse & fine control
Shutter: Strobe & pulse effects, instant open and blackout
Control and Programming
Control systems: USITT DMX512/1990 with RDM
DMX channels: 1, 4, or 8
RDM compliance: ANSI/ESTA E.120
Interface: Control panel with backlit LCD display
Optics
Beam angle: 70°
Construction
Housing: High impact flame retardant thermoplastic and aluminum
Color: Black
Protection rating: IP20
Installation
Mounting points: Adjustable bracket, surface or truss mount
Location: Indoor location only
Orientation: Any
Minimum distance to combustible materials: 0.1 m (4 in.)
Minimum distance to illuminated surfaces: 0.5 m (20 in.)
Connections
AC power input/output: Neutrik PowerCon
DMX and RDM data in/out: 3-pin and 5-pin locking XLR
Electrical
AC power: 100-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Fuse: T 250 V 6.3 A
Typical half-cycle RMS inrush current: 15.5 A at 240 V, 50 Hz
Recommended Miniature Circuit Breaker when power linking: Type D*
Maximum total power consumption: 448 W
*Per IEC 60898/UL489/CSA C22.2 No. 5
Typical Power and Current
100 V, 60 Hz: 432 W, 4.3 A, PF 0.998
120 V, 60 Hz: 428 W, 3.6 A, PF 0.996
230 V, 50 Hz: 426 W, 1.9 A, PF 0.956
Measurements made at nominal voltage. Figures are typical, not maximum, allow for a deviation of +/- 10%.
Thermal
Cooling: Convection
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 0° C (32° F)
