BRITEQ BT-THEATRE HD2
A powerful “ALL-IN-1” LED theater spot with motorized 14° ~ 55° zoom.
No more need for separate white and color projectors, BT-THEATRE HD2 does it all:
Perfect WHITE with high CRI > 90Ra and CCT presets
Rich COLOR selection with color presets!
Thanks to the new CCS Color Calibration System the color differences between different batches is a problem of the past!
Different CCT presets for white: …, 2700K, …, 3000K, 3200K, …, 4000K, …, 5600K, …
Different color presets (LEE® / ROSCO® numbering)
Based on a 200watt 5-color RGBAL-LED (Red, Green, Blue, Amber, Lime)
Very silent operation: heat-pipe technology with low noise cooling fan and different presets (live, studio, …)
DMX-controlled: 4 different channel modes for maximum flexibility
RDM-functionality for easy remote setup: DMX addressing, channel mode, …
Flicker free TV-recordings thanks to the adjustable high LED-refresh rate!
Four dimmer settings with different behavior & speed.
Manual control for dimming, colors, CCT & zoom.
OLED-display to navigate easily through the setup menu!
In case of DMX failure, you can choose between blackout and freeze mode.
Lock function to avoid unwanted altering of the settings.
Rugged extruded aluminum housing.
3 & 5pin DMX in/outputs + PowerCON in/outputs for easy daisy chaining.

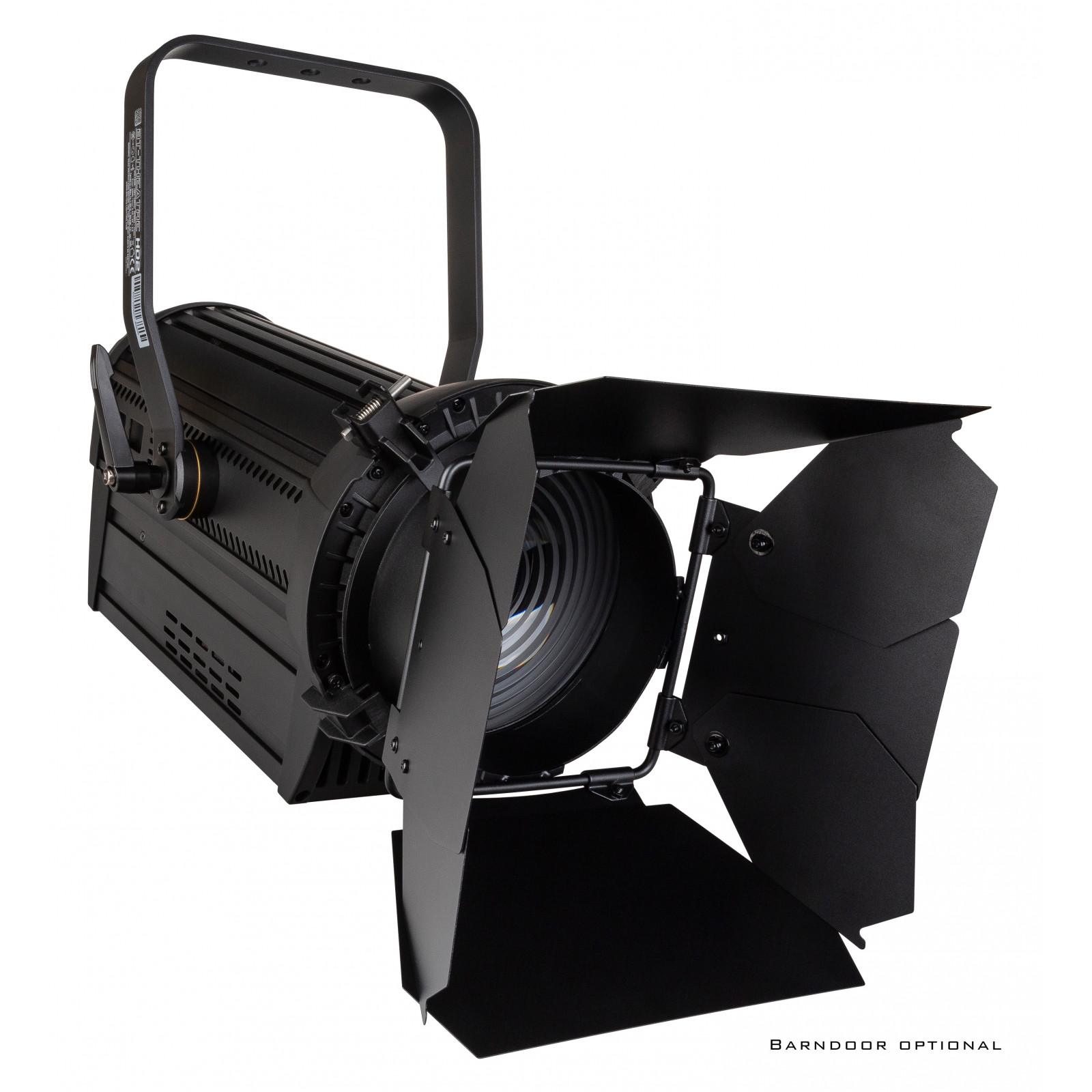

An 8-leaf barndoor (BT-THEATRE BARN2) is optionally available.
| General : Dimensions (cm) | 45 x 29 x 26 |
|---|---|
| General : Weight (kg) | 7.56 |
| General : Powerinput | AC 100 - 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 240 |
| General : Color | black |
| General : Display | OLED |
| General : Fixation | optional standard clamp |
| General : IP rating | indoor |
| Control : Modes | standalone fixed, manual, DMX |
| Control : Protocol | DMX, RDM |
| Control : programmable | No |
| Control : upgradable software | Yes |
| Control : minimum DMX channels | 3 |
| Control : maximum DMX channels | 19 |
| Light : lamp socket | No |
| Light : Lux | 1428 (@5m beam 14°) |
| Light : lamp | LED |
| Light : min. color temperature (K) | 1800 |
| Light : max. color temperature (K) | 8000 |
| Light : CRI | 90 |
| Light : colors | Red, Green, Blue, Amber, Lime, RGBAL |
| Light : mix colors | No |
| Light : functions | motorized zoom |
| Light : min. beam angle (°) | 14 |
| Light : max. beam angle (°) | 55 |
| Light : max. refresh rate (kHz) | 25 |
| Connections : input | 3 pin XLR, 5 pin XLR, rdm, PowerCon® or compatible |
| Connections : output | 3 pin XLR, 5 pin XLR, PowerCon® or compatible |
