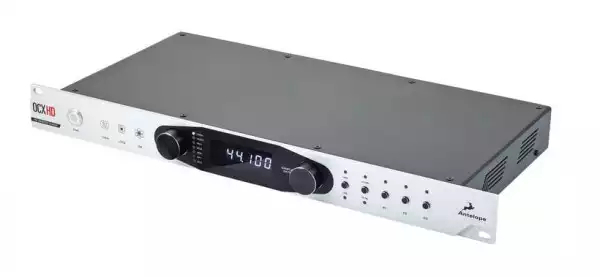

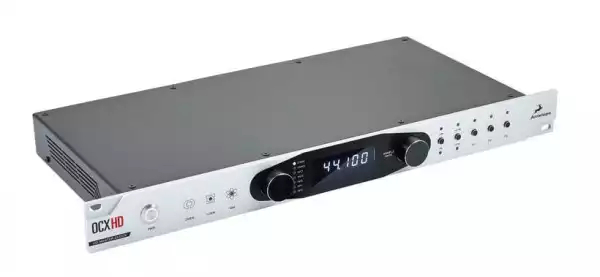

Antelope OCX-HD
An update on an already beloved model, the Antelope OCX HD is a master clock for pro audio purposes, one that supports sample rates up to 768 kHz. The clock makes use of Antelope's 4th generation Acoustically Focused Clocking (AFC) jitter management algorithm as well as an oven-controlled crystal oscillator.
With a bevy of connections, the OCX HD will enable clocking over BNC, AES/EBU, and S/PDIF connection points and protocols. Furthermore, the device provides two Word Clock inputs and a video sync input, which can resolve to both HD and SD formats. This makes the unit suitable for post-production purposes.

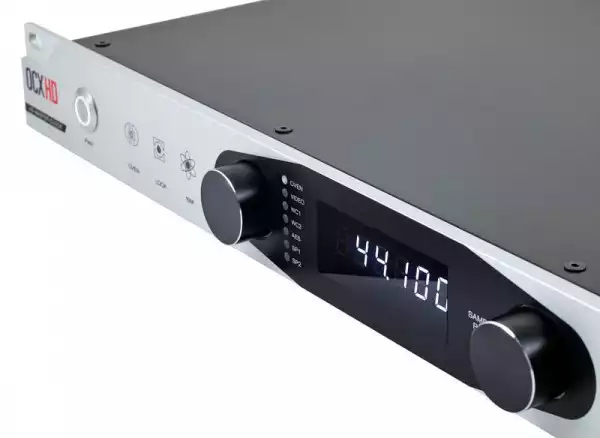

The 1 RU design benefits from integration with a desktop control app, which provides convenient remote control from your computer. If you want to make changes on the device itself, that is also possible by means of the elegant front panel.
Key Features at a Glance
64-Bit Acoustically Focused Clocking
4th generation ACF jitter management algorithm
Clocking up to 768 kHz
AES/EBU and S/PDIF clocking outputs up to 192 kHz
Video input on BNC
10 MHz Atomic clock input
Antelope OCXHD Specs
Clock Type Master Clock & Distribution
Clock Frequency and Supported Sample Rates Internal:
32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 / 352.8 / 384 / 705.6 / 768 kHz
Atomic Clock Input:
10.0 MHz
Word Clock Input:
Up to 768 kHz
Word Clock Output:
Up to 768 kHz
Coaxial S/PDIF Input:
Up to 192 kHz
Coaxial S/PDIF Output:
Up to 192 kHz
AES3 Input:
Up to 192 kHz
AES3 Output:
Up to 192 kHz
Connectivity

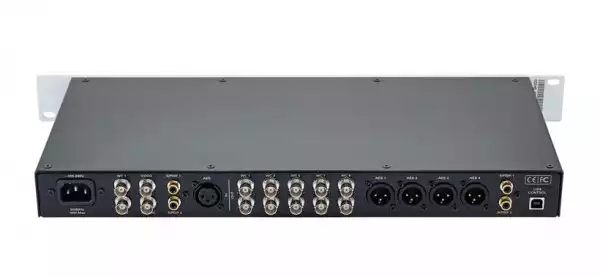

Inputs 2 x BNC Word Clock Input
1 x BNC Video Input
1 x BNC Atomic Clock Input
2 x RCA Coaxial S/PDIF Input
1 x XLR 3-Pin AES3 Input
Outputs 10 x BNC Word Clock Output
4 x XLR 3-Pin AES3 Output
2 x RCA Coaxial S/PDIF Output
USB 1 x USB Type-B (Control)
Performance
Clock Accuracy ±0.001 ppm
Clock/Oscillator Stability ±0.02 ppm at 148.1°F / 64.5°C (Oven Controlled)
<1 ppm per Year
Physical
Rackmount Size 1 RU
Operating Humidity 30 to 80%
Operating Temperature 32 to 122°F / 0 to 50°C
Dimensions 19 x 9.1 x 1.8" / 48.3 x 23 x 4.4 cm
Weight 5.8 lb / 2.7 kg
Packaging Info
Package Weight 10.2 lb
Box Dimensions (LxWxH) 25.25 x 13.5 x 4.4"
