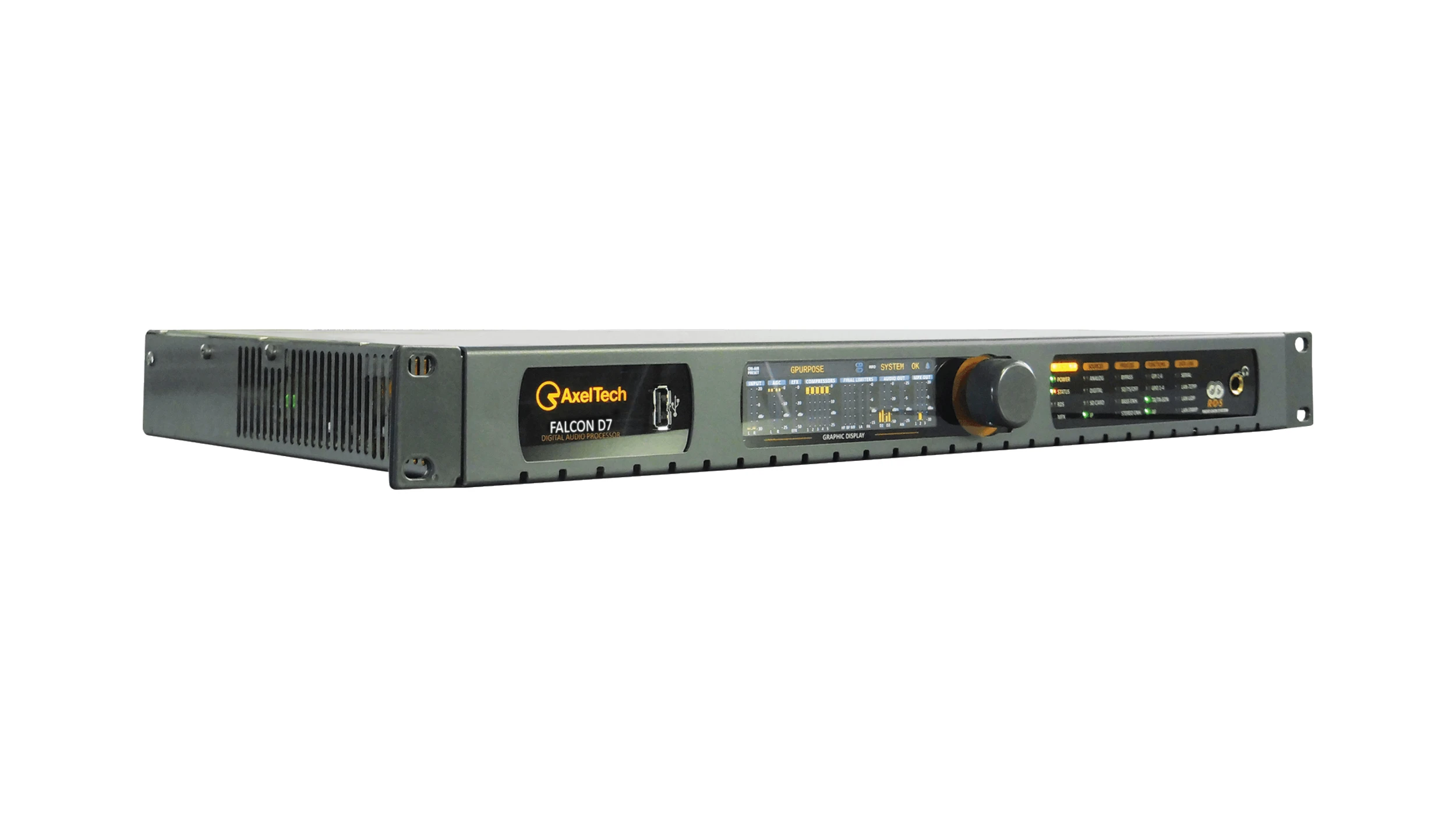

AxelTech Falcon D7
Falcon D7 is an all-in-one equipment (Audio Processor, Loudness Control, Change Over) for TV, DAB, HD Radio, Sirius XM, Web applications thanks to the 20 kHz Processing architecture. Falcon D7 offers ease of use and high quality performances and generates a perfect sound. Falcon D7 the top of its category thanks to many features and functions often not available on much higher priced devices. Falcon D7 sounds great and enables you to set up your perfect sound identity by choosing the pre set that suits better with the style of your channel or by tailor making your own set.
Analog Input - AUDIO
Number of Inputs: 1 Stereo
Connectors: 2 XLR, female - Electronically balanced – EMI Suppression
A/D Conversion: 24bit Sigma-Delta Conversion (Crystal CS4272)
AD Clipping Point: +24.0 dBu
Operative Nominal Level: From –12.0dBu to +13.0dBu (0.1dBu Step) Software adjustable
Line Impedance: 10 kΩ (Electronically balanced selectable)
Distortion: Less than 0.01% TDH+NOISE (0.0 dBu 1Khz)
AD Dynamic Range: 108 dB RMS (110 dB A weighted)
Input Modes: Stereo, Mono (Left), Mono (Right), Mono (Left+Right)
CMRR input: >60 dB (20 Hz to 20 kHz)
FM Frequency range: 5 Hz-15 kHz (+/- 0,5dB when processing is disabled)
DAB Frequency range: 5 Hz-20 kHz (+/- 0,5dB when processing is disabled)
Digital Input – AUDIO
Inputs Number: 2 (1st for audio, 2nd for audio or Digital MPX)
Connectors: XLR, female – Electronically balanced– EMI Suppression
Format: AES3/EBU
Input impedance: 110 Ω
Sample rate: 32 kHz / 44.1 kHz / 48 kHz /96 kHz / 192 kHz with src and jitter attenuation
Operative Nominal level: From 0.0 dBFs to -25.0 dBFs (0.1 dBu step) Software adjustable
Dynamic Range: 125 dB (Typical), 122 dB (Minimal)
Distortion: Less than 0.01% TDH+NOISE (0.0 dBu 1Khz)
Input Modes: Stereo, Mono (Left), Mono (Right), Mono (Left+Right)
Conversion dynamic range: 124 dB (32 KHz) | 126 dB (44,1 kHz) | 126 dB (48 kHz) 122 dB (96 kHz)
Conversion resolution: 24 bits
FM Frequency range: 2 Hz-15 kHz (+/- 0,025dB when processing is disabled)
DAB Frequency range: 2 Hz-20 kHz (+/- 0,025dB when processing is disabled)
Analog Output AUDIO
Output Number: 1
Connectors: 2 XLR, female - Electronically balanced – EMI Suppression
D/A Conversion: 24 bit Sigma-Delta Conversion (Crystal CS4272)
Output Level: -6.0 dBu to +20.0 dBu (0.1 dBu Step)
Output Level Max.: + 24,0 dBu
Output Impedance: 10 Ω
Load Impedance: 600 Ω or greater
THD + Noise: Less than 0.01% (0.0dBu @ 1 kHz)
Signal to noise Ratio: >80 dB unweight - 100% Mod. 20 Hz–15 KHz
L/R CrossTalk: < –70 dB, 20 Hz–15 KHz
Pre-emphasis: 50 µsec, 75 µsec
FM Frequency range: 5 Hz-15 kHz (+/- 0,5dB when processing is disabled)
DAB Frequency range: 5 Hz-20 kHz (+/- 0,5dB when processing is disabled)
Digital Output AUDIO
Outputs Number: 2 (1st for audio, 2nd for audio or Digital MPX)
Connectors: Balanced on 1 XLR – EMI Suppression
Format: AES3/EBU
Output impedance: 110 Ω
Sample rates: 32 kHz / 44.1 kHz / 48 kHz / 96 kHz / 192 kHz Software selectable
Resolution: 24 bit
Operative Nominal level: From 0.0 dBFs to -30dBFs (0.1 dBu step)
Dynamic Range: 125 dB (Typ), 122 dB (Min)
Distortion: Less than 0.01% TDH+NOISE (0.0 dBu 1 Khz)
Pre-emphasis: 50 µsec, 75 µsec
FM Frequency range: 2 Hz-15 kHz (+/- 0,025 dB when processing is disabled)
DAB Frequency range: 2 Hz-20 kHz (+/- 0,025 dB when processing is disabled)
BACKUP PLAYER
Physical support: USB Flash Drive, microSD CARD (max 64GB)
Audio file format: MP3, WAV
Sample Rate: 32 | 44,1 | 48 | 64 | 96 kHz
COMMUNICATION
Connection with radio automation: Software: Yes
Network connectivity: 4 TCP ports / 4 UDP / 1 SNMP
Configuration software: Web Server, FTP
Password protection: Yes
ASCII Protocol: Configuration messages
REST Command: Yes
Alert notifications on user-defined events via SNMP traps: Yes
Embedded SNMP agent permitting: active management tasks: Yes
Supported Network Protocols: HTTP, SNTP, UDP, TCP, NTP, FTP
UECP Protocol: EBU SPB490 Ver. 7.05
PI Calculator: Yes
RDS 2.0 Ready: Yes
System Features
Remote interface GPIn: 6x GP In optocoupled
Remote interface GPOut: 4x Relays – dry contacts
Remote interface connector: DB 25 female connector - EMI suppressed
Remote interface GPIO Voltage and Current: DC 5V Source and Sink 10 mA
Communication Port: 2 x RS232, 3 x USB, 1 x LAN
Serial Interfaces:
• 1st RS232 on DB9 female connector - EMI suppressed
• 2nd RS232 on DB25 female connector - EMI suppressed
Firmware can be upgraded in the field: Yes
Front-panel Colour TFT Display: No (Falcon X6) / Yes (Falcon X5, X7, D7 and Fox 3)
Data may be entered on-site with Front-panel Buttons: No (Falcon X6) / Yes (Falcon X5, X7, D7 and Fox 3)
Front Panel LEDs: 40
PHYSICAL
Dimensions: 485 x 44 x 240 mm (1 rack unit)
AC Rate Voltage: 230Vac / 110Vac +/- 10% - 30VA – Connector IEC 3-Wire detachable
AC Frequency: 50 Hz / 60 Hz +/- 4%
Power factor: 0,9
Processing architecture:
• Fully digital, based on DSP 24bit/250Mhz.
• 5 band Signal processing
Weight: 3,5 Kg
Operating temperature: -5°C / +50°C up to 95% non condensing
Max Altitude: Up to 3000 meters above marine level
Safety Standard: CE
RFI: The equippment has been designed to work in strong RF Fields and it is provided with Standard RFI filters. Necessary RFI filters are standard and same are provided.
Grounding: One more earth terminal are provided in the body to connect audio ground
