Analog Input - AUDIO
Number of Inputs: 1 Stereo
Connectors: 2 XLR, female - Electronically balanced – EMI Suppression
A/D Conversion: 24bit Sigma-Delta Conversion (Crystal CS4272)
AD Clipping Point: +24.0 dBu
Operative Nominal Level: From –12.0dBu to +13.0dBu (0.1dBu Step) Software adjustable
Line Impedance: 10 kΩ (Electronically balanced selectable)
Distortion: Less than 0.01% TDH+NOISE (0.0 dBu 1Khz)
AD Dynamic Range: 108 dB RMS (110 dB A weighted)
Input Modes: Stereo, Mono (Left), Mono (Right), Mono (Left+Right)
CMRR input: >60 dB (20 Hz to 20 kHz)
FM Frequency range: 5 Hz-15 kHz (+/- 0,5dB when processing is disabled)
DAB Frequency range: 5 Hz-20 kHz (+/- 0,5dB when processing is disabled)

Digital Input – AUDIO
Inputs Number: 2 (1st for audio, 2nd for audio or Digital MPX)
Connectors: XLR, female – Electronically balanced– EMI Suppression
Format: AES3/EBU
Input impedance: 110 Ω
Sample rate: 32 kHz / 44.1 kHz / 48 kHz /96 kHz / 192 kHz with src and jitter attenuation
Operative Nominal level: From 0.0 dBFs to -25.0 dBFs (0.1 dBu step) Software adjustable
Dynamic Range: 125 dB (Typical), 122 dB (Minimal)
Distortion: Less than 0.01% TDH+NOISE (0.0 dBu 1Khz)
Input Modes: Stereo, Mono (Left), Mono (Right), Mono (Left+Right)
Conversion dynamic range: 124 dB (32 KHz) | 126 dB (44,1 kHz) | 126 dB (48 kHz) 122 dB (96 kHz)
Conversion resolution: 24 bits
FM Frequency range: 2 Hz-15 kHz (+/- 0,025dB when processing is disabled)
DAB Frequency range: 2 Hz-20 kHz (+/- 0,025dB when processing is disabled)

MPX INPUT
Input Number: 2
Connectors: Unbalanced on BNC – EMI Suppression
Input impedance: 50 KΩ
Adjustable Nominal Input Level (Sensitivity): -6 dB to +13,0 dB (0.1 dBu step) Software adjustable
Max Input Level: +18,0 dBu
A/D Conversion: Texas PCM4220

Analog Output AUDIO
Output Number: 1
Connectors: 2 XLR, female - Electronically balanced – EMI Suppression
D/A Conversion: 24 bit Sigma-Delta Conversion (Crystal CS4272)
Output Level: -6.0 dBu to +20.0 dBu (0.1 dBu Step)
Output Level Max.: + 24,0 dBu
Output Impedance: 10 Ω
Load Impedance: 600 Ω or greater
THD + Noise: Less than 0.01% (0.0dBu @ 1 kHz)
Signal to noise Ratio: >80 dB unweight - 100% Mod. 20 Hz–15 KHz
L/R CrossTalk: < –70 dB, 20 Hz–15 KHz
Pre-emphasis: 50 µsec, 75 µsec
FM Frequency range: 5 Hz-15 kHz (+/- 0,5dB when processing is disabled)
DAB Frequency range: 5 Hz-20 kHz (+/- 0,5dB when processing is disabled)

Digital Output AUDIO
Outputs Number: 2 (1st for audio, 2nd for audio or Digital MPX)
Connectors: Balanced on 1 XLR – EMI Suppression
Format: AES3/EBU
Output impedance: 110 Ω
Sample rates: 32 kHz / 44.1 kHz / 48 kHz / 96 kHz / 192 kHz Software selectable
Resolution: 24 bit
Operative Nominal level: From 0.0 dBFs to -30dBFs (0.1 dBu step)
Dynamic Range: 125 dB (Typ), 122 dB (Min)
Distortion: Less than 0.01% TDH+NOISE (0.0 dBu 1 Khz)
Pre-emphasis: 50 µsec, 75 µsec
FM Frequency range: 2 Hz-15 kHz (+/- 0,025 dB when processing is disabled)
DAB Frequency range: 2 Hz-20 kHz (+/- 0,025 dB when processing is disabled)

MPX OUTPUT
Connectors: Unbalanced on 2 BNC – EMI Suppression
Source impedance: 10 Ω
Load impedance: 600 Ω or greater
Maximum Load Capacitance: 5 nF
D/A Conversion: Texas PCM 1796
Composite output level: -6,0 dB to +13,0 dB (0,1 dBm step)
Max Output Level: +18.0 dBm
Mod Power Limiter: Adjustable from -1.0 dB to +12 dB according to ITU-R BS.412
Pilot Frequency: 19 KHz +/- 1 Hz
Pilot Level: -25.5 to -14.0 dB in 0.1 dB/Step - Ref 100% Mod
Pilot Stability: 19 kHz, ± 1 Hz
Pilot Phase: Adjustable +/- 12 degrees, 1 degree step
Pilot THD+Noise: 0.03% (TDH 0.002%)
Stability: +/-10 ppm (-10 to +55 °C)
Signal-to-Noise Ratio (S/N): > 85 dB on a 60 kHz Bandwidth, referenced to 100% modulation, unweighted
Distortion: <= 0.01% THD - Bypass mode, de-emphasized, 20 Hz – 15 kHz bandwidth, referenced to 100% modulation, unweighted
Stereo Separation: Greater than 70 dB, 30 Hz – 15 kHz
Linear Crosstalk: > -80 dB - main channel to sub-channel or sub-channel to main channel referenced to 100% modulation
38 kHz Suppression: > 70 dB (referenced to 100% modulation)
Pilot Protection: > 65 dB relative to 10% pilot injection, ± 500 Hz.
Crosstalk M/S: > 80 dB
Crosstalk S/M: > 80 dB
MPX clipping & limiting: Based on look-ahead techniques
RDS/RBDS Protection: Better than -55 dB @ 56kHz, better than - 65dB@57 kHz (MPX Clipper Disabled)
Pre-emphasis: 50 µsec, 75 µsec
MPX Modes: Stereo, Mono, L+R, L-R, Pilot only, No Pilot
MPX Clipper: On/Off and adjustable 95% to 105 %, 1% step

Digital Output MPX
Connectors: Balanced on 1 XLR – EMI Suppression
Input impedance: 110 Ω
Format: AES192
Sample rate: 192 KHz
Output level adjustment: From 0,0 dBFs to –30,0 dBFs (0,1 dB steps)

BACKUP PLAYER
Physical support: USB Flash Drive, microSD CARD (max 64GB)
Audio file format: MP3, WAV
Sample Rate: 32 | 44,1 | 48 | 64 | 96 kHz

RDS FEATURES (Optional)
RDS Level adjustment: Digitally controlled
Phase adjustment: Yes, 0 ÷ 359.9°
RDS Subcarrier: 100% Digitally Generated Shape
CENELEC – EN50067 compliant: Yes
Accurate Clock Time (CT) Sync with Internet Connection: Yes
Remote TA actuation for Traffic Announcements: Yes
GPS module for automatic synchronisation of the built-in Real Time Clock (RTC): Optional external via USB
Group Supported: All
Group Sequence: Configurable
PS: 8 DSN x MAIN + 10 PSN
PI: 8 DSN x MAIN + 10 PSN
PIN & PTY: RDS/RBDS
AF Method A: up to 1024 (64 lists)
AF Method B: up to 1024 (64 lists)
RT: Yes, 32 messages
RT rate adjustment: Group Sequence
RT+ for songs and content tagging: Yes
TP: Yes
TA Control: Command, Soft, GPI
PTYN: Yes
EON: 10 PSN
CT: Yes
TMC, EWS, IH, TDC: Yes
Free Format Groups (FFG): Yes
Open Data Application (ODA): Yes
PS Scrolling: Yes
Scrolling by characters, by word, auto centre, truncate long words: Yes (Characters – from 1 up to 8)

COMMUNICATION
Connection with radio automation: Software: Yes
Network connectivity: 4 TCP ports / 4 UDP / 1 SNMP
Configuration software: Web Server, FTP
Password protection: Yes
ASCII Protocol: Configuration messages
REST Command: Yes
Alert notifications on user-defined events via SNMP traps: Yes
Embedded SNMP agent permitting: active management tasks: Yes
Supported Network Protocols: HTTP, SNTP, UDP, TCP, NTP, FTP
UECP Protocol: EBU SPB490 Ver. 7.05
PI Calculator: Yes
RDS 2.0 Ready: Yes

System Features
Remote interface GPIn: 6x GP In optocoupled
Remote interface GPOut: 4x Relays – dry contacts

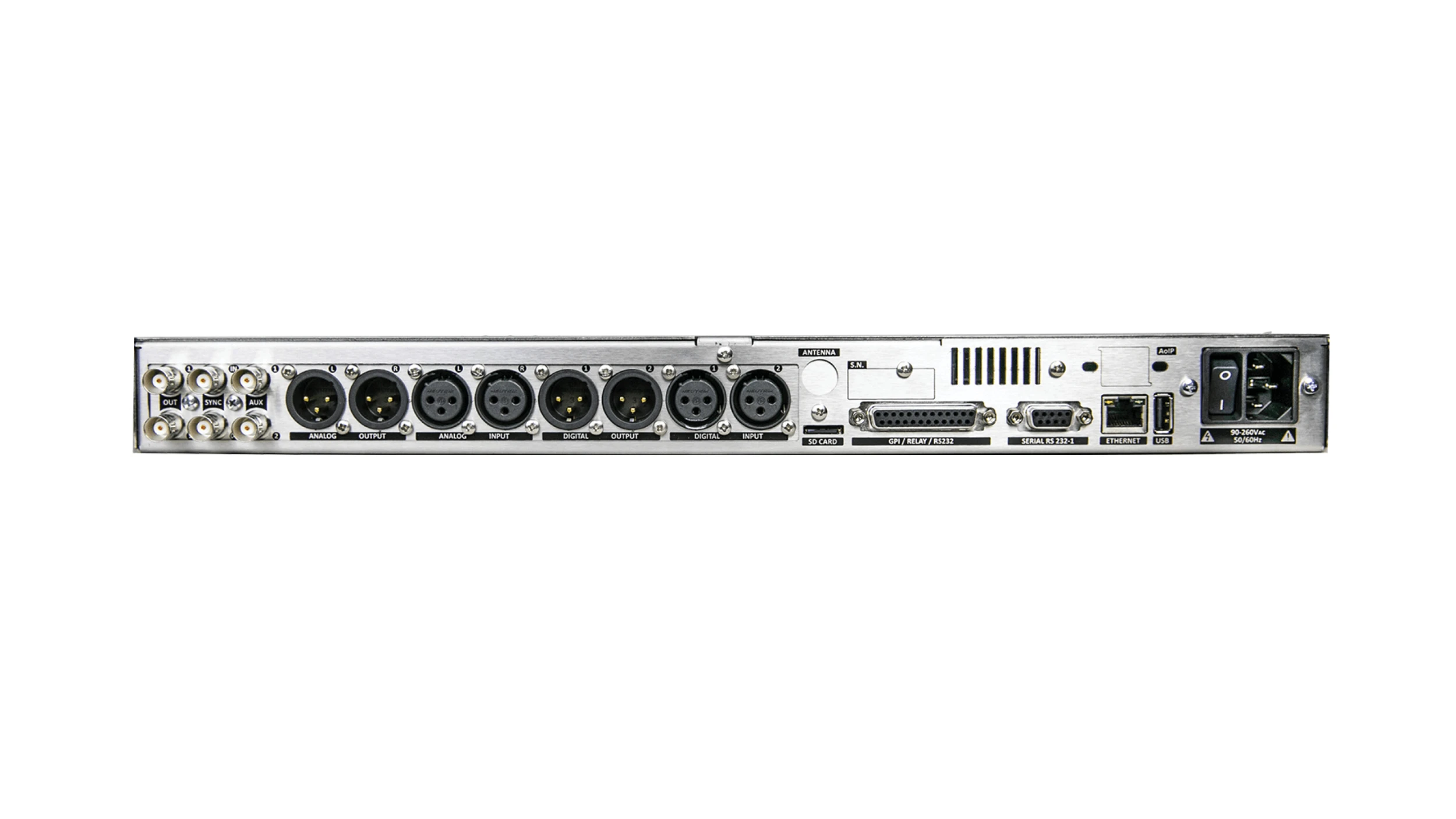

Remote interface connector: DB 25 female connector - EMI suppressed
Remote interface GPIO Voltage and Current: DC 5V Source and Sink 10 mA
Communication Port: 2 x RS232, 3 x USB, 1 x LAN
Serial Interfaces:
• 1st RS232 on DB9 female connector - EMI suppressed
• 2nd RS232 on DB25 female connector - EMI suppressed
Firmware can be upgraded in the field: Yes

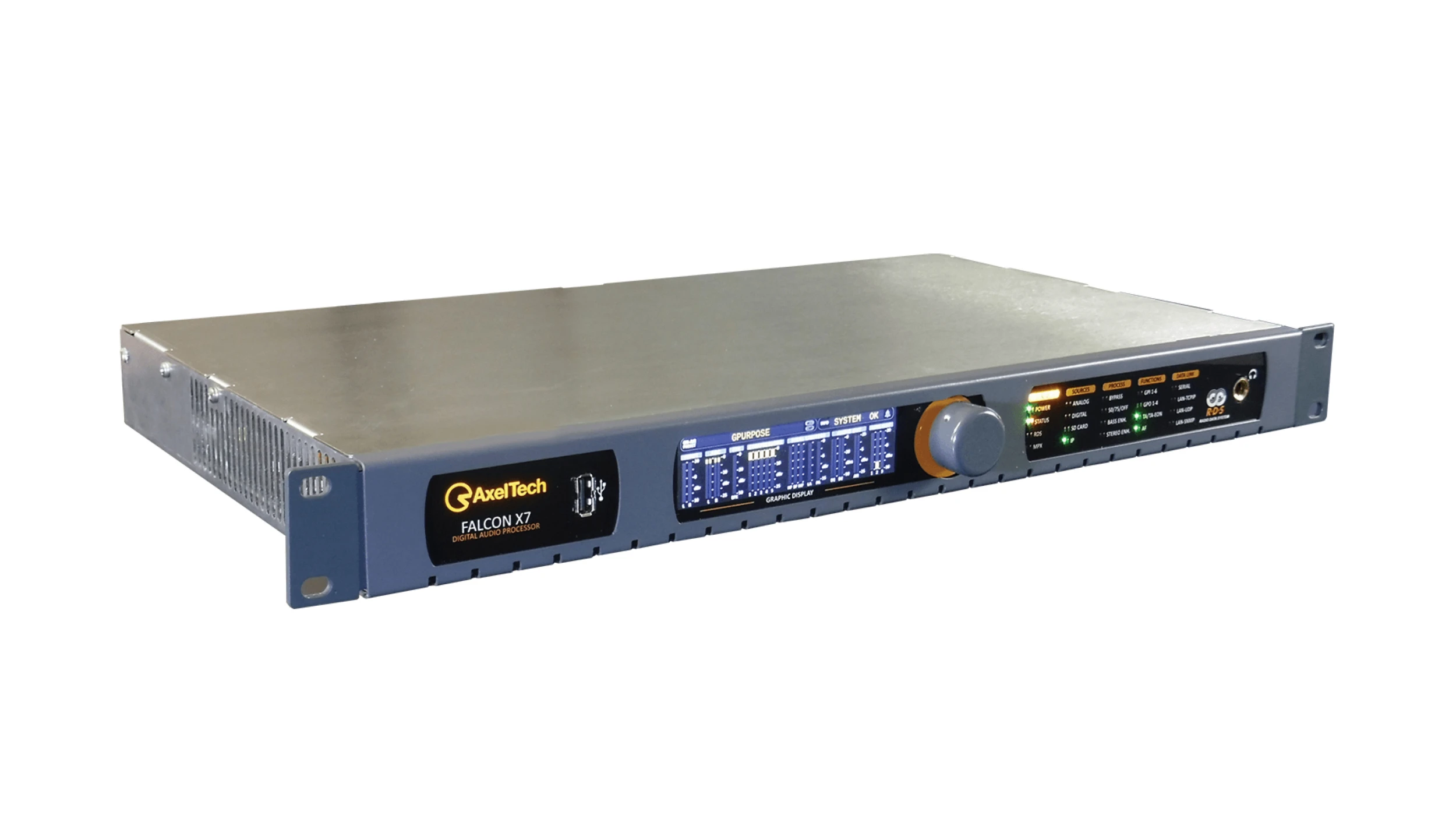

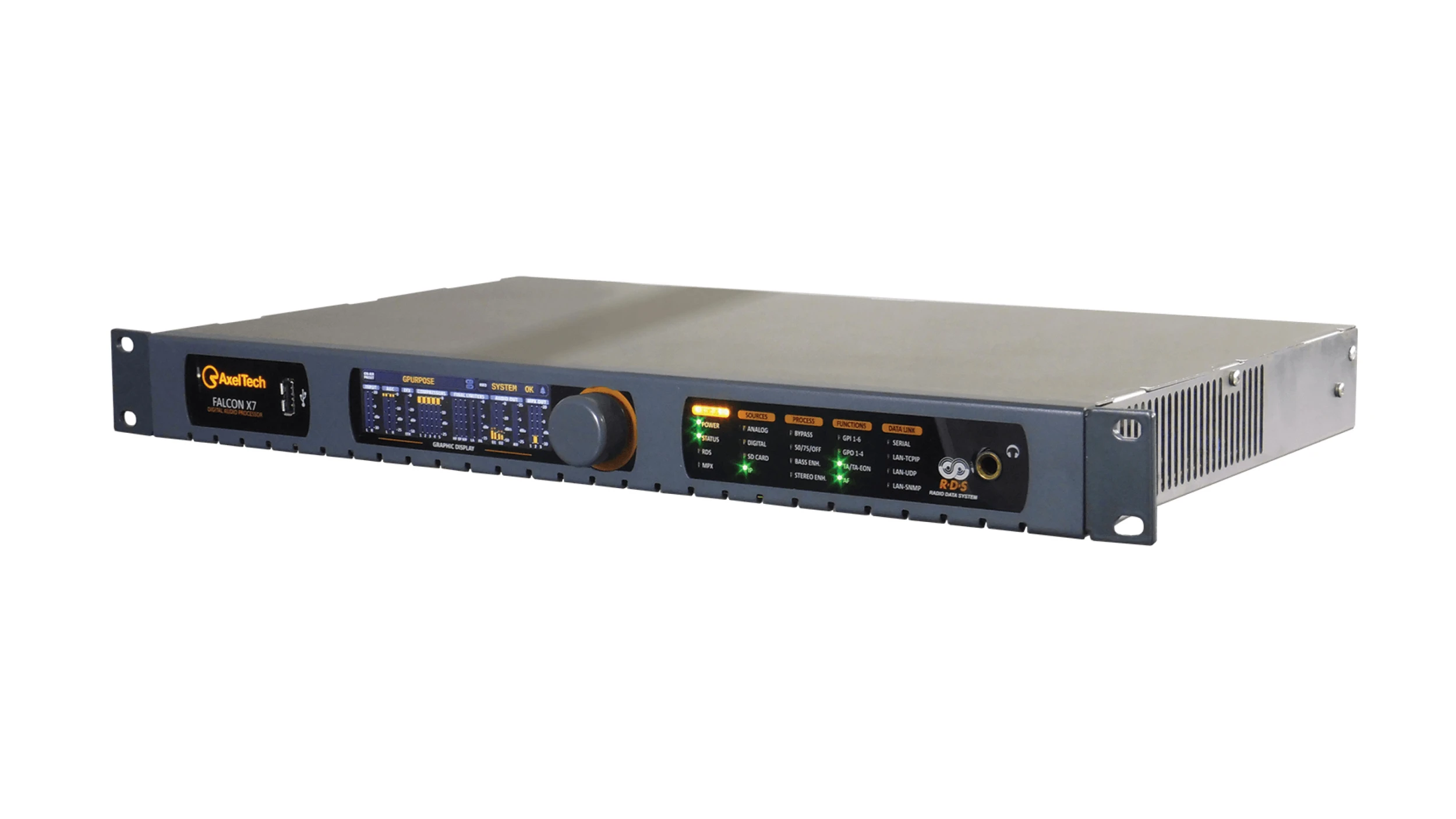

Front-panel Colour TFT Display: No (Falcon X6) / Yes (Falcon X5, X7, D7 and Fox 3)
Data may be entered on-site with Front-panel Buttons: No (Falcon X6) / Yes (Falcon X5, X7, D7 and Fox 3)
Front Panel LEDs: 40

PHYSICAL
Dimensions: 485 x 44 x 240 mm (1 rack unit)
AC Rate Voltage: 230Vac / 110Vac +/- 10% - 30VA – Connector IEC 3-Wire detachable
AC Frequency: 50 Hz / 60 Hz +/- 4%
Power factor: 0,9
Processing architecture:
• Fully digital, based on DSP 24bit/250Mhz.
• 5 band Signal processing
Weight: 3,5 Kg
Operating temperature: -5°C / +50°C up to 95% non condensing
Max Altitude: Up to 3000 meters above marine level
Safety Standard: CE
RFI: The equippment has been designed to work in strong RF Fields and it is provided with Standard RFI filters. Necessary RFI filters are standard and same are provided.
Grounding: One more earth terminal are provided in the body to connect audio ground
