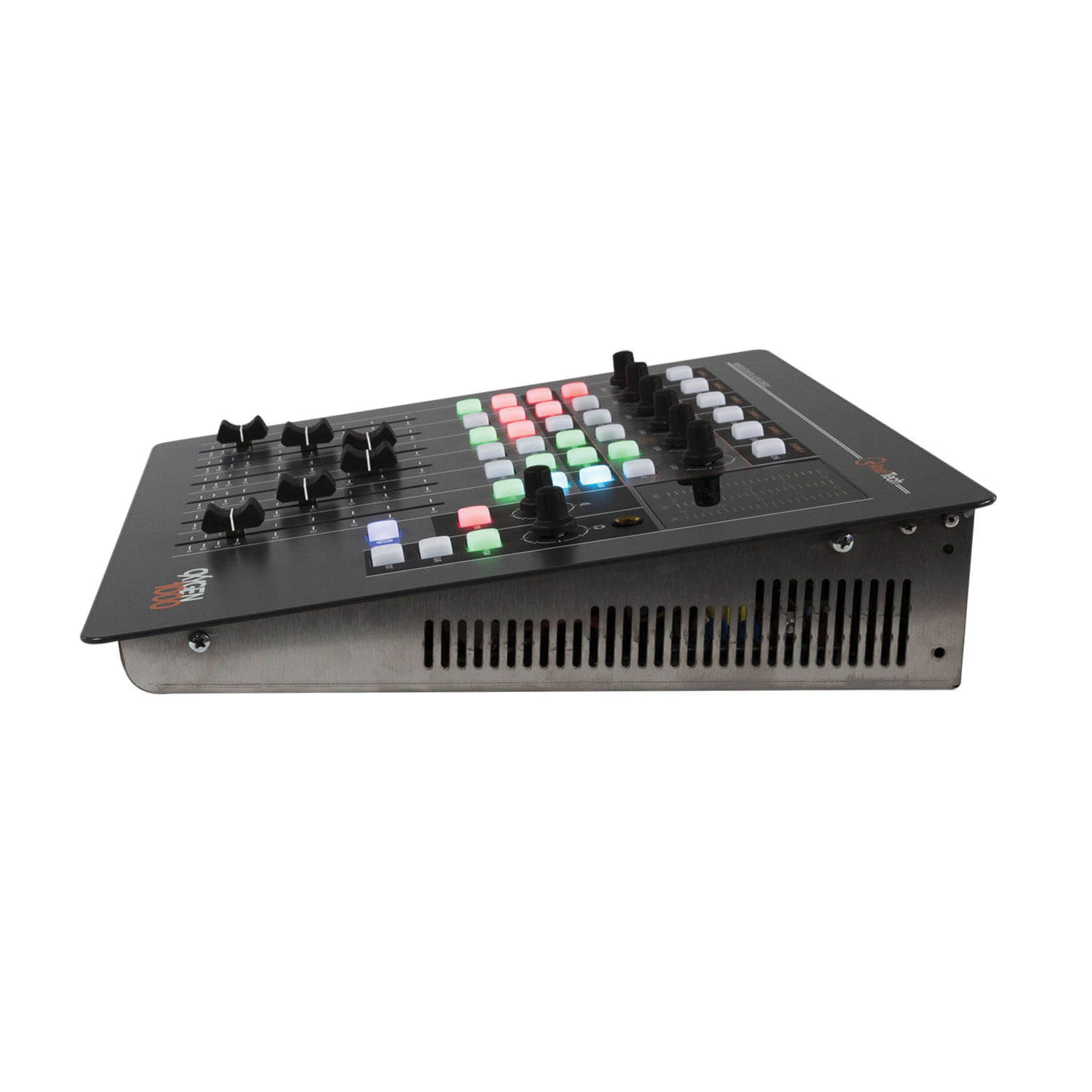

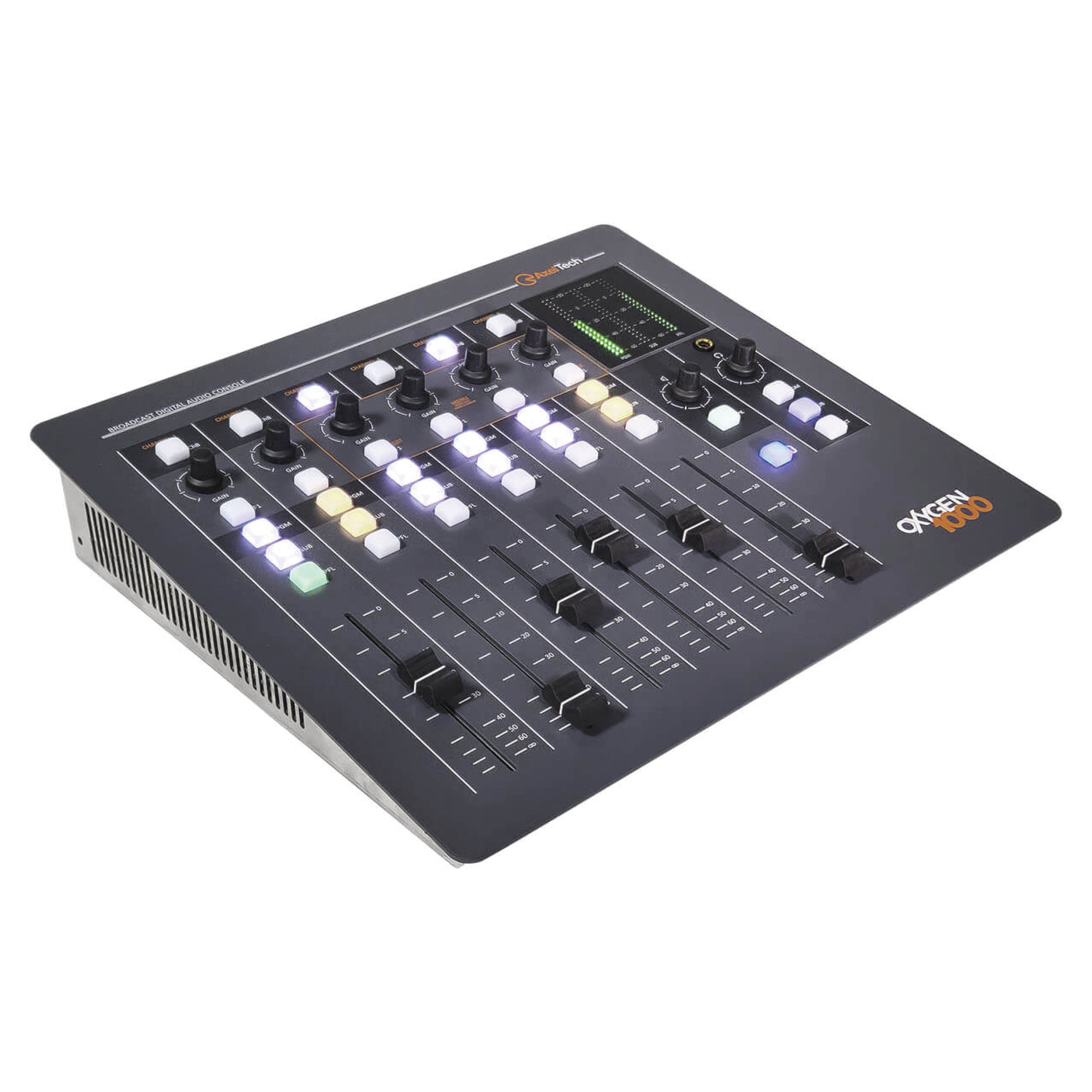

AxelTech Oxygen 1000
Oxygen 1000 is a fully Digital Broadcast Console designed for On Air and Production in any Radio Station: a compact 6 faders unit, 3 microphone inputs with Automix, with a powerful internal audio routing and a wide range of controls and I/O in a rugged and classy steel chassis. Oxygen 1000 DSP based audio processing delivers high-end quality and guarantees latest features and flexibility.
Reliable and easy to use as an analogue mixing console Oxygen 1000 offers top class features: Low Latency, Users Preset, Smart Keys, EQ, Compressors, Telephone Hybrid, HDMI Output, Analogue and Digital I/O, USB, BT, Dante™ AoIP, Telco, Presenter Talk Box. Oxygen 1000 can be remotely controlled through the Oxygen Remoter tool.
Analog Balanced Microphone Inputs
Connector: RJ45 & XLR Balanced – EMI Suppressed
Input Impedance: 2,4 KΩ
Nominal Input Level (sensitivity): -9/-66 dBu
Max Input Level (clipping point): +9 dBu
A/D conversion: 24 bit / 48 Khz
Signal To Noise Ratio (referred to peak level): >90 dB
THD+N: <0,01%
Analog Gain: Adjustable +0 ÷ +57 dB (3dB step)
Phantom Power: +48V
Analog Balanced Stereo Inputs
Connector: XLR & RJ45 Balanced – EMI Suppressed
Input Impedance: 10 KΩ
Nominal Input Level (sensitivity): 0 dBu
Max Input Level (clipping point): +18 dBu
A/D conversion: 24 bit / 48 Khz
Frequency response: +/-0,5 dB from 20 Hz to 20 kHz
Signal To Noise Ratio (referred to peak level): >100 dB
Stereo Separation (referred to peak level): >90 dB
THD+N: <0,002 %
Analog Balanced Telco Input
Connector: RJ45 Balanced – EMI Suppressed
Input Impedance: 10 KΩ
Nominal Input Level (sensitivity): 0 dBu
Max Input Level (clipping point): +18 dBu
A/D conversion: 24 bit / 48 Khz
Signal To Noise Ratio (referred to peak level): >100 dB
THD+N: <0,002%
PSTN Interface
Connector: RJ11
Transhybrid loss: >20 dB
Analog Balanced Stereo Outputs
Connector: RJ45 Balanced – EMI Suppressed
Output Impedance: 23 Ω, nominal 600 Ω
Nominal Output Level: 0 dBu
Max Output Level (clipping point): +18 dBu
D/A conversion: 24 bit / 48 Khz
Signal To Noise Ratio (referred to peak level): >100 dB
Stereo Separation (referred to peak level): >90 dB
THD+N: <0,002 %
USB Audio Digital I/O
Connector: USB Type B – EMI Suppressed
Playback And Recording Sample Rate: SRC 44.1-48 KHz
Resolution: 16 bit
Available Stereo Channels: 1 Play & 1 Rec for each USB interface
Digital Output
Connector: Balanced on 1 XLR – EMI Suppressed
Input Impedance: 110 Ω
Standard: AES3
Audio Sample Rate: 48 KHz
Resolution: 24 bit
Dynamic Range (Converter Values): 124 dB
Analog Balanced Telco Output
Connector: RJ45 Balanced – EMI Suppressed
Output Impedance: 23 Ω, nominal 600 Ω
Nominal Output Level: 0 dBu
Max Output Level (clipping point): +18 dBu
D/A conversion: 24 bit / 48 Khz
Signal To Noise Ratio (referred to peak level): >100 dB
THD+N: <0,002 %
System
Audio Core: Analog Devices ADAU1452 32bit 294 MHz fixed point DSP
Audio CODECs: Cirrus CS42448 24 bit/192 kHz
System Core: Allwinner A20 dual core cortex-A7 at 800MHz, 1GB RAM
LAN Connection: RJ45 - 100Mbit
Nominal Delay (analog input to analog output): 0,7 ms
GPIO Inputs/Outputs: 4 GPI/4 GPO on DB9; 4 GPI/2 GPO on Mic2 & Mic3 RJ45; 2 GPO on Out3 & Out4 RJ45; 1 GPI/1 GPO on Telco RJ45
Communication Port: 2xUSB type-A, 2xUSB type-B , 1xLAN, 1xHDMI
Operating Temperature: 0°C ÷ 40°C
PSU
Power Supply: 90-260 VAC / 47-63 Hz / 30 W
Dimensions
Dimensions (W; H; D): 344mm; 80mm; 343mm
Weight: < 5Kg
