AxelTech Oxygen 3000 Plus

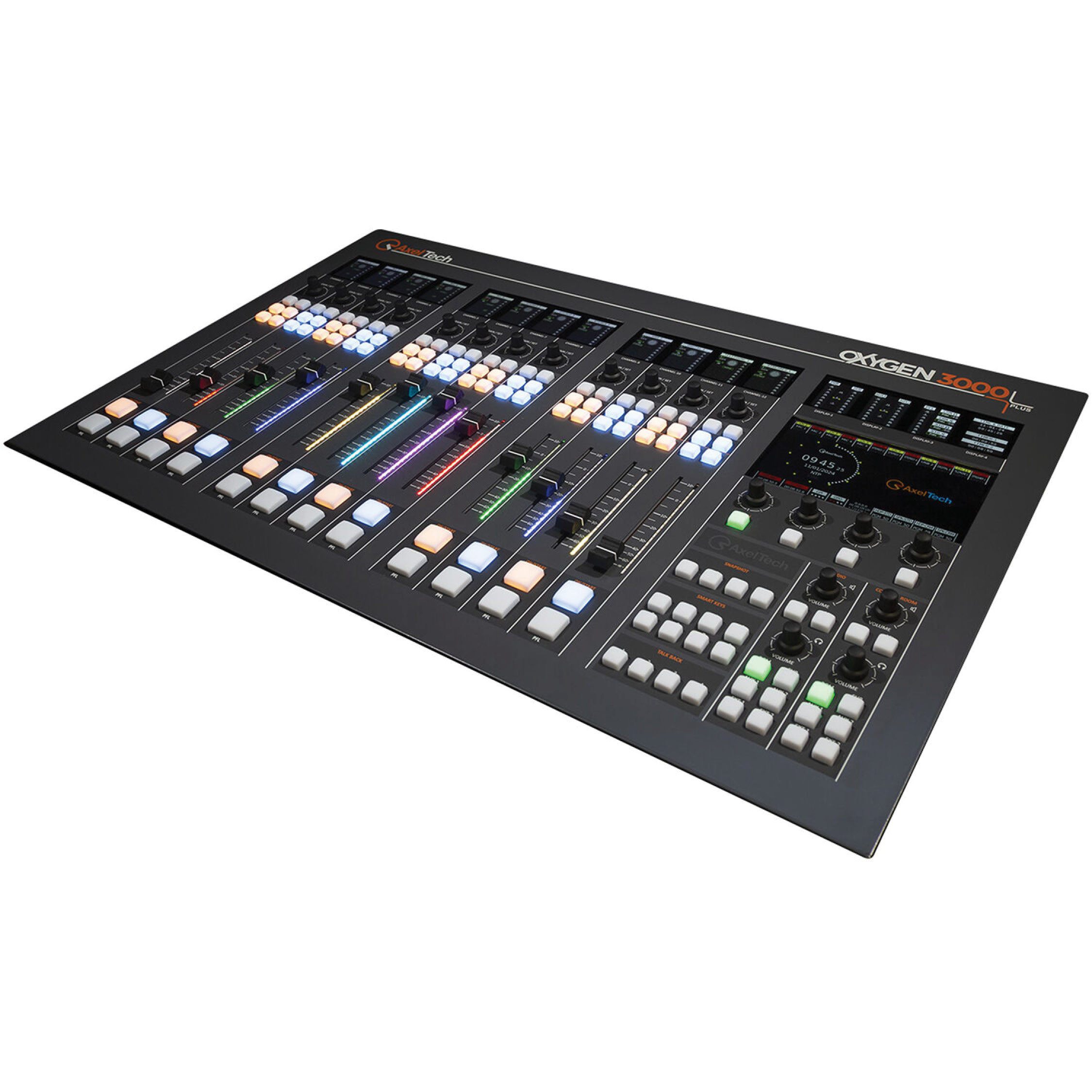

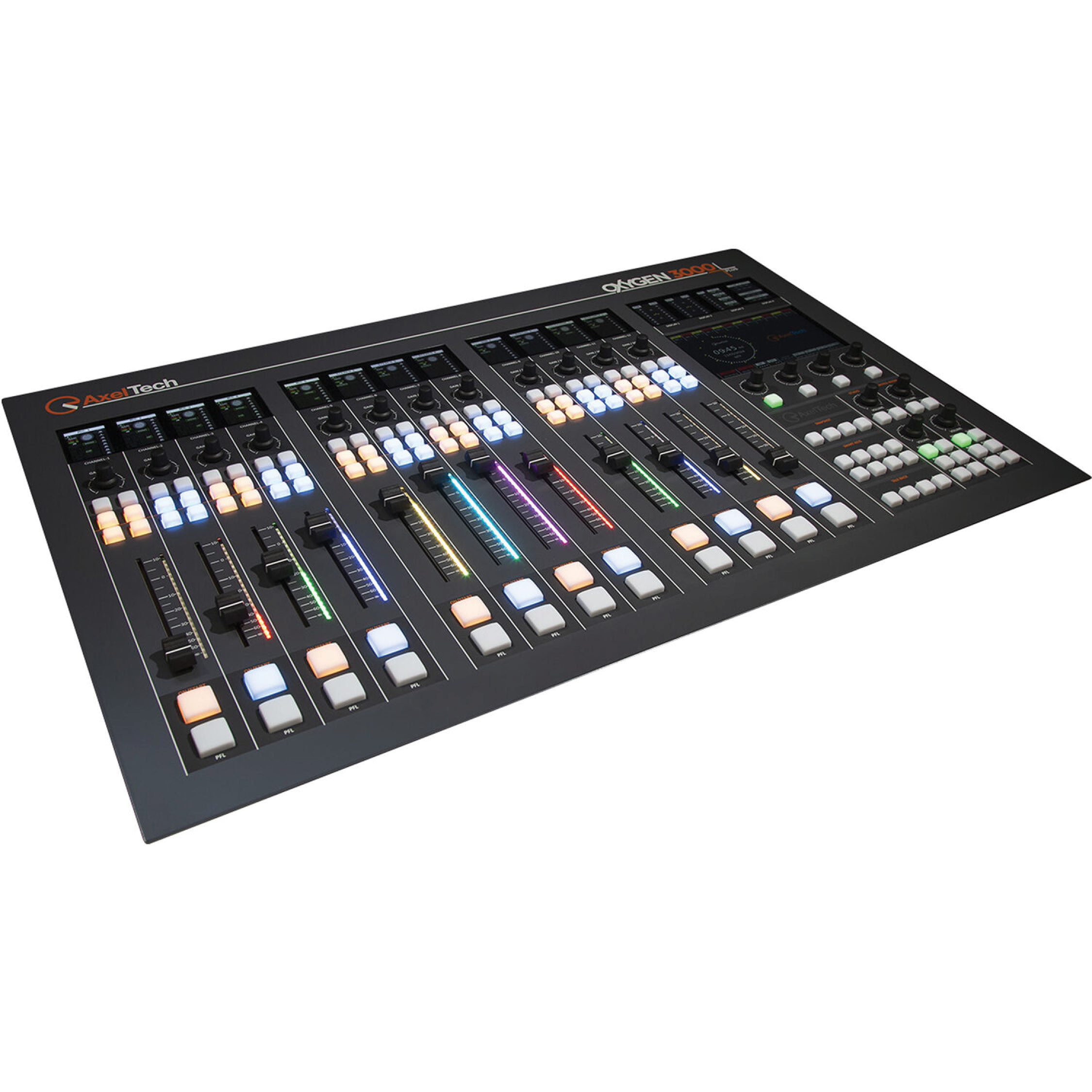

Oxygen 3000 Plus: much more than a Digital Broadcast Mixer!
A full range of powerful features for Radio On-Air and Production available in 3 different formats and flexible configurations: 8, 12 and 16 faders with 1 or 2 Audio I/O Boards and 16+16 or 32+32 Dante™ I/O.
Oxygen 3000 Plus is the best-equipped console of its category: Low Latency, Users Preset, Smart Keys, EQ, Compressors, Telephone Hybrid, HDMI Output, Analogue and Digital I/O, USB, BT, Dante™ AoIP, Telco, Presenter Talk Box, Streaming In/Out, and Talk Show System.
The DSP based processing guarantees high-end quality audio and of course you will find the ease of use that marks all the AxelTech’s products.
Oxygen Remoter Software, which enables up to 8 additional virtual faders for a full I/O control is available on Oxygen 3000 Plus as it comes with any Oxygen Digital Console model.
New Talk Show System! Oxygen 3000 Plus console can now be enhanced with professional broadcast communication capabilities managing up to 8 telephone lines through integrated web interface. Streamlined call handling, multiple operator support, conference modes, and advanced queue control with seamless hybrid integration, no additional hardware required.
Analog Balanced Microphone Inputs
Connector: RJ45 & XLR Balanced – EMI Suppressed
Input Impedance: 2,4 KΩ
Nominal Input Level (sensitivity): -9/-66 dBu
Max Input Level (clipping point): +9 dBu
A/D conversion: 24 bit / 48 Khz
Signal To Noise Ratio (referred to peak level): >110 dB
THD+N: <0,01%
Analog Gain: Adjustable +0 ÷ +60 dB (3dB step)
Phantom Power: +48V
Analog Balanced Stereo Inputs
Connector: XLR & RJ45 Balanced – EMI Suppressed
Input Impedance: 10 KΩ
Nominal Input Level (sensitivity): 0 dBu
Max Input Level (clipping point): +18 dBu
A/D conversion: 24 bit / 48 Khz
Frequency response: +/-0,5 dB from 20 Hz to 20 kHz
Signal To Noise Ratio (referred to peak level): >110 dB
Stereo Separation (referred to peak level): >90 dB
THD+N: <0,002 %
Analog Balanced Telco Input
Connector: RJ45 Balanced – EMI Suppressed
Input Impedance: 10 KΩ
Nominal Input Level (sensitivity): 0 dBu
Max Input Level (clipping point): +18 dBu
A/D conversion: 24 bit / 48 Khz
Signal To Noise Ratio (referred to peak level): >110 dB
THD+N: <0,002%
Digital Input
Connector: Balanced on 1 XLR – EMI Suppressed
Input Impedance: 110Ω
Standard: AES3
Audio Sample Ratd: 32/44.1/48/96/192 KHz with SRC
Resolution: 24 bit
Dynamic Range (Converter Values): 124dB
Analog Balanced Stereo Outputs
Connector: RJ45 Balanced – EMI Suppressed
Output Impedance: 23 Ω, nominal 600 Ω
Nominal Output Level: 0 dBu
Max Output Level (clipping point): +18 dBu
D/A conversion: 24 bit / 48 Khz
Signal To Noise Ratio (referred to peak level): >110 dB
Stereo Separation (referred to peak level): >90 dB
THD+N: <0,002 %
Dante I/O
Sample Rates (16x16 Versions): 44.1/48/88.2/96 kHz
Sample Rates (32x32 Versions): 44.1/48/88.2/96 kHz
Audio Flows In/Out: Up to 32x32 simultaneous streams
Digital Audio Formats : TDM, I2S
Audio Transport Formats : Dante Audio over IP, AES67 RTP, SMPTE ST2110-30 RTP (enrolled devices)
Sample Bit Depth: 16, 24 or 32 bits per sample
Audio Buffering : Up to 2000 samples per channel
Clocking : Onboard word clock or external word clock
Form Factor : Card edge module. 4.5cm x 6cm (1.75” x 2.4”)
FPGA : High performance Xilinx Spartan6 FPGA
Microprocessor : Soft-core Microblaze processor
Clock : High quality, low jitter onboard SiLabs
Ethernet : Standard RGMII/MII interface for Ethernet PHY or switch chip
Power: 3.3VDC @ 2W max
Physical Connector : Mini-PCI
Control Interfaces : SPI Master and Slave; GPIO; I2C
Network: RGMII/MII
USB Audio Digital I/O
Connector: USB Type B – EMI Suppressed
Playback And Recording Sample Rate: SRC 44.1-48 KHz
Resolution: 16 bit
Available Stereo Channels: 2 stereo USB - 2 Inputs & 1 Output on each Audio I/O Board
Analog Balanced Talkbox Outputs
Connector: RJ45 balanced – EMI Suppressed
Output Impedance: 100ohm, nominal 600ohm
Nominal Output Level: 0dBu
Max Output Level (clipping point): +14dBu
D/A conversion: 24 bit / 48 Khz
Signal To Noise Ratio (referred to peak level): >110dB
Stereo Separation (referred to peak level): >90dB
THD+N: <0,05%
Analog Balanced Telco Output
Connector: RJ45 Balanced – EMI Suppressed
Output Impedance: 23 Ω, nominal 600 Ω
Nominal Output Level: 0 dBu
Max Output Level (clipping point): +18 dBu
D/A conversion: 24 bit / 48 Khz
Signal To Noise Ratio (referred to peak level): >110 dB
THD+N: <0,002 %
Digital Output
Connector: Balanced on 1 XLR – EMI Suppressed
Input Impedance: 110 Ω
Standard: AES3
Audio Sample Rate: 32/44.1/48/96/192 KHz
Resolution: 24 bit
Dynamic Range (Converter Values): 124 dB
PSTN Interface
Connector: RJ11
Transhybrid loss: >20 dB
System
Audio Core: Analog Devices ADAU1452 32bit 294 MHz fixed point DSP
Audio CODECs: Cirrus CS42448 24 bit/192 kHz
LAN Connection: RJ45 - 1 Gbit
Nominal Delay (analog input to analog output): 0,7 ms
GPIO Inputs/Outputs: 4 GPI/4 GPO on DB9; 4 GPI/2 GPO on Mic2 & Mic3 RJ45; 2 GPO on Out3 & Out4 RJ45; 1 GPI/1 GPO on Telco RJ45
Communication Port: 2xUSB type-A, 2xUSB type-B , 1xLAN, 1xHDMI
Operating Temperature: 0°C ÷ 40°C
Dimensions
8 Faders Dimensions (W; H; D): 584 mm; 113,5 mm; 495,5 mm
12 Faders Dimensions (W; H; D): 764 mm; 113,5 mm; 495,5 mm
16 Faders Dimensions (W; H; D): 944 mm; 113,5 mm; 495,5 mm
Weight: 15 to 25 Kg
PSU
Type: External Universal Switching Power Supply 12V with 4 poles XLR connections - Optional Redundant
Power Supply: 90-264 VAC / 50-60 Hz / 120 W
