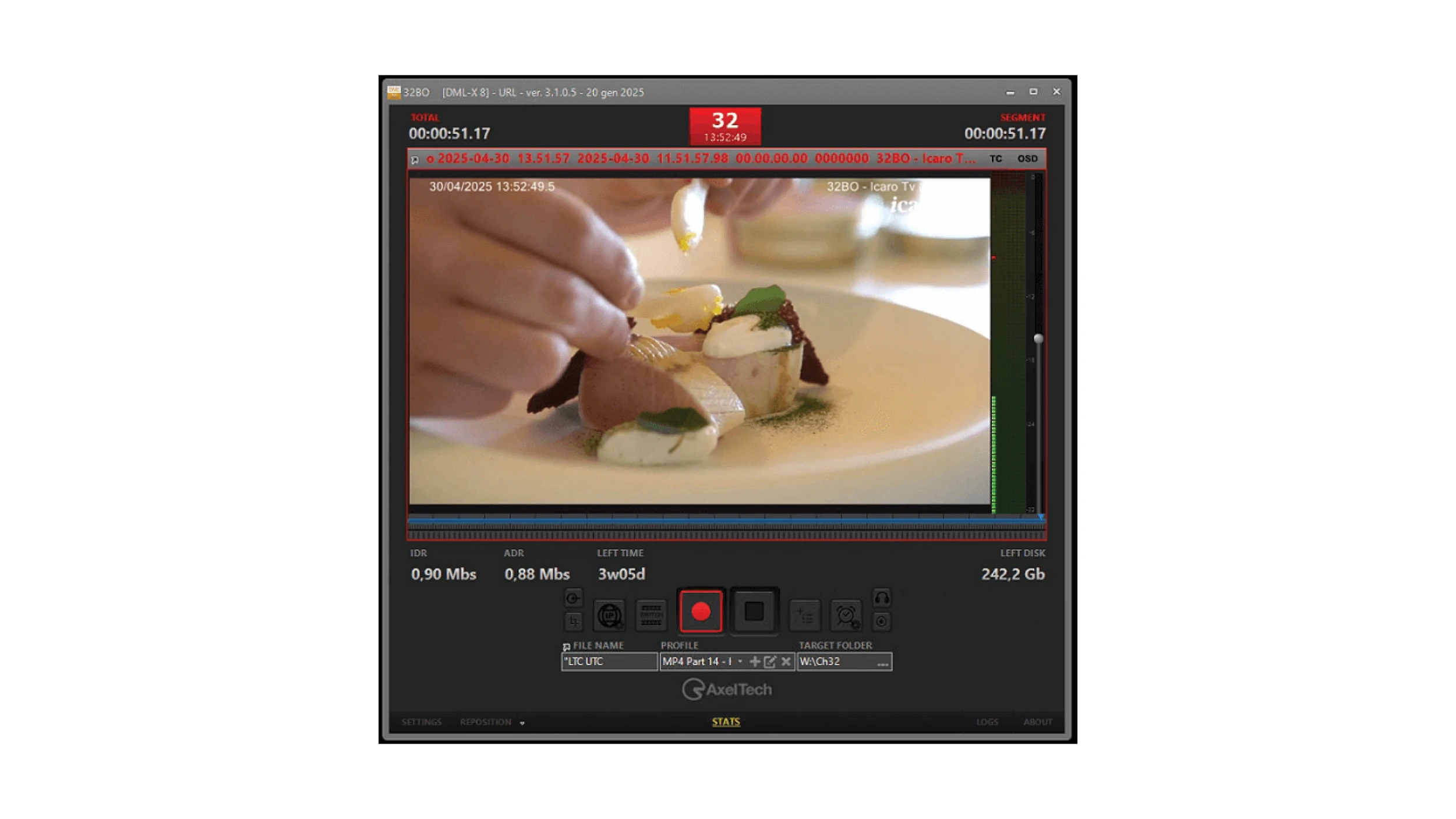

AxelTech DMLX
DMLX is an advanced recording and logging system for broadcast. It enables continuous recording of audio and video content for legal audits and post-broadcast analysis, supporting multiple formats and ensuring high reliability.
DMLX can be used for continuous recording and monitoring of the content broadcast by television and radio broadcasters. It ensures legal compliance, allowing for the preservation and recovery of transmissions in case of audits by regulatory agencies. Additionally, it provides tools for post-broadcast analysis, quality control, and archiving.
DMLX has a wide selection of input formats: Blackmagic cards for SDI-HDMI-ST2110. WDM and ASIO audio cards. IP streaming (HLS, SRT, RTMP, UDP, ICECAST). NDI.
The use of Nvidia, AMD, and Intel GPUs for accelerated capture in H264, H265, and AV1 allows multi-channel configurations.
DMLX includes logging of ancillary information, such as LTC timecode, Closed caption, SCTE, Loudness, and multitrack audio.
Powerful features, and accessories: System of notifications (email, telegram, and so on), web dashboard remote control, IP streaming monitoring.
• Archive any logging period 30, 60, 90, 180, 365 days Single channel and multiple channels configuration.
• SDI and ST2110 inputs with Blackmagic, Bluefish, Aja, Dektec, Deltacast, Magwell devices.
• IP input in UDP TS, RTP, RTSP, RTMP, HTTP, SRT, and NDI.
• Audio input with any compatible Windows device, including AoIP Dante, Livewire, and AES67.
• Sonifex RADCAP for FM, AM, and DAB reception.
• Capture any resolution in SD, HD,2K,4K,8K, or custom.
• Input rescale and crop with aspect ratio correction.
• Continuous 24×7 recording without any frame loss between file segments.
• Video can contain up to 16 audio tracks.
• Closed caption and LTC timecode embedding.
• SCTE35 and SCTE104 logging.
• Video formats include MP4 (H264, H265, AV1), TS, MOV, XDCAM, MXF, GXF, FLV, VOB, ASF, AVI, MKV.
• NVIDIA, AMD, and INTEL GPU acceleration for video encoding and decoding.
• Audio formats MP3, AAC, AC3, WAV, OGG.
• Automatic delete of oldest files after the expiration period.
• IP streaming for monitoring in UDP TS, RTP, RTSP, RTMP, HTTP, and SRT.
• CG overlay with antialiased text for name of channel, date, and time Logo overlay for watermarking
• Volume adjustment.
• Alarm notification via E-mail, SMS, and Telegram for black video, freeze, no audio, archive length, etc.
• Accurate statistics on the capture process and data rates.
• Data security featuring RAID architecture or software mirror, content is preserved in case of disk failure.
• Remote system monitoring from any LAN or Internet-connected PC.
• Easy content export/conversion with Mark-In and Out points. Flexible transcoding to most of the video formats.
• Web Dashboard for remote control.
• Rest APIs for developers.
• SNMP protocol.
SPECIFICATIONS:
Recommended configuration for AV multichannel capture:
• Windows 11
• 716 GB RAM
• NVIDIA card with unlimited NVENC sessions
• Adequate drive capacity
