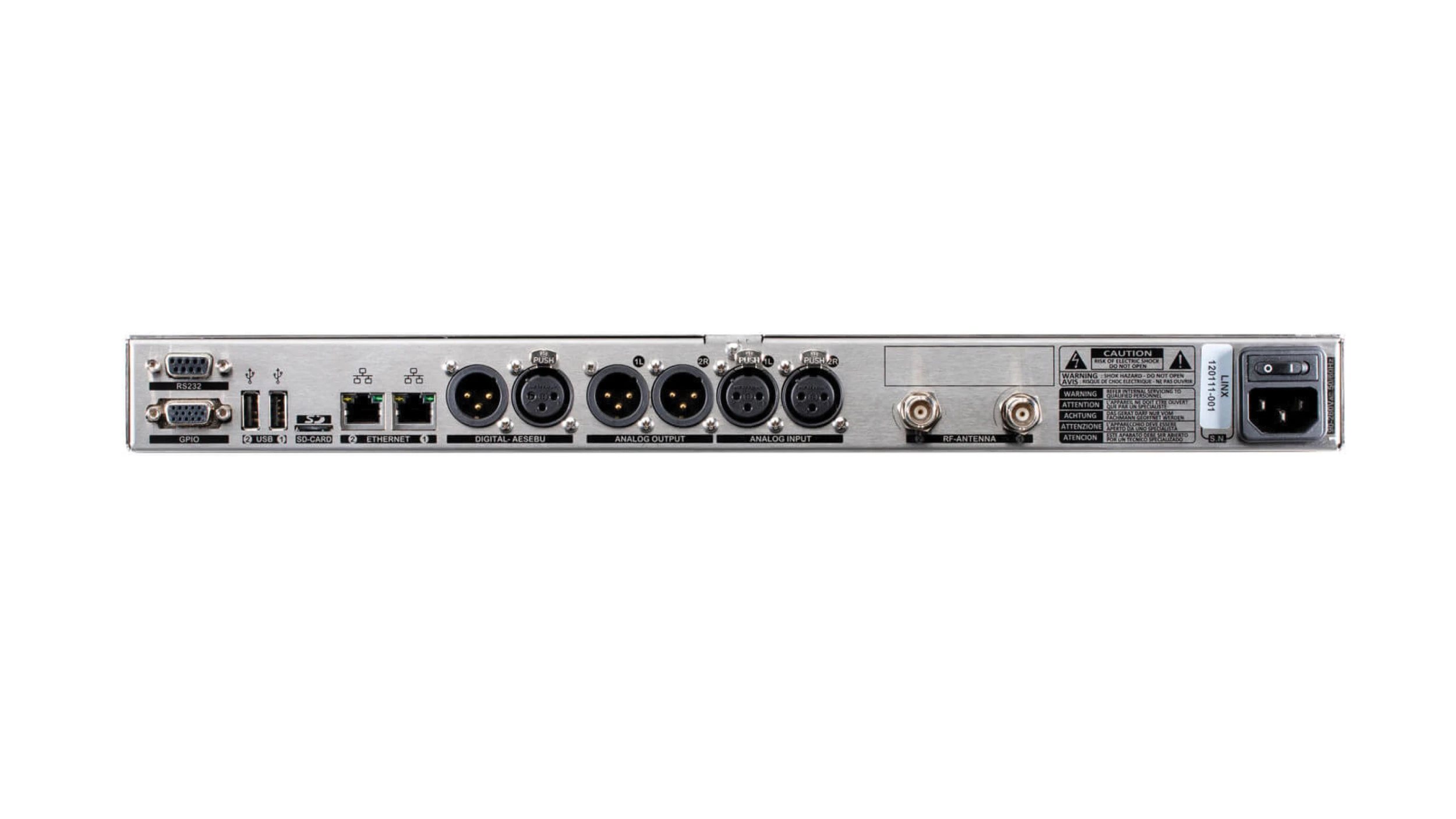

AxelTech Lynx
Lynx is an evolved Broadcast Digital FM Tuner, designed for receiving, monitoring and listen to FM radio signals. The built in web interface allow multiple users to display all the parameters and details of the incoming signal. The tuned audio frequency is available on the analog balanced output (XLR), on the digital output AES/EBU (XLR), on the headphone output and via IP streaming. At the same time. The quality and accuracy of the built-in tuner allow a very strict analysis of the tuned frequency, modulation and the RDS data decoding.
Main Features
• Real time measurement
• High quality tuner
• Signal analysis of: RF, MPX, AUDIO and RDS
• Built in web server for remote acces
• Decoder RDS with complete data decoding
• Double ports for Net connection
• Analog balanced output and AES/EBU on XLR
• High shielded against strong RF fields
Main Power: 100 Vac - 240 Vac 50/60 Hz internal, universal power supply
Power consumption: 25 W
Power connector: IEC plug filter with internal fuse 2.0 AT
Headphones: Stereo Jack 6.3 mm
Safety and EMC: Compliant to CE laws
Working temperature: 0° to 50° C (storage -5 to + 50 °C)
Housing dimensions: 19 inch x 1u x 240 mm (depth)
Weight: 3.5 kg
RF TUNERS
Tuner frequency: 87.5 MHz ‐ 108.0 MHz
Tuner step: 10 kHz
RF tuning stability: +/- 500 Hz
RF input sensitivity: 20 to 120 dBµV
RF input nominal level: 80 to 100 dBµV
RF inputs main: 1x BNC, with 50 Ohm unbalanced
Max frequency deviation: 125 kHz
IF filter bandwidth: 34 kHz to 138 kHz – Manual or automatic
Input RF level: 30 dBµV – 120 dBµV with internal attenuator
Selectivity at ± 120 kHz: > -3 dB
Selectivity at ± 200 kHz: > -40 dB
Selectivity at ± 300 kHz: >- 50 dB
Selectivity at ± 400 kHz: >-65 dB
Image rejection @ 22.5 kHz: 70 dB
Adjacent channel rejection: 63 - 65 dB
Alternate channel rejection: 65 - 72 dB
THD @ dev=75 kHz: 0.05 – 0.1 %
Mono (S+N)/N: 75 dB typ – 68 dB min (No A-Weighting 30 Hz – 15 kHz)
STEREO DECODERS
Stereo (S+N)/N:
• 61 dB Stereo/61 dB mono @ 40 dBµV
• 65 dB Stereo @ 50 dBµV
• 80 dB Stereo @ 70 dBµV
Pilot 19kHz suppression: 55 dB (Stereo modulation L = 1, R = 0,Deviation=67.5 kHz, Pilot deviation=6.75 kHz)
Stereo THD + N:
• Measures @ 70 dBuV with 75 kHz deviation
• 100 Hz - 0.055 %
• 1 kHz - 0.061 %
• 5 kHz - 0.19 %
• 10 kHz - 0.46 %
Stereo separation:
• 45 dB (Stereo modulation L = 1, R = 0,Deviation=67.5 kHz, Pilot deviation=6.75 kHz)
• 48 dB @ 400 Hz
• 48 dB @ 1 kHz
• 48 dB @ 5 kHz
• 38 dB @ 10 kHz
• 38 dB @ 14.7 kHz
RDS DECODER
RDS sensitivity: 20 dBµV (dev f = 2 kHz, RDS BLER < 5%)
RDS synchronization time: 80 ms (dev f = 2 kHz RF input = 60 dBµV)
RDS PI lock time: 100 ms (dev f = 2 kHz RF input = 60 dBµV)
RDS data decoding and streaming: RDS level indication and deviation (voltage, kHz and dBr)
RDS data decoding services: PS, PI, M/S, DI, TP, TA, AF, AF List Presence A/B Method, Scrolling PS, AF EON, Radio Text, Radio Text Plus, CT, PTY, PIN, IH, TMC, EWS, TDC. ODA generic services. RDS error detection with three shold adjustable
RF MEASUREMENT MODULE: Ranges – Resolution - Precision
RF Level:
• 0 – 80 dBµV (resolution 1 dBµV, precision 2 dBµV)
• 82 – 120 dBµV (resolution 2 dBµV, precision 5 dBµV)
Deviation: 0-125 kHz (resolution 1 kHz, precision 2 kHz)
Tuned carrier frequency offset: 0-250 ppm (resolution 2 ppm, precision 5 ppm)
Multipath: 0-100 %
Adjacent channel RF level: 0 – 80 dBµV (resolution 1 dBµV, precision 2 dBµV) (+-200kHz)
MPX MEASUREMENT MODULE: Ranges - Resolution - Precision
Pilot level: 0-20 kHz (resolution 0.1 kHz, precision 0.2 kHz)
Rds level: 0-20 kHz (resolution 0.1 kHz, precision 0.2 kHz)
Mpx power ITU-R-BS412 (Estimated): -20 dBr to + 12 dBr (resolution 0.1 dBr, precision 0.5 dBr)
Stereo: Valid Stereo signal detector
AUDIO MEASUREMENT MODULE: Ranges – Resolution – Precision
Left Quasi Peak: Programmable attack time from 0 mS to 2 mS (Resolution 0.1 dB)
Right quasi peak: Programmable attack time from 0 mS to 2 mS (resolution 0.1 dB)
Audio silence: Threshold - 80 dB to 0 dB, Time: 1-120 Sec
Unbalanced stereo signal: Threshold - 80 dB to 0 dB, Time: 1-120 Sec
AUDIO OUTPUT
Available output on XLR: Tuner - 1 or Tuner - 2, definable via web page. Same audio on analog and AES/EBU
Audio frequency response: 30 Hz - 15 kHz, ± 0,3 dB
Phones (Front panel): Stereo jack 6.3 mm, 150 Ohm, 0.8 W
ANALOG OUTPUT MODULE
D/A Conversion: 24bit Sigma - Delta conversion - 32 kHz Sample rate
Connectors: 2x XLR, male - Electronically balanced
Output level: -12.0 dBu to +14.0 dBu (0.1 dBu Step) - Max (+20 dBu)
Impedance Source: 47 Ω
Load impedance: 600 Ω or greater
Distortion: Less than 0.02% TDH + Noise (0.0dBu @ 1Khz)
Dynamic range: 108 dB (110 dB A-weighted, 20Hz - 15kHz)
Sources: Streamer1_Source , Streamer2_Source
DIGITAL OUTPUT MODULE
Connectors: XLR, Male - Electronically balanced
Format: AES3/EBU
Sample rates: 32 kHz
Resolution: 24 bits
Operative nominal level: From 0.0 dBFs to - 24dBFs (0.1 dBu step)
Dynamic range: 125 dB (Typ), 122 dB (Min)
Distortion: less than 0.01% TDH+NOISE (-20dBFs @ 1Khz)
Freq. response: 20Hz -15kHz
Dynamic range: 108 dB
Sources: Streamer1_Source , Streamer2_Source
AUDIO INPUT
AUDIO STREAMING MODULE
Protocols: TCP/IP, IceCast2
Encoders: OGG - VORBIS
Interface: Ethernet port 10/100 Mb/s
Bitrate: User select 24 kbps to 192 kbps
Sample rates: 32Ksamples/sec
