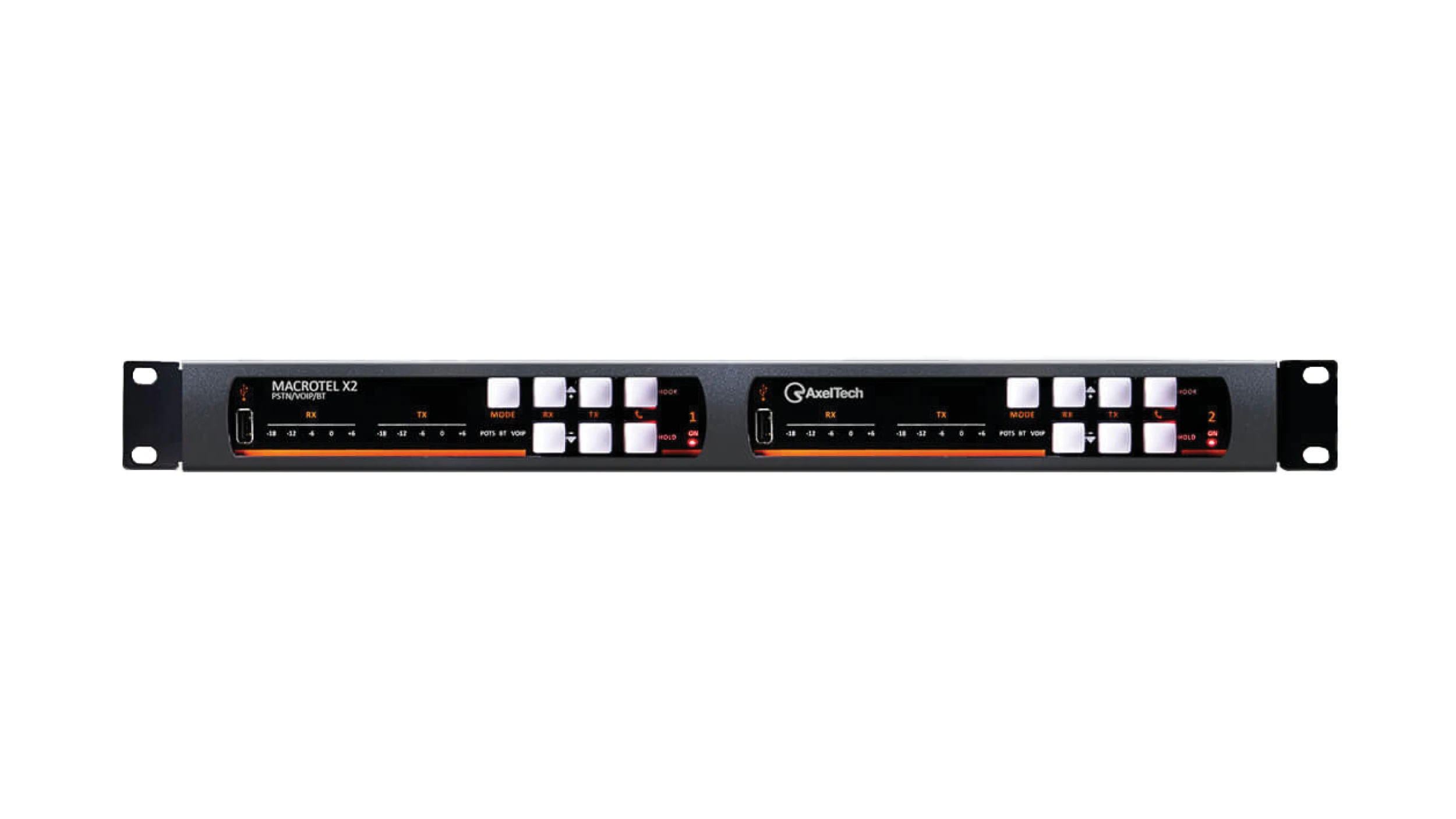

AxelTech Macrotel X1/X2 Multie
Macrotel X1 Multimode and Macrotel X2 Multimode can manage one or two POTS (Plain Old Telephone Service) landline, VoIP, BT or GSM (with optional interface) telephone connections.
Audio enhancement features are custom designed to guarantee the best quality in phone calls, the internal framework based on DSP (Digital Signal Processor) works in real time taking care of the telephone signal process delivering the best possible audio performance. Macrotel X1/X2 Multimode it’s a Telephone Audio Processor able to shape the sound to optimize the yield of every single phone call.
GENERAL
Power supply: 90-260 V AC / 47-63 Hz
Power consumption: 10 W
Dimensions WxHxD: 483 x 44,5 x 140 mm (1 rack unit 19”)
Weight: < 2Kg
ANALOG AUDIO INPUT
Connectors: Balanced on XLR – EMI Suppression
Input impedance:
• 50 KΩ
• Adjustable via software: -9 dBu ÷ +15,0 dBu
Level range: –20,0 dBu ÷ + 20,0 dBu
Input level max.: +20,0 dBu
CMRR input: >60 dB (20 Hz ÷ 20 kHz)
DIGITAL AUDIO INPUT (OPTIONAL)
Connectors: Balanced on XLR – EMI Suppression
Input impedance: 110 Ω
Format: AES3/EBU & SPDIF
Sample rate: 32, 44.1, 48, 64, 88.2, 96 KHz
Nominal Input Level (sensitivity): From 0,0 dBFs to –24dBFs (0,1dB step)
Level range: 0,0 dBFs ÷ -36dBFs
ANALOG AUDIO OUTPUT
Connectors: Balanced on XLR – EMI Suppression
Output impedance: 47 Ω
Output level: Adjustable via software: -9dBu ÷ +15,0 dBu
Level range: –20,0dBu ÷ + 20,0dBu
Output level max.: + 20,0dBu
CMRR output: >60dB (20Hz ÷ 20kHz)
DIGITAL AUDIO OUTPUT (OPTIONAL)
Connectors: Balanced on XLR – EMI Suppression
Input impedance: 110 Ω
Format: AES3/EBU
Sample rate: 32, 44.1, 48, 64, 88.2, 96 KHz
Nominal Input Level (sensitivity): From 0,0 dBFs to –24dBFs
Level range: 0,0 dBFs ÷ -36dBFs
POTS INTERFACE
Connectors: 2x RJ11 Line and Telephone set
Output impedance: Selectable
Bandwidth telephone line: 170Hz - 4.6kHz
Echo canceller suppression: > 40dB
Signal to Noise Ratio (S/N): ≤ -60dBu (Ref.0dB @1KHz Analog Out)
Frequency Response: ± 3dB (TBR21) ± 2dB (600 Ω)
Audio distortion: ≤ 0.2% (Ref.0dB @1KHz Analog Out)
VOIP INTERFACE
Protocol: SIP Version 2.0 - RFC 3261
Codec Audio Compatibility: G.711u (PCM u), G.711a (PCM a), G.722, G.722.1 24/32
Authentication Methods: SIP/IAX Dynamic Registration (Register) SIP Static IP authentication
BT INTERFACE
Compatibility: Fully certified BT version 3.0 audio module, Fully compatible with BT version 2.1+EDR Compatible with 1.2 and 1.1
Connection mode: Embedded BT stack profiles: A2DP and HFP/HSP
IOS: Supports iAP profile discovery for iPhone® and iPod® BT accessories G.711u (PCM u)
GENERAL
GPIO Inputs/Outputs: 4 GPI 4 GPO
Communication Port: 1xLAN
Front Panel LEDs: 18+4+2
USB: Type A
Operating Temperature: 0°C ÷ 50°C
COMMUNICATION
Configuration Software: Web Server
Password Protection: Yes
UDP, TCP, HTTP, SNTP.: Yes
Supported Network Protocols: HTTP, UDP, TCP, NTP,
