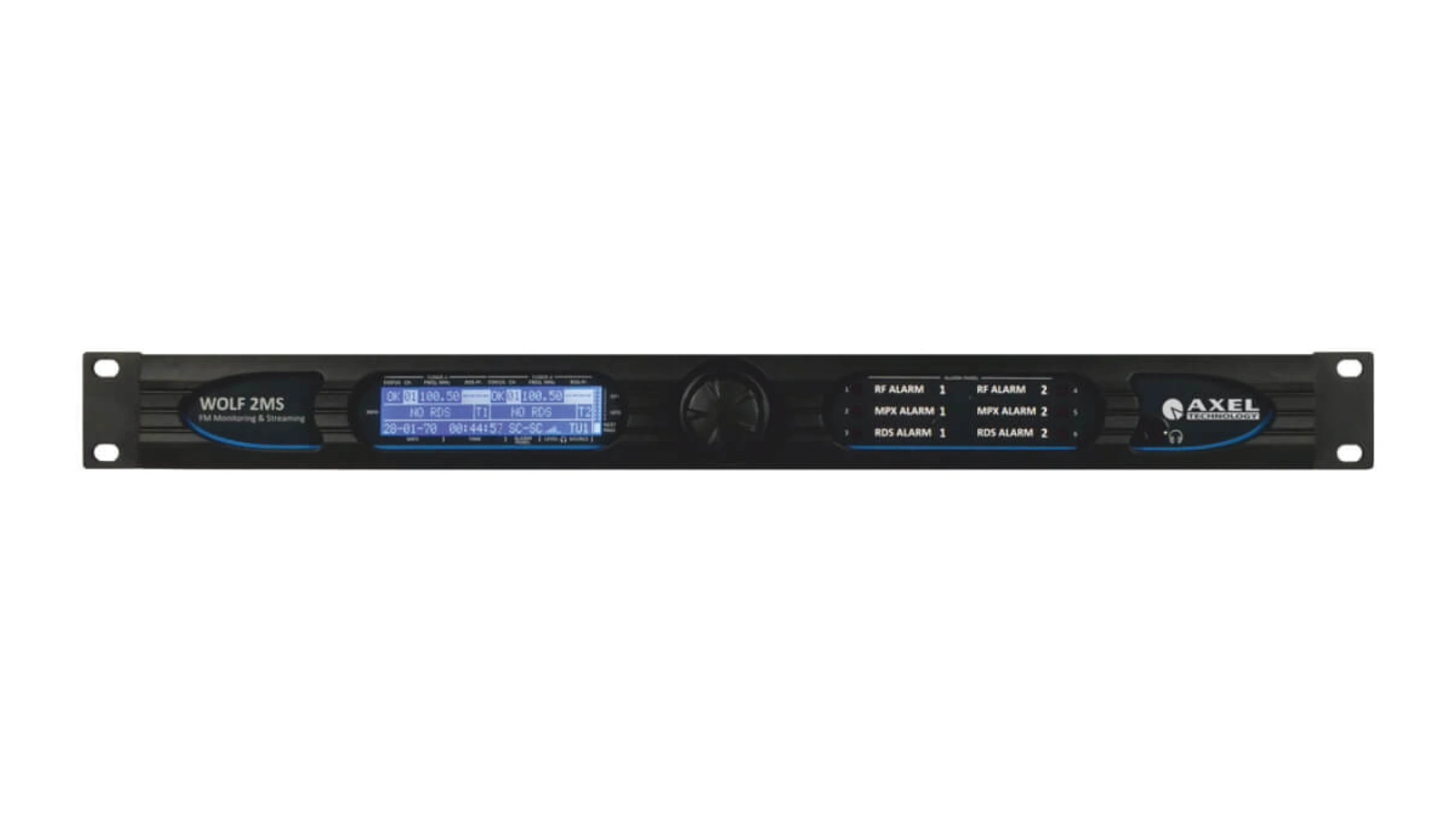

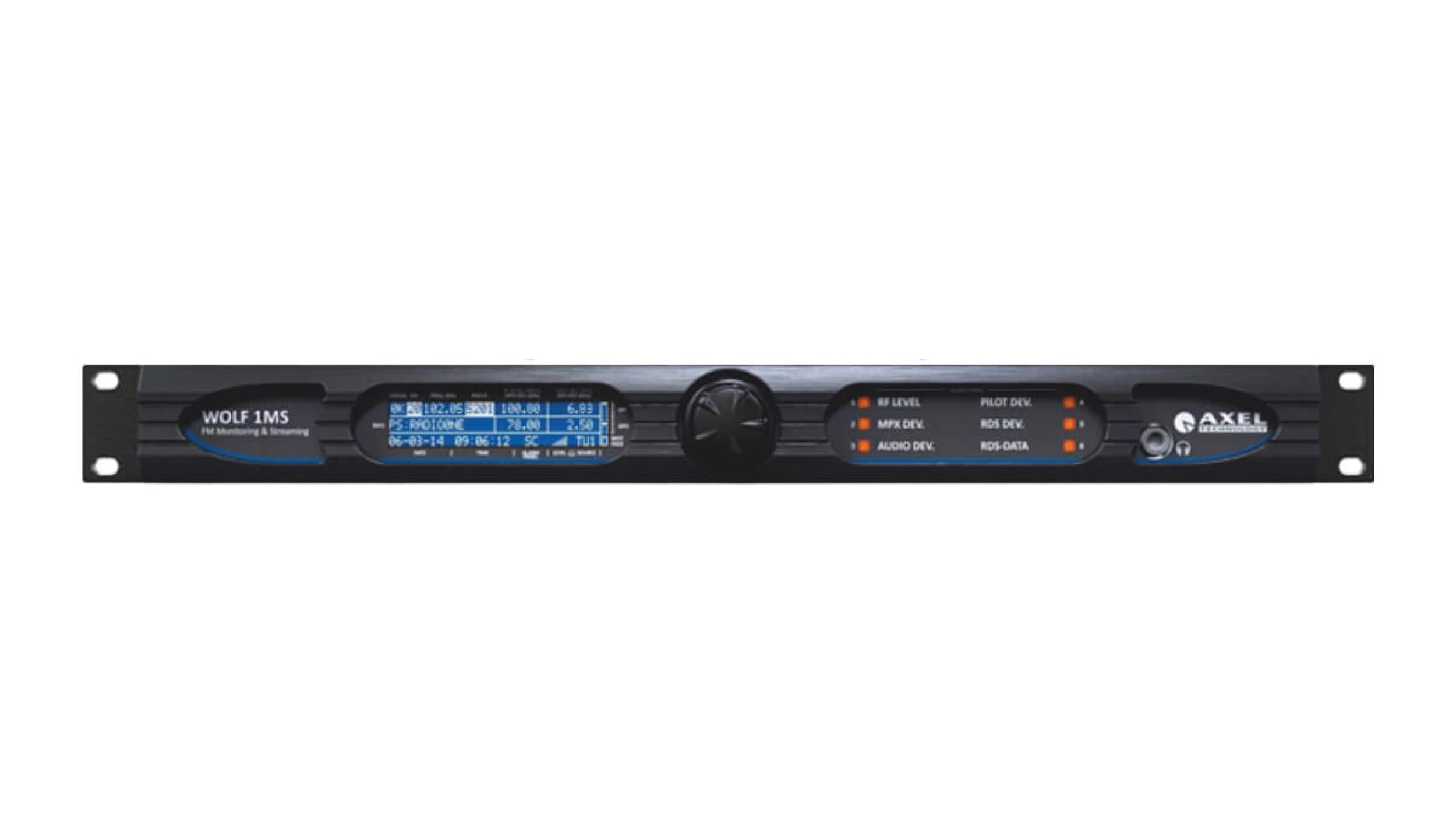

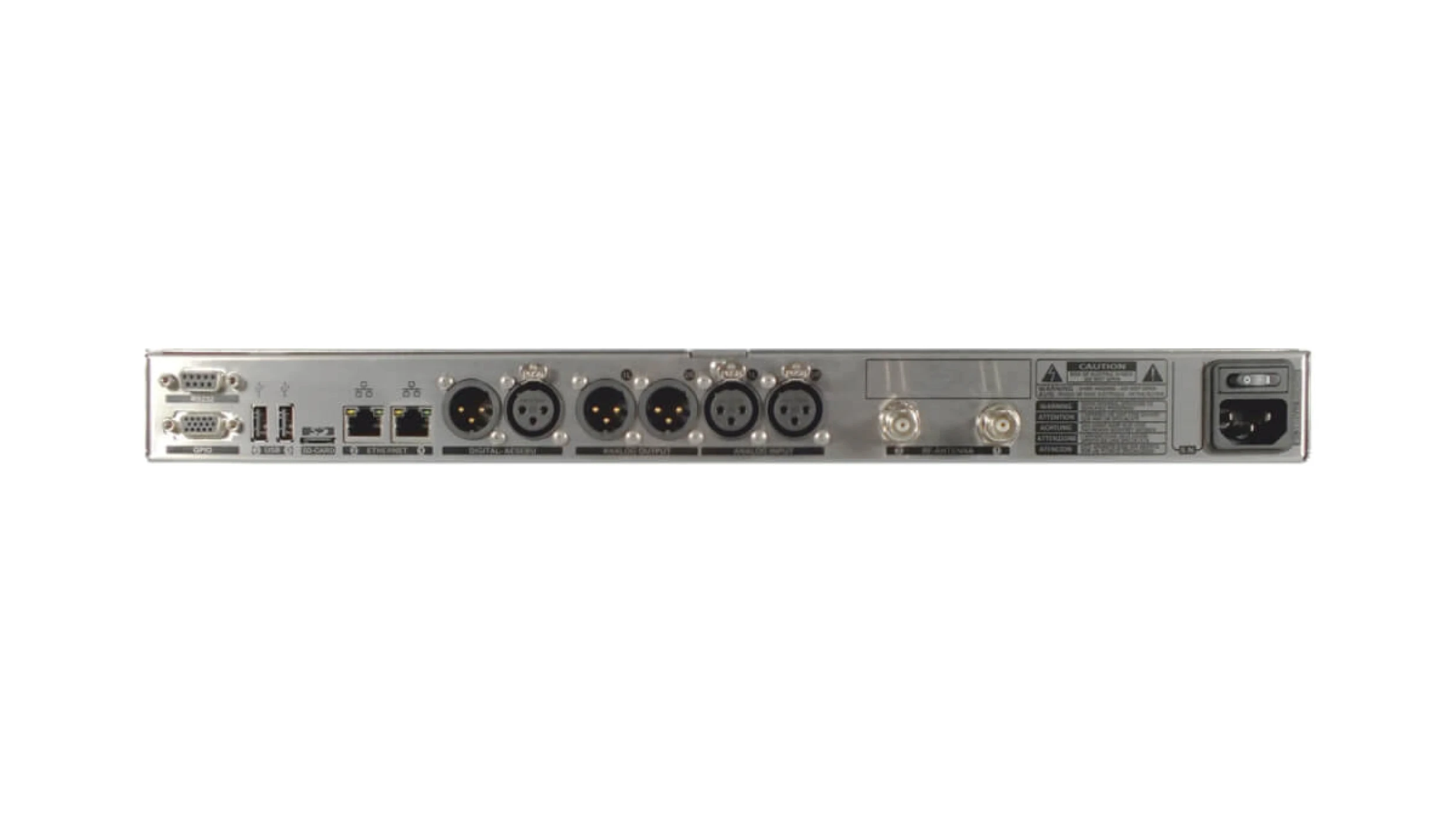

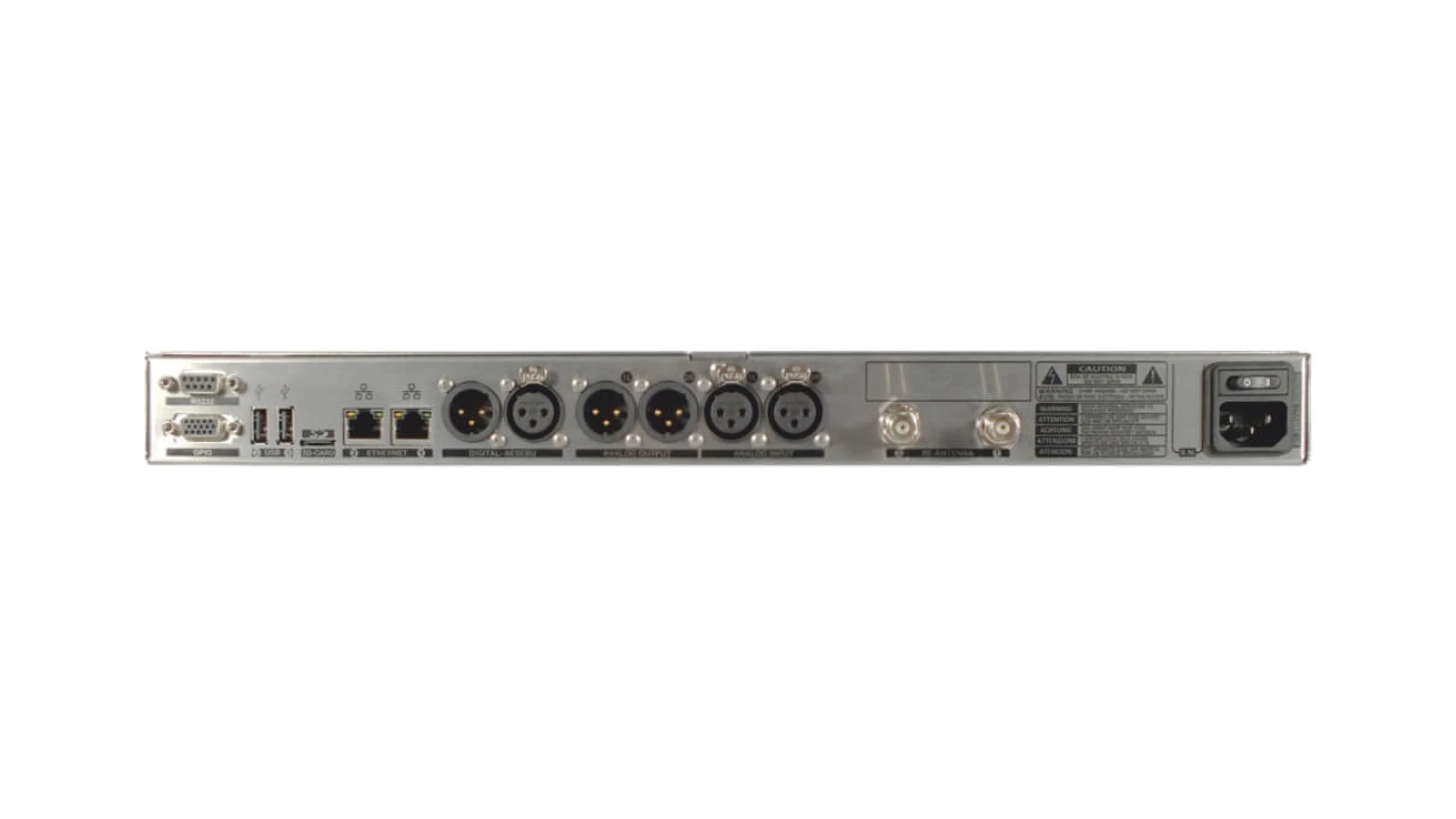

AxelTech Wolf 1MS/2MS
Wolf 2MS and 1MS are state-of-the-art FM Radio Monitoring devices, designed to control the signal presence and quality over an FM Distribution Network. Onboard twin tuners allow to accurately scan frequencies, they offer high performances in FM reception, MPX audio encoding and RDS data streaming. This cutting-edge equipment features three main operating modes: continuously reception, bandscan and smart bandscan. With FM static mode the user can focus on a single channel, selected and monitored exclusively. Thanks to the scan mode up to 32 channels for each tuner can be scanned and supervised in a single analysis. FM static mode also receives up to 64 memories. Wolf 1MS and 2MS allow to manage accurately RF, MPX, RDS, Audio and RDS data dynamic services. In smart mode the channel scan time is adjusted automatically according to instantaneous measurements requirements
Main Power: 100 Vac - 240 Vac 50/60 Hz internal, universal power supply
Power consumption: 25 W
Power connector: IEC plug filter with internal fuse 2.0 AT
Headphones: Stereo Jack 6.3 mm
Safety and EMC: Compliant to CE laws
Working temperature: 0° to 50° C (storage -5 to + 50 °C)
Housing dimensions: 19 inch x 1u x 240 mm (depth)
Weight: 3.5 kg
RF TUNERS
Tuner frequency: 87.5 MHz ‐ 108.0 MHz
Tuner step: 10 kHz
RF tuning stability: +/- 500 Hz
RF input sensitivity: 20 to 120 dBµV
RF input nominal level: 80 to 100 dBµV
RF inputs main: 2x BNC, with 50 Ohm unbalanced
Max frequency deviation: 125 kHz
IF filter bandwidth: 34 kHz to 138 kHz – Manual or automatic
Input RF level: 30 dBµV – 120 dBµV with internal attenuator
Bandscan carrier number: 32 channels
Bandscan time: Static Mode, Scan 2s to 20s and Smart Mode*
Selectivity at ± 120 kHz: > -3 dB
Selectivity at ± 200 kHz: > -40 dB
Selectivity at ± 300 kHz: >- 50 dB
Selectivity at ± 400 kHz: >-65 dB
Image rejection @ 22.5 kHz: 70 dB
Adjacent channel rejection: 63 - 65 dB
Alternate channel rejection: 65 - 72 dB
THD @ dev=75 kHz: 0.05 – 0.1 %
Mono (S+N)/N: 75 dB typ – 68 dB min (No A-Weighting 30 Hz – 15 kHz)
STEREO DECODERS
Stereo (S+N)/N:
• 61 dB Stereo/61 dB mono @ 40 dBµV
• 65 dB Stereo @ 50 dBµV
• 80 dB Stereo @ 70 dBµV
Pilot 19kHz suppression: 55 dB (Stereo modulation L = 1, R = 0,Deviation=67.5 kHz, Pilot deviation=6.75 kHz)
Stereo THD + N:
Measures @ 70 dBuV with 75 kHz deviation
• 100 Hz - 0.055 %
• 1 kHz - 0.061 %
• 5 kHz - 0.19 %
• 10 kHz - 0.46 %
Stereo separation:
• 45 dB (Stereo modulation L = 1, R = 0,Deviation=67.5 kHz, Pilot deviation=6.75 kHz)
• 48 dB @ 400 Hz
• 48 dB @ 1 kHz
• 48 dB @ 5 kHz
• 38 dB @ 10 kHz
• 38 dB @ 14.7 kHz
RDS DECODER
RDS sensitivity: 20 dBµV (dev f = 2 kHz, RDS BLER < 5%)
RDS synchronization time: 80 ms (dev f = 2 kHz RF input = 60 dBµV)
RDS PI lock time: 100 ms (dev f = 2 kHz RF input = 60 dBµV)
RDS data decoding and streaming: RDS level indication and deviation (voltage, kHz and dBr)
RDS data decoding services: PS, PI, M/S, DI, TP, TA, AF, AF List Presence A/B Method, Scrolling PS, AF EON, Radio Text, Radio Text Plus, CT, PTY, PIN, IH, TMC, EWS, TDC. ODA generic services. RDS error detection with three shold adjustable
RF MEASUREMENT MODULE: Ranges – Resolution - Precision
RF Level:
• 0 – 80 dBµV (resolution 1 dBµV, precision 2 dBµV)
• 82 – 120 dBµV (resolution 2 dBµV, precision 5 dBµV)
Deviation: 0-125 kHz (resolution 1 kHz, precision 2 kHz)
Tuned carrier frequency offset: 0-250 ppm (resolution 2 ppm, precision 5 ppm)
Multipath: 0-100 %
Adjacent channel RF level: 0 – 80 dBµV (resolution 1 dBµV, precision 2 dBµV) (+-200kHz)
MPX MEASUREMENT MODULE: Ranges - Resolution - Precision
Pilot level: 0-20 kHz (resolution 0.1 kHz, precision 0.2 kHz)
Rds level: 0-20 kHz (resolution 0.1 kHz, precision 0.2 kHz)
Mpx power ITU-R-BS412 (Estimated): -20 dBr to + 12 dBr (resolution 0.1 dBr, precision 0.5 dBr)
Stereo: Valid Stereo signal detector
AUDIO MEASUREMENT MODULE: Ranges – Resolution – Precision
Left Quasi Peak: Programmable attack time from 0 mS to 2 mS (Resolution 0.1 dB)
Right quasi peak: Programmable attack time from 0 mS to 2 mS (resolution 0.1 dB)
Audio silence: Threshold - 80 dB to 0 dB, Time: 1-120 Sec
Unbalanced stereo signal: Threshold - 80 dB to 0 dB, Time: 1-120 Sec
AUDIO OUTPUT
Available output on XLR: Tuner - 1 or Tuner - 2, definable via web page. Same audio on analog and AES/EBU
Audio frequency response: 30 Hz - 15 kHz, ± 0,3 dB
Phones (Front panel): Stereo jack 6.3 mm, 150 Ohm, 0.8 W
ANALOG OUTPUT MODULE
D/A Conversion: 24bit Sigma - Delta conversion - 32 kHz Sample rate
Connectors: 2x XLR, male - Electronically balanced
Output level: -12.0 dBu to +14.0 dBu (0.1 dBu Step) - Max (+20 dBu)
Impedance Source: 47 Ω
Load impedance: 600 Ω or greater
Distortion: Less than 0.02% TDH + Noise (0.0dBu @ 1Khz)
Dynamic range: 108 dB (110 dB A-weighted, 20Hz - 15kHz)
Sources: Streamer1_Source , Streamer2_Source
DIGITAL OUTPUT MODULE
Connectors: XLR, Male - Electronically balanced
Format: AES3/EBU
Sample rates: 32 kHz
Resolution: 24 bits
Operative nominal level: From 0.0 dBFs to - 24dBFs (0.1 dBu step)
Dynamic range: 125 dB (Typ), 122 dB (Min)
Distortion: less than 0.01% TDH+NOISE (-20dBFs @ 1Khz)
Freq. response: 20Hz -15kHz
Dynamic range: 108 dB
Sources: Streamer1_Source , Streamer2_Source
AUDIO INPUT
Encoder streaming input source: User selectable between Tuner-1, Tuner-2, External Input Analog, External Input AES/EBU
DIGITAL INPUT MODULE
Connectors: XLR, female – Electronically balanced
Format: AES3/EBU
Sample rates: 32 kHz/44.1 kHz/48 kHz/96 kHz with src and jitter correction
Operative nominal level: From 0.0 dBFs to - 24dBFs (0.1 dBu step)
Dynamic range: 125 dB (Typ)
Distortion: less than 0.01% TDH + Noise (-20dBFs@ 1Khz)
Input modes: Stereo, Mono (Left), Mono (Right), Mono (Left + Right)
ANALOG INPUT MODULE
A/D conversion: 24bit Sigma - Delta conversion - 32kHz sample rate
Connectors: XLR, female - Electronically balanced
AD clipping point: +20.0dBu
Operative nominal level: From - 12.0dBu to +12.0dBu (0.1dBu Step)
Line impedance: 10 kΩ (Electronically balanced selectable) EMI - suppressed
Distortion: less than 0.02% TDH+NOISE (0.0dBu @ 1kHz)
AD dynamic range: 108 dB RMS (110 dB A - weighted, 20Hz - 15kHz)
Input modes: Stereo, Mono (Left), Mono (Right), Mono (Left + Right)
AUDIO & RDS STREAMING MODULES
Protocols: UDP/RTP, TCP/IP, IceCast2
Encoders: OGG - VORBIS
Interface: Ethernet port 10/100 Mb/s
Bitrate: User select 24 kbps to 192 kbps
Sample rates: 32Ksamples/sec
RDS streaming: Proprietary redundant protocol over UDP or RAW-TCP/IP
Administration: User right management
