Focusrite RedNet R1
RedNet R1 enables users to interact with their audio system like never before. It provides the flexibility to control a range of different monitor output setups, ranging from mono through to 7.1.2 surround, including Dolby Atmos® and other immersive audio workflows. Alternatively, completely custom setups of up to 12 outputs can be configured for bespoke speaker configurations. RedNet R1 can be used to control groups of outputs from a Red interface's multitude of sources and destinations, including from Pro Tools | HD and other DAWs, analogue inputs and outputs, ADAT and S/PDIF connections, and from entire Dante audio ecosystems, simultaneously and interchangeably.
RedNet R1 supports a maximum of eight input sources from 32 available audio channels, across analogue, digital, DAW and Dante connections, and mixes and routes signals to up to 12 monitor output channels. Top-panel control includes level, reference level preset selection, cut, dim, mute and a variety of solo modes. There's an A/B switch for switching between numerous monitoring presets, and up to four fold-down presets allow fast switching for checking downmixes. Custom cue mixes can be sent to talent from any of the 32 available inputs.
Key Features
• Desktop remote controller for Red audio interfaces — The first Dante®, Pro Tools | HD™ and Thunderbolt™ interface system with a monitor controller.
• Switch and sum — Supports sum and spill for source groups with upto 8 available source groups, each of which can hold upto 12 channels to a maximum of 32 in total.

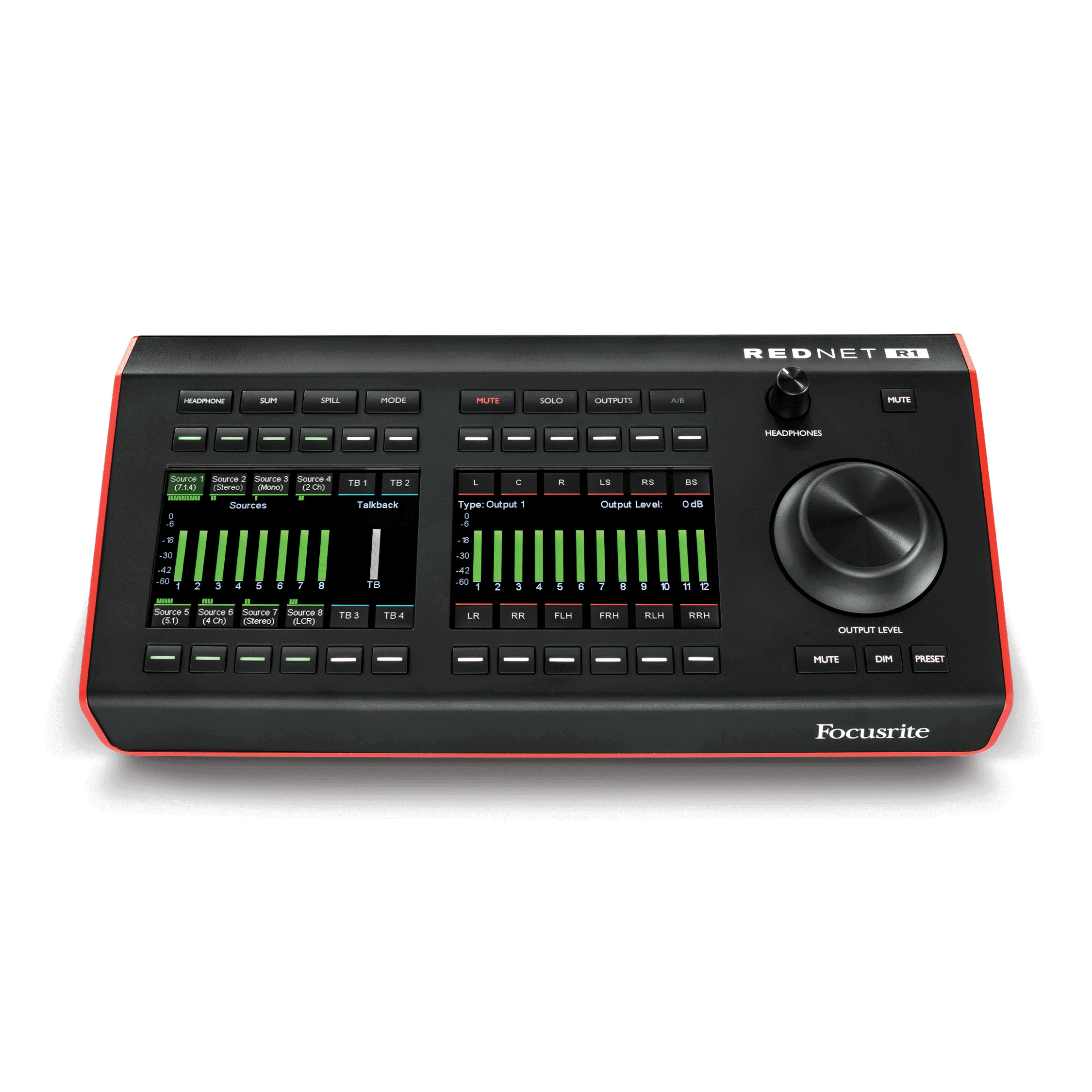

• Flexible monitor control — Controls include level, reference level, preset selection, cut, dim, mute, A/B switch, and a variety of solo modes.
• Monitor fold-downs — Up to four fold-down presets allow fast switching for checking downmixes.
• Talkback & headphones functionality — Four destination groups when used with a Red interface, or a single talkback group when used with other Dante devices. High-fidelity output can take its source from a multitude of sources.
• Built-in Microphone — RedNet R1 has an internal talkback microphone, or users can connect their own, via the rear-panel XLR.
• Precision metering and display — Two LCD displays for highly accurate level metering of the outputs, sources and headphone outputs, and for giving visual cues for navigating around menus.
• Software setup with hardware-focussed workflow — RedNet Control is designed for quickly setting up simple or complex configurations.
• Footswitch input — Quarter-inch jack socket accepts a footswitch, for talkback management, LFE muting and more.
• Power-over-Ethernet (PoE) support — Powered via ethernet (using the PoE standard), or using the included DC power supply.
Specifications
Internal talkback
All measurements taken at maximum gain unless otherwise stated, Rs = 150Ω
Gain Range: 0dB to 55dB
Type: Electronically Balanced, Zin = 3kΩ
Max. Input Level: +10dBu ± 0.5dB
External talkback
All measurements taken at maximum gain unless otherwise stated, Rs = 150Ω
Gain Range: 0dB to 55dB
Type: Electronically Balanced, Zin = 3kΩ
Max. Input Level: +10dBu ± 0.5dB• Frequency Response: 20Hz - 20kHz ± 2dB
THD + N: < -98dB (0.0012%) @ -1dBFS
EIN: < -128dBu 'A'-Weighted (typical)
Signal-to-Noise Ratio: -111dB 'A'-Weighted (typical), min gain
Common-Mode Rejection Ratio: 50/60Hz CMRR: <-77dB
Headphone output
All measurements taken at +19dBm reference level, maximum gain, RL = 600Ω
Property: Value
0 dBFS Reference Levels: +11dBm
Frequency Response: 20Hz to 20kHz ±0.5dB
THD + N: -100dB (0.001%) @ -1dBFS, Rs = 150R
Dynamic Range: 108dB 'A'-weighted (typical), 20Hz - 20kHz
Noise in Presence of Signal (NiPoS): > -97 dBu 'A-Weighted'
Output Impedance: 5Ω• Headphone Impedance: 32Ω - 600Ω
Digital performance
Supported Sample Rates: 44.1 / 48 / 88.2 / 96 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
Clock Sources: Internal or from Dante Network Master.

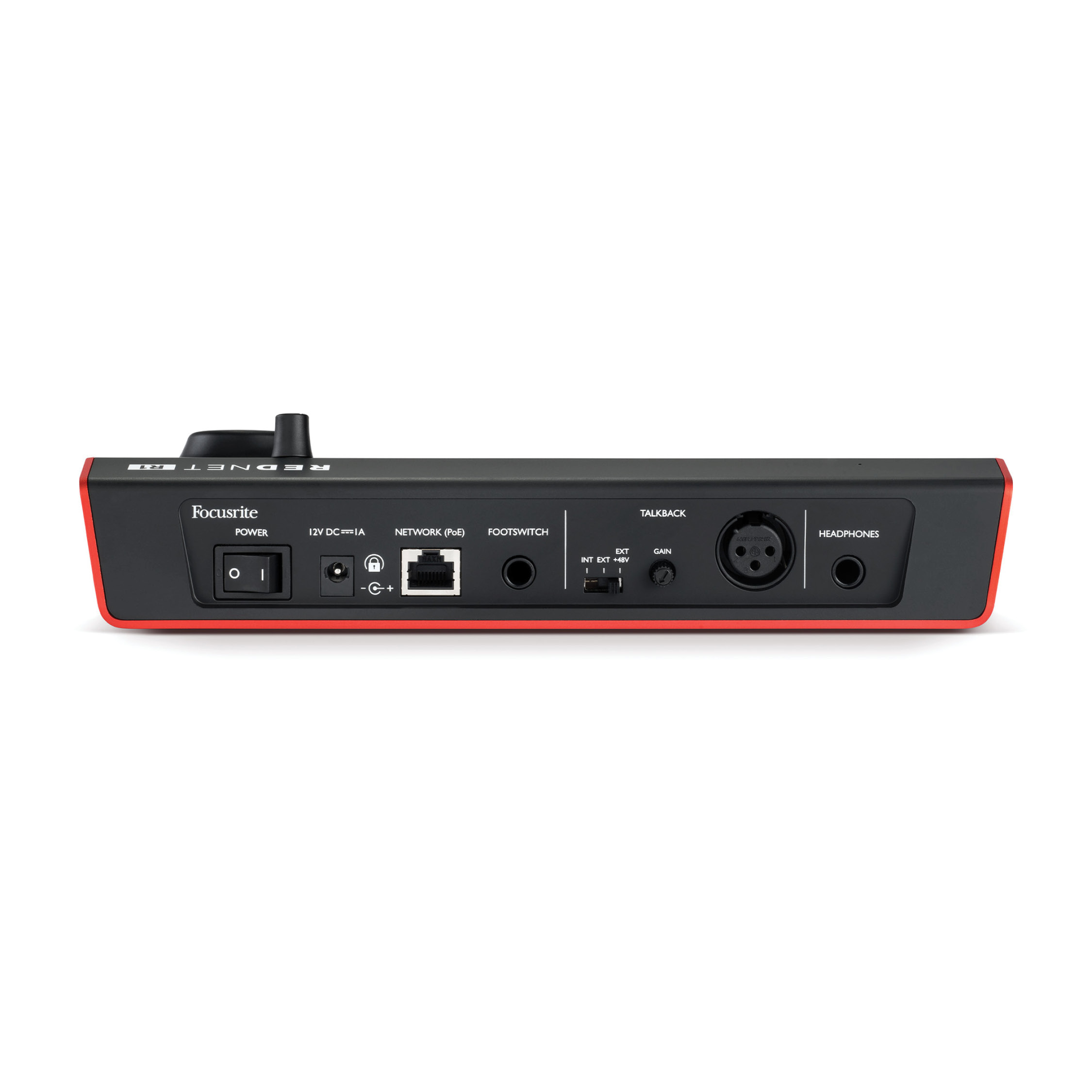

Inputs
External Talkback Mic Input: 1 x XLR (F)
Foot Switch: 1 x 1/4" stereo jack
Outputs
Headphone Outputs: 1 x 1/4" stereo jack
PSU & network connections
PSU (PoE and DC): 1 x PoE Input and 1 x DC 12V Locking Barrel Input Connector.
Network: 1 x Standard RJ45 connector.
Power
Power over Ethernet (PoE): Complies with IEEE 802.3af class 0 Power-over-Ethernet standard (PoE A or PoE B compatible)
DC Power Supply: 1 x 12V 1.2A DC Power Supply. Power Consumption: PoE: 10.3W - DC: 9W (When using supplied D PSU)
