API AUDIO THE BOX CONSOLE
Šifra: 21675

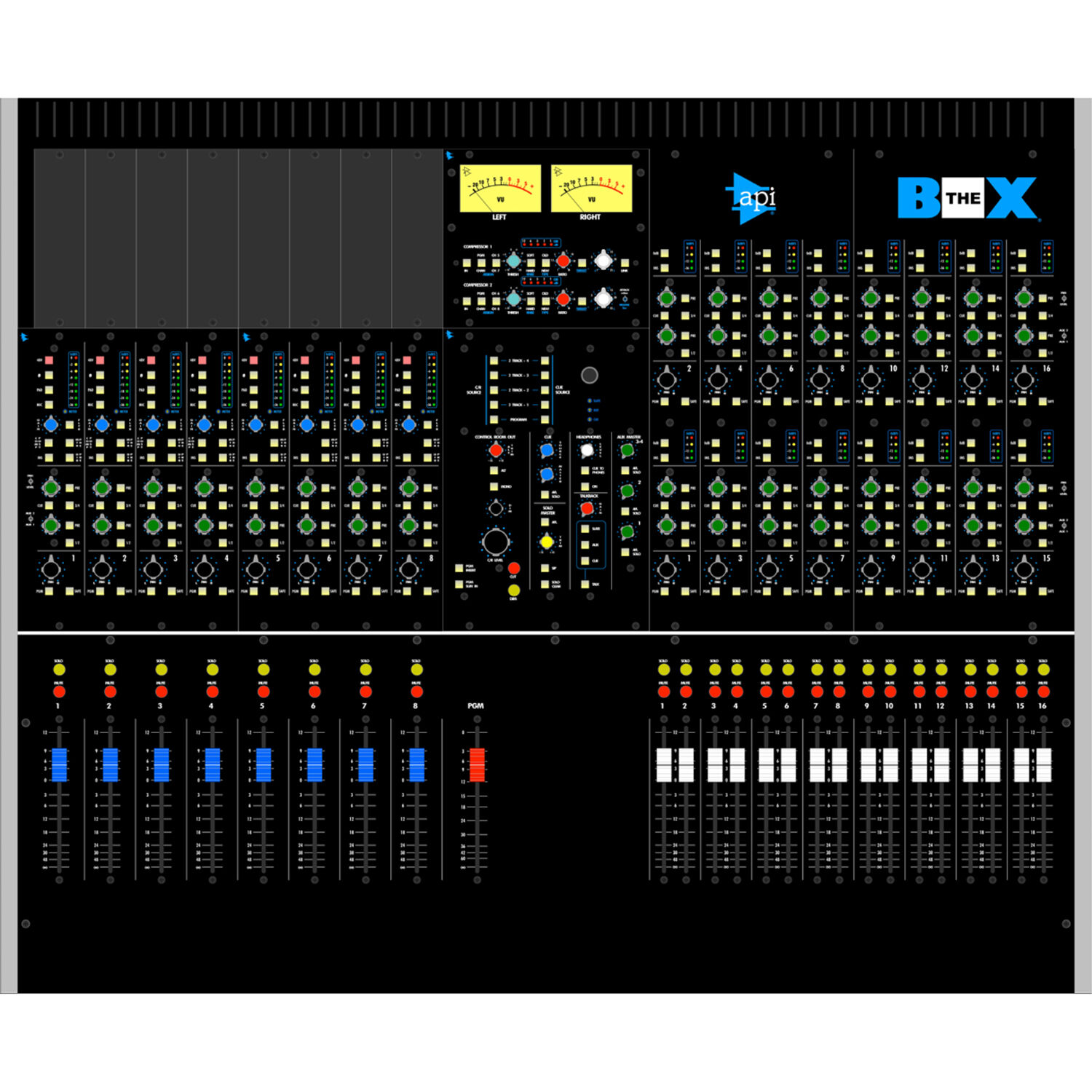

The API Audio The Box is a compact, small-format recording and mixing console designed for high-end project studios that need the legendary "big console" analog sound in a hybrid DAW workflow. It provides the same discrete circuitry, 2520 operational amplifiers, and transformer-coupled performance found in API's flagship desks like the Vision and 1608.
| Kategorija | Specifikacija | Detalji |
|---|---|---|
| Kanali | Ukupan broj kanala | 24 kanala u miksu (8 ulaznih + 16 summing) |
| Ulazi | Mikrofon / Line / Instrument | 8 mikrofonskih pretpojačala, 24 mono linijska ulaza, 4 Hi-Z (instr.) |
| Procesiranje | 500 Series slotovi | 8 slotova (po jedan za svaki ulazni kanal) |
| Kompresor | Integrisani stereo bus kompresor (dodatni 527 tip) | |
| Audio Performanse | Frekvencijski odziv | 20 Hz do 50 kHz (+0 / -0.5 dB) |
| Signal-to-Noise Ratio | -118 dB (Program Output) / -116 dB (Direct Out) | |
| Maksimalni nivo izlaza | +28 dBu | |
| Monitoring | Izlazi za monitore | Podrška za 2 stereo sistema (Main i Alt) |
| Headphone sistem | Stereo cue bus sa namenskim pojačalom | |
| Fizičke Mere | Dimenzije (Š x D x V) | 82.5 x 67 x 33.5 cm (cca. 32.5" x 26.4" x 13.2") |
| Težina | 40.8 kg (90 lbs) | |
| Potrošnja struje | 120 Watts |
