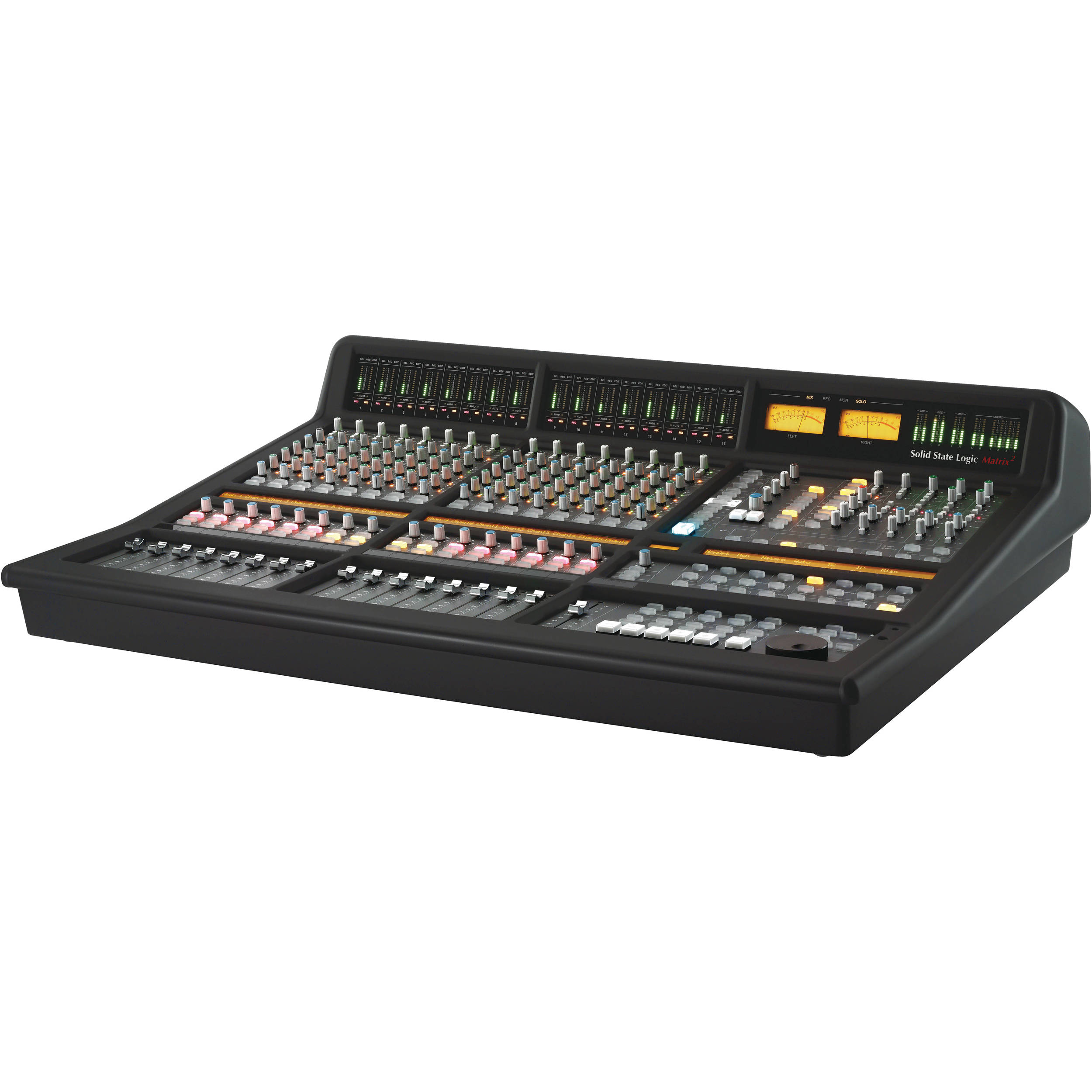

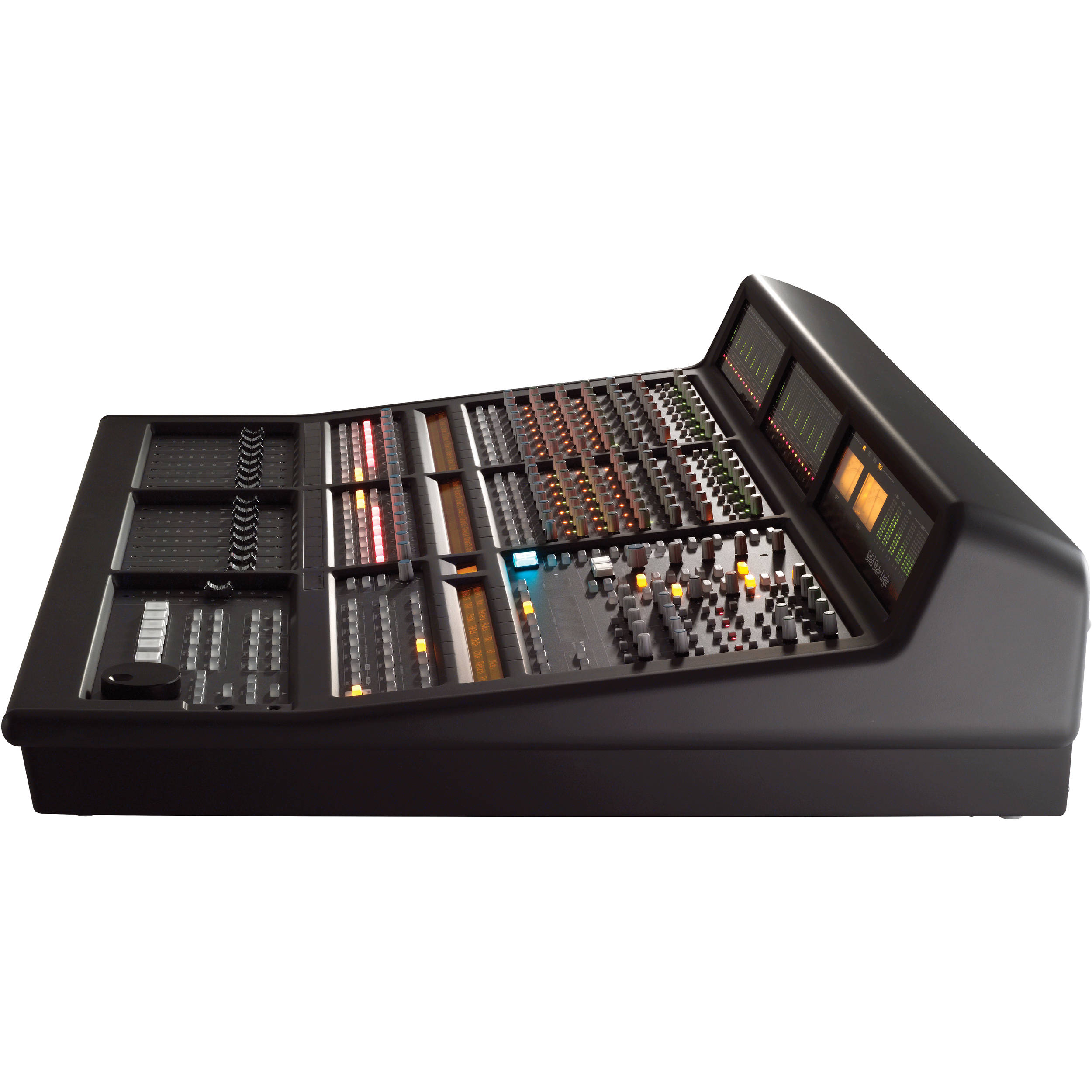

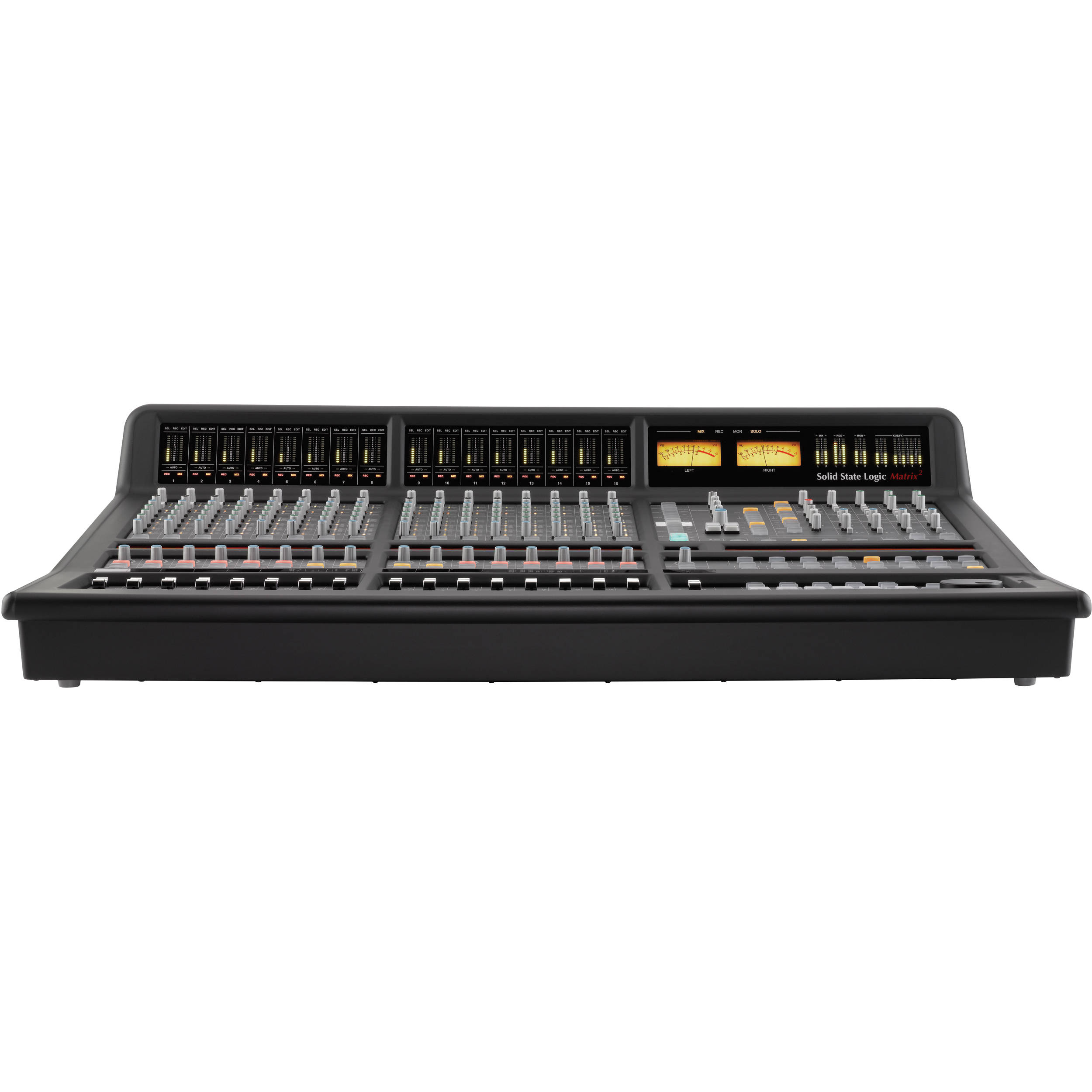

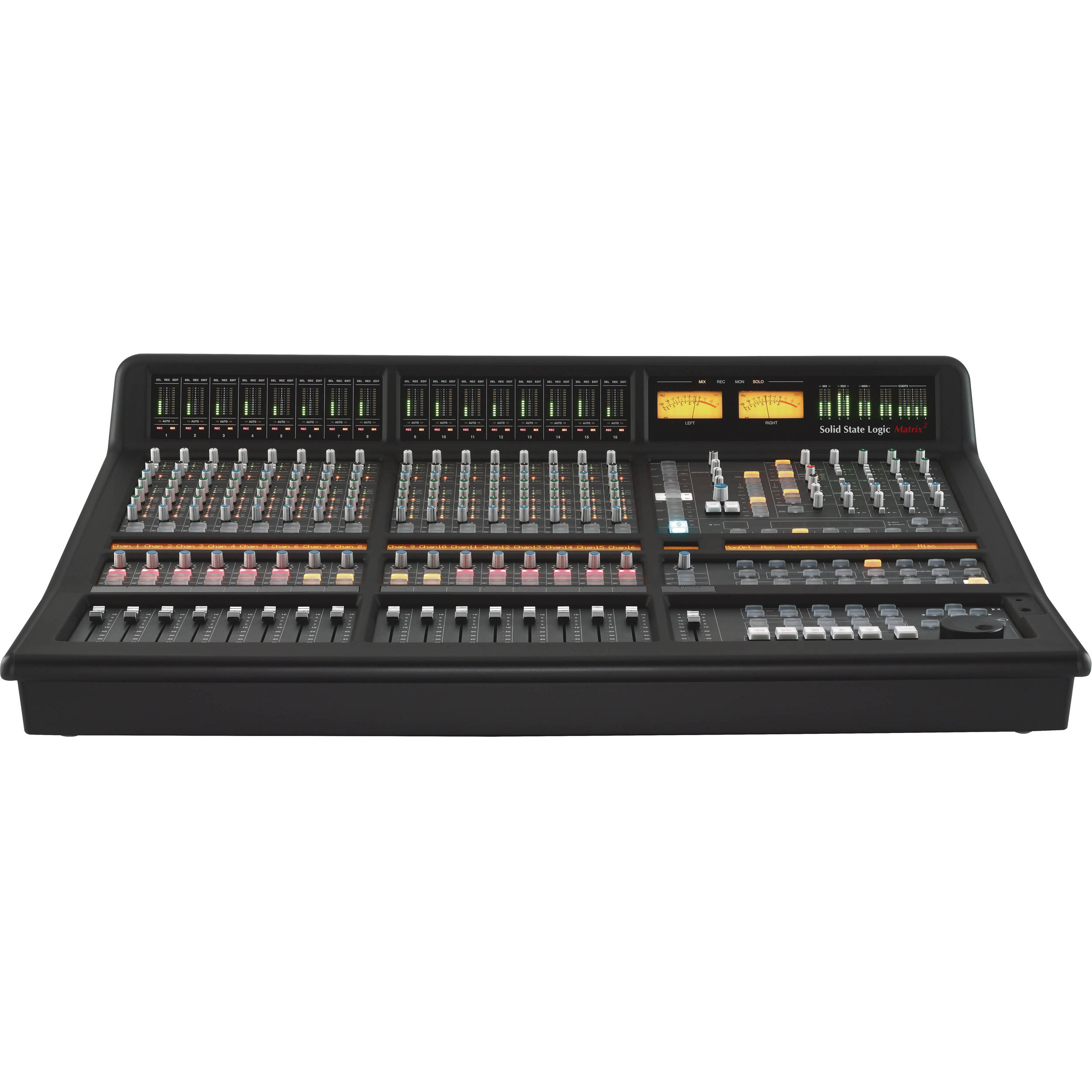

The Matrix² from Solid State Logic is combination console/controller designed for use in a hybrid production studio and is an effective solution for those who wish to incorporate the sonic advantages of SSL summing and a collection of boutique analog microphone preamps and processors into a DAW-centric studio. The console/controller is fully capable of integrating monitors, workstations, and outboard gear for a smooth workflow.

The analog side of the unit combines a forty-input SuperAnalogue summing mixer with fully featured monitor-switching and talkback and a built-in Insert Router, which allows for single or chained analog outboard processors to be inserted quickly and easily. With a single button push, the 16 + 1 fader hardware control surface switches from controlling the analog signal path to functioning as a comprehensive multilayer DAW control surface.

Summing Console

• Sixteen analog line channels with two inputs per channel


• 32 x 16 x 16 insert router for up to sixteen external hardware processing devices


• Hardware processors can be inserted via console controls or cross-platform drag-and-drop software browser


• Hardware processors can be inserted individually or as chains


• Stereo auxiliary send and four mono sends per channel


• Four stereo returns with full stereo mix bus routing


• Dual stereo mix buses with summing inserts and reassign


• Artist monitor output with independent EQ and monitor source selection


• Inline DAW monitoring with SuperCue headphone mode


• Stereo or 5.1 external monitor inputs


• Stereo or 5.1 external monitoring outputs with independent main and mini monitor control


• Stereo digital I/O (S/PDIF, AES/EBU) with SSL converter technology


• iJack front panel monitor input


• Heavy duty external power supply

Hybrid Hardware Control Surface

• Single button push flips control between the analog signal path and DAW software


• Simultaneous multilayer control of up to four DAWs


• Digital scribble strips for constant visual feedback


• Sixteen channel strips, each with a motorized fader and assignable rotary encoder


• Additional motorized Focus fader for simultaneous DAW/Console control


• Fader linking for analog channels


• Programmable hardware buttons for sending of standard USB keyboard commands


• Total recall for analog console controls


• General purpose MIDI controller mode


• A-FADA or MIDI fader automation


• Ethernet MIDI connectivity

Cross-Platform Logictivity Remote Browser Interface

• Intuitive cross-platform remote browser for system configuration and project management


• Simple drag-and-drop insert router page for configuring hardware device chains and loading inserts
