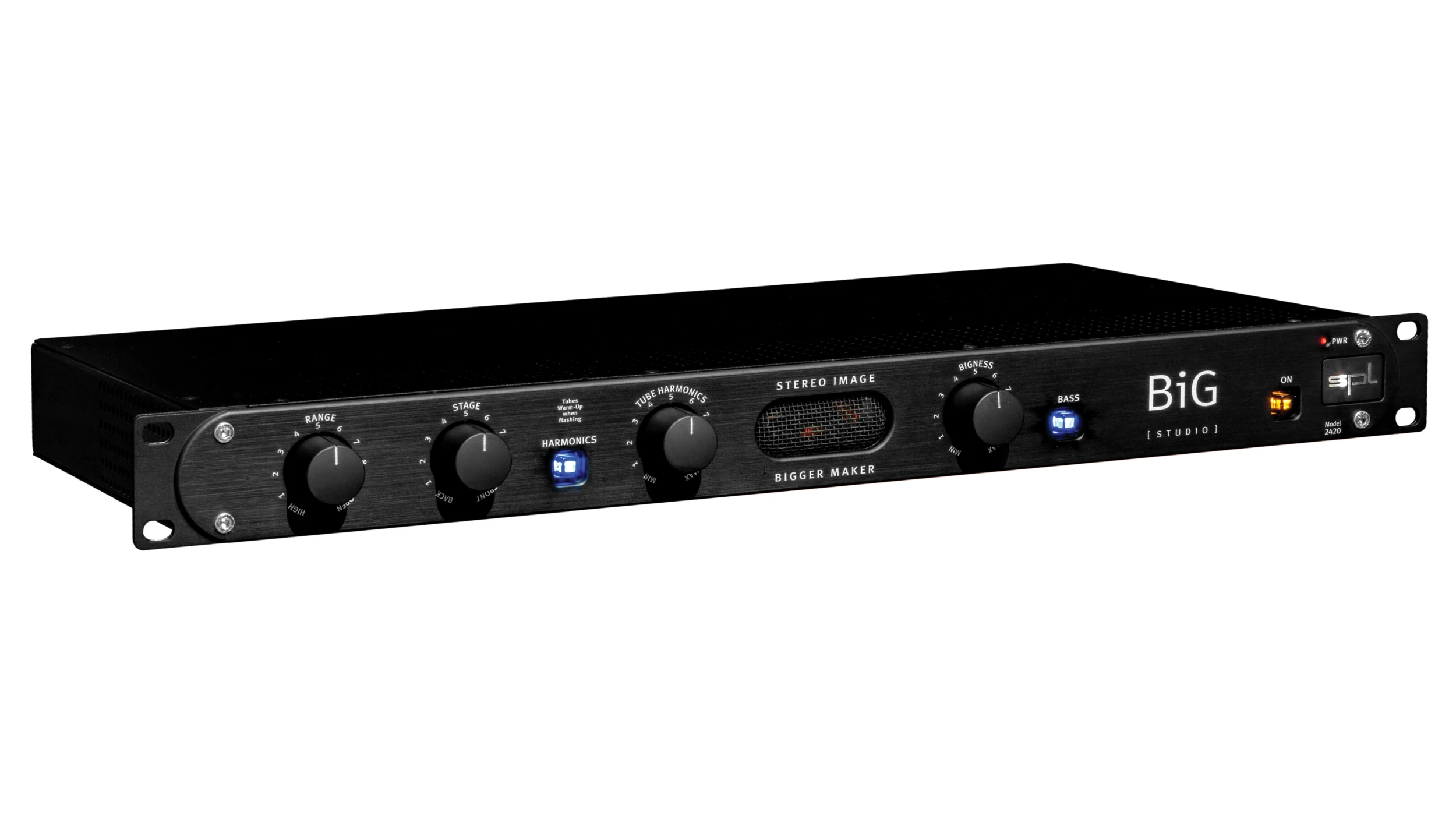

SPL BiG Studio
The Stereo Image Bigger Maker in 19″ rack format

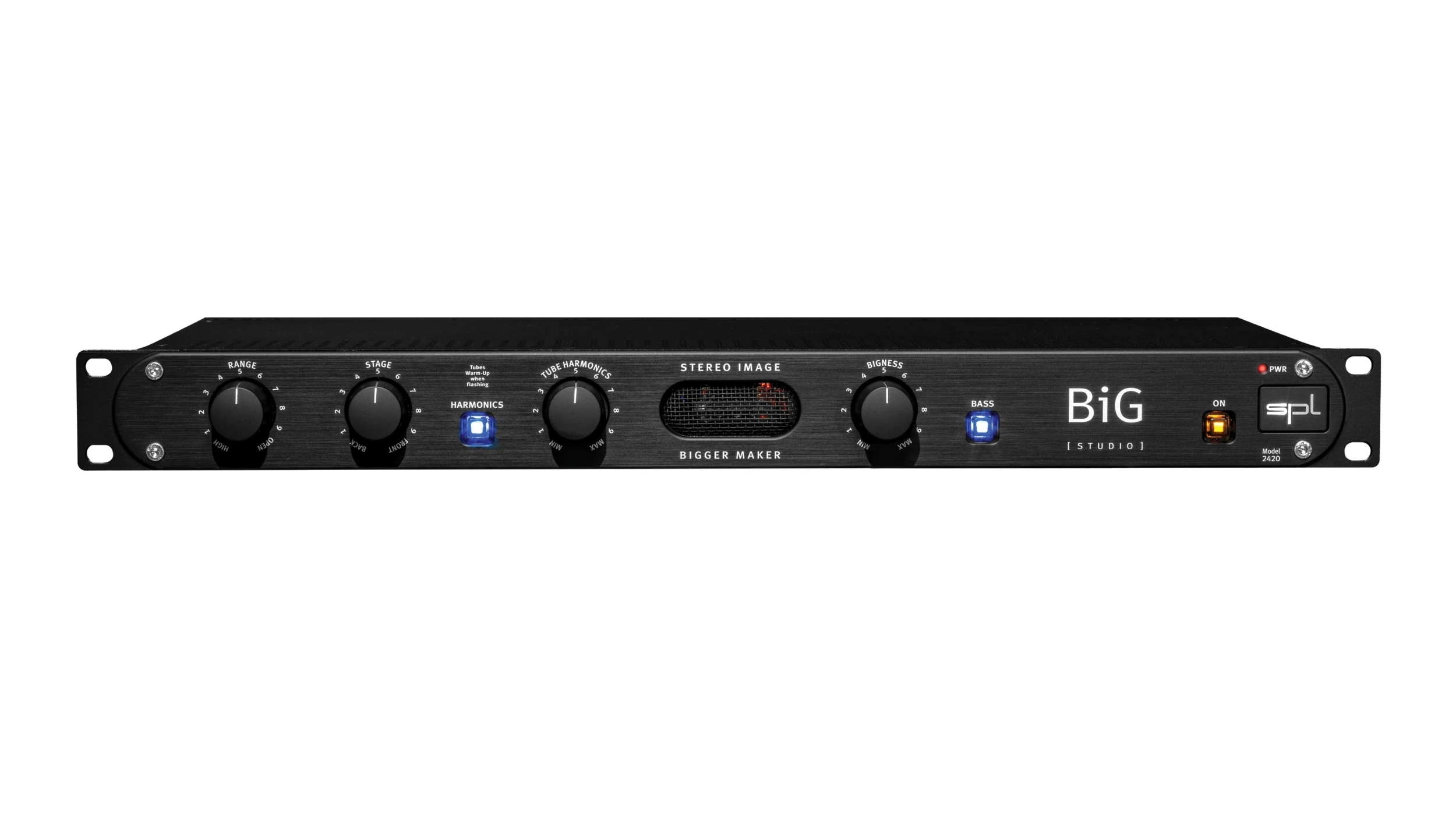

BiG [Studio] spectacularly enlarges the stereo image and opens up new creative ways of sound shaping. BiG [Studio] expands the possibilities of sound shaping with a new tube circuit. The Tube Harmonics control refines the harmonic spectrum of every signal, making it more vivid, detailed and increased in size – bigger than life! Visually, BiG [Studio] sports the black design of the SPL Studio series. The internal audio voltage of +/-18V ensures great sound!

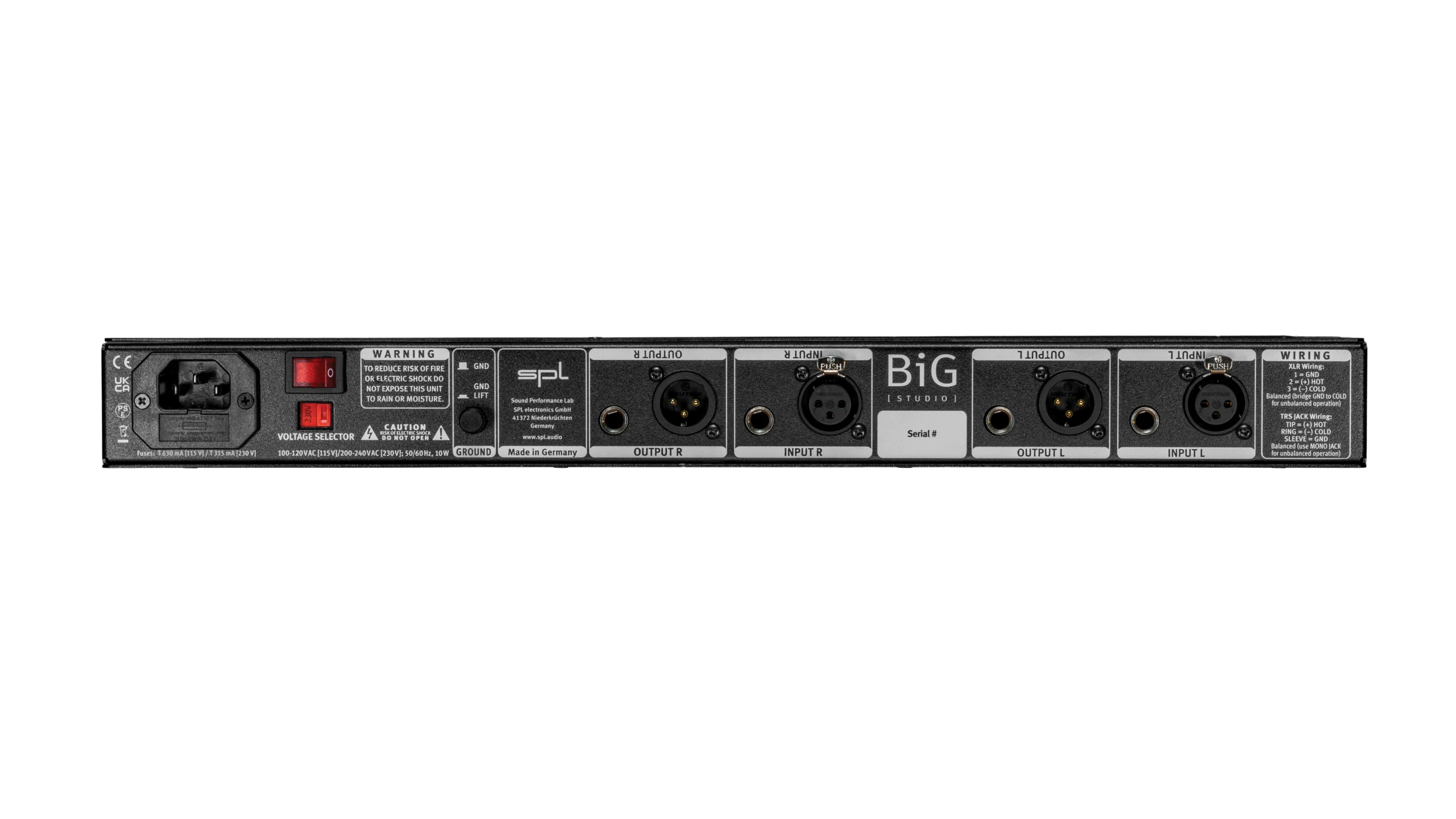

Analog inputs & output: XLR & TRS Jack (all balanced)
Maximum input and output gain: 22,5 dBu
Input impedance: 20 kΩ
Output impedance: 112 Ω
Frequency range (-3 dB): 10 Hz–200 kHz
THD + N (0 dBu, 10 Hz–22 kHz): 0,0035 %
Noise (A-weighted): -97,5 dBu
Dynamic range: 120 dB
Bass frequency: 42 Hz
Bass boost: 2 dB
Internal Linear Power Supply with Shielded Toroidal Transformer
Operating voltage for analog audio: +/-18 V
Operating voltage LEDs & Relays: +12 V
Tubes anode voltage: +250 V
Tubes heating voltage: +12,6 V
Mains Power Supply
Mains voltage (selectable): 230 V AC / 50 Hz; 115 V AC / 60 Hz
Fuse for 230 V: T 312 mA
Fuse for 115 V: T 630 mA
Power consumption: max. 9,9 VA
Dimensions & Weight
W x H x D (width x height x depth): 482 x 44 x 210 mm
Unit weight: 3.85 kg
Shipping weight (incl. packaging): 4.9 kg
