Frequency Range 10 Hz to 40 kHz
Inputs
Input Impedance: 20 Kilohms
Max. Input Level: +32.5 dBu
Outputs
Output Impedance: 20 Ohms
Max. Output Level: +32.5 dBu
Audio
CMRR (at 0 dBu): 80 dB (1 kHz), 65 dB (10 kHz)
THD & N (at 0 dBu): 82 dB
Noise (A-weighted): -98 dBu
Total Harmonic Distortion (THD)
At -10 dBu: 0.3% at 100 Hz, 0.06% at 1 kHz, 0.02% at 15 kHz
At 0 dBu: 0.01%
At +10 dBu: 0.002%

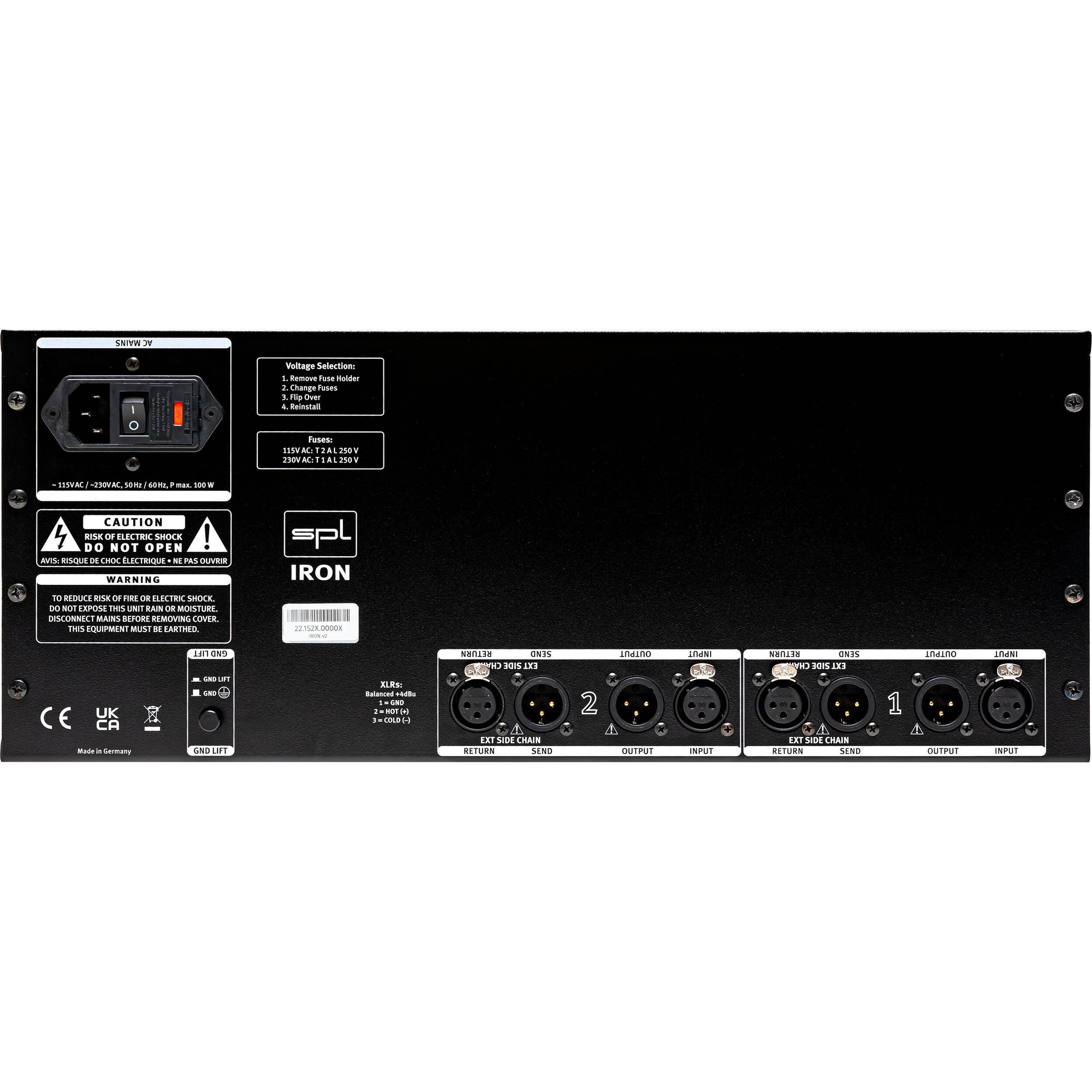

Inputs/Outputs
Audio I/O
2x XLR 3-Pin Input
2x XLR 3-Pin Output
2x XLR 3-Pin Output (Side-Chain Send)
2x XLR 3-Pin Input (Side-Chain Return)
Power
Power Source AC Input
AC Input Power 115 to 230 VAC, 50 / 60 Hz
Power Consumption 44 W (Maximum)
Operating Current 0.46 A (Maximum)
Physical
Mounting 1x Rackmount
Color Black
Dimensions 19 x 11.8 x 7" / 48.2 x 30 x 17.7 cm
Weight 24.3 lb / 11 kg
