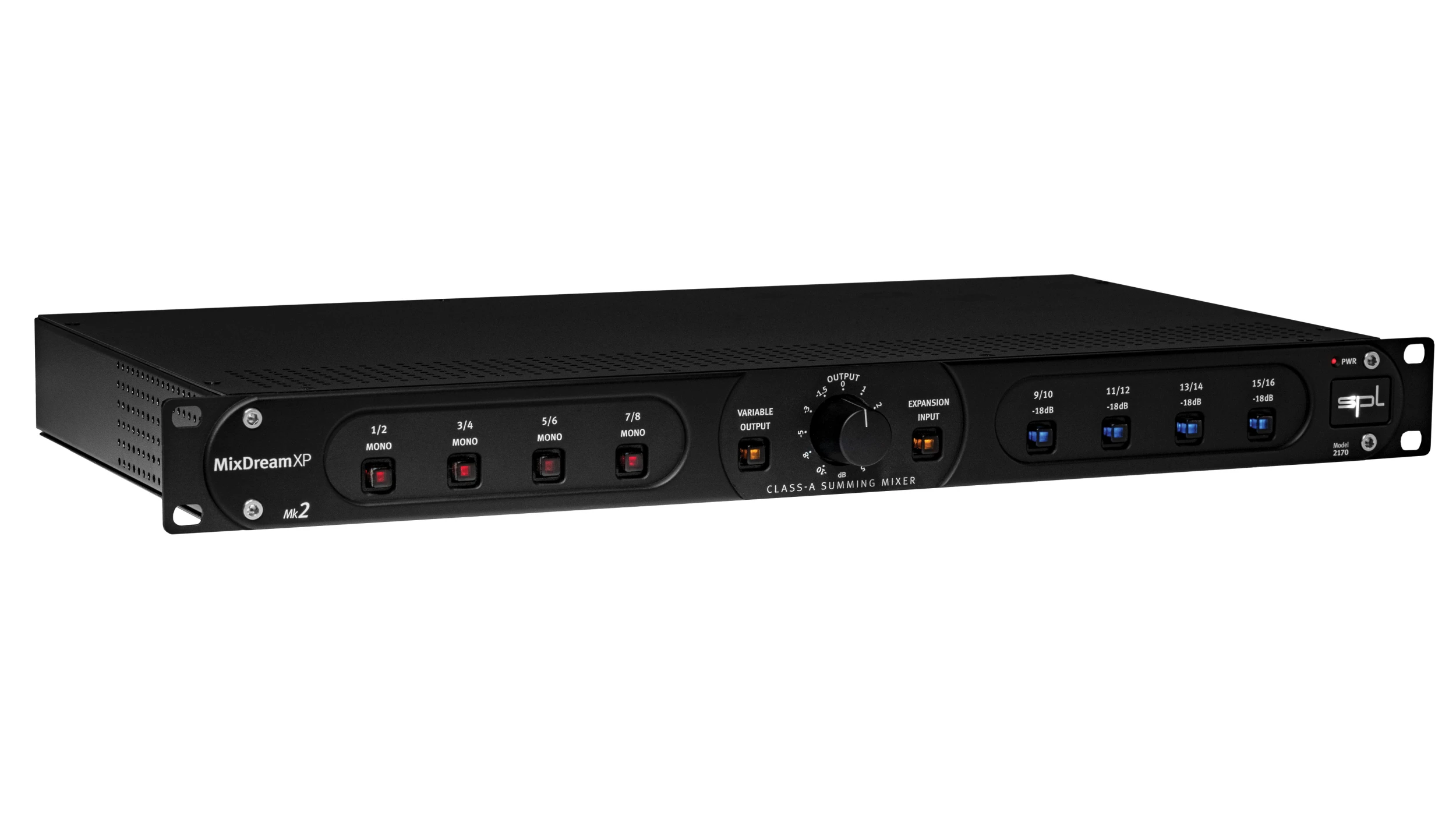

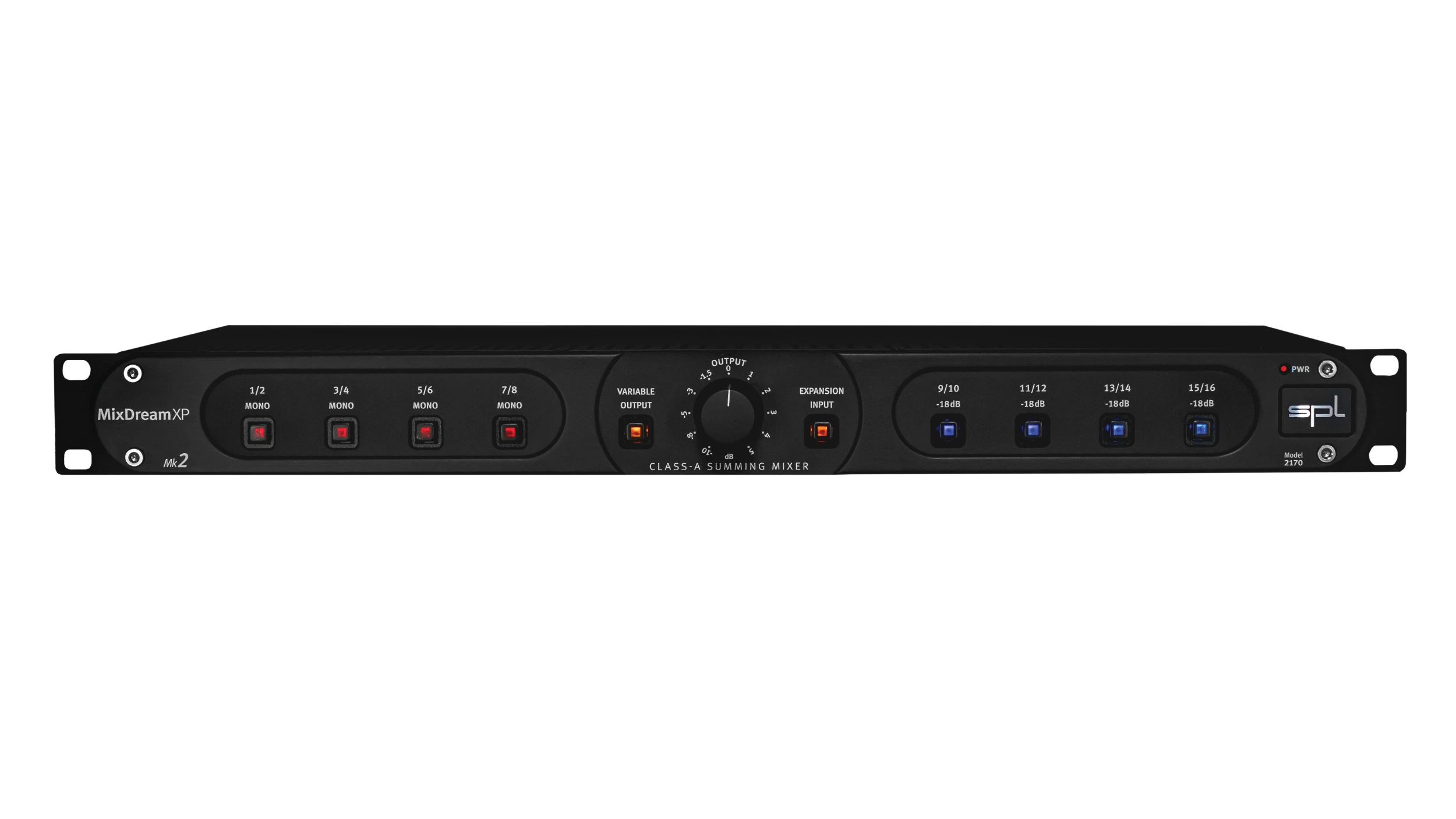

SPL MixDream XP Mk2
The puristic summing mixer with Class A technology.
As an analog 16-in-2 Class A summing device, MixDream XP Mk2 offers impressive sound quality and brings together single tracks in a musical way. The spatial depth of the stereo stage and the harmonic coherency of the summed signals make mixing through an analog summing device a very special experience. The Mk2 generation of the MixDream XP offers the same outstanding audio quality as its predecessor thanks to the internal audio operating voltage of +/-30 V. In addition to the new design and an even better feel, the MixDream XP Mk2 offers another new feature: the individually switchable -18 dB level attenuation for the last four stereo channels. This is how the analog summing gets the best out of every mix!

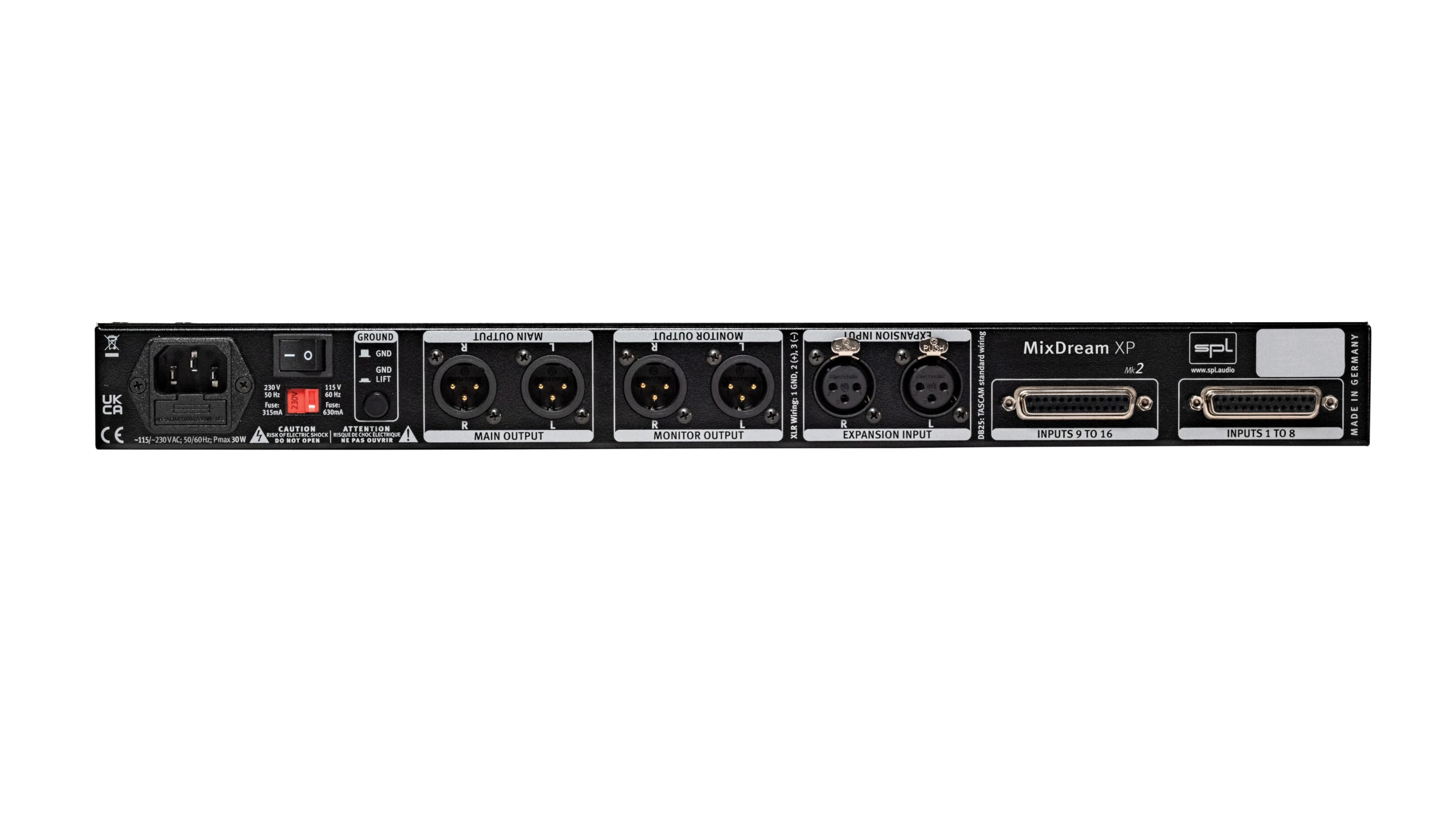

Analog inputs & output; XLR & DB25 (balanced)
Maximum input & output gain: 28 dBu
Input impedance: 10 kΩ
Output impedance: 82 Ω
Common mode rejection (1 kHz, +10 dBu): <70 dB
Frequency range: 10 Hz – 200 kHz
THD + N (A-weighted, all channels active): -95 dBu
Noise (A-weighted, all channels active): -97 dBu
Crosstalk (1 kHz, +10dBu): -90 dB
Dynamic range: 125 dB
Internal Linear Power Supply with Shielded Toroidal Transformer
Operating voltage for analog audio: +/-30 V
Operating voltage for relays and LEDs: +12 V
Mains Power Supply
Mains voltage 230 V (selectable): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V: T 315 mA
Fuse for 115 V: T 630 mA
Power consumption: max. 30 VA
Dimensions & Weight
W x H x D (width x height x depth): 482 x 44 x 237 mm
Unit weight: 3.55 kg
Shipping weight (incl. packaging): 4.9 kg
