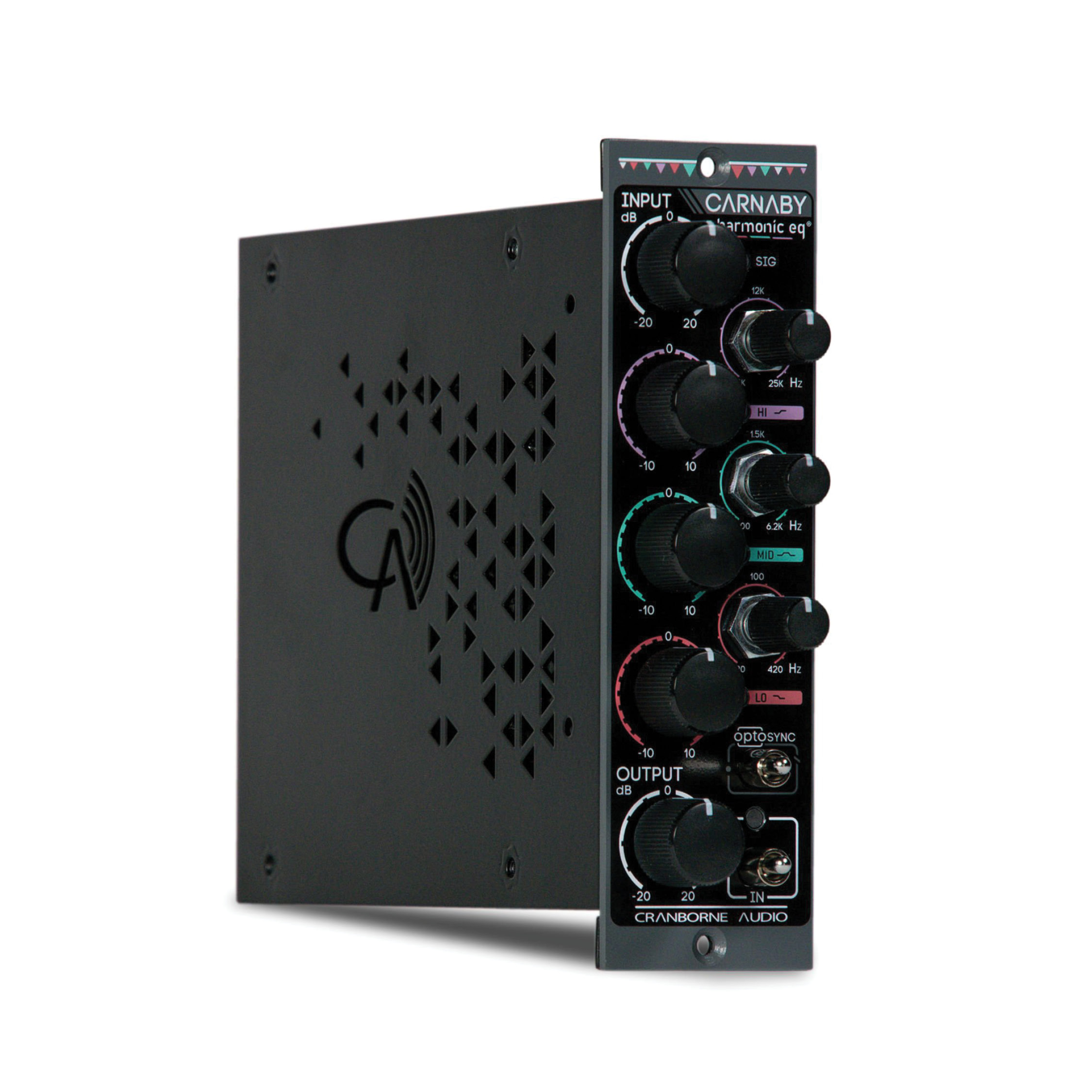

Cranborne Audio Carnaby 500
A World First
Carnaby 500 is a 3-band parametric EQ for the 500 series format with a unique and revolutionary EQ concept conceived and created by Cranborne Audio. Carnaby 500 is the world’s first Harmonic EQ™ - an analogue EQ that uses harmonic saturation to boost and cut frequency content. It enhances your sources, stems and mixes with genuine analogue harmonic saturation with the feel, familiarity, and control of an equaliser.
Technical Data
Test Signal Path: APx555 (Line Out) - Input - Line Output - APx555 (Line In)
Max Input Level: +26dBu (<0.003% THD)
Max Output Level: +26dBu (<0.003% THD)
Noise Floor: <-93dBu all bands bypassed
Input Impedance: Line = 10 kOhms
Output Impedance: Line = 150 Ohms
Current Draw: 140mA per rail - idle, 160mA peak
EQ Specifications
Hi Band
Filter Type: High Shelf Filter
Frequency Range: 5kHz - 25kHz
Boost/Cut:
• ±12dB, @ -6dBu
• +13dB, - 18dB, @ +14dBu
Harmonics
• ~8% THD+N (100Hz, +4dBu)
• ~12% THD+N (100Hz, +14dBu)
Mid Band
Filter Type: Peak Filter
Frequency Range: 200Hz - 6.2kHz
Boost/Cut:
• ±5dB @ -6dBu
• +10dB, - 18dB @ +14dBu
Harmonics:
• ~8% THD+N (100Hz, +4dBu)
• ~12% THD+N (100Hz, +14dBu)
Lo Band
Filter Type: Low Shelf Filter
Frequency Range: 20Hz - 420Hz
Boost/Cut:
• ±8.5dB @ -6dBu
• ±12dB @ +14dBu
Harmonics:
• ~8% THD+N (100Hz, +4dBu)
• ~12% THD+N (100Hz, +14dBu)
Environmental
Operating Temperature: +1 to 35 degrees Celsius
Storage Conditions: -20 to 50 degrees Celsius
Dims/Weights
Unit
Width: 170mm (6.6”)
Height: 31mm (1.2")
Depth: 133mm (5.2")
Unit Weight: 0.4kg (0.9 lbs)
Shipping carton
Width: 250mm (9.5")
Height: 200mm (7.8")
Depth: 100mm (4")
Carton Weight: 0.5kg (1.1lb)
