Cranborne Audio Carnaby HE2
An Evolution Of HarmonicEQ™

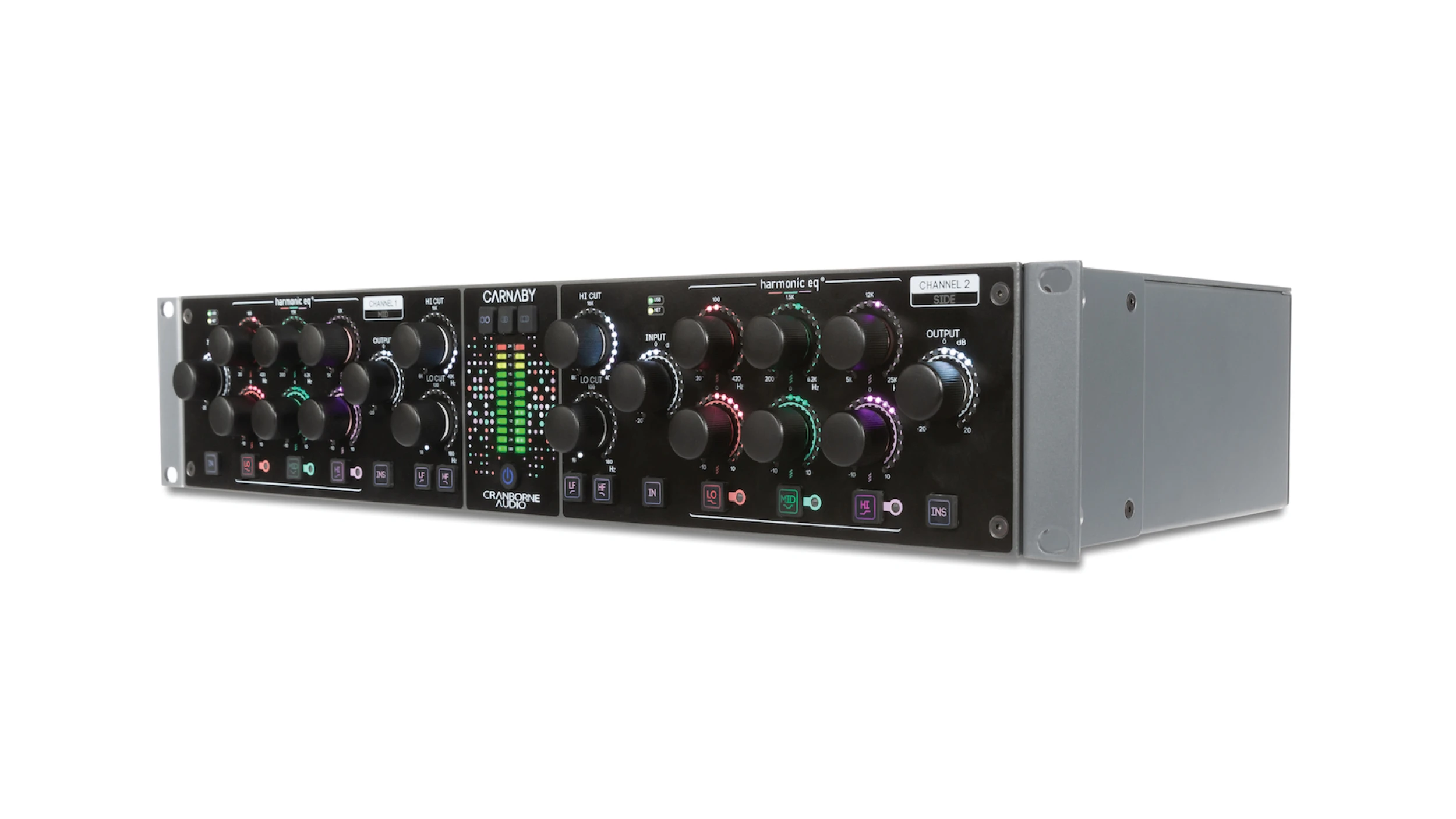

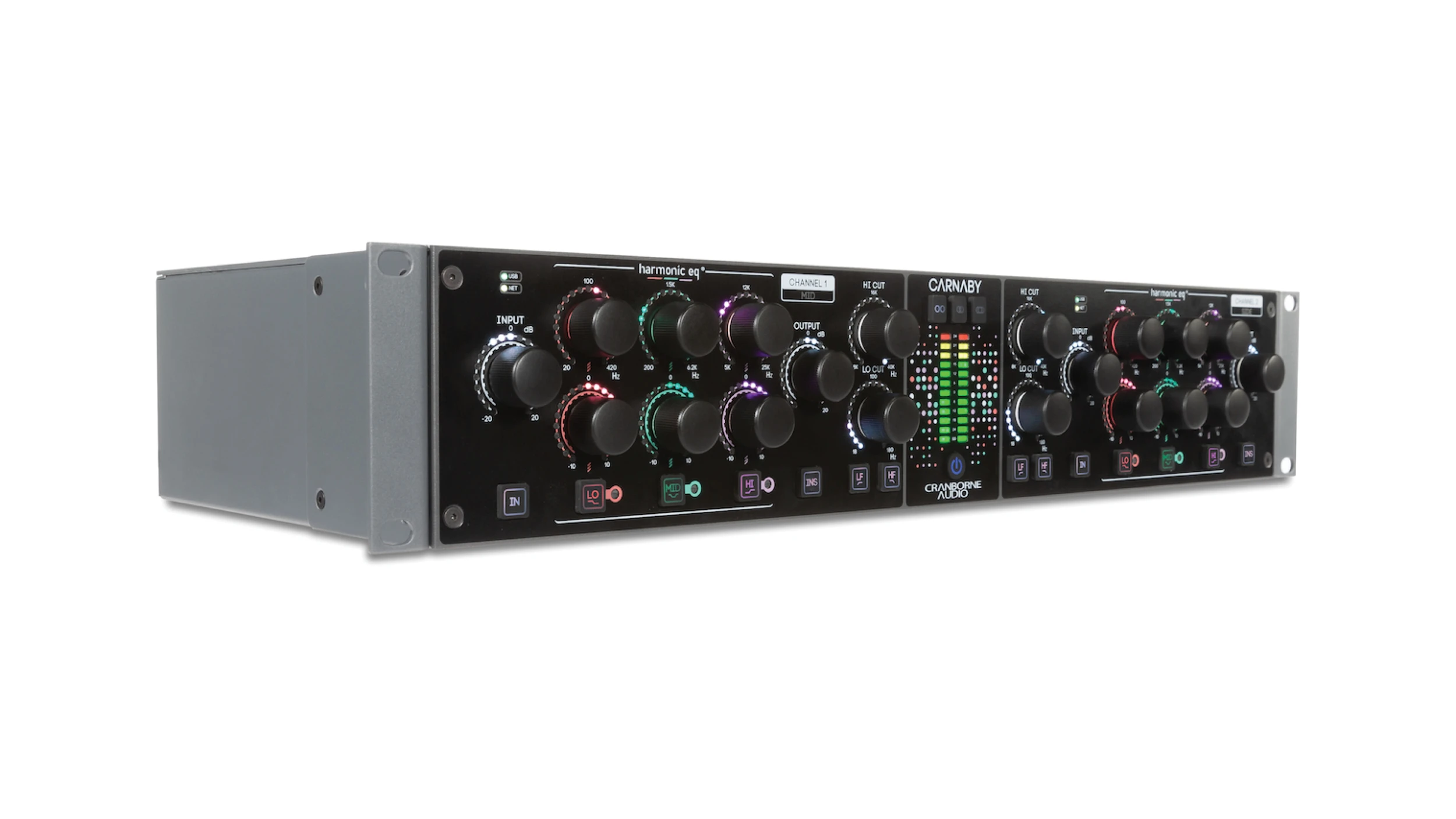

Carnaby HE2 is a 2u 19-Inch rack stereo 3-band parametric EQ – an evolution of our Carnaby 500.
Carnaby HE2 HarmonicEQ™ utilises the same unique and revolutionary EQ concept found in Carnaby 500, using harmonic saturation to boost and cut frequency content. Enhance your sources, stems and mixes with genuine analogue harmonic saturation with the feel, familiarity, and control of an equaliser. Explore how we take this concept even further.
Technical Data
Test Signal Path: APx555 (Line Out) - Input - Line Output - APx555 (Line In)
Max Input Level: +26.0dBu (<0.003% THD)
Max Output Level: +26.0dBu (<0.003% THD)
Noise Floor: <-93dBu all bands bypassed
Input Impedance: Line = 10 kOhms
Output Impedance: Line = 150 Ohms
Current Draw: 140mA per rail - idle, 160mA peak
EQ Specifications
Hi Band
Filter Type: High Shelf Filter
Frequency Range: 5kHz - 25kHz
Boost/Cut:
• ±12dB, @ -6dBu
• +13dB, - 18dB, @ +14dBu
Harmonics:
• ~8% THD+N (100Hz, +4dBu)
• ~12% THD+N (100Hz, +14dBu)
Mid Band
Filter Type: Peak Filter
Frequency Range: 200Hz - 6.2kHz
Boost/Cut:
• ±5dB @ -6dBu
• +10dB, - 18dB @ +14dBu
Harmonics:
• ~8% THD+N (100Hz, +4dBu)
• ~12% THD+N (100Hz, +14dBu)
Lo Band
Filter Type: Low Shelf Filter
Frequency Range: 20Hz - 420Hz
Boost/Cut:
• ±8.5dB @ -6dBu
• ±12dB @ +14dBu
Harmonics:
• ~8% THD+N (100Hz, +4dBu)
• ~12% THD+N (100Hz, +14dBu)
Hi Cut Filter
Type: Progressive slope low-pass filter
Slope:
• 1st order - 3db per octave
• 2nd order - 6db per octave
• 3rd order - 12dB per octave
Frequency Range: -3db, 8kHz -40kHz
Lo Cut Filter
Type: Progressive slope high-pass filter
Slope:
• 1st order - 6db per octave
• 2nd order - 12db per octave
• 3rd order - 18dB per octave
Frequency Range: -3db, 18Hz -180Hz
1/4" TRS Inserts
Type: Balanced, dedicated send & return, normalled
Config: Post M/S encoding & Carnaby, pre M/S decoding
Max Input Level (return): +26.0dBu (<0.003% THD+N)
Max Output Level (send): +26.0dBu (<0.003% THD+N)
Mid/Side
Type: Encoder/decoder
Matrix: Sum-difference matrix
Environmental
Operating Temperature: +1 to 35 degrees Celsius
Storage Conditions: -20 to 50 degrees Celsius
Environmental
Operating Temperature: +1 to 35 degrees Celsius
Storage Conditions: -20 to 50 degrees Celsius
Dims/Weights
Unit
Width: 48.3cm (19”) (Rackmount)
Height: 8.9cm (3.5") (2u)
Depth: 23.6cm (9.3")
Unit Weight: 6kg (13lbs)
Shipping carton
Width: 60cm (23.6")
Height: 18cm (7")
Depth: 35cm (13.8")
Carton Weight: 6.5 kg (14 lbs)
