Manley Massive Passive, our flagship EQ
Since its introduction, the Manley Massive Passive has redefined passive tube equalization: organic, musical, and unmistakably powerful. Hand-built in California, it combines metal-film resistors, film capacitors, and hand-wound inductors with all-tube makeup gain stages, to deliver unparalleled tonal sculpting for tracking and mastering. In combination with a Manley Backbone Mastering Matrix this EQ becomes an audio engineer's dream in M/S mode!
Specifications 2020 Version Driven by Manley Power®

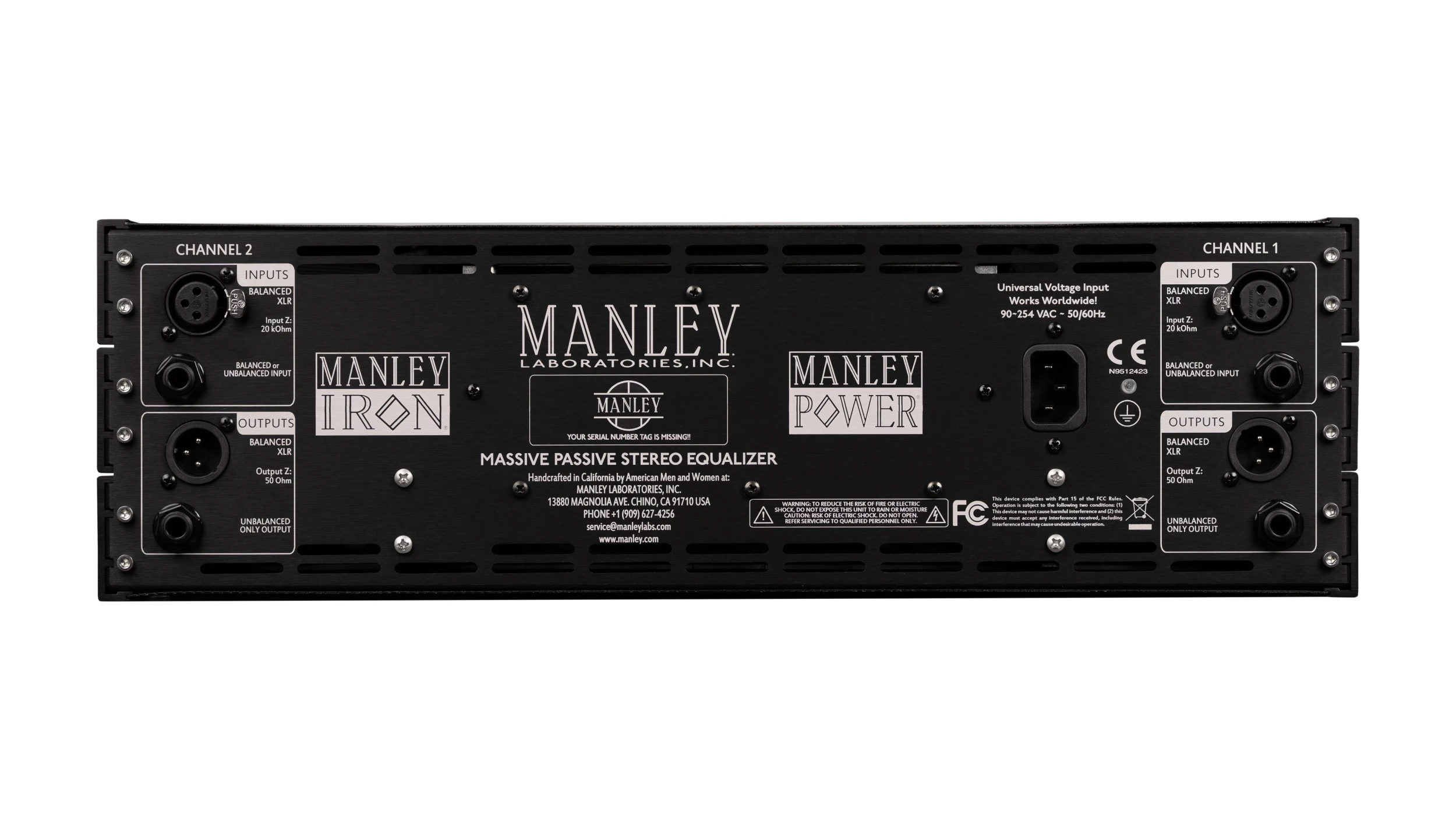

Inputs: Balanced XLR & 1/4†(accepts unbalanced)
Outputs: Balanced XLR (accepts unbalanced) & Unbalanced 1/4â€
Level +4 dBu nominal
Bypass Switch bypasses EQ & tube circuits: 1/4†Jacks (not hardwire)
Bypass Switch bypasses EQ, tube circuits & Input Buffer: XLR Jacks (Hardwire Bypass)
Gain Trim: -6dB - 0dB - +4dB
44 Frequencies (roughly 1/4 octave spacing)
Frequency Range: 22 Hz to 27 kHz
EQ Boost/Cut Range: Maximum 20 dB boost or cut
Nominal Q range: 1.5 to 3 (uniquely active in shelf modes)
Maximum Input Level: +21dBu
Maximum Output Level (1kHz sine, 1% THD+N, BW 22Hz-22kHz, Load 100kOhms): +35dBu
Frequency Response (@ +4dBu, Load 100kOhms): -0.1 dB @ 10Hz, -1 dB @ 60 kHz
Total Harmonic Distortion (THD+N) (1kHz sine @ +4dBu, BW 22Hz-22kHz): 0.006%
Output Headroom (Reference to +4dBu): 31dB
Dynamic Range (Reference to Maximum Output): 123 dB
Noise Floor Typical (Unity Gain): -88 dBu (A-Weighted)
Signal to Noise Ratio (Reference to +4 dBu, BW 22Hz-22kHz): 92dB
Input Impedance: 20kOhm
Output Impedance: 150 Ohm

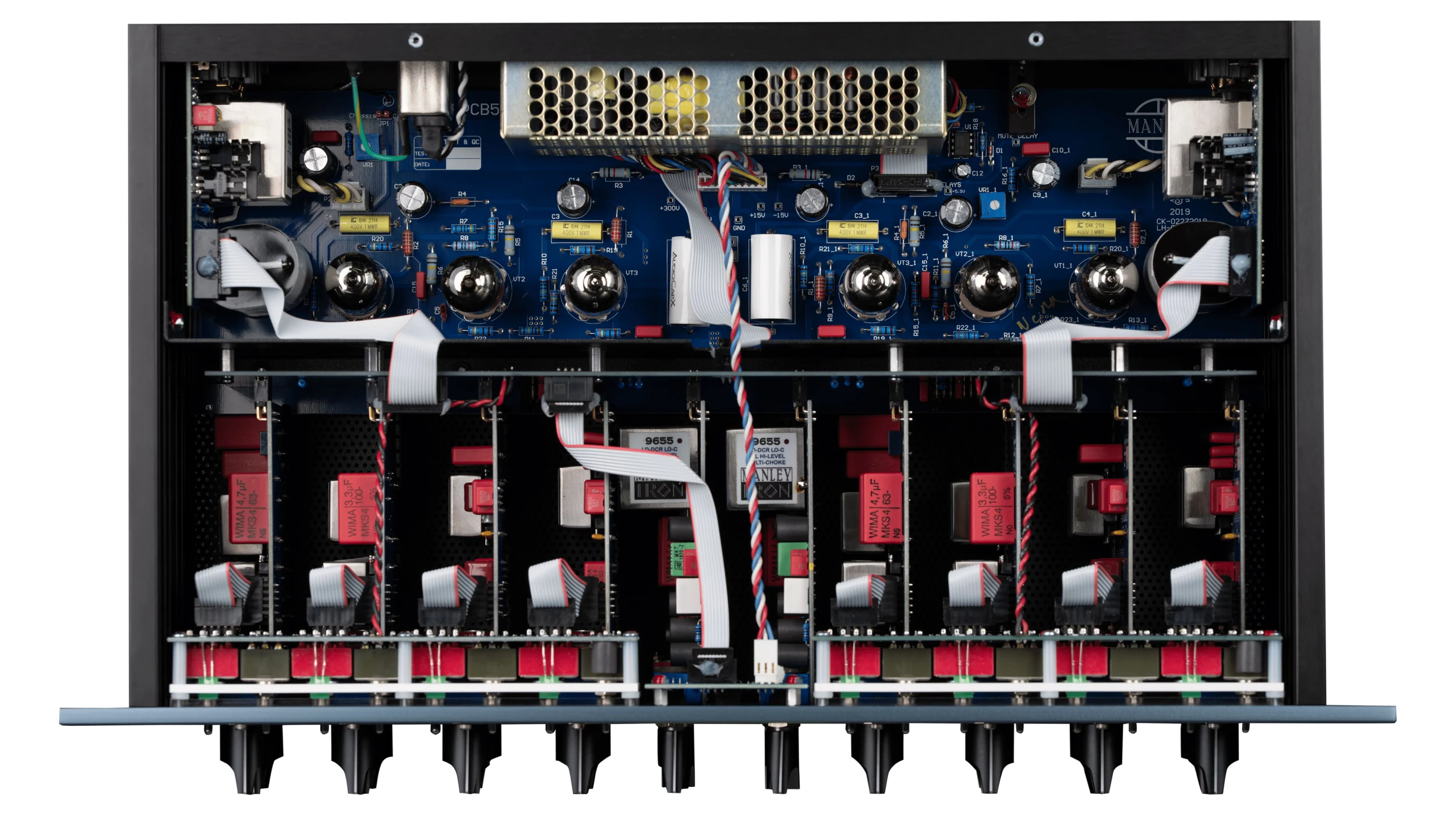

Tube Complement: 2 x 5751, 4 x 6922
Auto-mute warmup delay = 20 seconds
Power Consumption (120/240VAC): 44 watts
Mains Voltage & Frequency (VAC/Hz): Internal Universal Power Supply 90-254 VAC / 50-60Hz
Size (3U): L 19†x W 10†x H 5.25â€
Unit Weight: 15.5 Lbs.
Shipping Box: L 23†x W 15†x H 10â€
Shipping Weight: 26 Lbs.
Features
• All-Passive tone sculpting circuitry
• Unique Shelf curves use the "bandwidth" control
• Overlapping and Interleaved Frequency choices
• Every band switchable to shelf or bell
• Vacuum tube make-up gain and line drivers
• Parallel symmetrical topology
• Premium components throughout
• Passive HP and LP Filters plus gain trims
• Units built after 2016 or 2017 MK2 revision have Hardwire Bypass.
