Cranborne Audio Brick Lane MC4

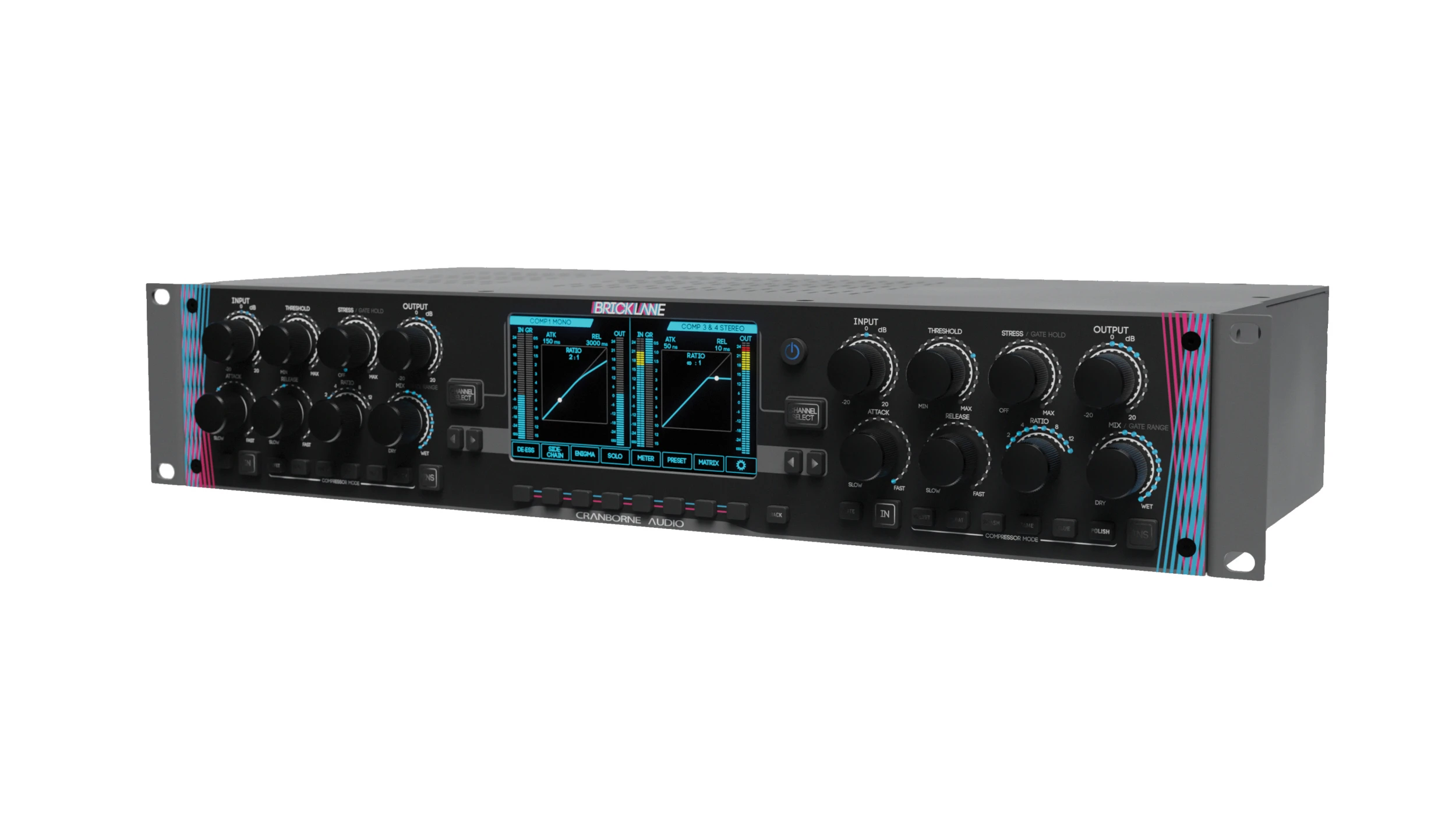

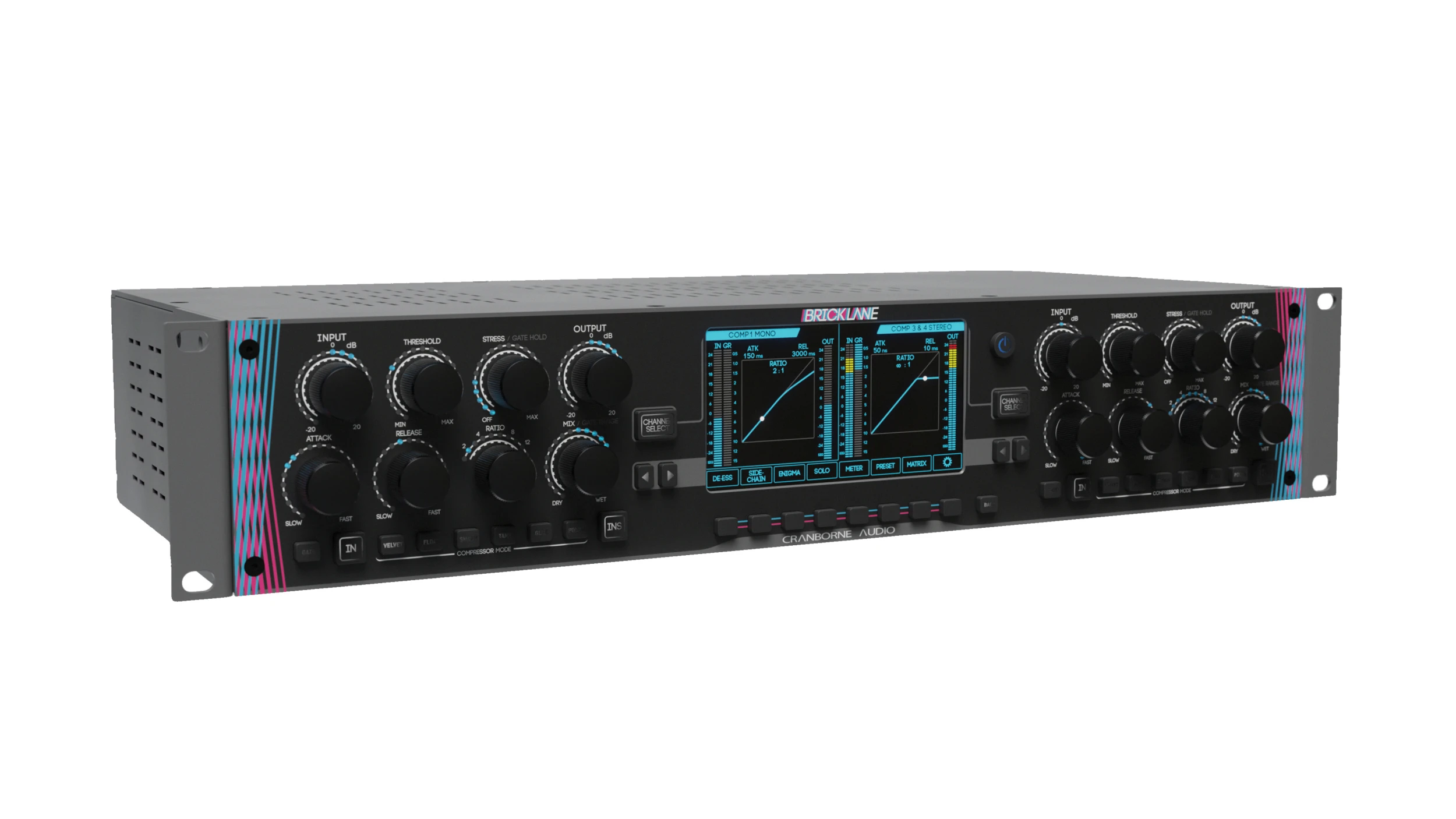

This is Brick Lane MC4
The World’s Most Advanced Analogue Dynamics Processor
Brick Lane MC4 is a 2u 19-Inch rack, 4-channel Modal PWM Dynamics Processor with Mono, Stereo, Mid/Side, Series, Dual-Band, and De-Esser operation. An evolution of our Brick Lane 500 Modal PWM Compressor.
A New Reference in Analogue Dynamics Processing
Brick Lane MC4 represents a major leap forward in analogue dynamics design — combining pure analogue PWM compression (compression+gate), multi-band saturation, and analogue lookahead technology within a digitally controlled, recallable hardware platform. Each channel features a Brick Lane MC4 Modal PWM compressor with six distinct compression modes, alongside an enhanced noise gate with analogue lookahead.
Technical Data
Test Signal Path: APx555 (Line Out) - Input - Line Output - APx555 (Line In)
Max Input Level: +24dBu (<0.003% THD)
Max Output Level: +26.5dBu (<0.003% THD)
Frequency Response: ±0.5dB, 2 Hz - 80 kHz
Noise Floor: <-100dBu (unweighted)
Dynamic Range: >118dB
Input Impedance: Line = 43 kOhms
Output Impedance: Line = 150 Ohms
PSU Type: Internal Mains
Compression Specifications
Compression
Compression Element: Pulse Width Modulation
Switching Frequency: 250kHz
Distortion (THD):
• 0dB Gain Reduction - <0.0006% THD+N, <0.00025% THD
• 5dB Gain Reduction - <0.00085% THD
• 10dB Gain Reduction - <0.00085% THD
• 20dB Gain Reduction - <0.00085% THD
Harmonics (Stress Control): <20% THD depending on conditions
Frequency Range: 200Hz - 6.2kHz
Sidechain Detection HPF: Selectable - 60Hz, 100Hz, 200Hz, OFF
Minimum Attack Time (Standard): 6 nanoseconds (2 microseconds processing delay)
Minimum Attack Time (POLISH mode with Analogue Lookahead enabled): 6 nanoseconds (0 nanoseconds processing delay @ 20kHz)

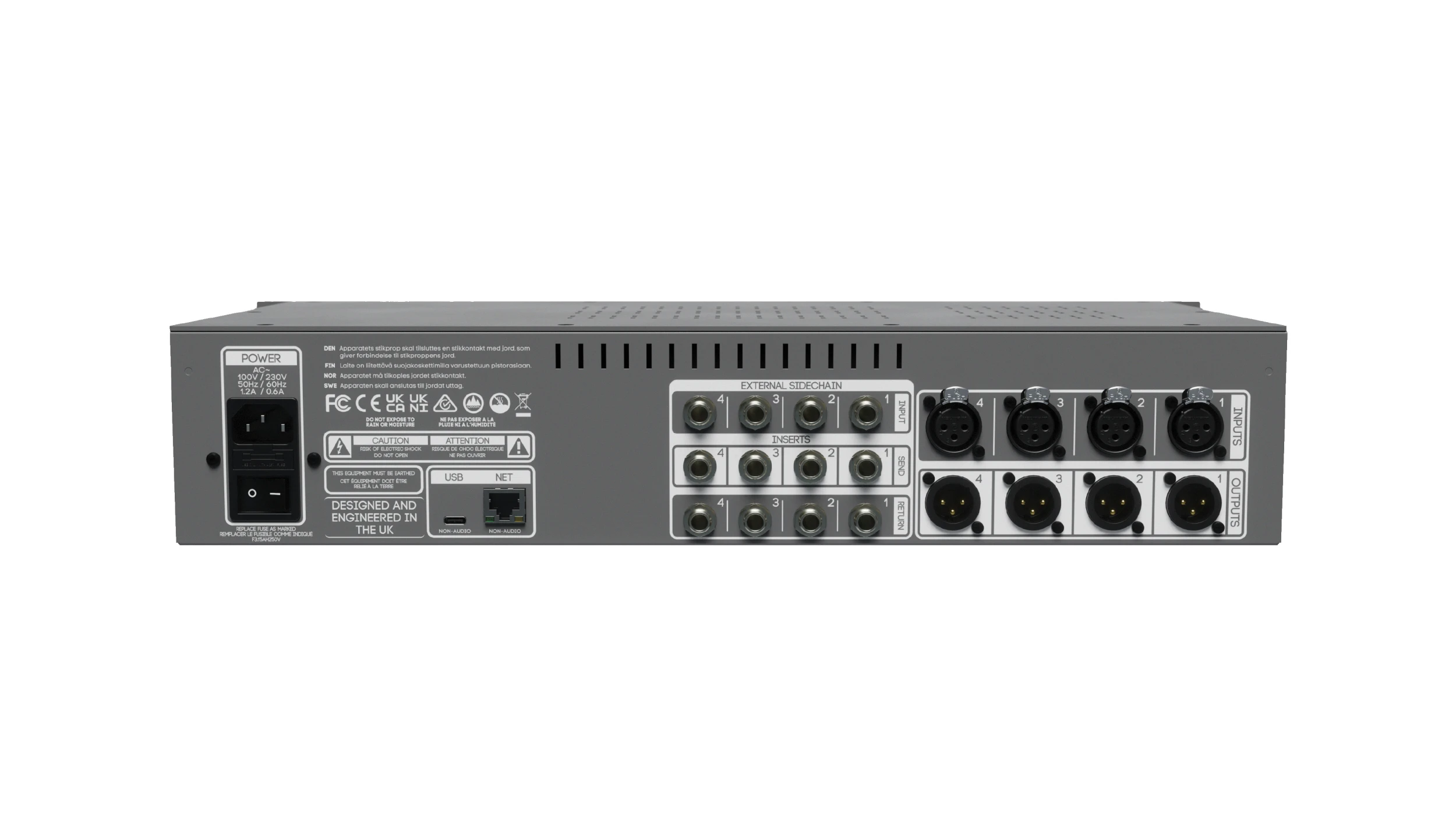

1⁄4” TRS Inserts
Type: Balanced, dedicated send & return, normalled
Config: Post M/S encoding & Compressor, pre M/S decoding
Max Input Level (return): +26.0dBu (<0.003% THD+N)
Max Output Level (send): +26.0dBu (<0.003% THD+N)
Mid/Side
Type: Encoder/decoder
Matrix: Sum-difference matrix
Environmental
Operating Temperature: +1 to 35 degrees Celsius
Storage Conditions: -20 to 50 degrees Celsius
Dims/Weights
Unit
Width: 48.3cm (19”) (Rackmount)
Height: 8.9cm (3.5") (2u)
Depth: 23.6cm (9.3")
Unit Weight: 6kg (13lbs)
Shipping carton
Width: 60cm (23.6")
Height: 18cm (7")
Depth: 35cm (13.8")
Carton Weight: 6.5 kg (14 lbs)
