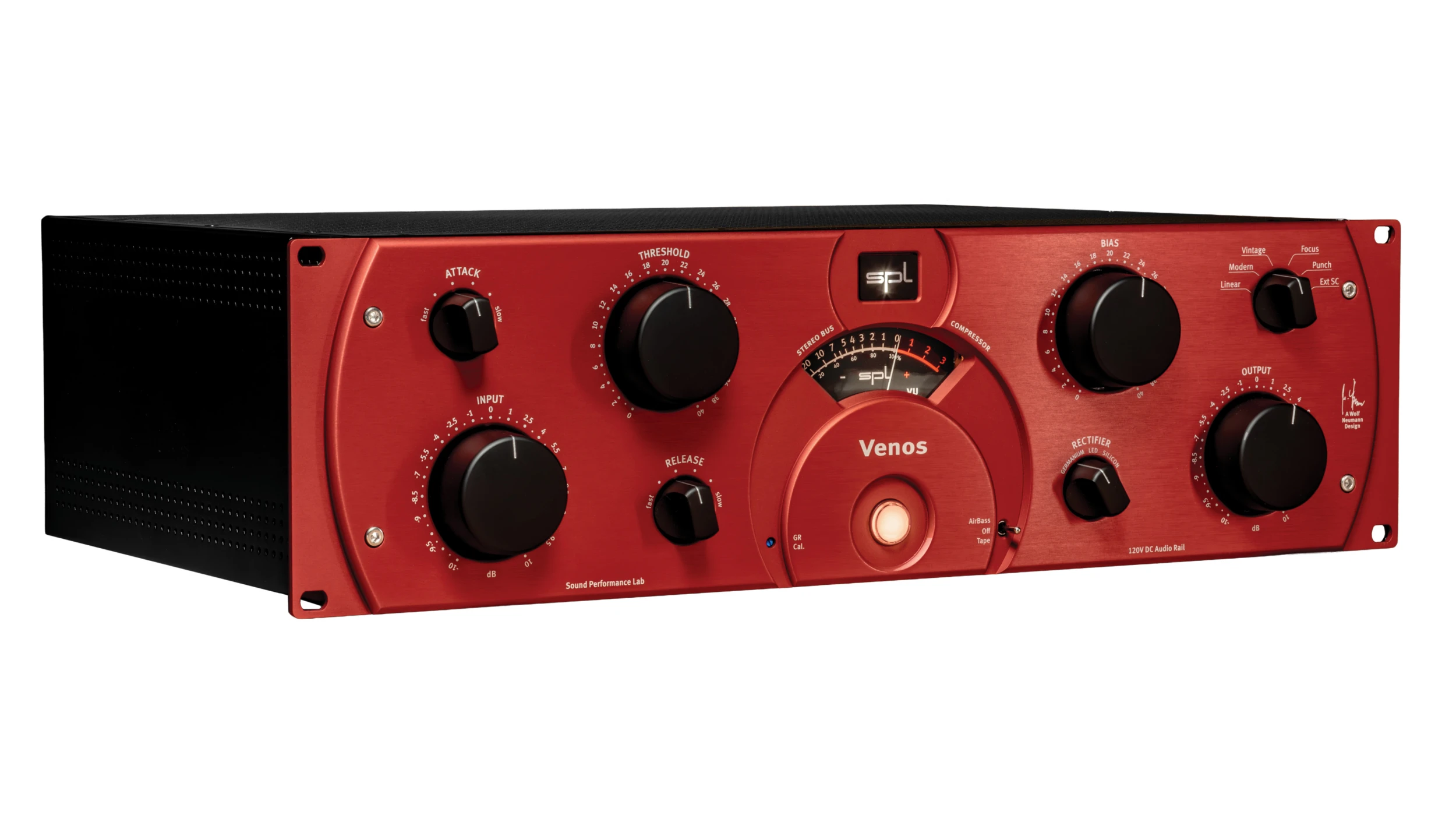

SPL Venos Red
Stereo Bus Compressor
Adding size, depth and impact to a stereo signal has never been easier. The Venos stereo bus compressor is based on the same design as many legendary vintage tube compressors. Venos expands this impressive sonic signature with two revolutionary hyper-compression modes, opening up new dimensions of sound. With SPL 120V technology this sound is crowned to king of dynamics.

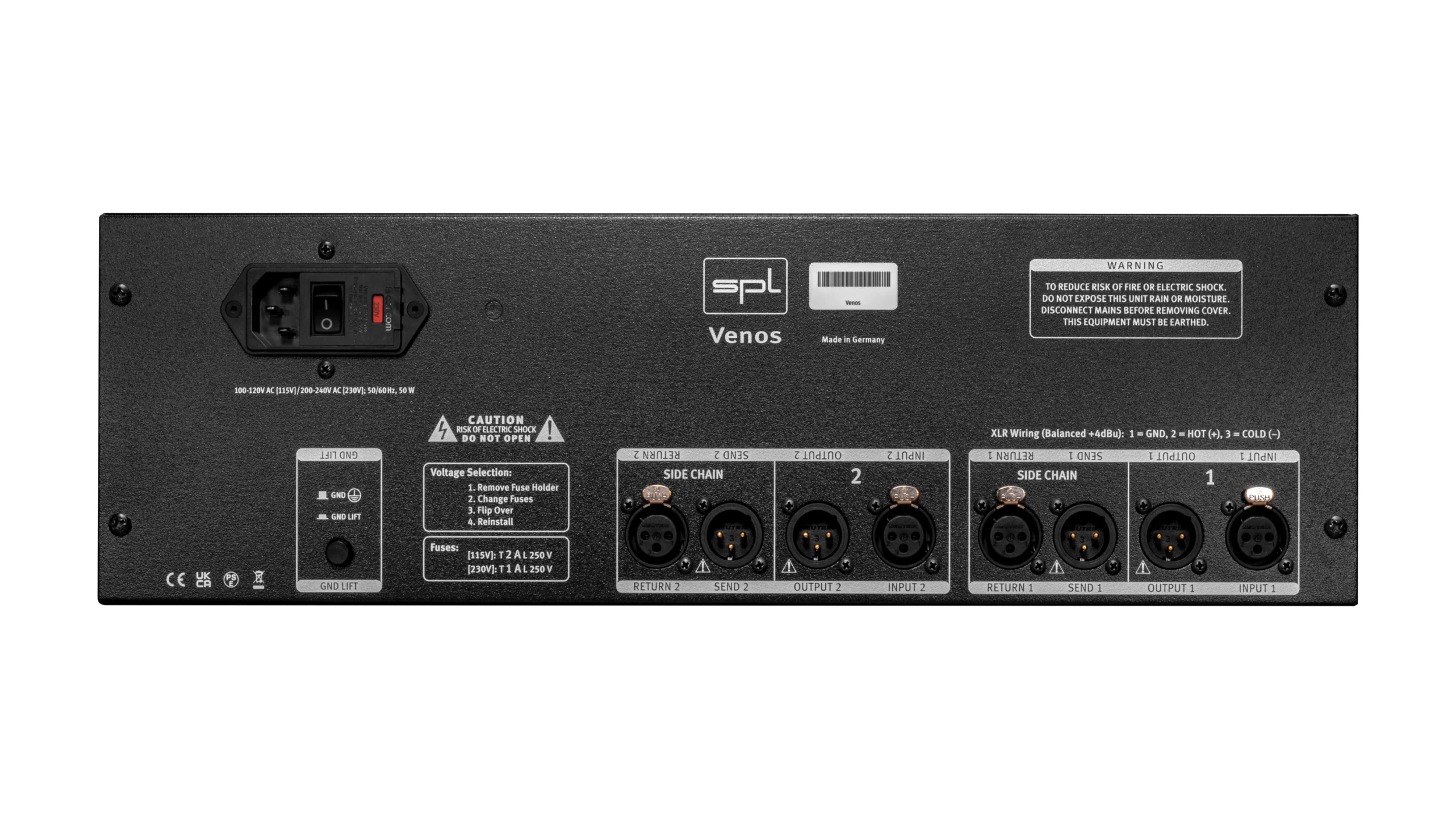

Analog inputs & output; XLR (balanced)
Maximum input & output gain: 32.5 dBu
Input impedance: 20 kΩ
Output impedance: 75 Ω
Frequency range: 10 Hz–40 kHz
Crosstalk: -108 dBu
THD (+10 dBu): 0.002 %
Noise (A-weighted): -98 dBu
Internal Linear Power Supply with Shielded Toroidal Transformer
Operating voltage for analog audio: +/- 60 V
Operating voltage for relays and LEDs: +12 V
Mains Power Supply
Mains voltage (selectable, see fuse chamber): 230 V AC / 50 Hz; 115 V AC / 60 Hz
Fuse for 230 V: T 1 mA
Fuse for 115 V: T 2 mA
Power consumption: max. 47 VA
Dimensions & Weight
W x H x D (width x height x depth): 482 x 132 x 300 mm mm
Unit weight: 3.85 kg
Shipping weight (incl. packaging): 4.9 kg
