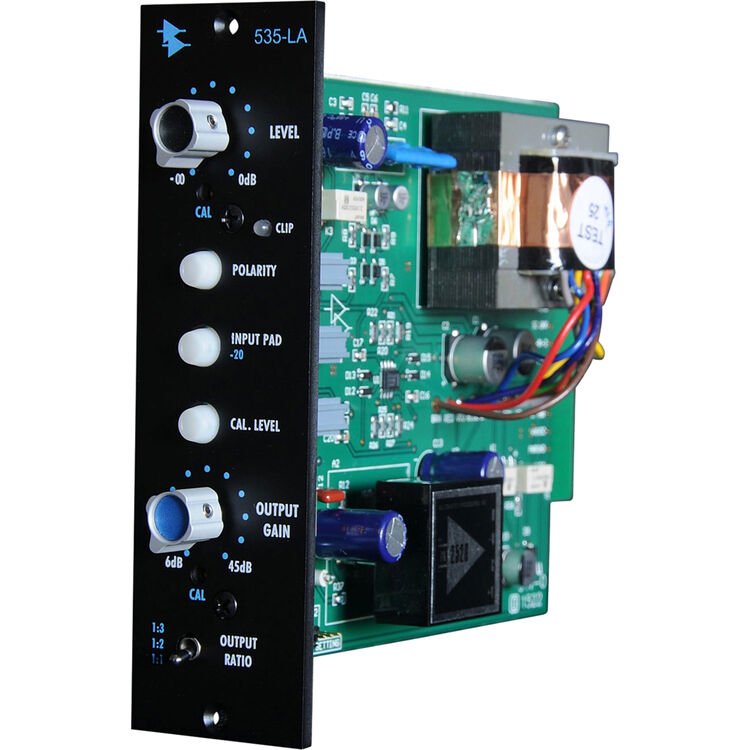

API AUDIO 535 LA

Šifra: 21677

Obavesti me ako cena padne Postavi pitanje

Opcija:

Ideal for boosting and warming up a wide range of signals, the API Audio 535-LA is a 500-series line amplifier module with 31-position detented input trim and continuously variable output level control. With discrete 2510 and 2520 op-amps and API's proprietary transformers, this module offers classic API character and warmth and in a compact and portable package.

General

Gain Control	Infinity to 53 dB
Maximum Input Level	+32 dBu (Balanced, with Pad Engaged)
Maximum Output Level	+32 dBu (Max, Balanced, at 1 kHz)
Input Impedance	>20 Kilohms (4 Kilohms with Pad Engaged)
Output Impedance	<75 Ohms
Frequency Response	30 Hz to 20 kHz
Noise Floor	-85 dBu
THD + N	0.006%

Power

Power Source	Proprietary Interface
DC Input Power	16 VDC
Operating Current	55 mA

Physical

Mounting	Front: 2x 500-Series Rack Screw
Color	Black
Material of Construction	Metal
