Behringer 73 Preamp
Šifra: 21841

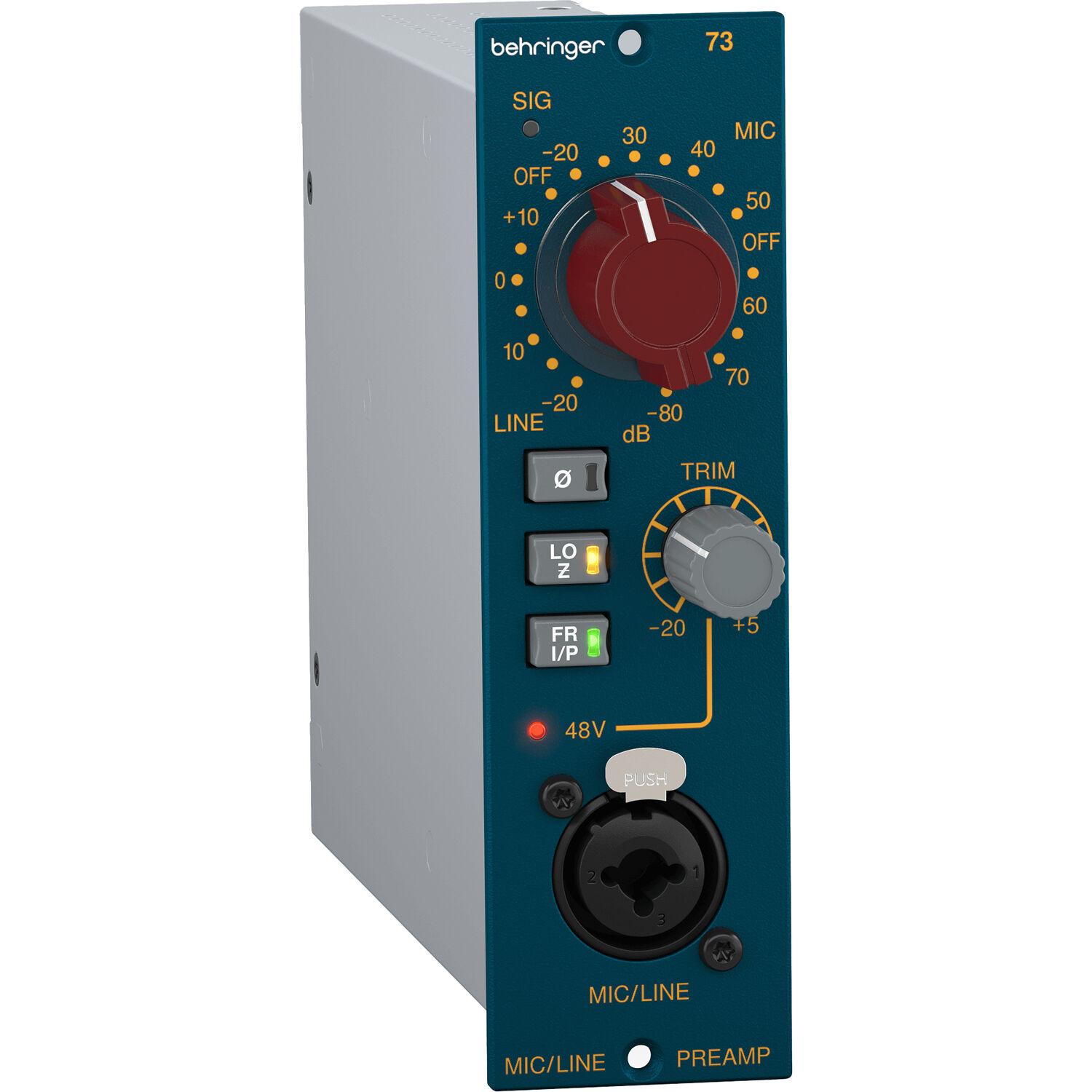

The Behringer 73 is a single-channel, 500-series microphone preamplifier designed as an affordable recreation of the classic Neve 1073. Released in March 2025, it uses a discrete Class A circuit and custom-built Midas transformers on both the input and output stages to deliver the warm, mid-forward character of the original vintage units.
| Kategorija | Specifikacija | Detalji |
|---|---|---|
| Tip kola | Arhitektura | Diskretna Klasa A (bez integrisanih kola) |
| Transformatori | Ulaz/Izlaz | Prilagođeni Midas transformatori |
| Pojačanje (Gain) | Opseg | Do 80 dB (resistor-stepped u koracima od 5 dB) |
| Frekvencijski odziv | Raspon | 20 Hz do 20 kHz ($\pm$0.5 dB) |
| Ulazna impedansa | Mic (Switchable) | 300
|
| Maks. ulazni nivo | Mic / Line | +10 dBu (Mic) / +28 dBu (Line) |
| Maks. izlazni nivo | Izlaz | +28 dBu (100 k
|
| Distorzija (THD+N) | Ukupna | < 0.07% (@ +4 dBu, 50 Hz - 20 kHz) |
| Šum (EIN) | Mic EIN | -125 dBu (unweighted, @ 80 dB gain) |
| Kontrole | Dodatne funkcije | Phase Invert, Front/Rear Input, Trim (-20 do +5 dB) |
| Napajanje | Potrošnja | +16 V (< 200 mA), -16 V (< 15 mA) |
| Dimenzije/Težina | Fizika | 132 x 38 x 176 mm / 1.1 kg |
